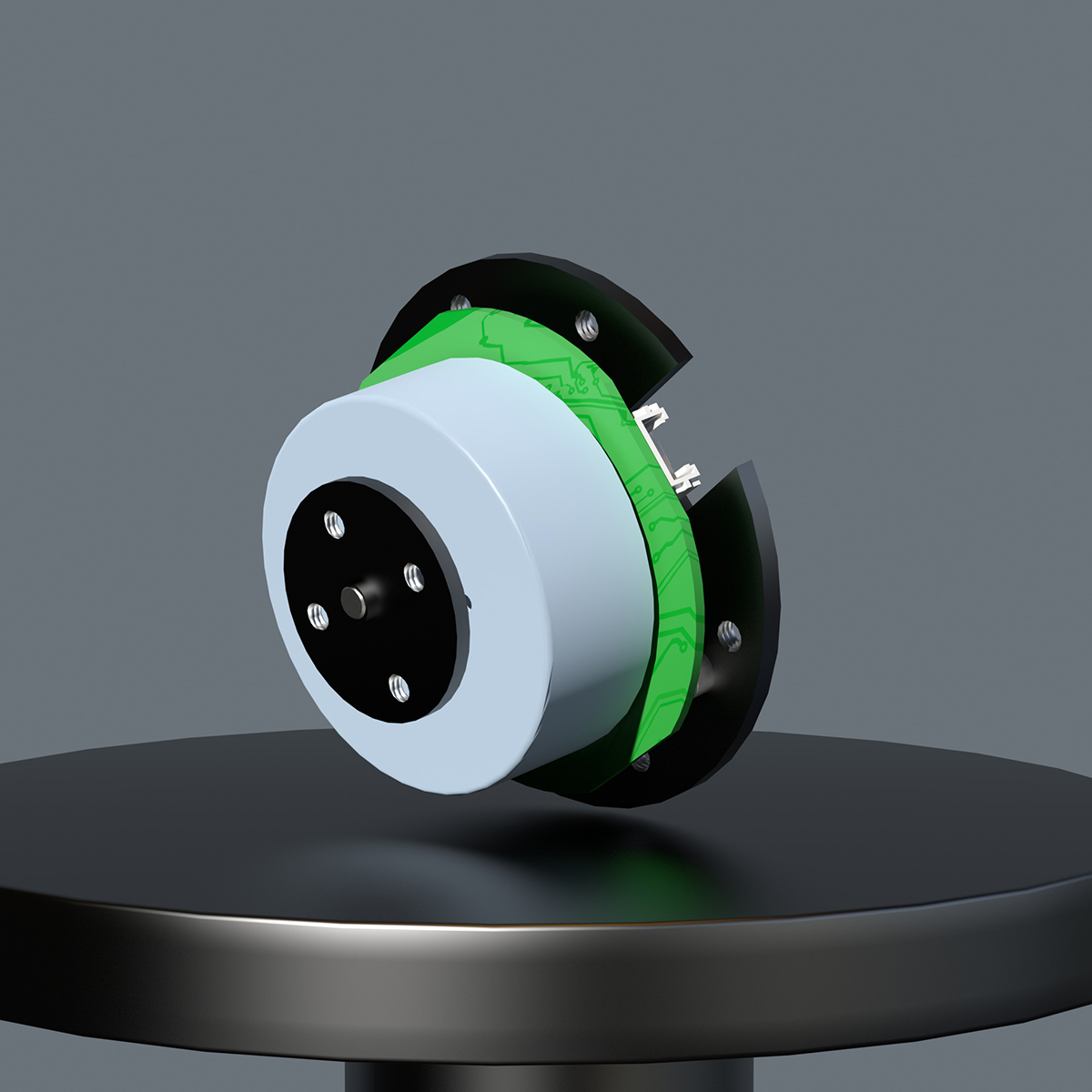

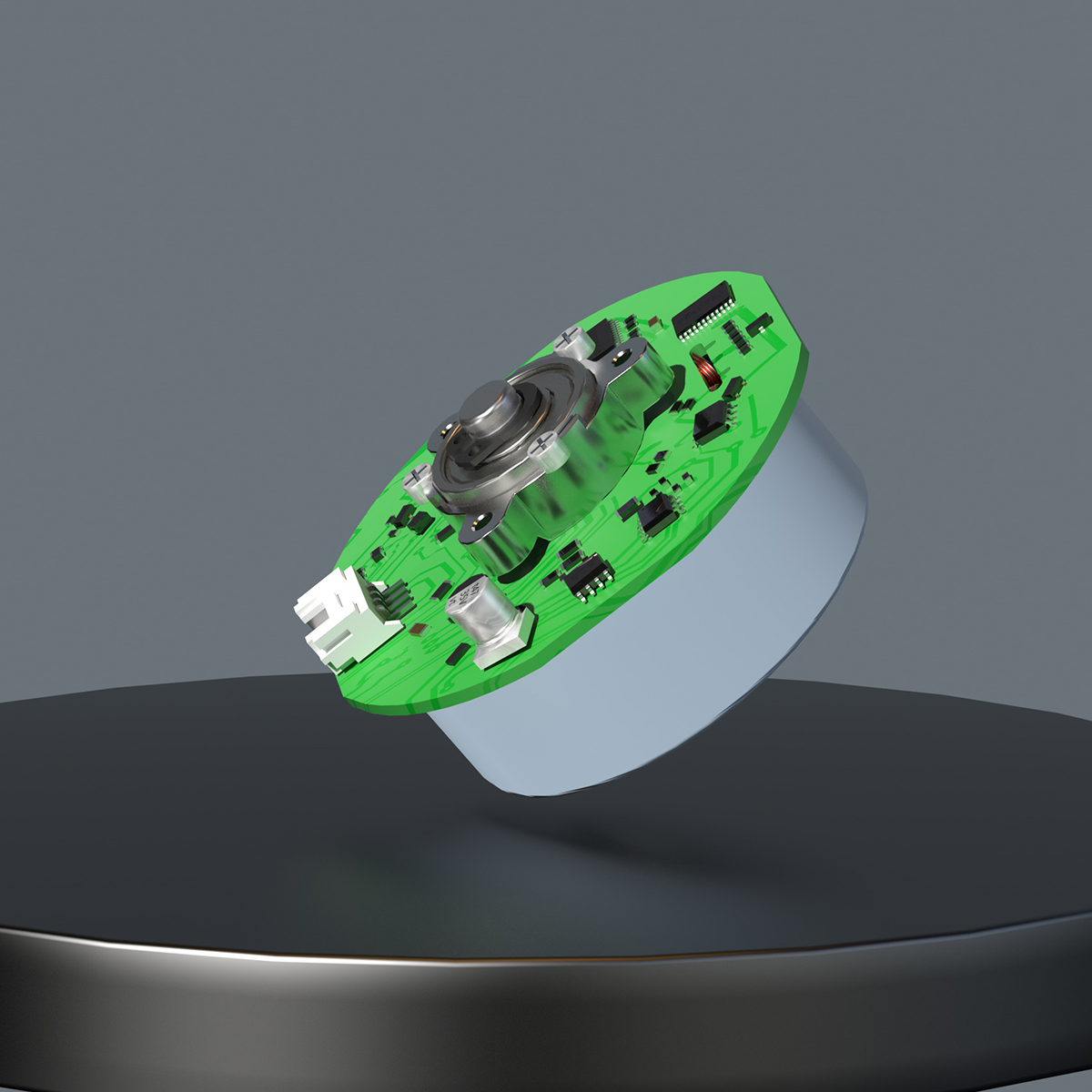

Brushless DC Motor BL4812-087A

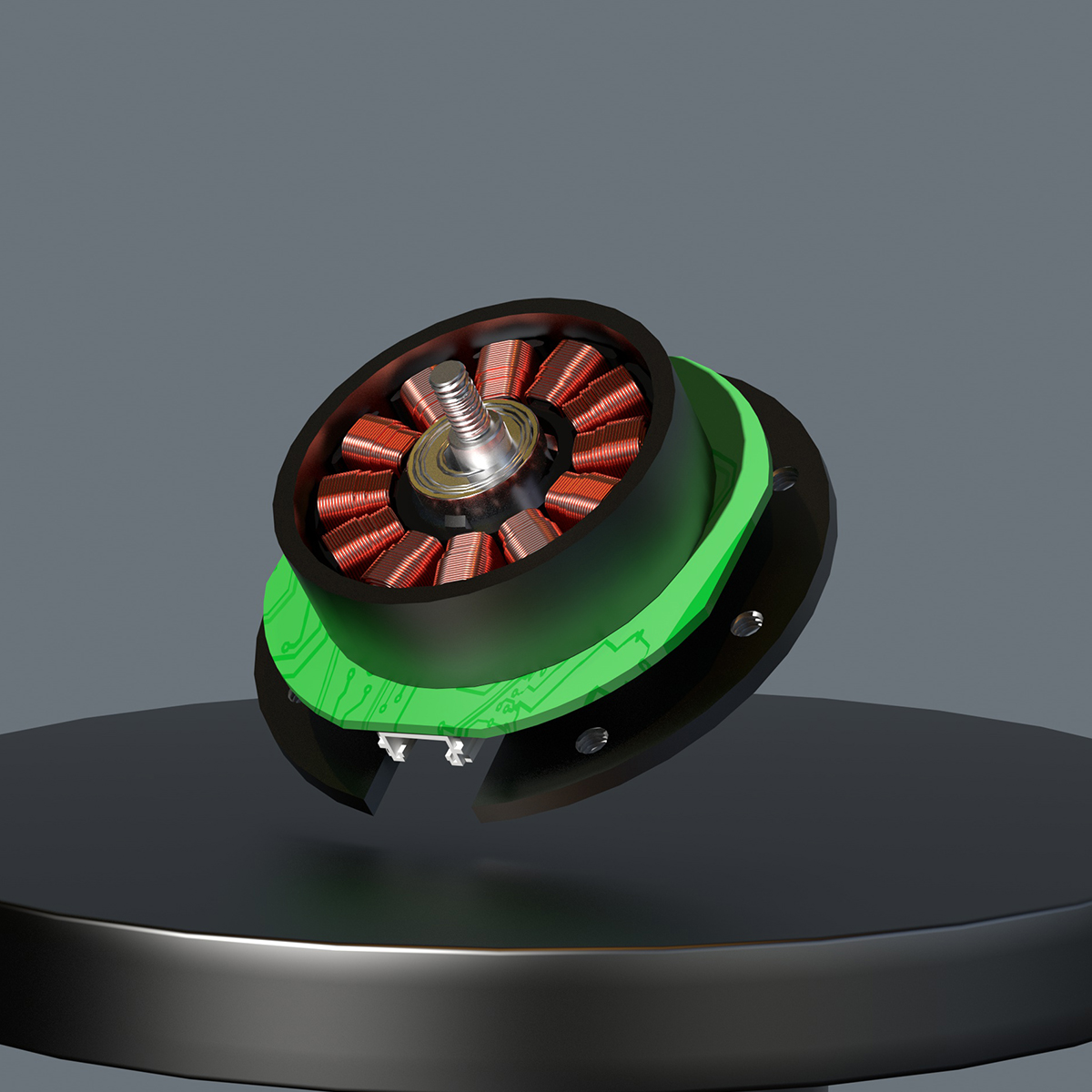

Brushless DC Motor BL4812-087A is engineered for compact motion systems requiring efficient power delivery, stable high-speed operation, and low acoustic noise. The motor adopts a 3-phase brushless architecture with sensorless drive, ensuring smooth commutation and reduced system complexity.

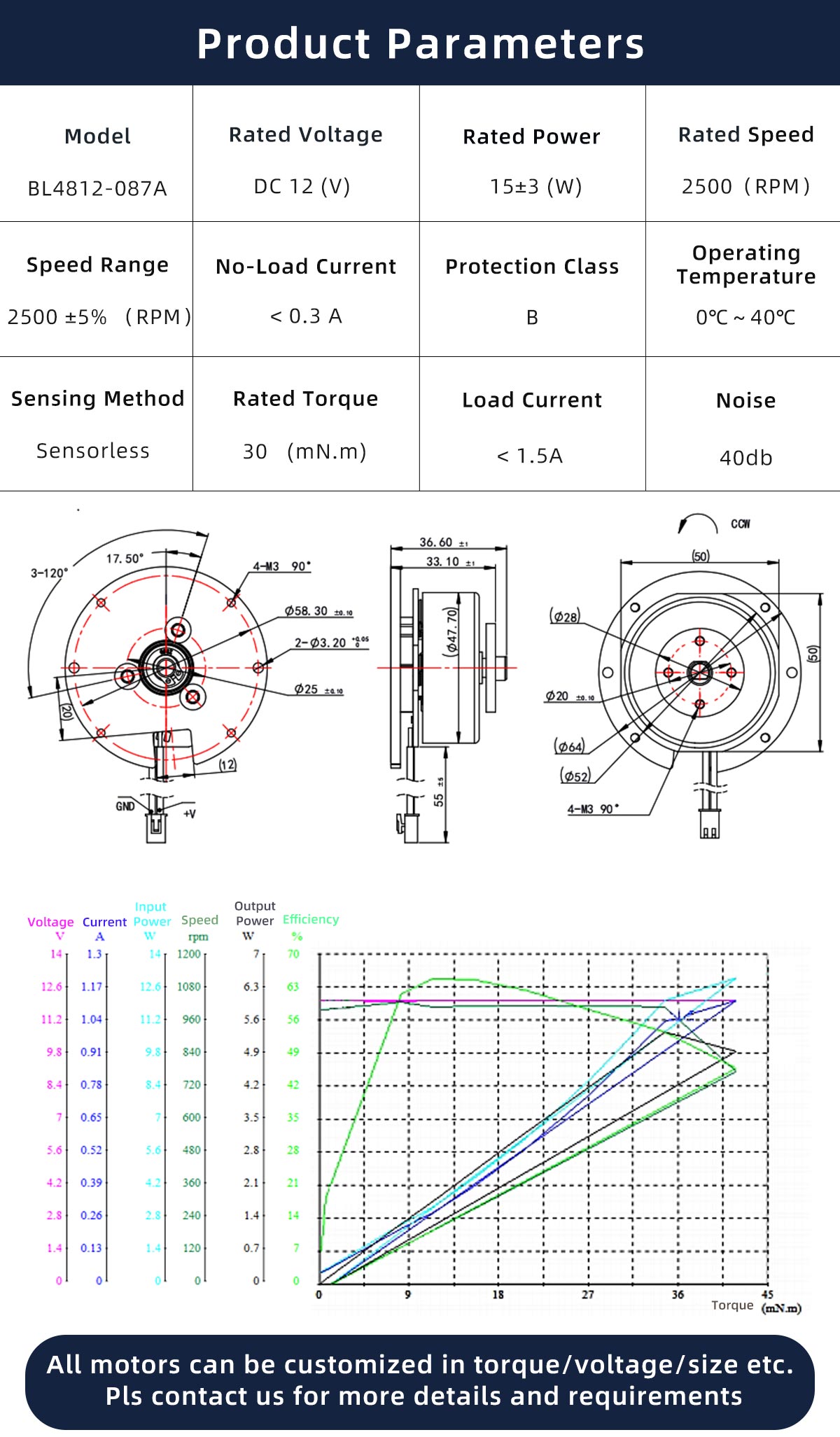

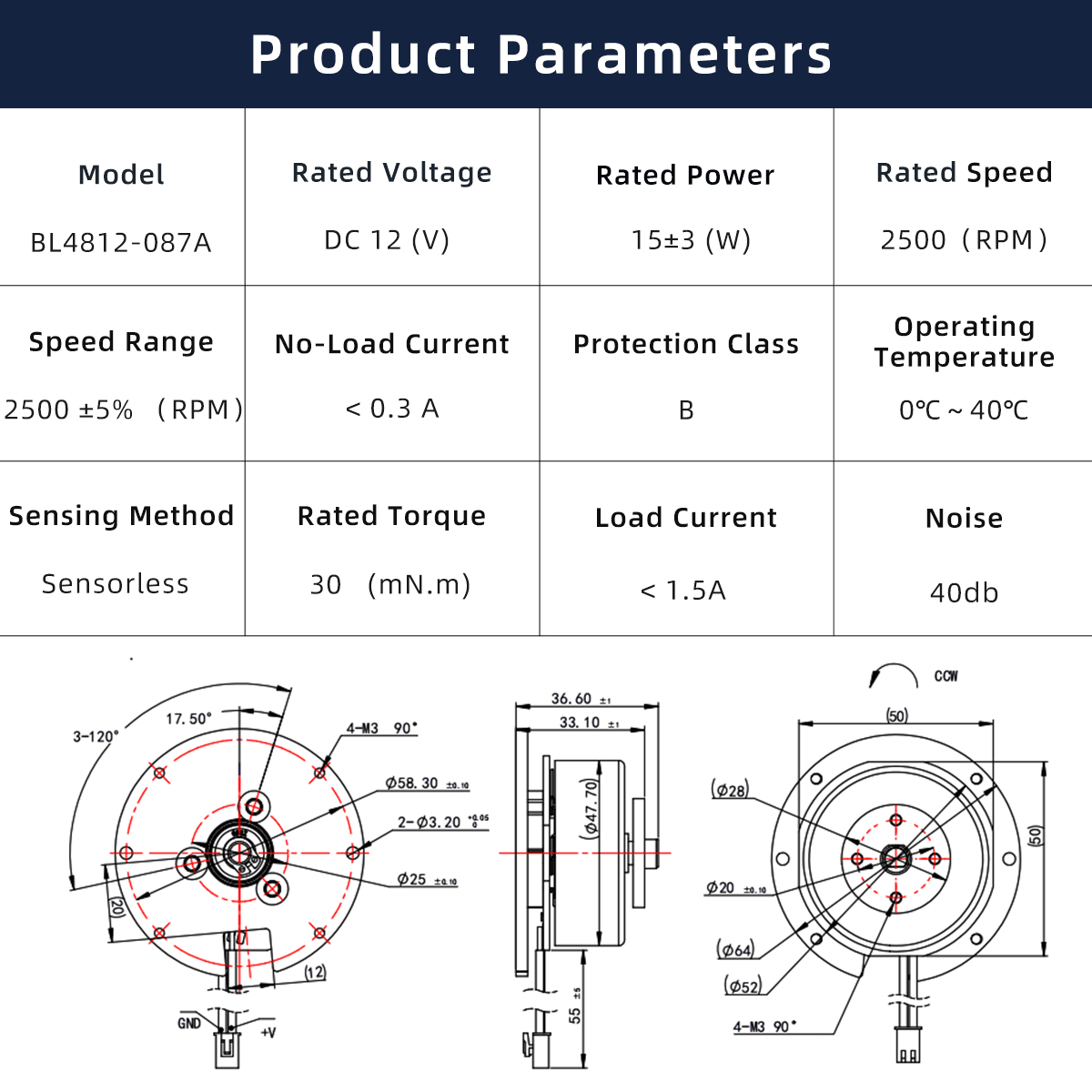

Key electrical and mechanical characteristics include:

• Rated Voltage: 12 VDC
• Rated Power: 15 W
• Rated Speed: 2500 RPM
• Speed Range: 2200–2700 RPM
• Load Current: 1.5 A
• No-load Current: < 0.3 A
• Rated Torque: 30 mN·m
• Phase: 3
• Pole Pairs: 5
• Sensing Method: Sensorless
• Protection Class: B
• Noise Level: 40 dB
• Operating Temperature: 0 °C to +40 °C

The BL4812-087A provides a compact, efficient BLDC solution for applications requiring higher speed and stable performance at low voltage.
