Brushless DC Motor BL5710-044E

Brushless DC Motor BL5710-044E is engineered for compact motion systems requiring high torque density, smooth commutation, and wide-range speed regulation. The motor adopts a 3-phase brushless architecture with Hall-effect sensing, ensuring precise commutation and consistent torque output under varying loads.

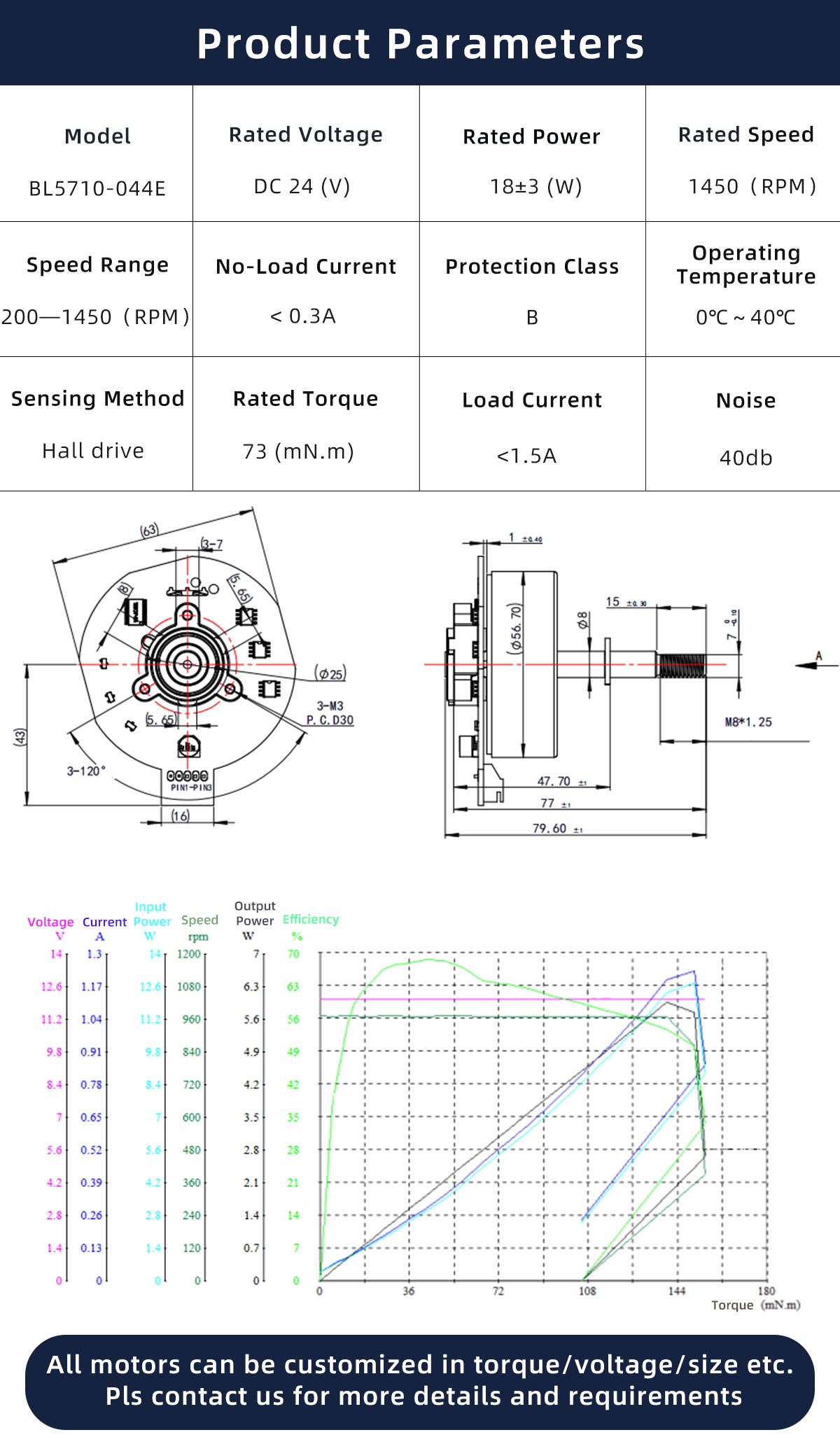

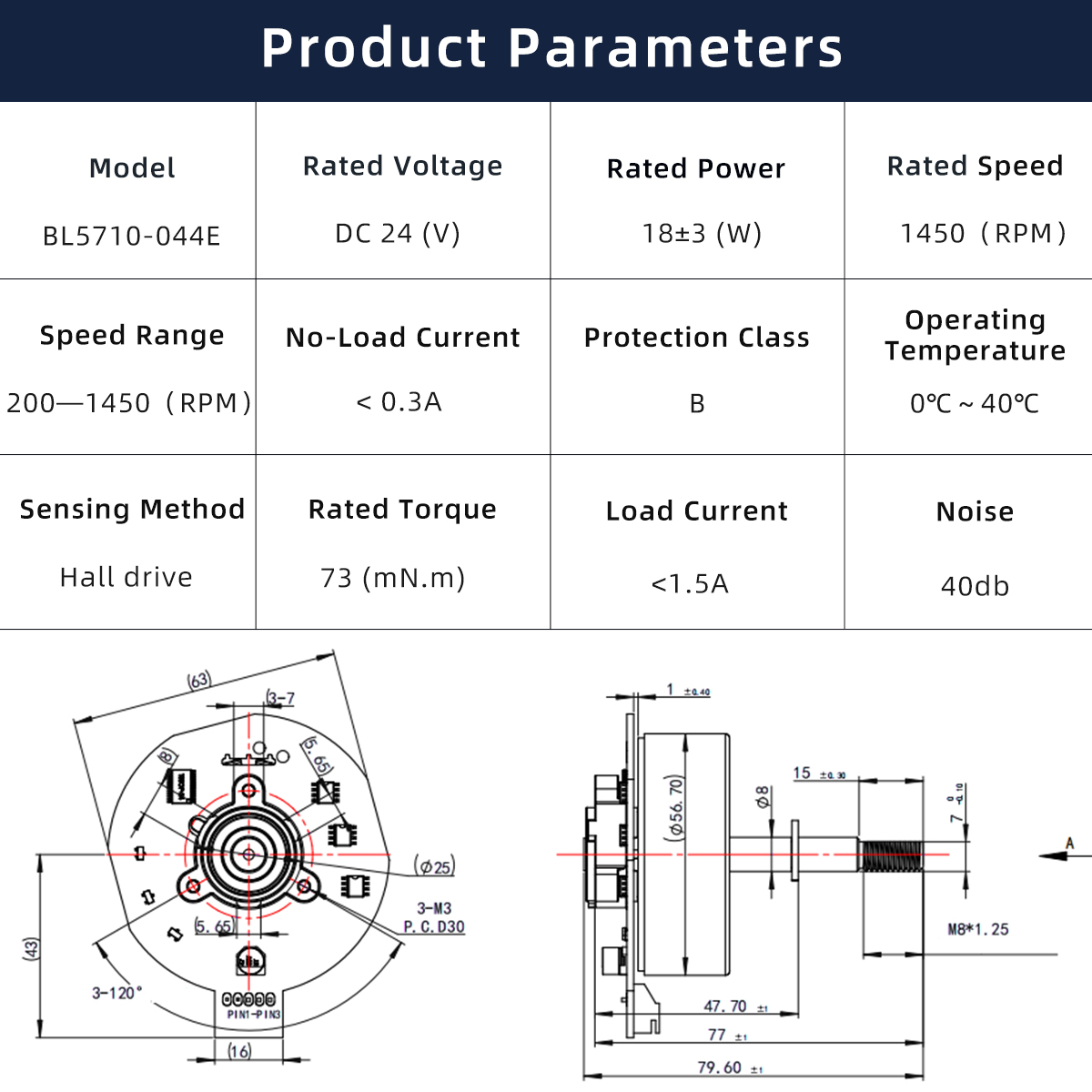

Key electrical and mechanical characteristics include:

• Rated Voltage: 24 VDC
• Rated Power: 18 W
• Rated Speed: 1450 RPM
• Speed Range: 200–1450 RPM
• Load Current: 1.5 A
• No-load Current: < 0.3 A
• Rated Torque: 73 mN·m
• Phase: 3
• Pole Pairs: 5
• Sensing Method: Hall drive
• Protection Class: B

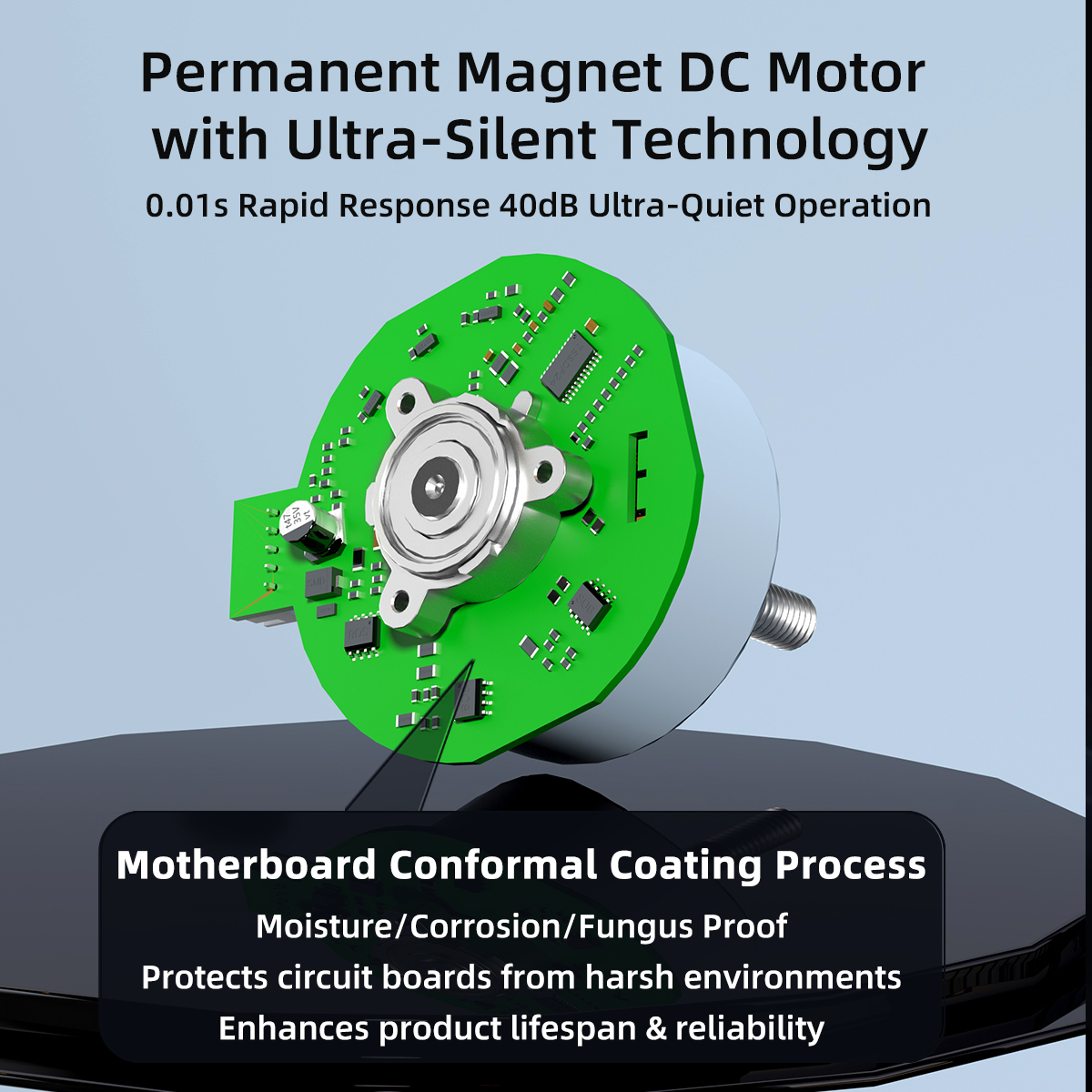

• Noise Level: 40 dB
• Operating Temperature: 0 °C to +40 °C

The BL5710-044E delivers a strong balance of torque capability, wide speed control, and quiet operation in a compact BLDC motor platform.
