Brushless DC Motor BL6110N-023A

The BL6110N-023A is a high-torque brushless DC motor delivering 100 mN·m rated torque at 1000 RPM, operating at 24 VDC, designed for stable low-speed operation with precise torque control.

Why Choose This BLDC Motor

High torque output optimized for low-speed operation
Hall-sensor commutation for precise torque and speed control
Stable performance across a controlled speed range
Low no-load current for improved energy efficiency

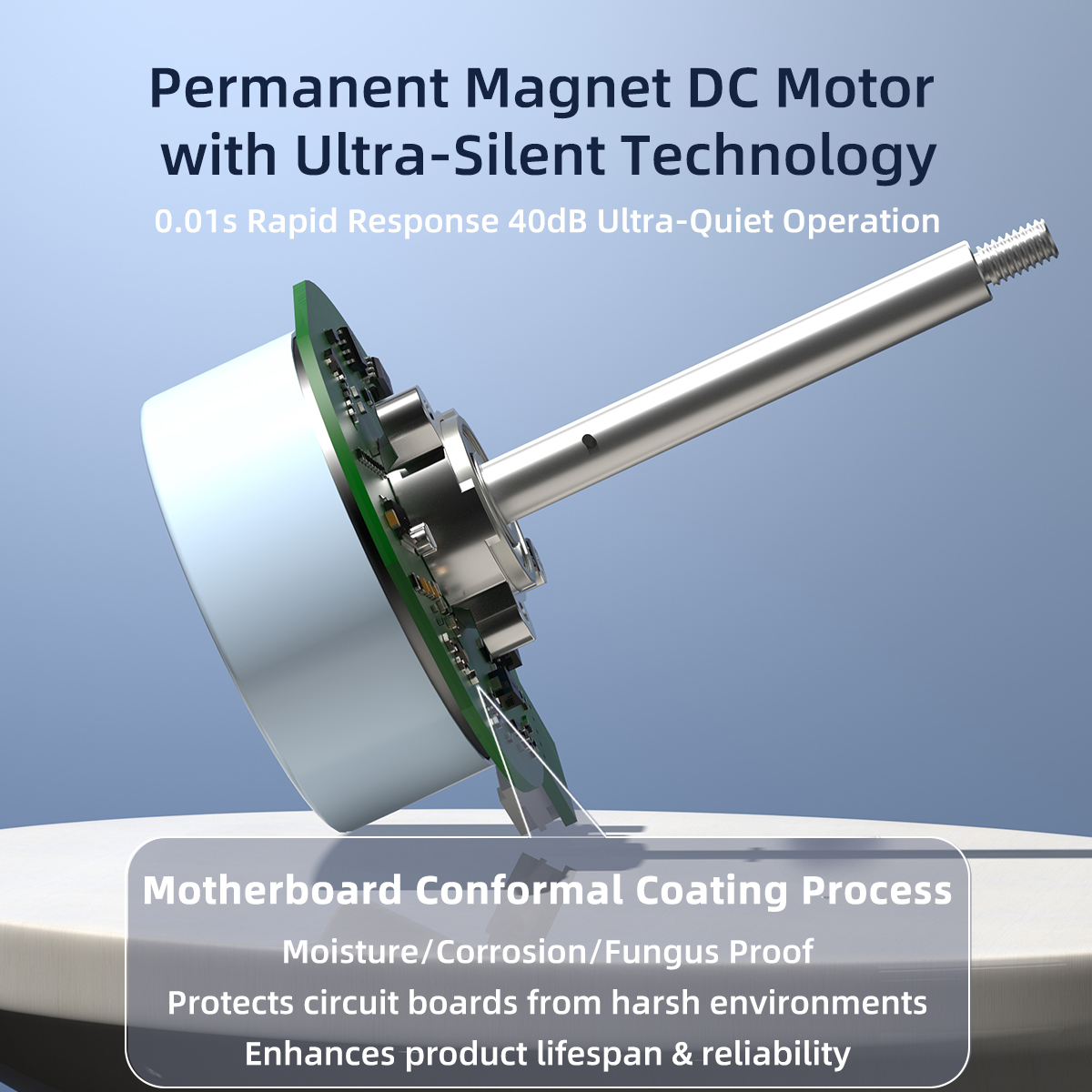

Low noise operation suitable for indoor environments

Where This BLDC Motor Is Used

Low-speed drive systems and actuators
Automation and motion-control modules
Positioning and adjustment mechanisms
Compact conveyors and feeders
Precision instruments and control devices

Contact us for pricing, full technical details, and available customization options.

Description
Tech Spec

Brushless DC Motor BL6110N-016A

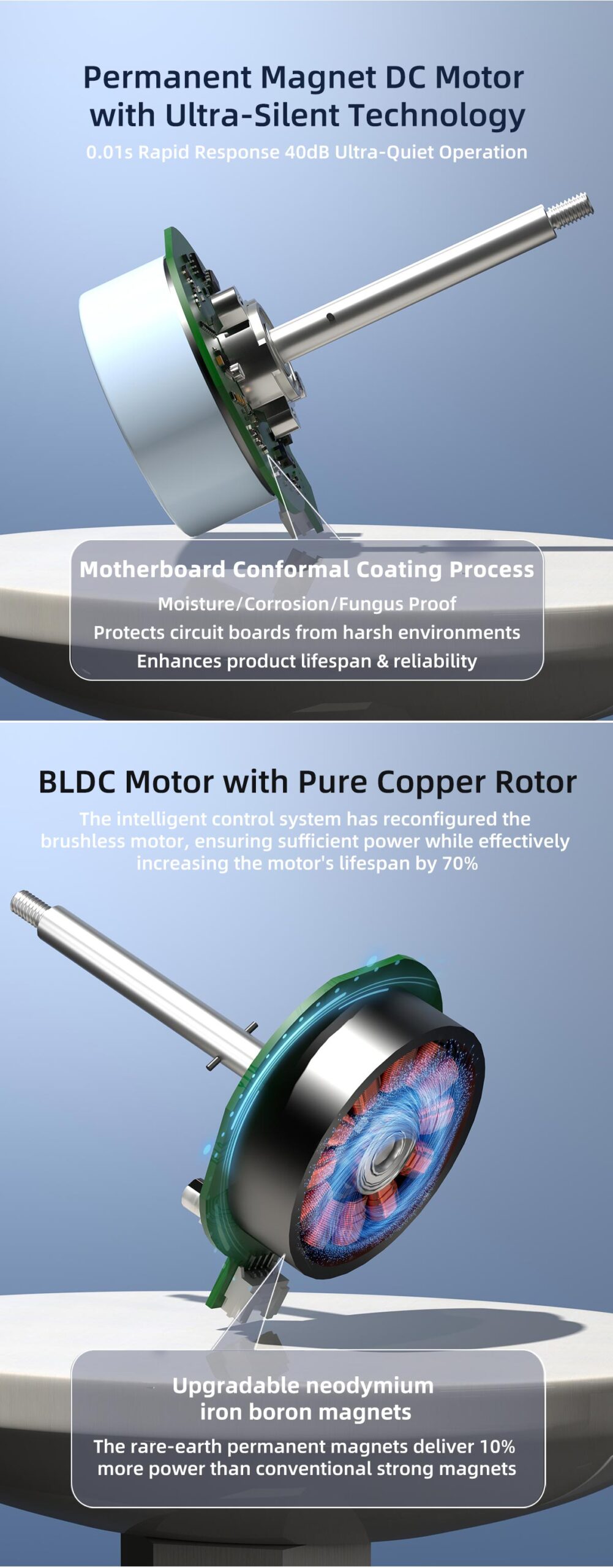

Brushless DC Motor BL6110N-023A is engineered for compact motion systems requiring high torque density, smooth commutation, and reliable low-speed speed regulation. The motor adopts a 3-phase brushless architecture with Hall-effect sensing, ensuring precise commutation and stable torque output under varying load conditions.

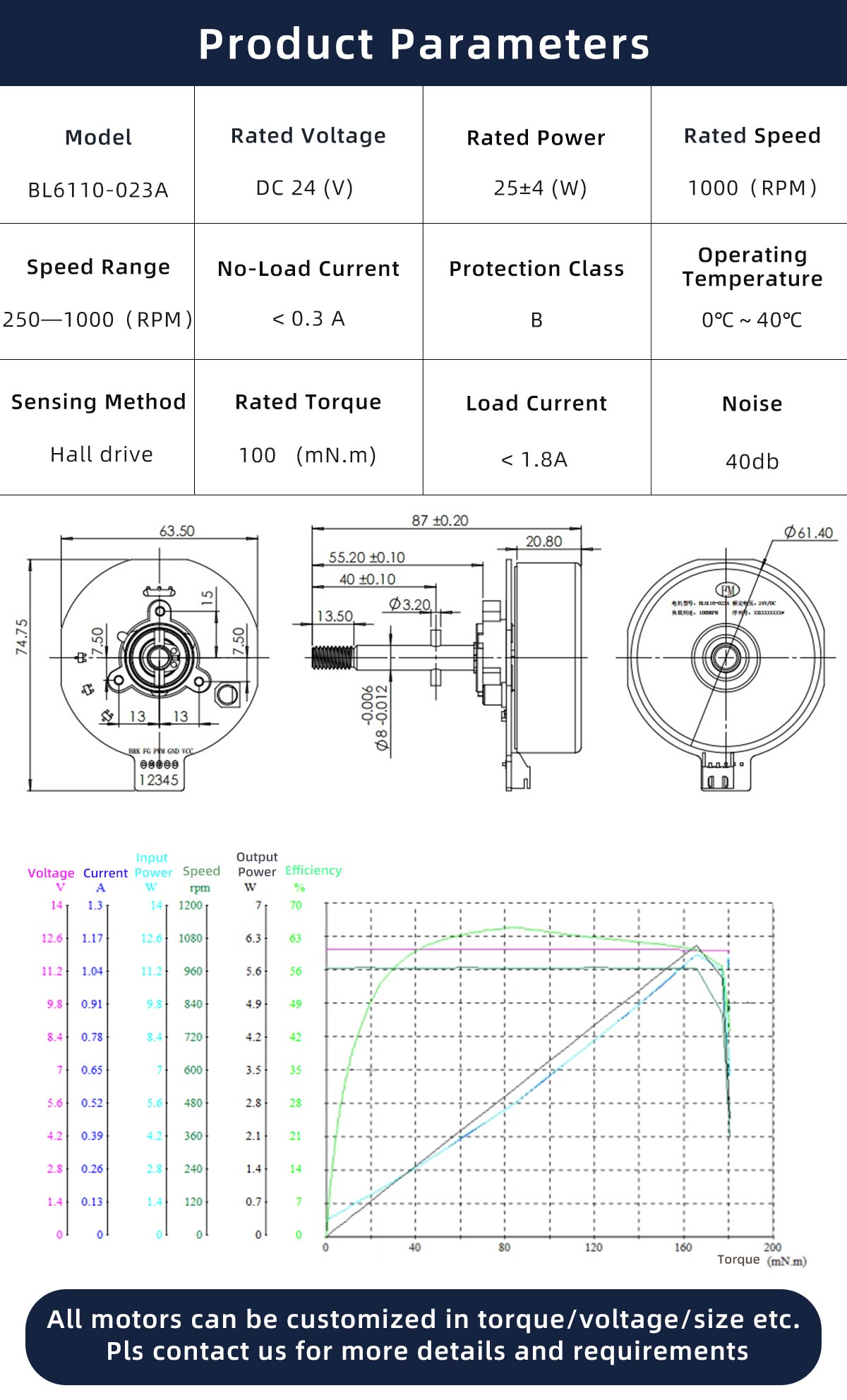

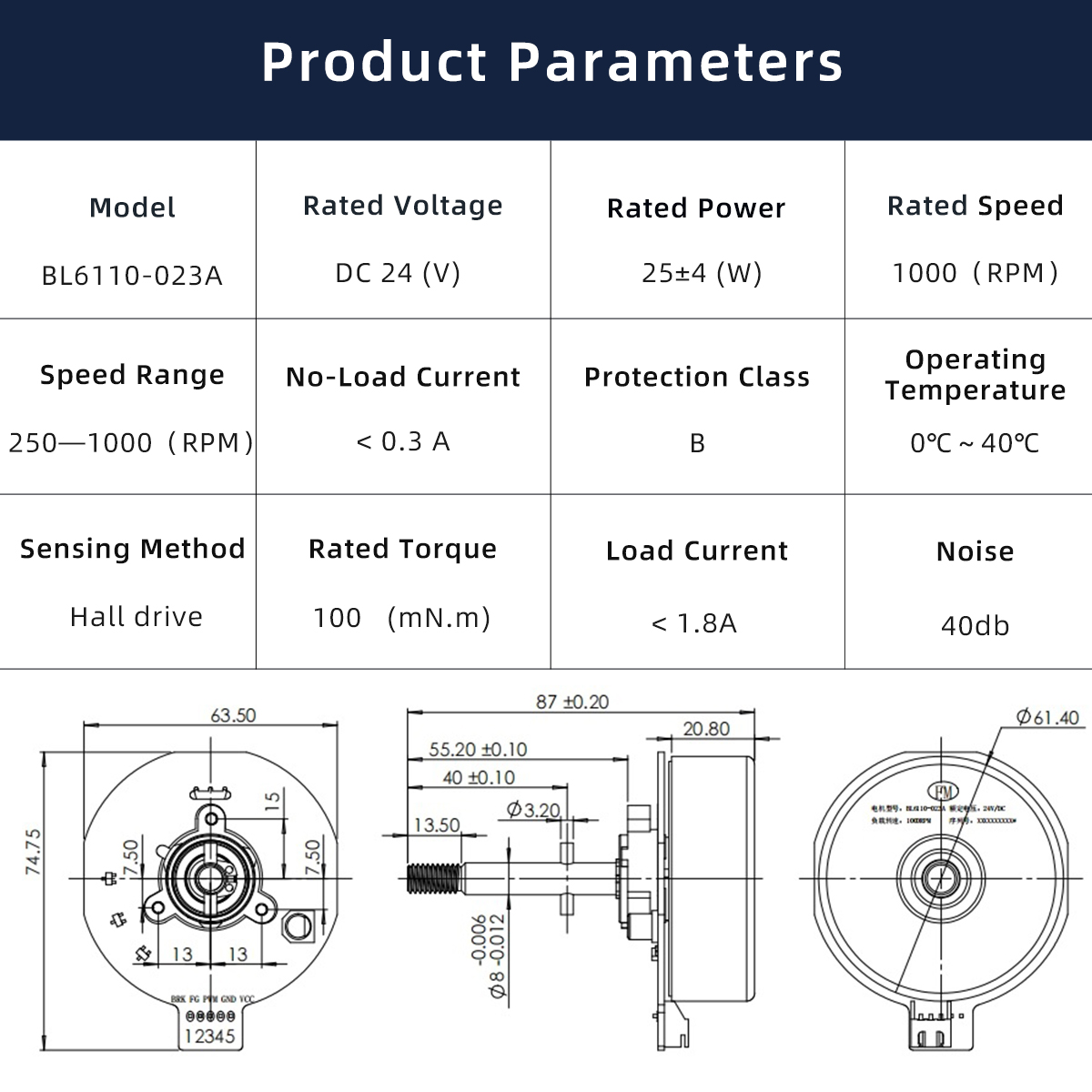

Key electrical and mechanical characteristics include:

Rated Voltage: 24 VDC
Rated Power: 25 W
Rated Speed: 1000 RPM
Speed Range: 250–1000 RPM
Load Current: 1.8 A
No-load Current: < 0.3 A
Rated Torque: 100 mN·m
Phase: 3
Pole Pairs: 5
Sensing Method: Hall drive
Protection Class: B
Noise Level: 40 dB
Operating Temperature: 0 °C to +40 °C

The BL6110N-023A delivers a strong balance of torque capability, smooth low-speed performance, and compact design for BLDC motor applications requiring precise control.
