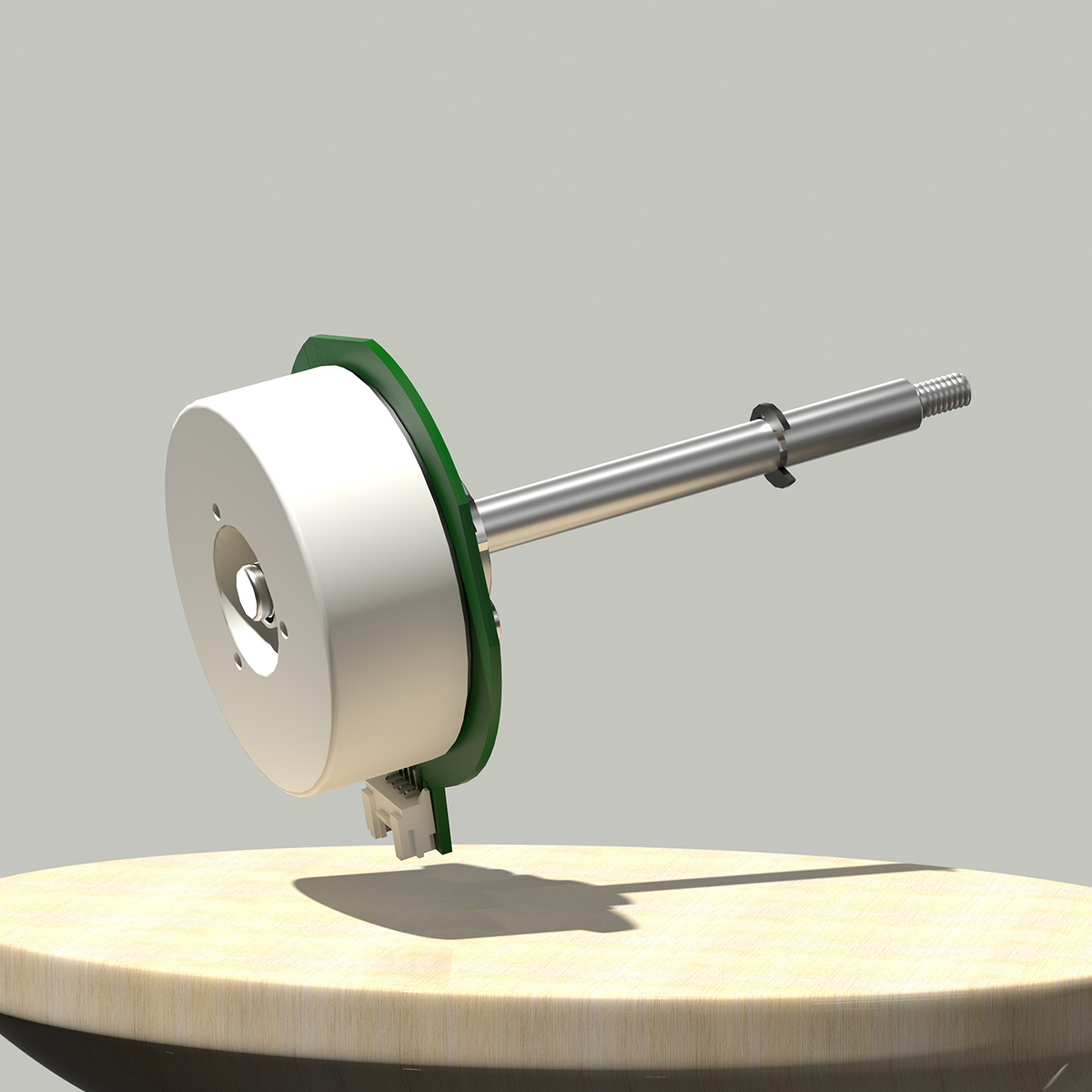

Brushless DC Motor BL6110N-027A

Brushless DC Motor BL6110N-027A is engineered for compact motion systems requiring efficient power delivery, smooth commutation, and stable speed regulation at low voltage. The motor adopts a 3-phase brushless architecture with Hall-effect sensing, ensuring precise commutation and consistent torque output under varying load conditions.

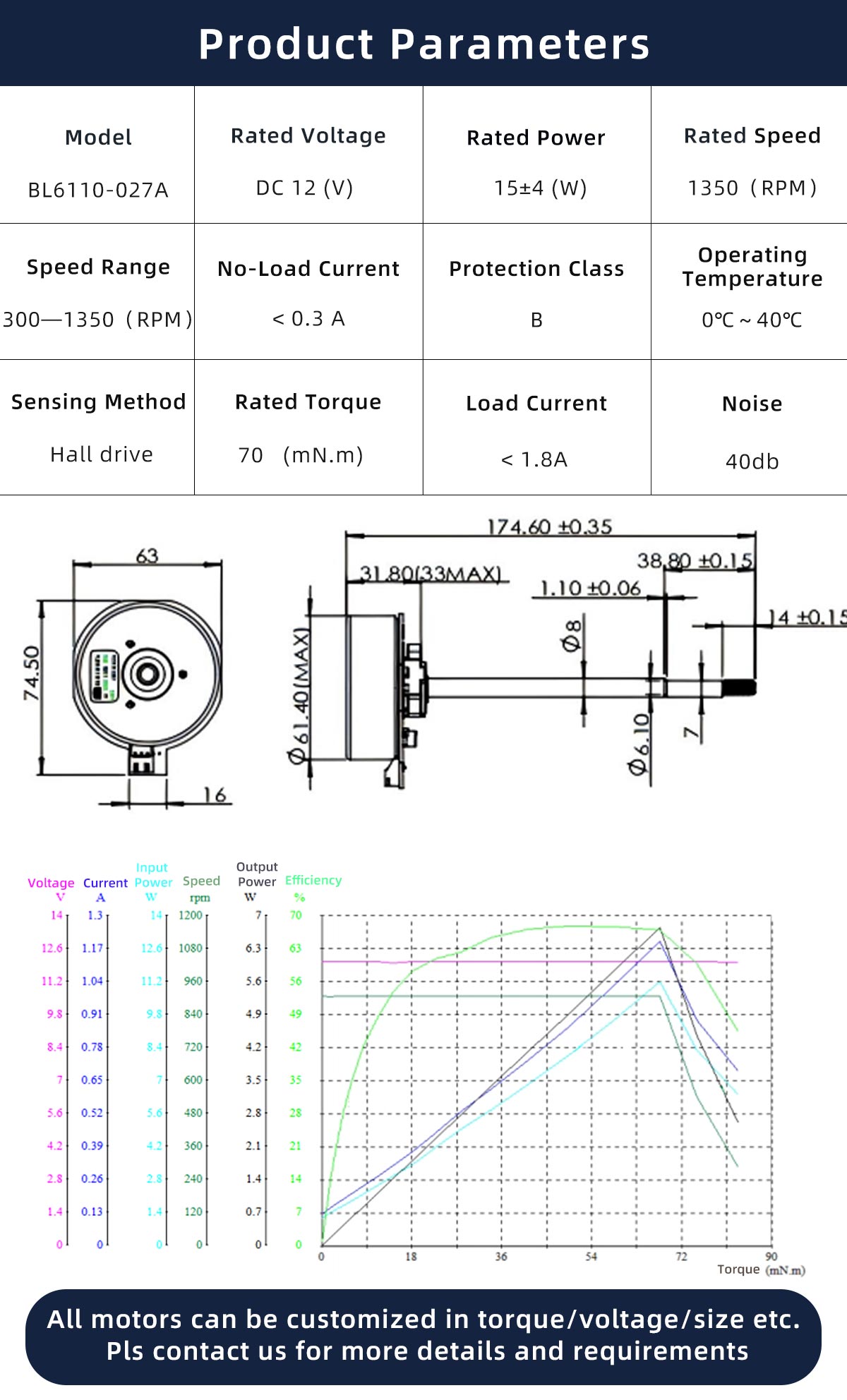

Key electrical and mechanical characteristics include:

• Rated Voltage: 12 VDC
• Rated Power: 15 W
• Rated Speed: 1350 RPM
• Speed Range: 300–1350 RPM
• Load Current: 1.8 A
• No-load Current: < 0.3 A
• Rated Torque: 70 mN·m
• Phase: 3
• Pole Pairs: 5
• Sensing Method: Hall drive
• Protection Class: B

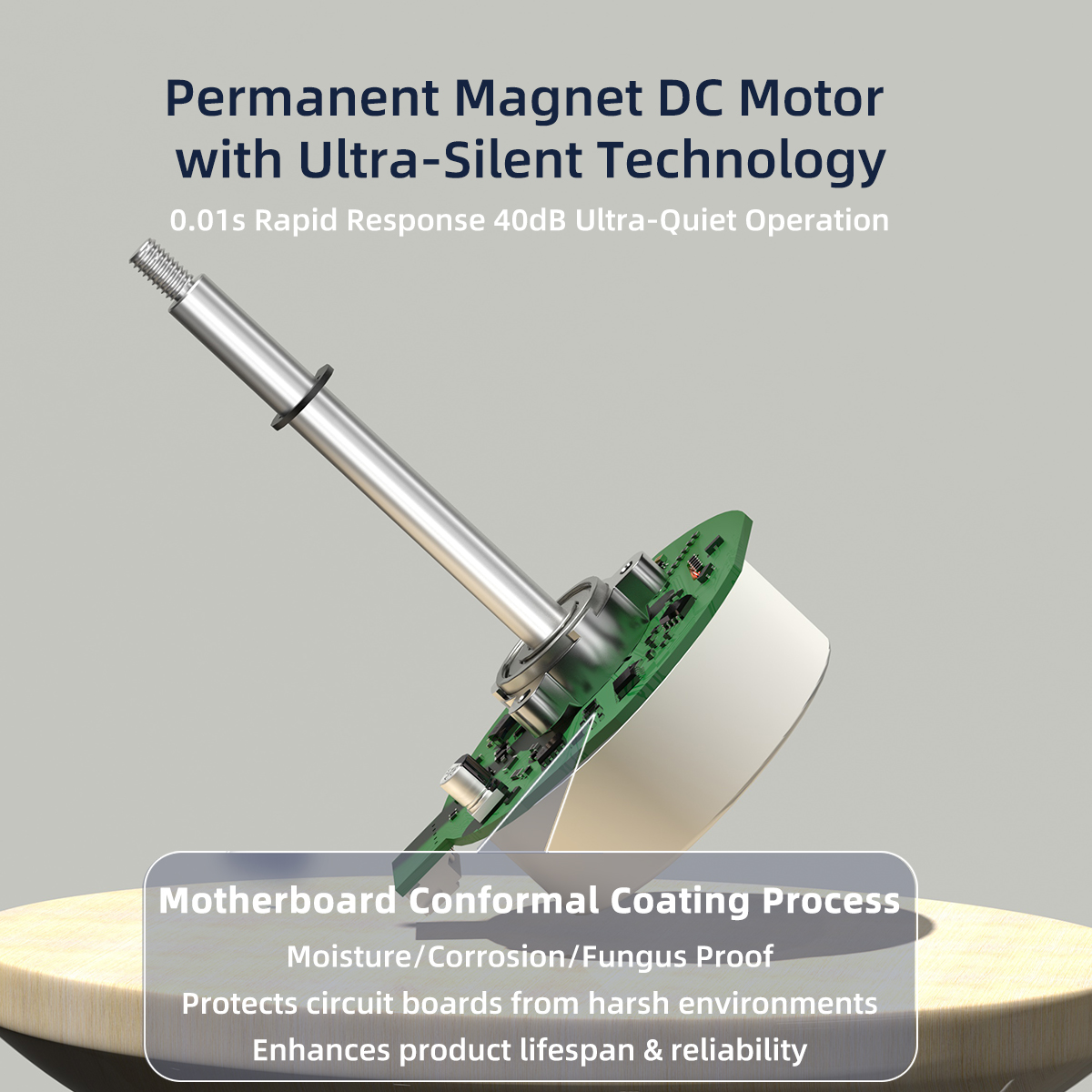

• Noise Level: 40 dB
• Operating Temperature: 0 °C to +40 °C

The BL6110N-027A provides a compact, efficient BLDC solution for low-voltage systems requiring smooth operation and reliable torque output.
