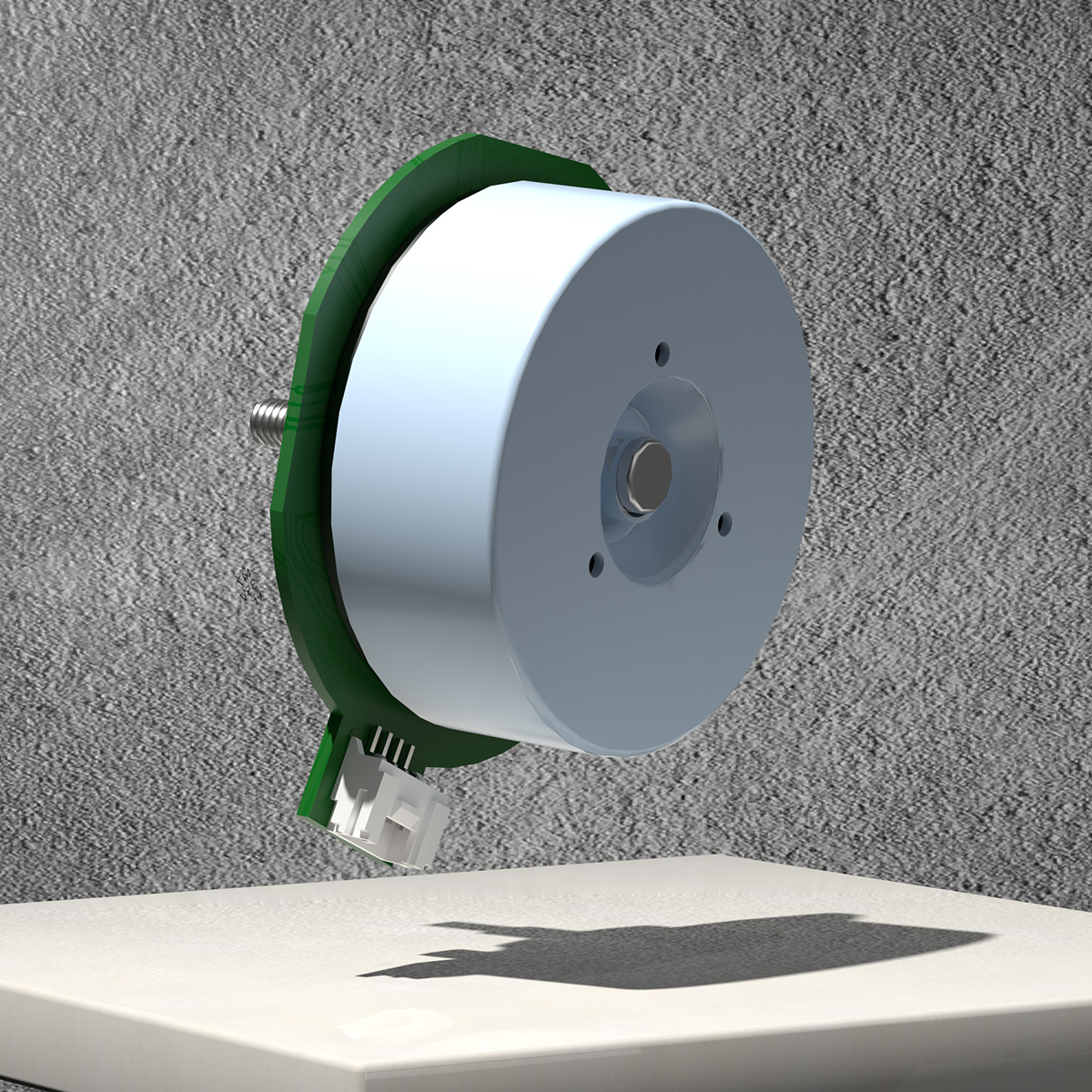

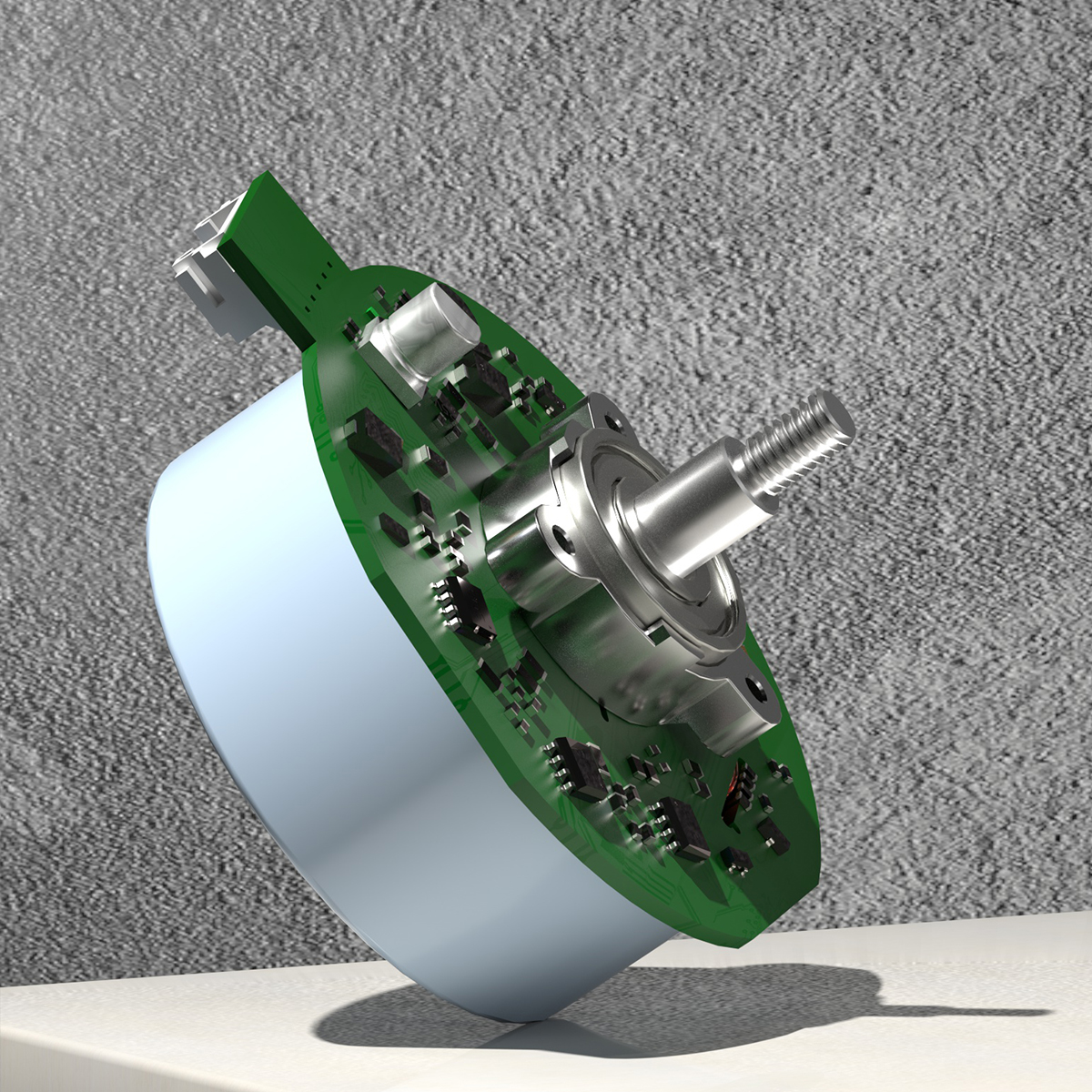

Brushless DC Motor BL6112-088A

The BL6112-088A is a high-torque brushless DC motor delivering 129 mN·m rated torque at 1050 RPM, operating at 24 VDC, designed for stable low-speed operation with smooth torque control and low noise.

Why Choose This BLDC Motor

Optimized torque output for low-speed applications
Hall-sensor commutation for precise speed and torque control
Stable operation across a controlled speed range
Low no-load current for improved energy efficiency

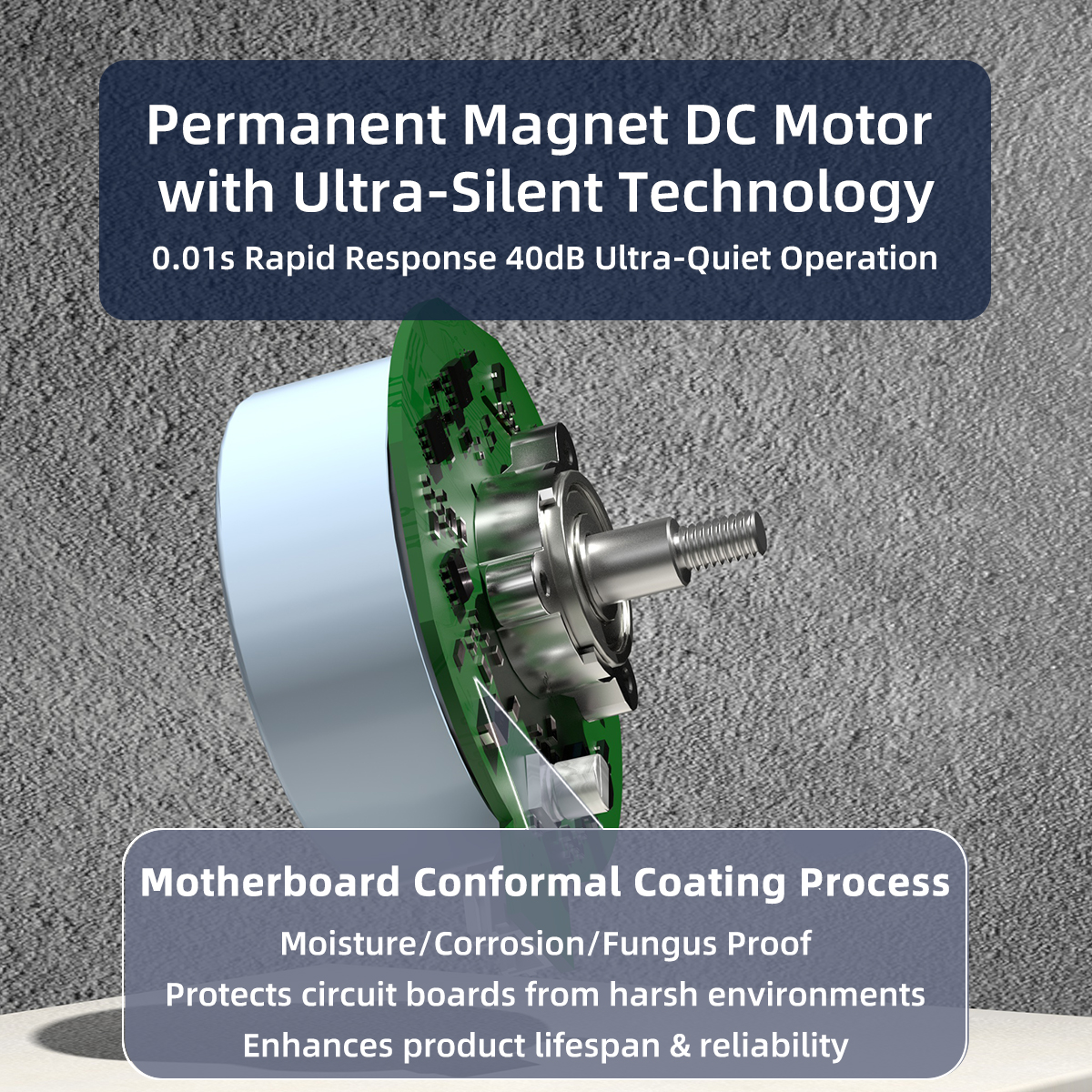

Low noise operation suitable for indoor environments

Where This BLDC Motor Is Used

Low-speed drive systems and actuators
Automation and motion-control modules
Positioning and adjustment mechanisms
Compact conveyors and feeders
Precision instruments and control devices

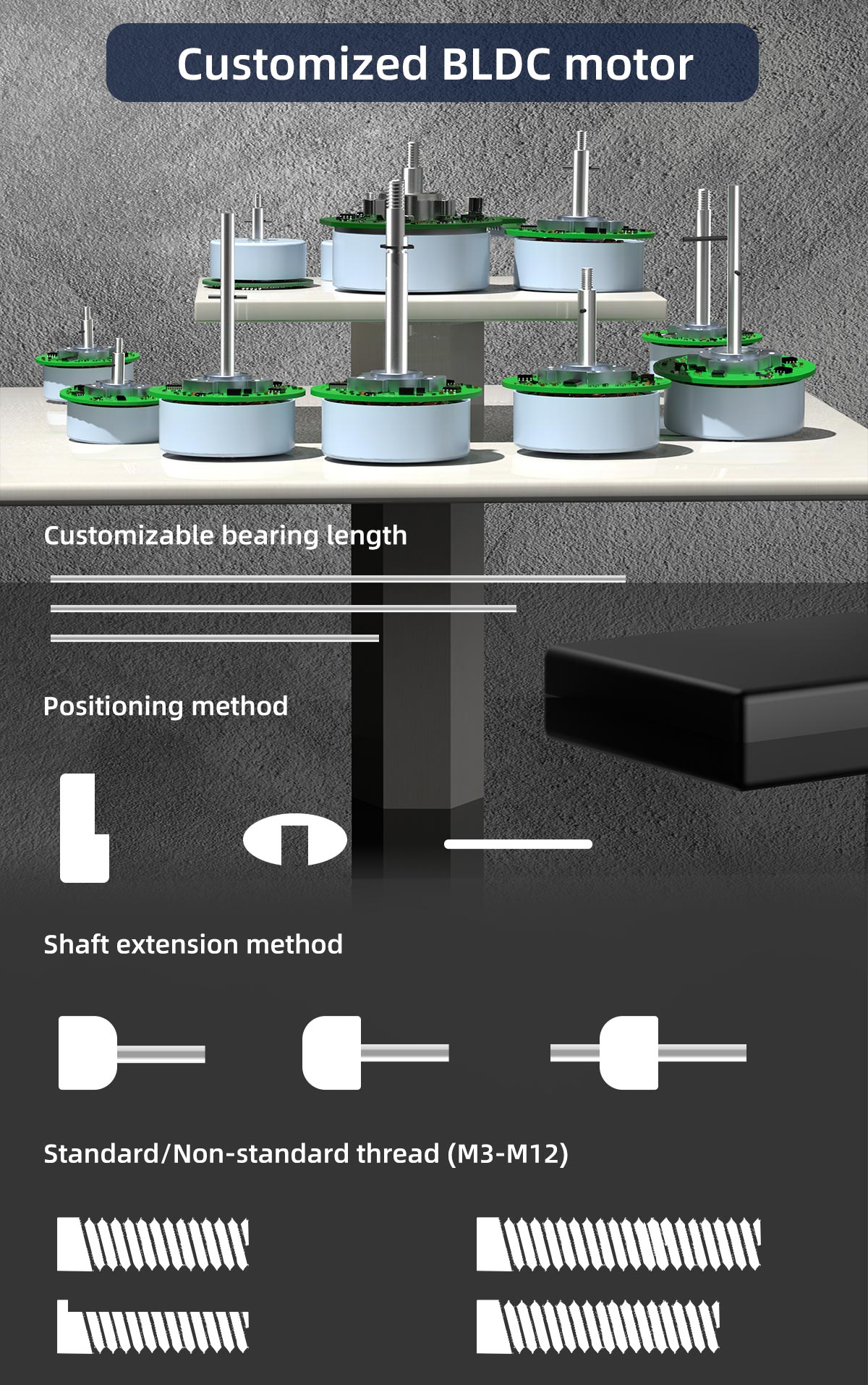

Contact us for pricing, full technical details, and available customization options.

Description
Tech Spec

Brushless DC Motor BL6112-088A

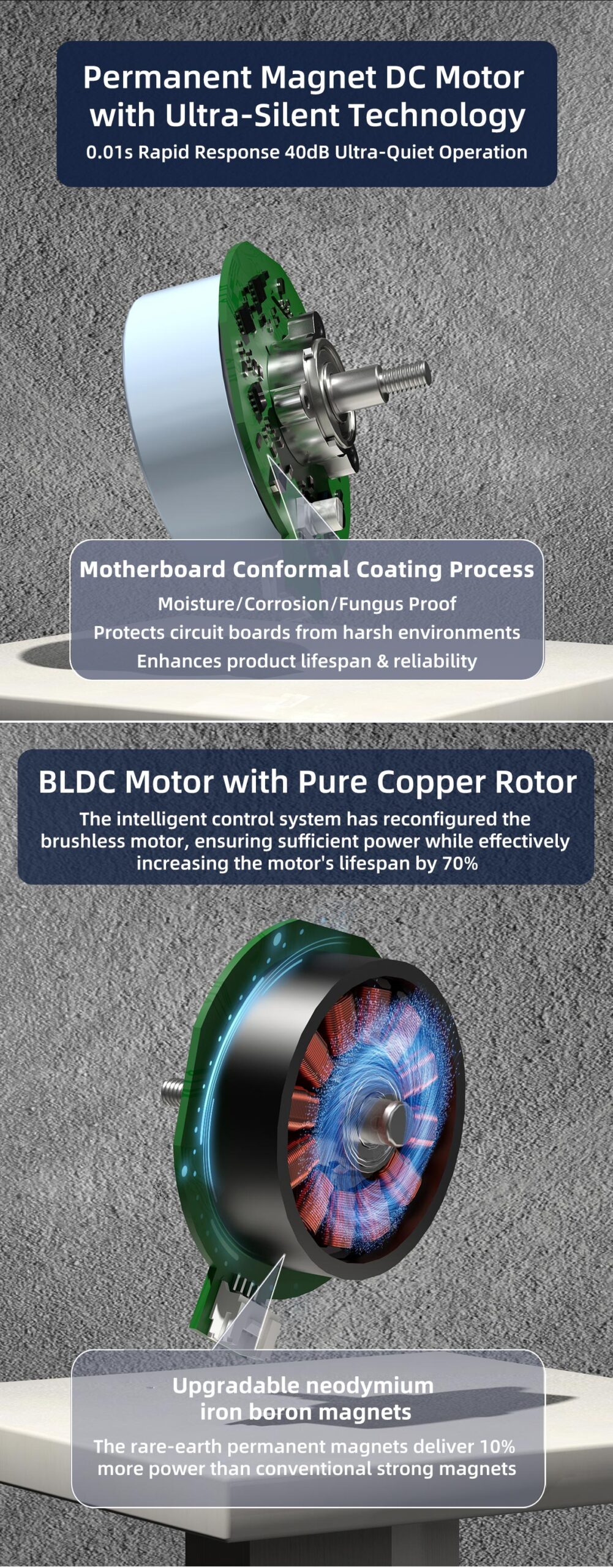

Brushless DC Motor BL6112-088A is engineered for compact motion systems requiring high torque density, smooth commutation, and reliable low-speed regulation. The motor adopts a 3-phase brushless architecture with Hall-effect sensing, ensuring precise commutation and consistent performance under varying load conditions.

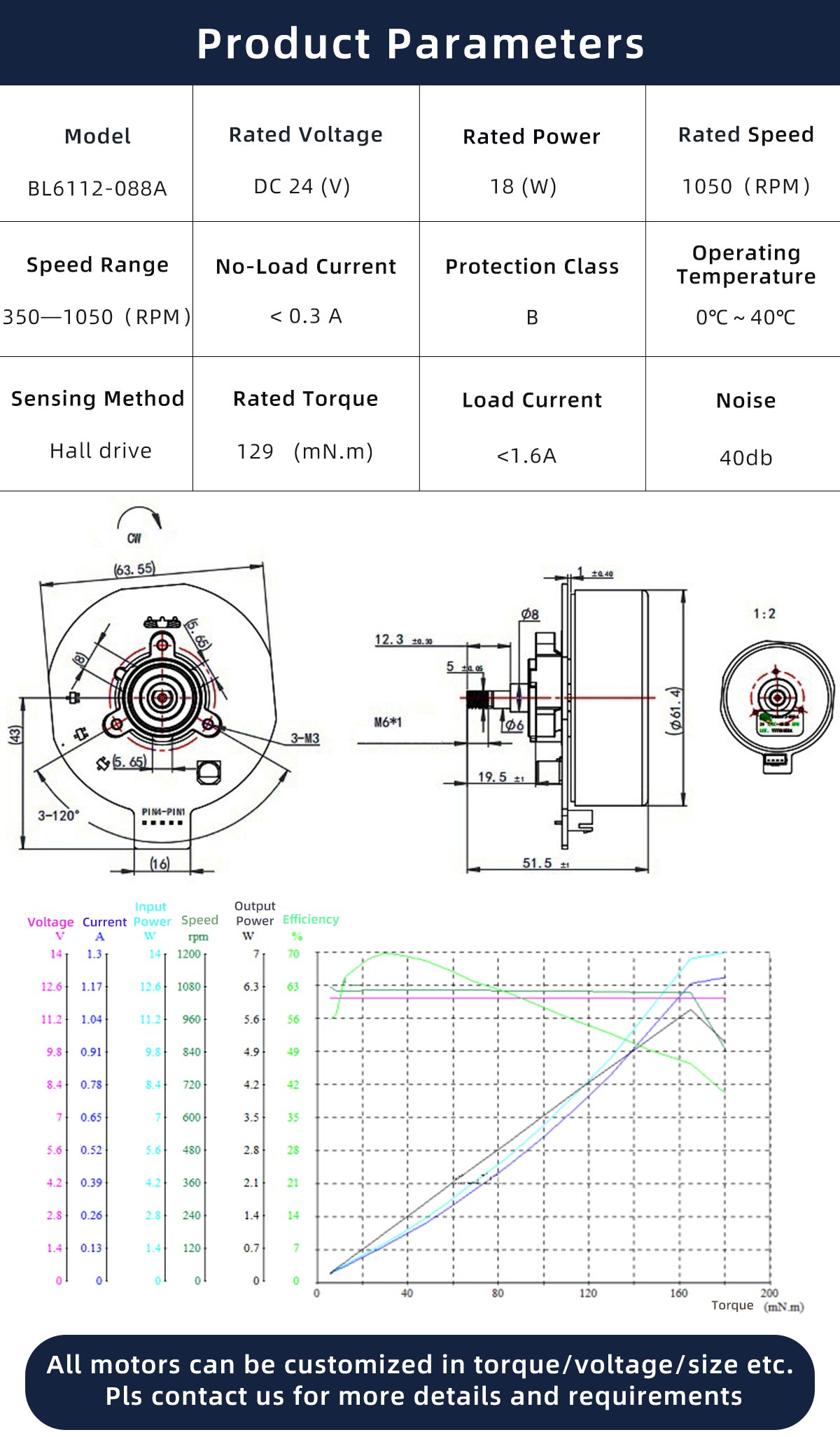

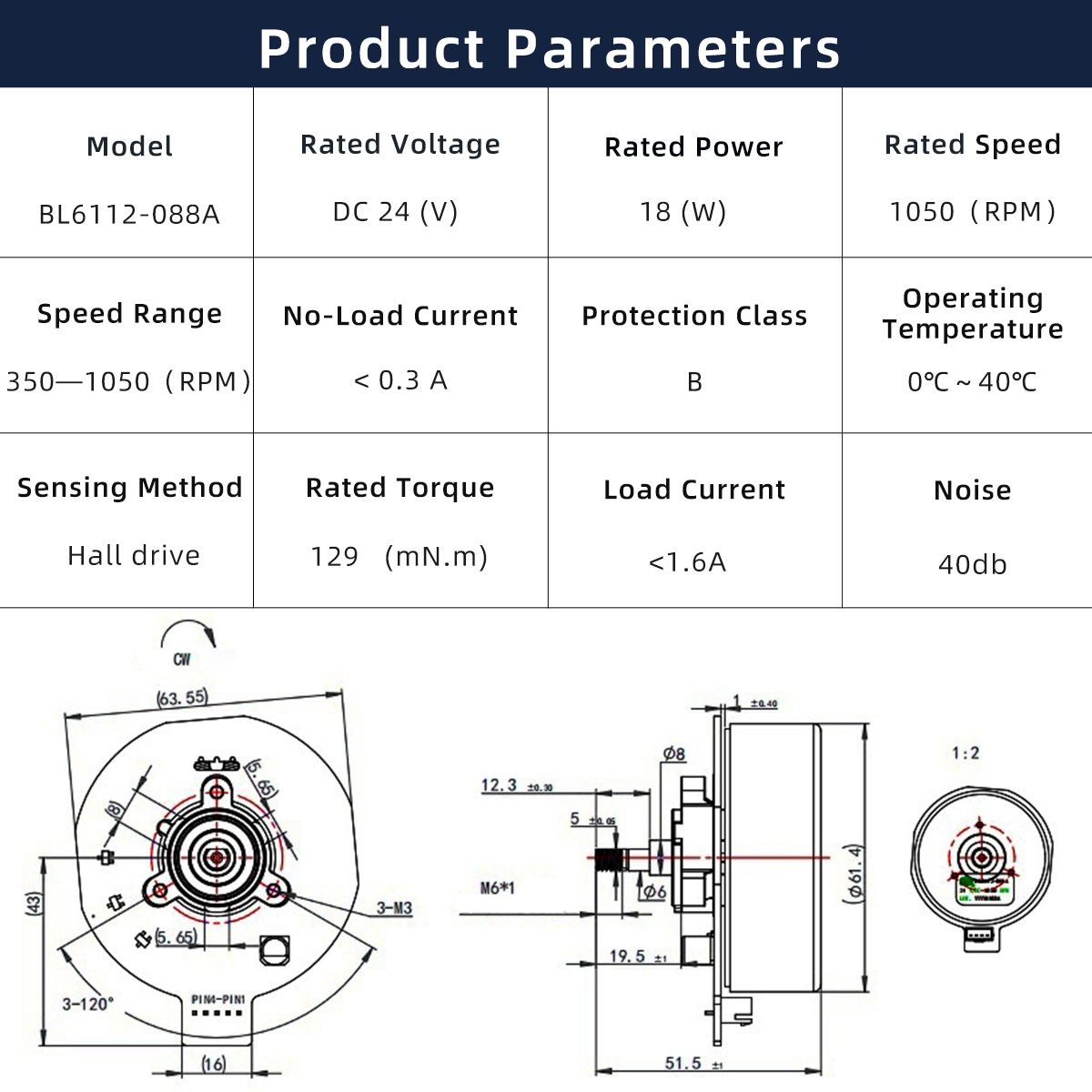

Key electrical and mechanical characteristics include:

Rated Voltage: 24 VDC
Rated Power: 18 W
Rated Speed: 1050 RPM
Speed Range: 350–1050 RPM
Load Current: 1.6 A
No-load Current: < 0.3 A
Rated Torque: 129 mN·m
Phase: 3
Pole Pairs: 5
Sensing Method: Hall drive
Protection Class: B
Noise Level: 40 dB
Operating Temperature: 0 °C to +40 °C

The BL6112-088A delivers a strong balance of torque capability, smooth low-speed operation, and compact design for BLDC motor applications requiring precise control.
