BYJ Stepper Motor 24BYJ48-2455X

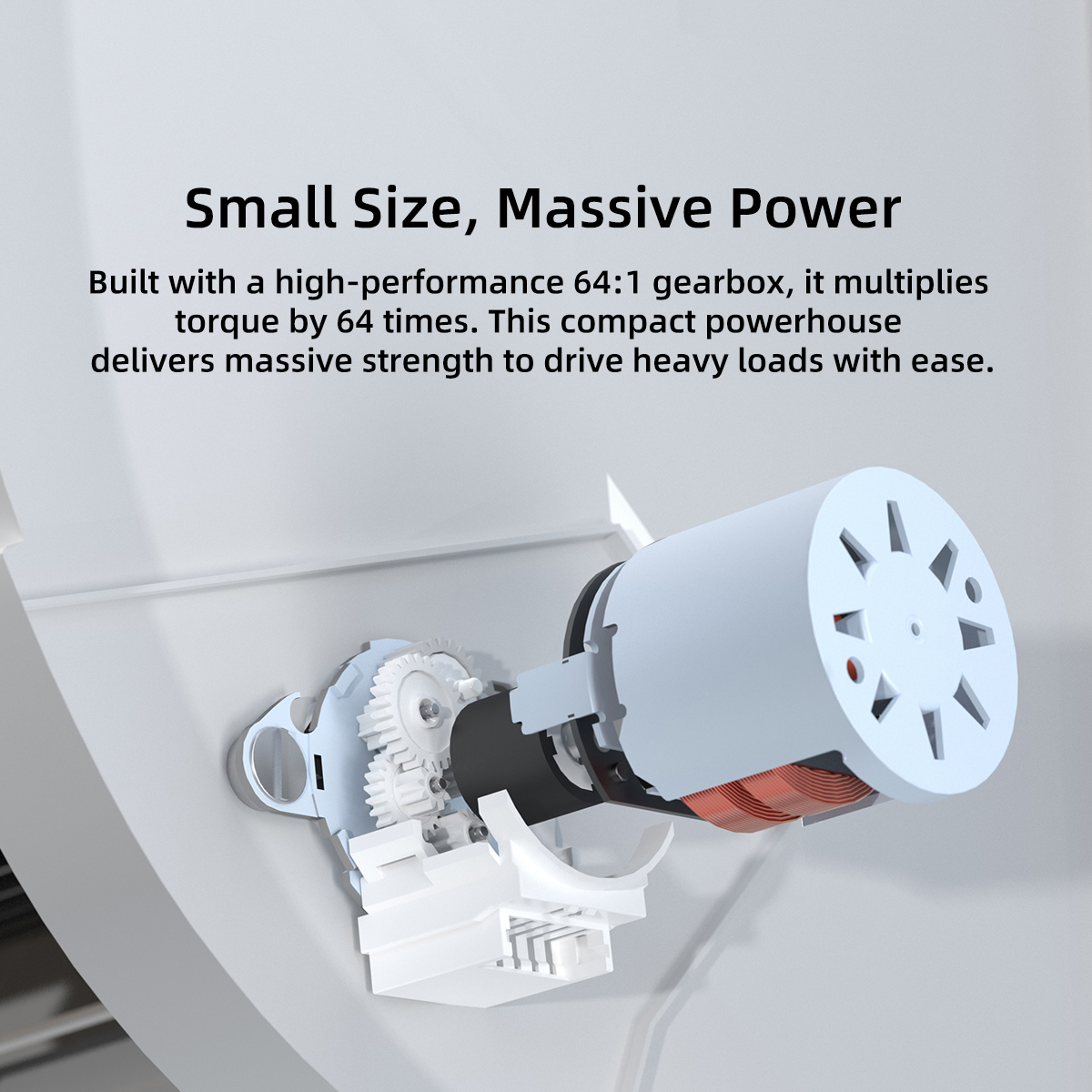

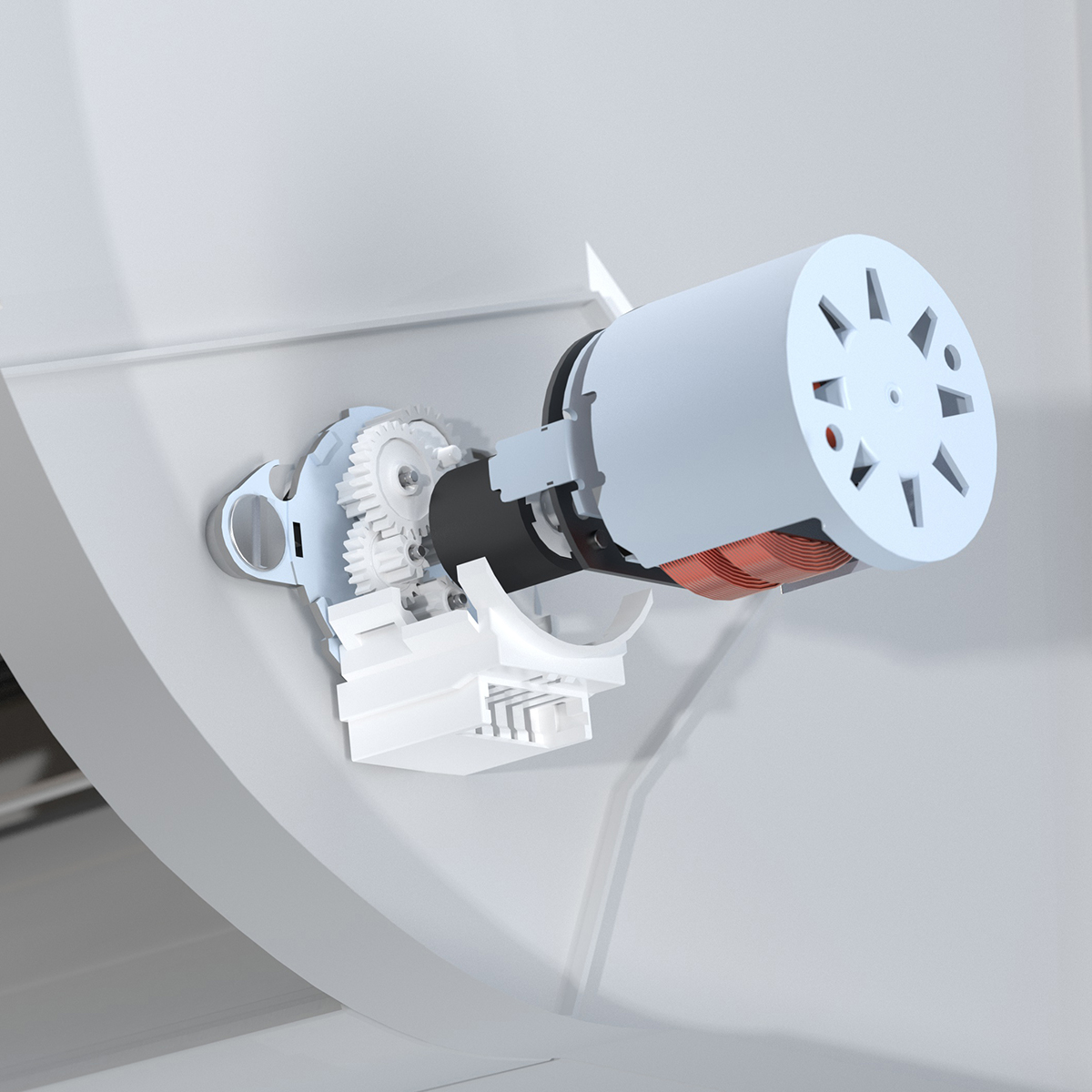

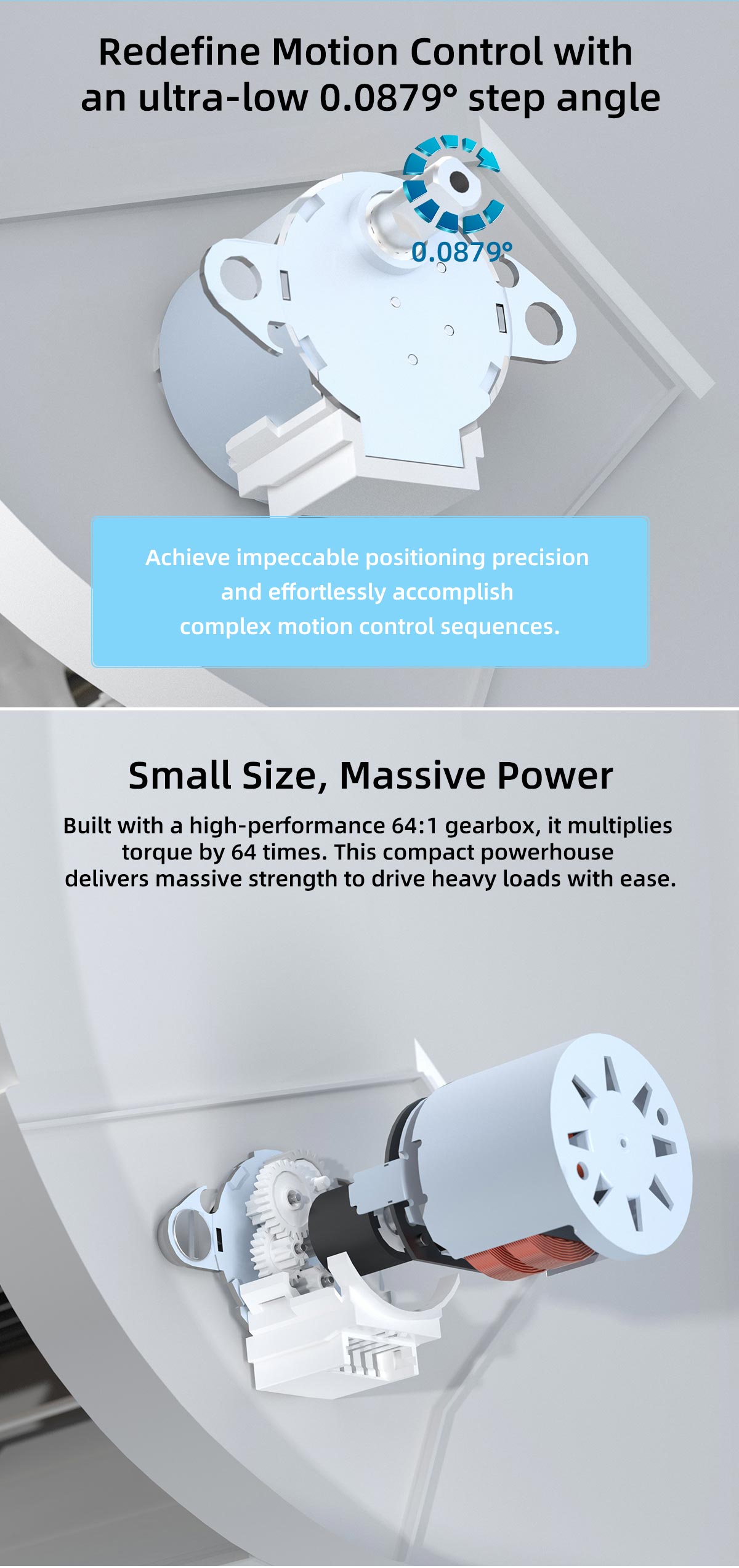

BYJ Stepper Motor 24BYJ48-2455X is engineered for applications requiring accurate step positioning, smooth low-speed operation, and compact mechanical integration. The motor adopts a 4-phase, 1–2 exciting method and a 5.625° step angle, paired with a 1/64 reduction gearbox to significantly increase output torque and positioning resolution.

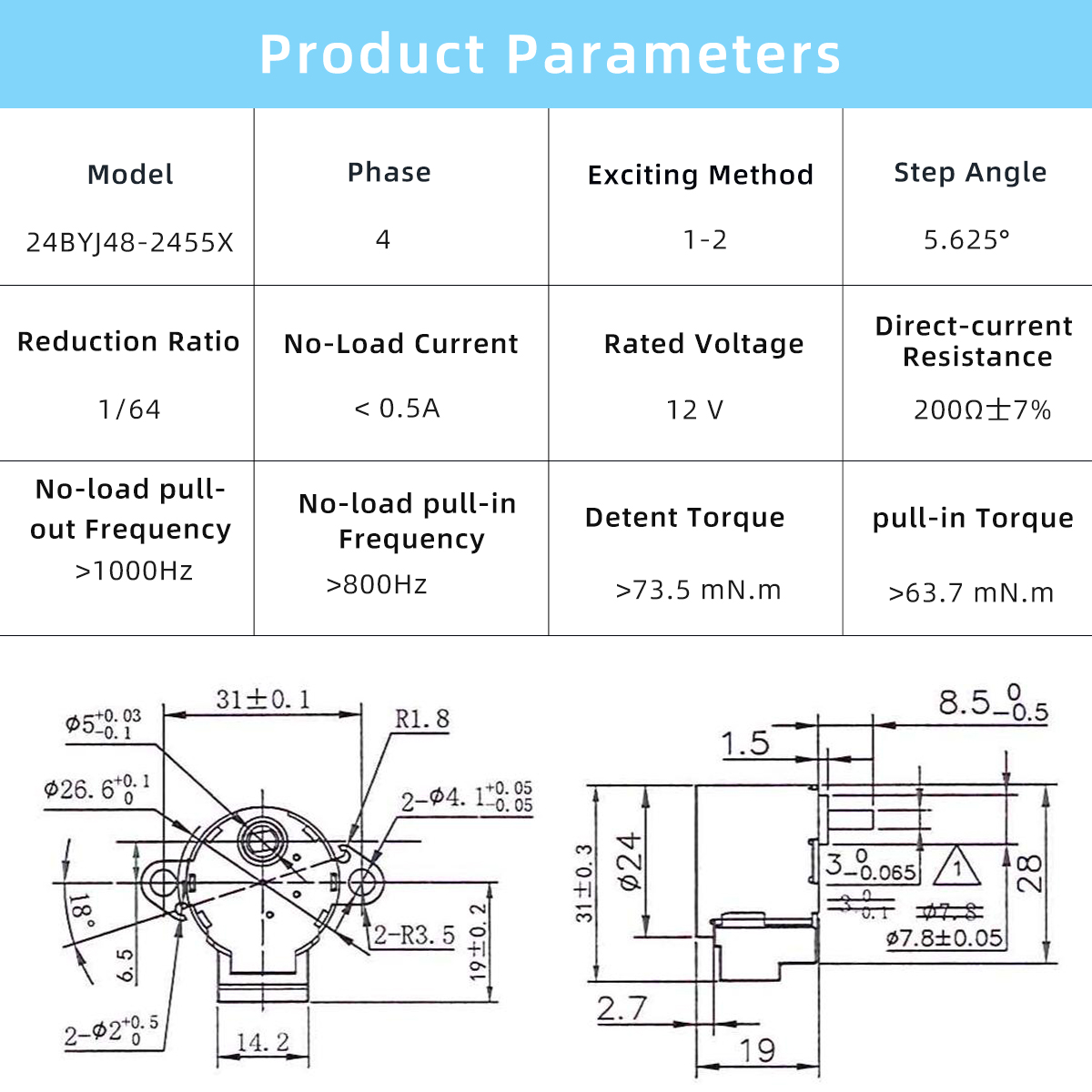

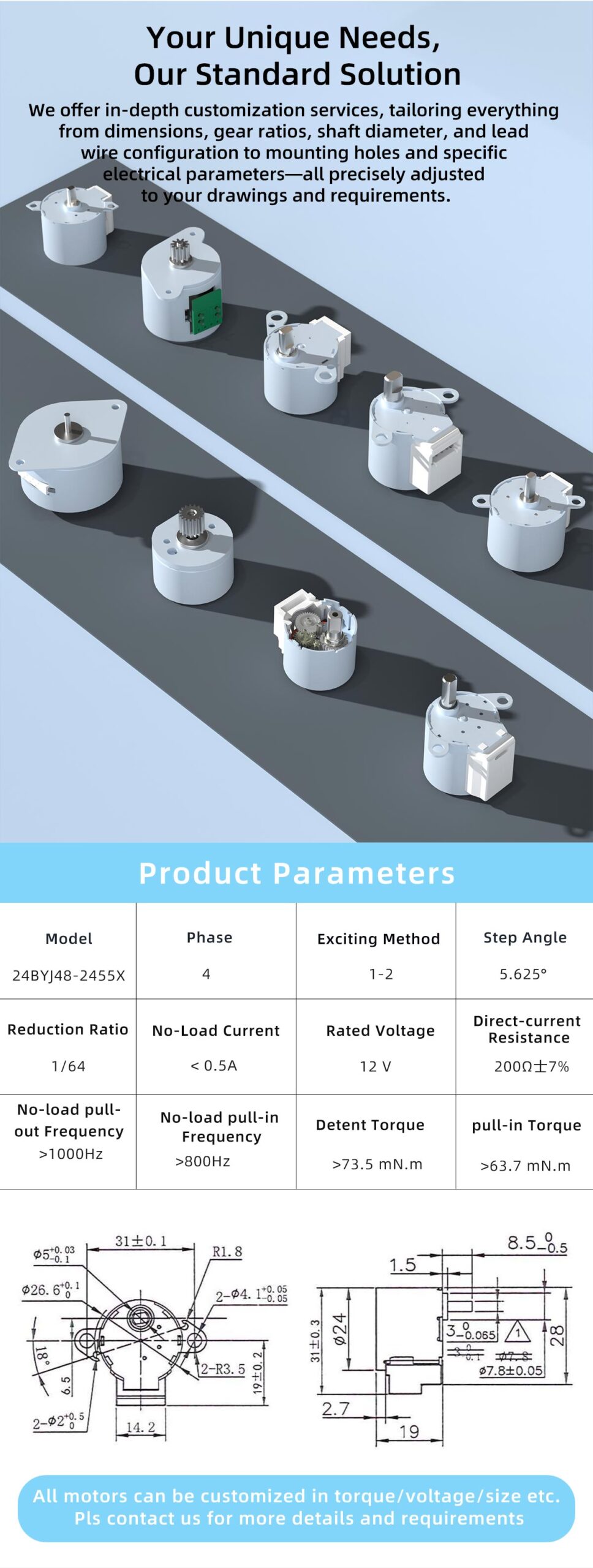

Key electrical and mechanical characteristics include:

• Rated Voltage: 12 VDC
• Phase Resistance: 200 Ω

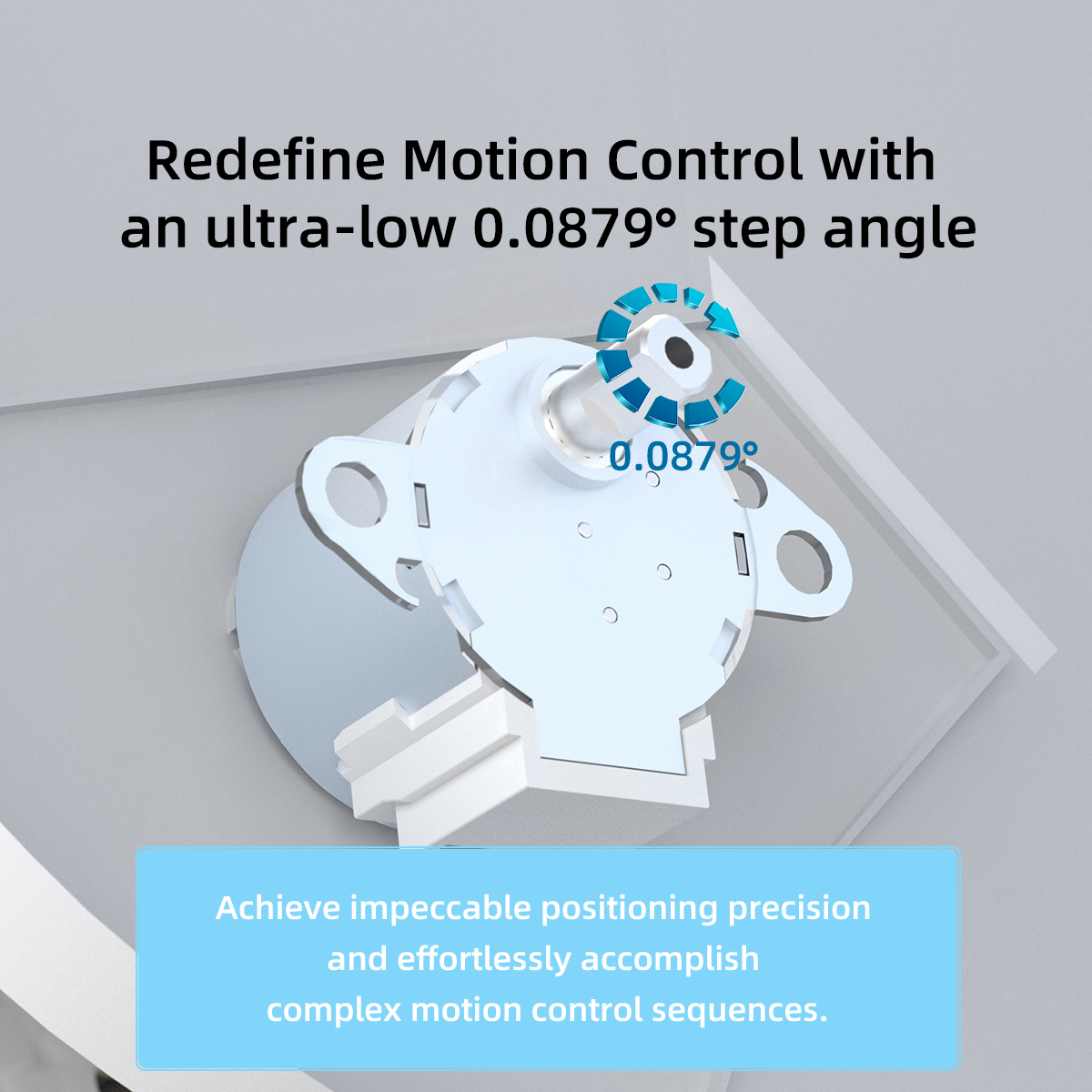

• Step Angle: 5.625°
• Gear Reduction Ratio: 1/64
• No-load Pull-out Frequency: > 1000 Hz
• No-load Pull-in Frequency: > 800 Hz
• Pull-in Torque: > 63.7 mN·m
• Detent Torque: > 73.5 mN·m
• Insulation Class: E
• Temperature Rise: < 40 K
• Noise Level: ≤ 40 dB
• Operating Temperature: −20 °C to +60 °C
• Product Life: 10,000 hours
• Outer Diameter: 24 mm
• Weight: 30 g

The 24BYJ48-2455X is well suited for lightweight motion systems where quiet operation, reliability, and cost efficiency are critical.
