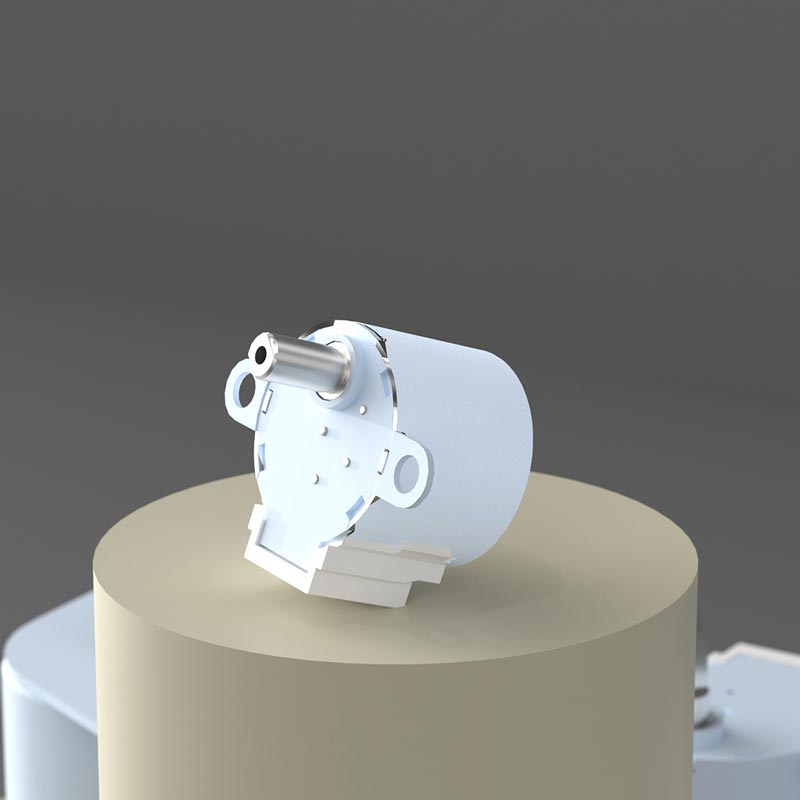

BYJ Stepper Motor 24BYJ48-3407X

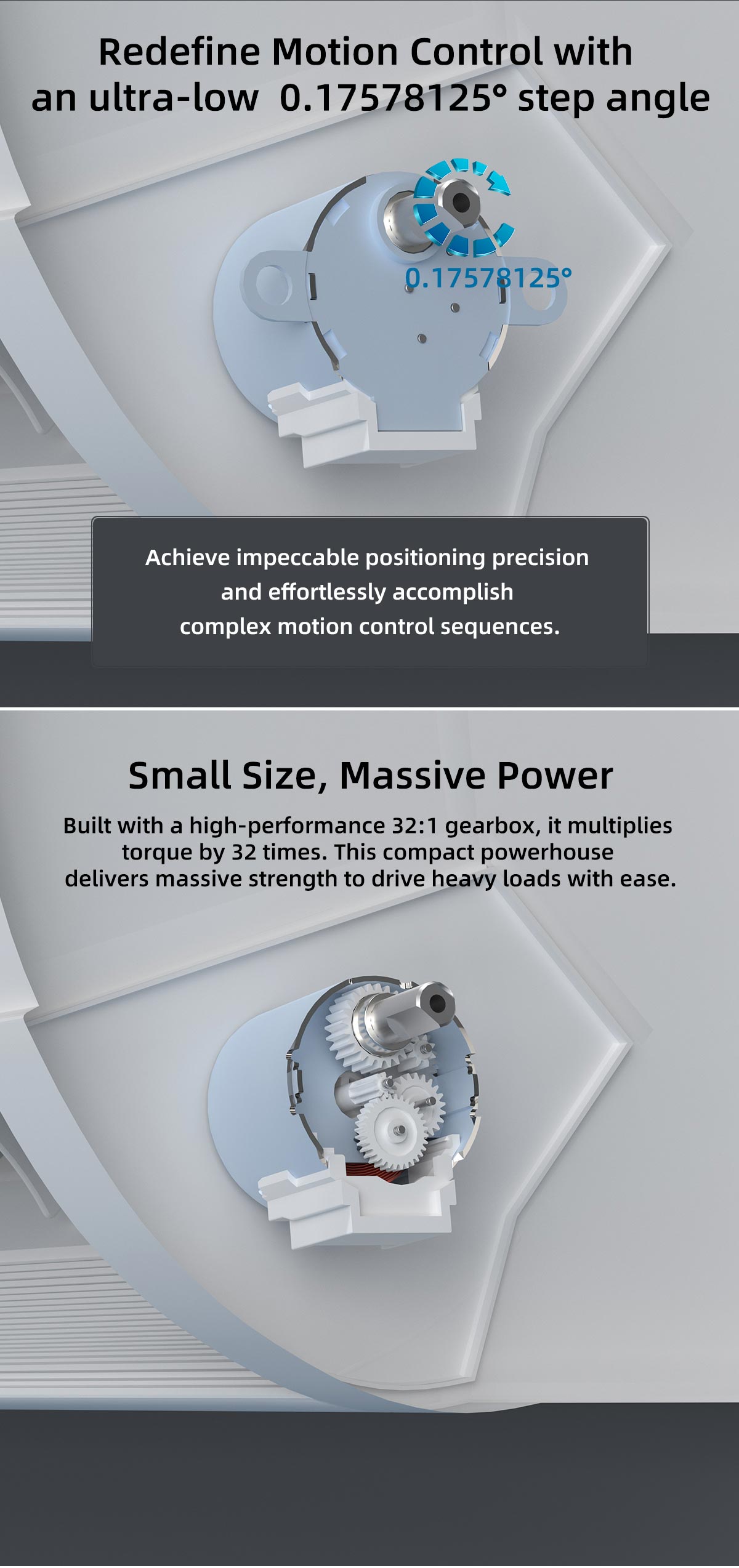

BYJ Stepper Motor 24BYJ48-3407X is engineered for applications requiring accurate step positioning, fast response, and compact mechanical integration. The motor adopts a 4-phase, 1–2 exciting method with a 5.625° step angle, paired with a 1/32 reduction gearbox to balance speed capability and torque output.

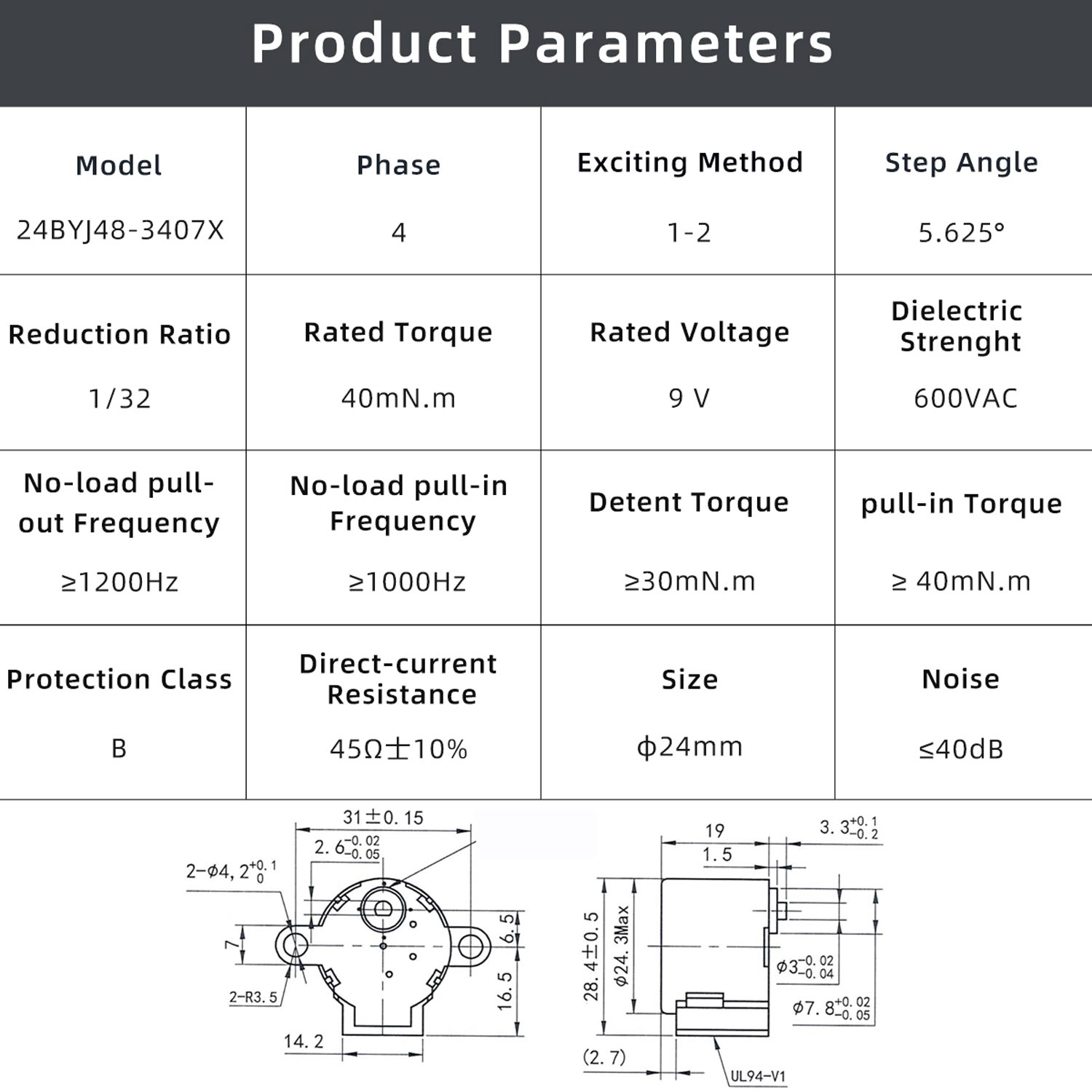

Key electrical and mechanical characteristics include:

• Rated Voltage: 9 VDC
• Phase: 4
• Exciting Method: 1–2

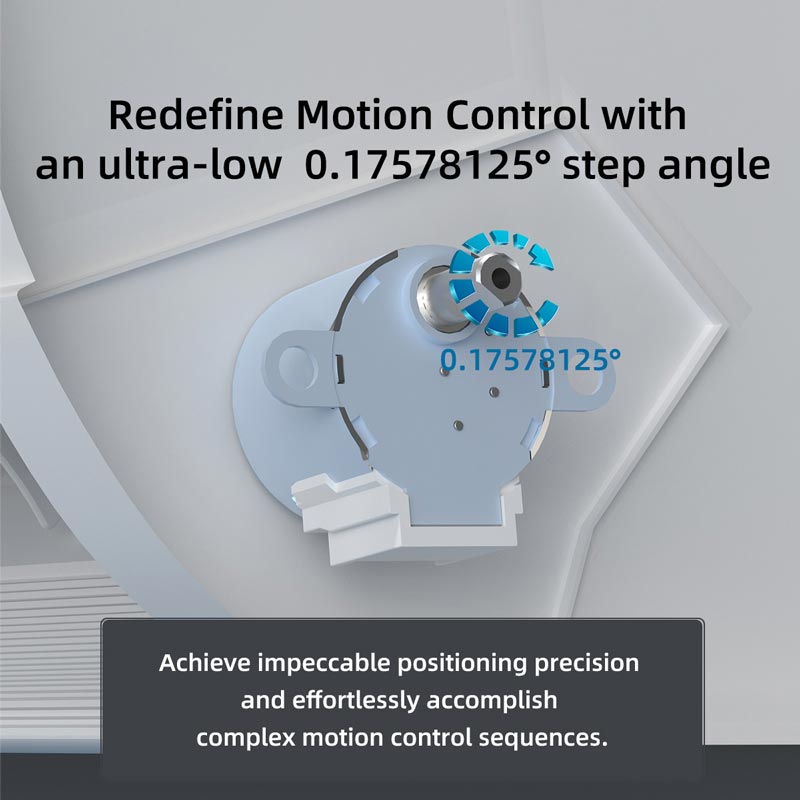

• Step Angle: 5.625°

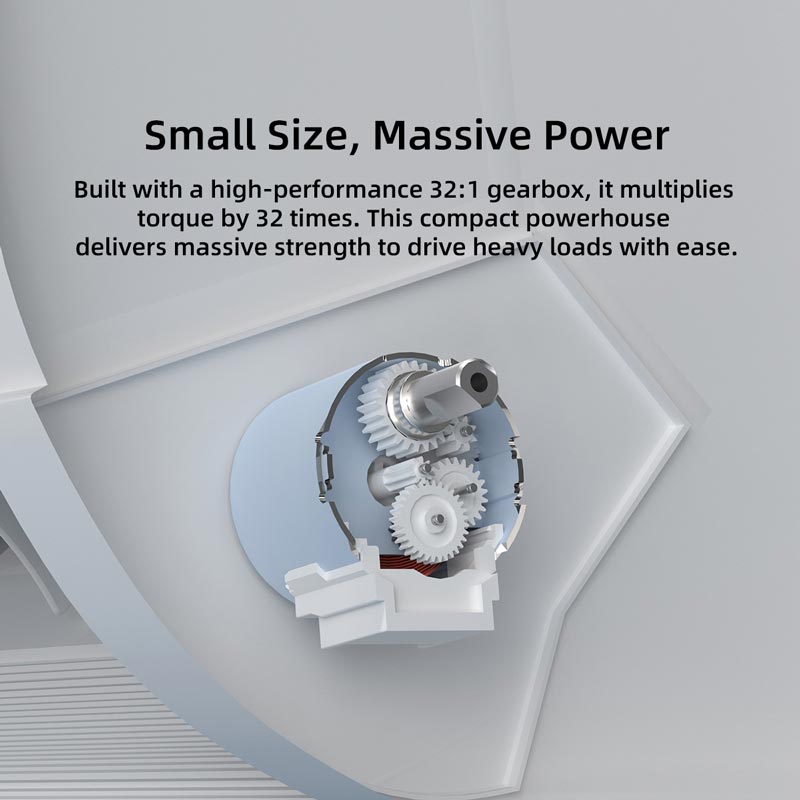

• Gear Reduction Ratio: 1/32
• Phase Resistance: 45 Ω
• Dielectric Strength: 600 VAC
• No-load Pull-out Frequency: ≥ 1200 Hz
• No-load Pull-in Frequency: ≥ 1000 Hz
• Detent Torque: ≥ 30 mN·m
• Pull-in Torque: ≥ 40 mN·m
• Insulation Class: B
• Temperature Rise: < 40 K
• Noise Level: ≤ 40 dB
• Operating Temperature: −20 °C to +60 °C
• Product Life: 10,000 hours
• Outer Diameter: 24 mm
• Weight: 29 g

The 24BYJ48-3407X is well suited for compact motion systems where responsiveness, low noise, and long service life are critical.
