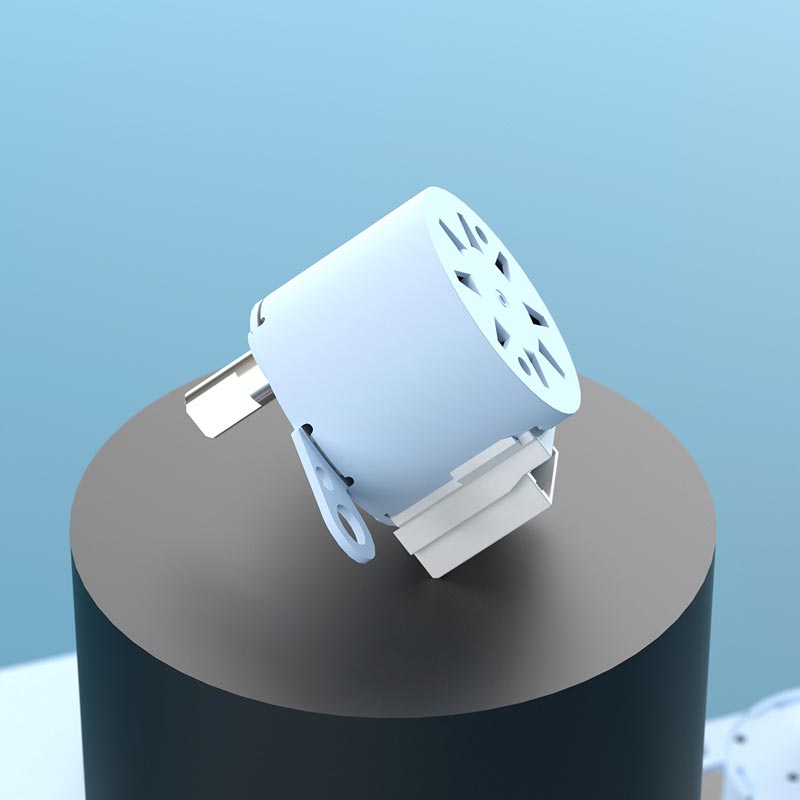

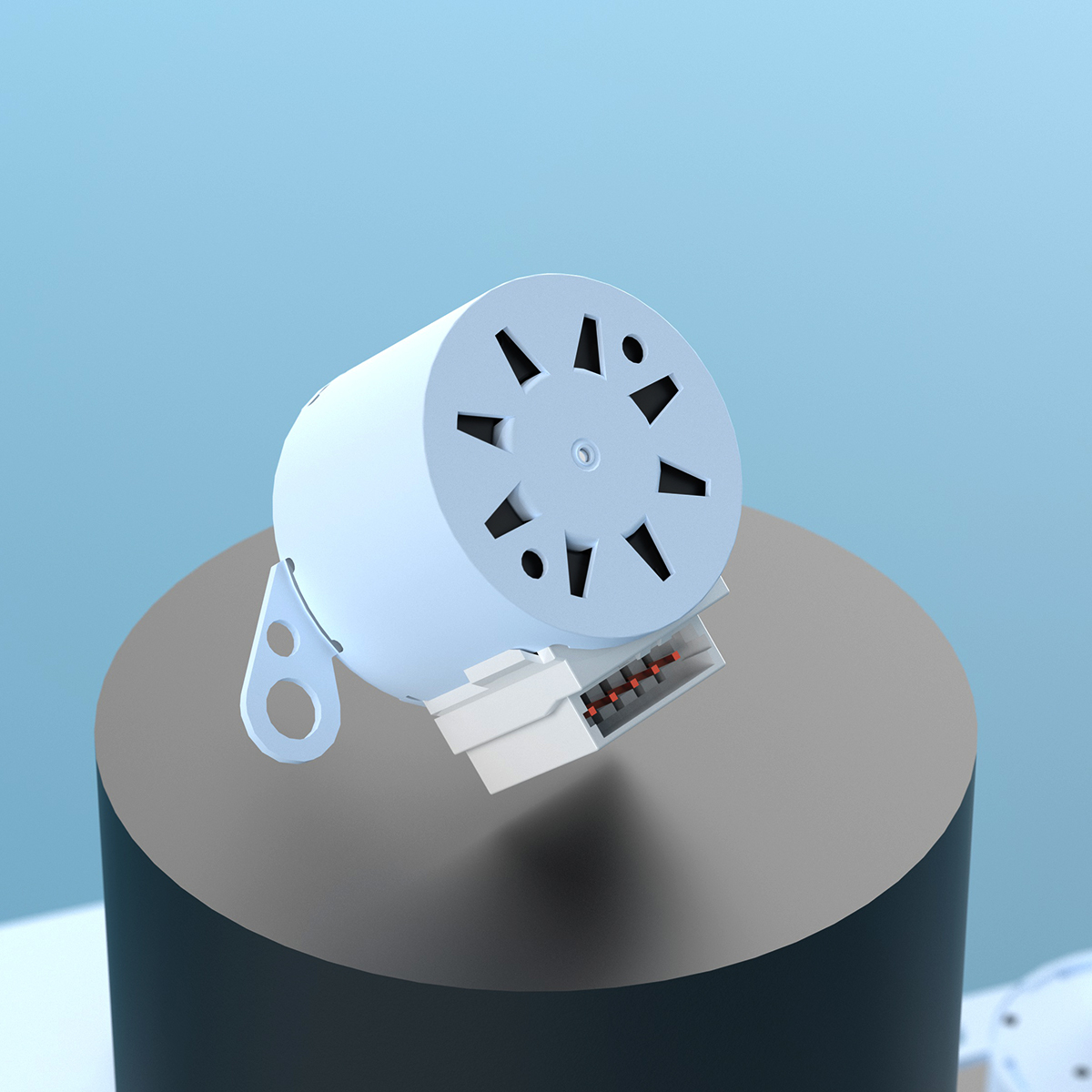

BYJ Stepper Motor 24BYJ48-3541Z

BYJ Stepper Motor 24BYJ48-3554Z is engineered for applications requiring accurate step positioning, quiet operation, and compact mechanical integration. The motor adopts a 4-phase, 1–2 exciting method with a 5.625° step angle, paired with a 1/64 reduction gearbox to enhance torque output and positioning precision.

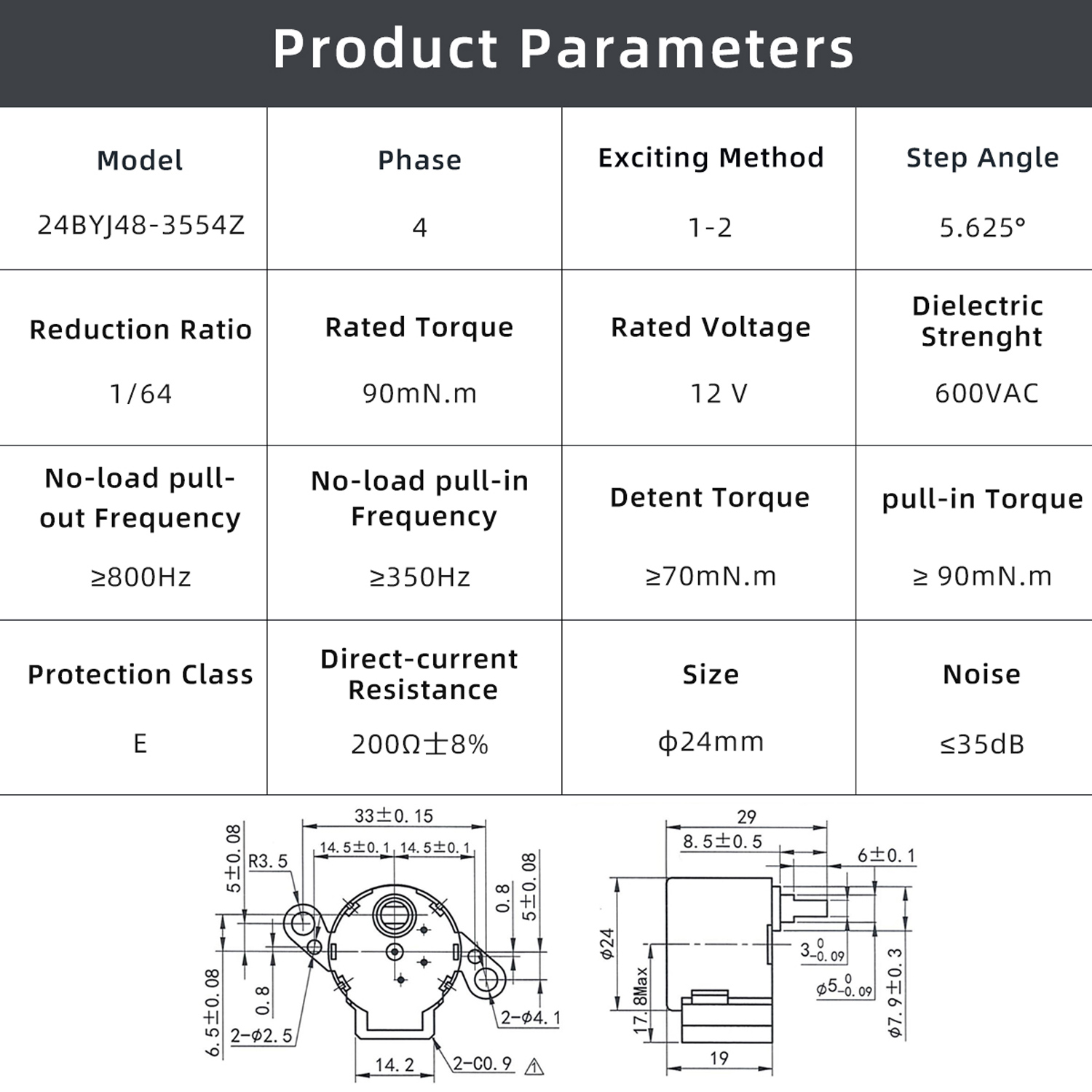

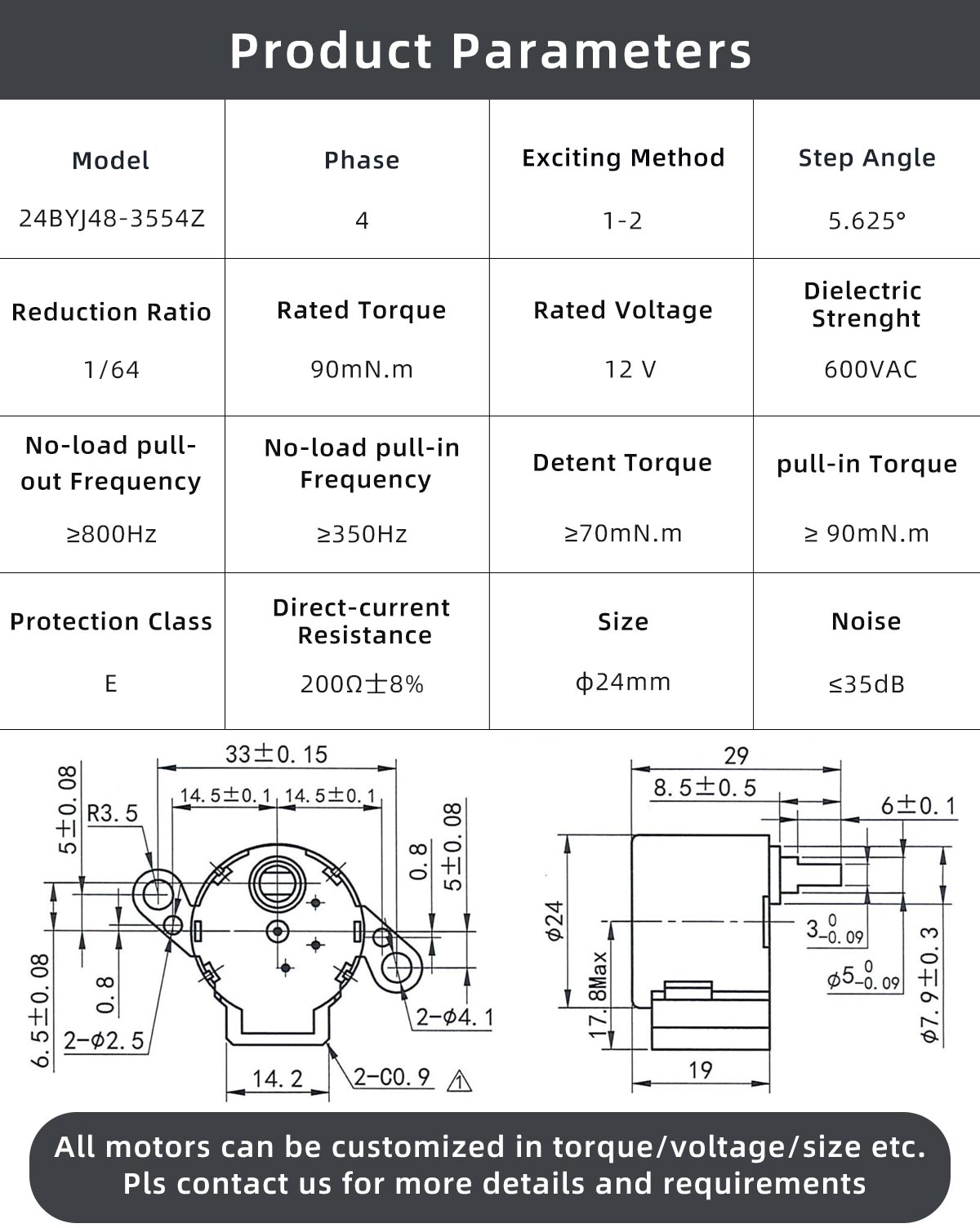

Key electrical and mechanical characteristics include:

• Rated Voltage: 12 VDC
• Phase: 4
• Exciting Method: 1–2

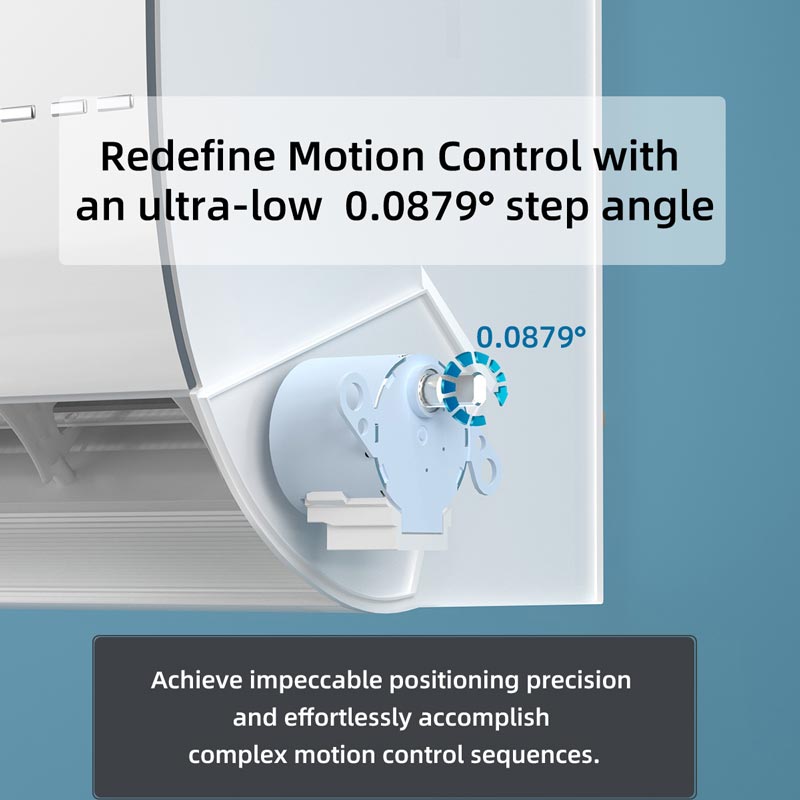

• Step Angle: 5.625°

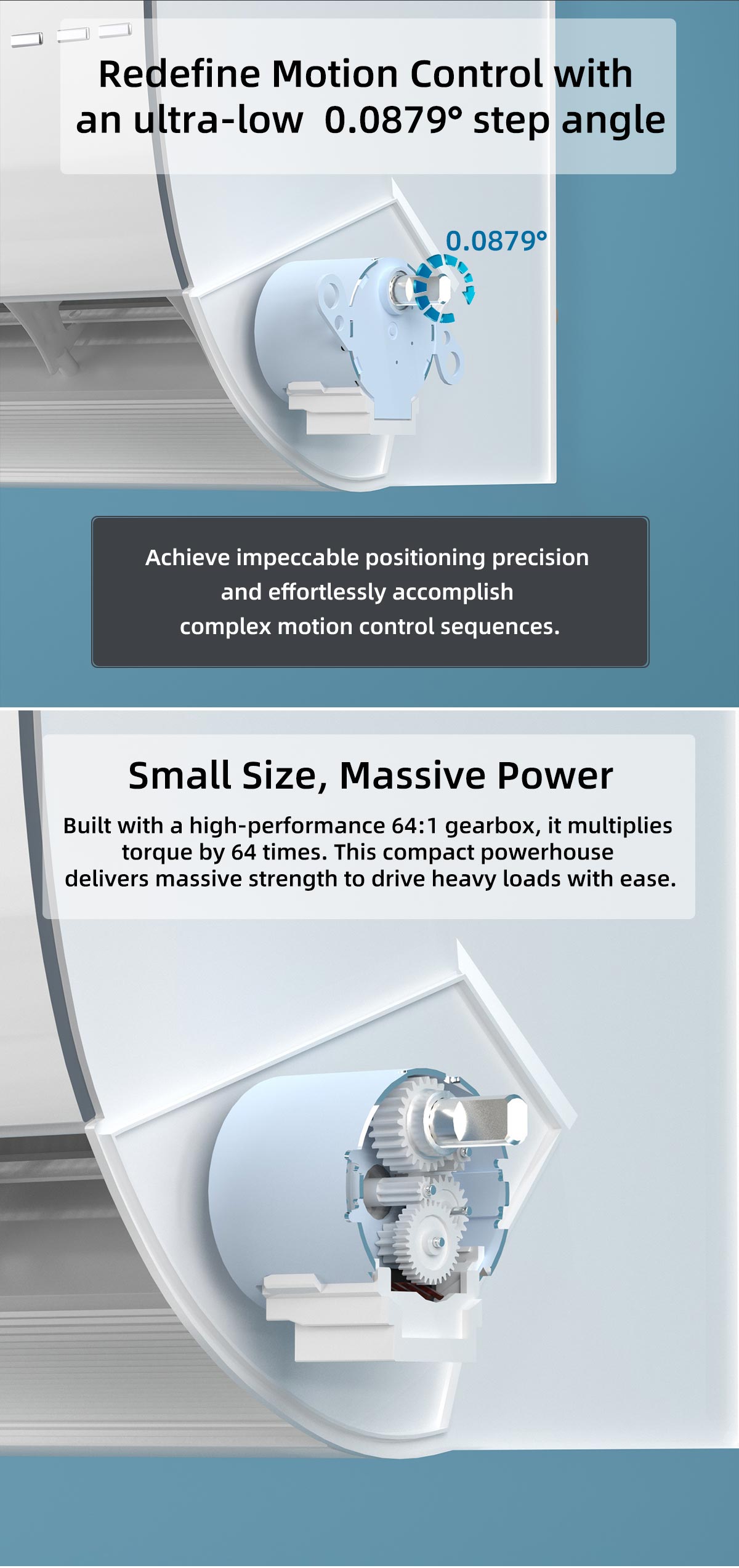

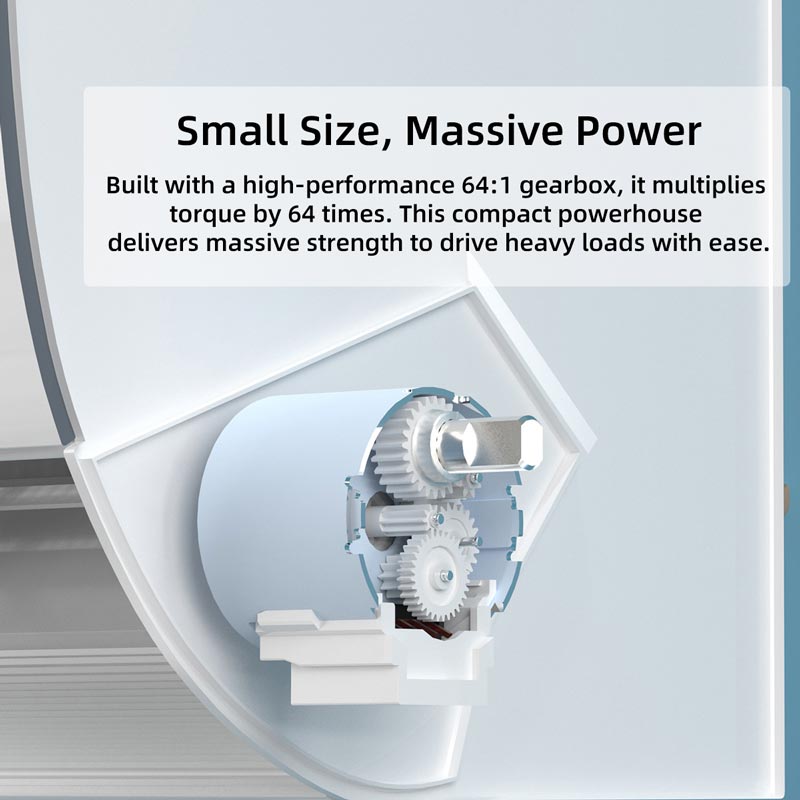

• Gear Reduction Ratio: 1/64
• Phase Resistance: 200 Ω
• Dielectric Strength: 600 VAC
• No-load Pull-out Frequency: ≥ 800 Hz
• No-load Pull-in Frequency: ≥ 350 Hz
• Detent Torque: ≥ 70 mN·m
• Pull-in Torque: ≥ 90 mN·m
• Insulation Class: E
• Temperature Rise: < 60 K
• Noise Level: ≤ 35 dB
• Operating Temperature: −20 °C to +60 °C
• Product Life: 10,000 hours
• Outer Diameter: 24 mm
• Weight: 30 g

The 24BYJ48-3554Z is well suited for applications where quiet operation, stable torque output, and compact form factor are essential.
