EC Fan MAPQ-1140EP-4-01

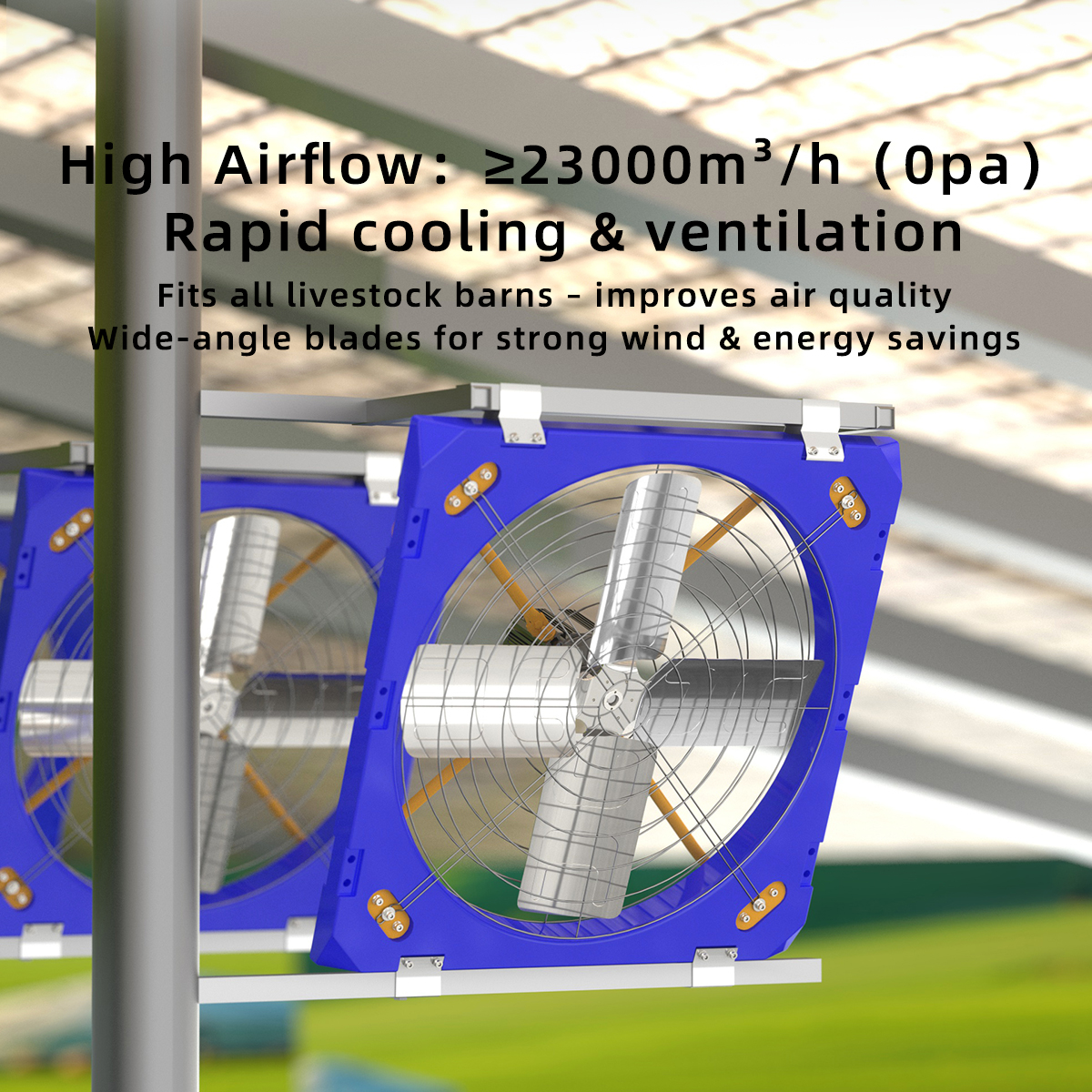

The MAPQ-1140EP-4-01 is an energy-efficient EC fan system delivering adjustable airflow from 220 to 720 RPM with 400 W rated power, operating at 380 VAC, designed for industrial and agricultural ventilation applications requiring stable airflow and low power consumption.

Why Choose This EC Fan System

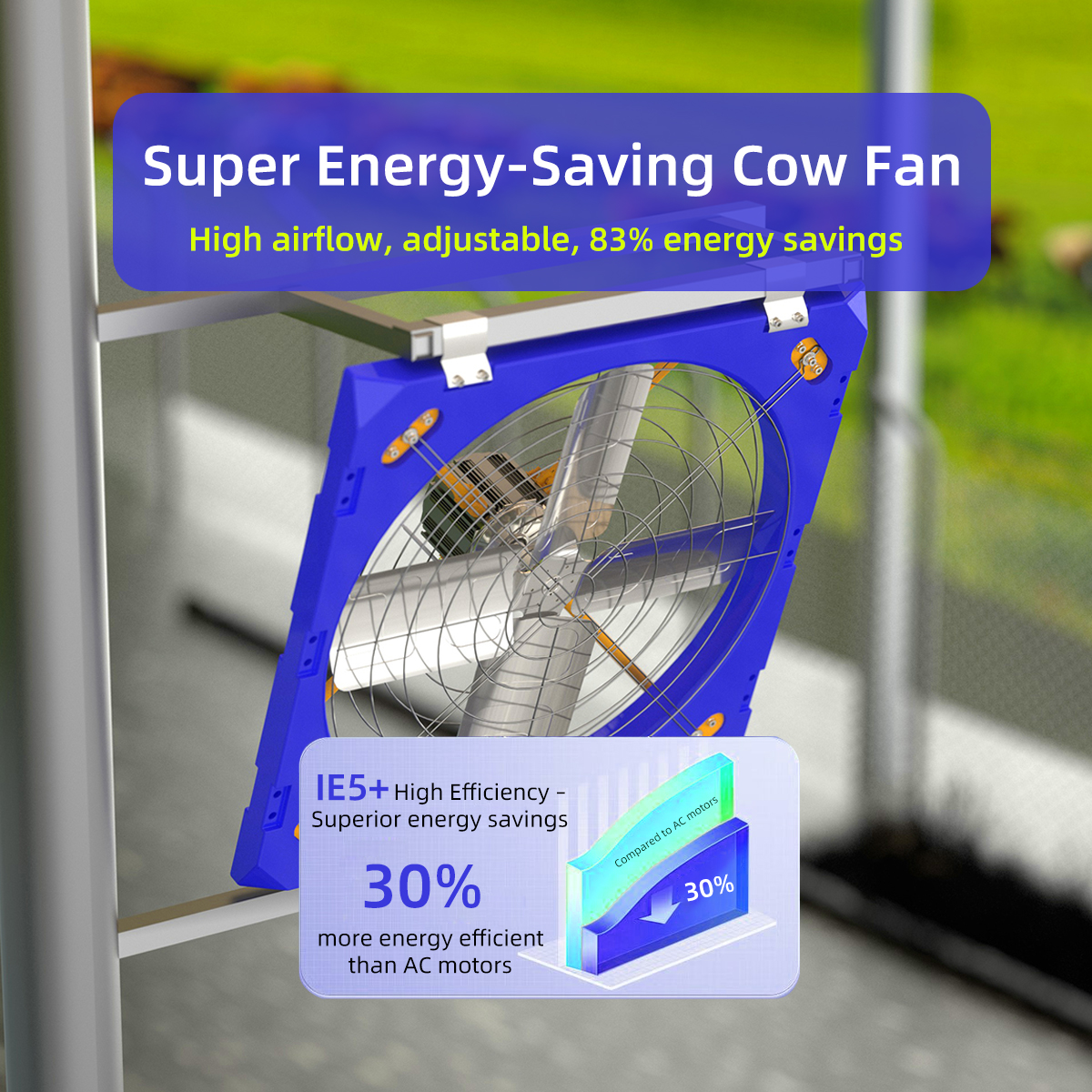

Energy-efficient airflow with low power consumption
Wide speed range for flexible airflow control

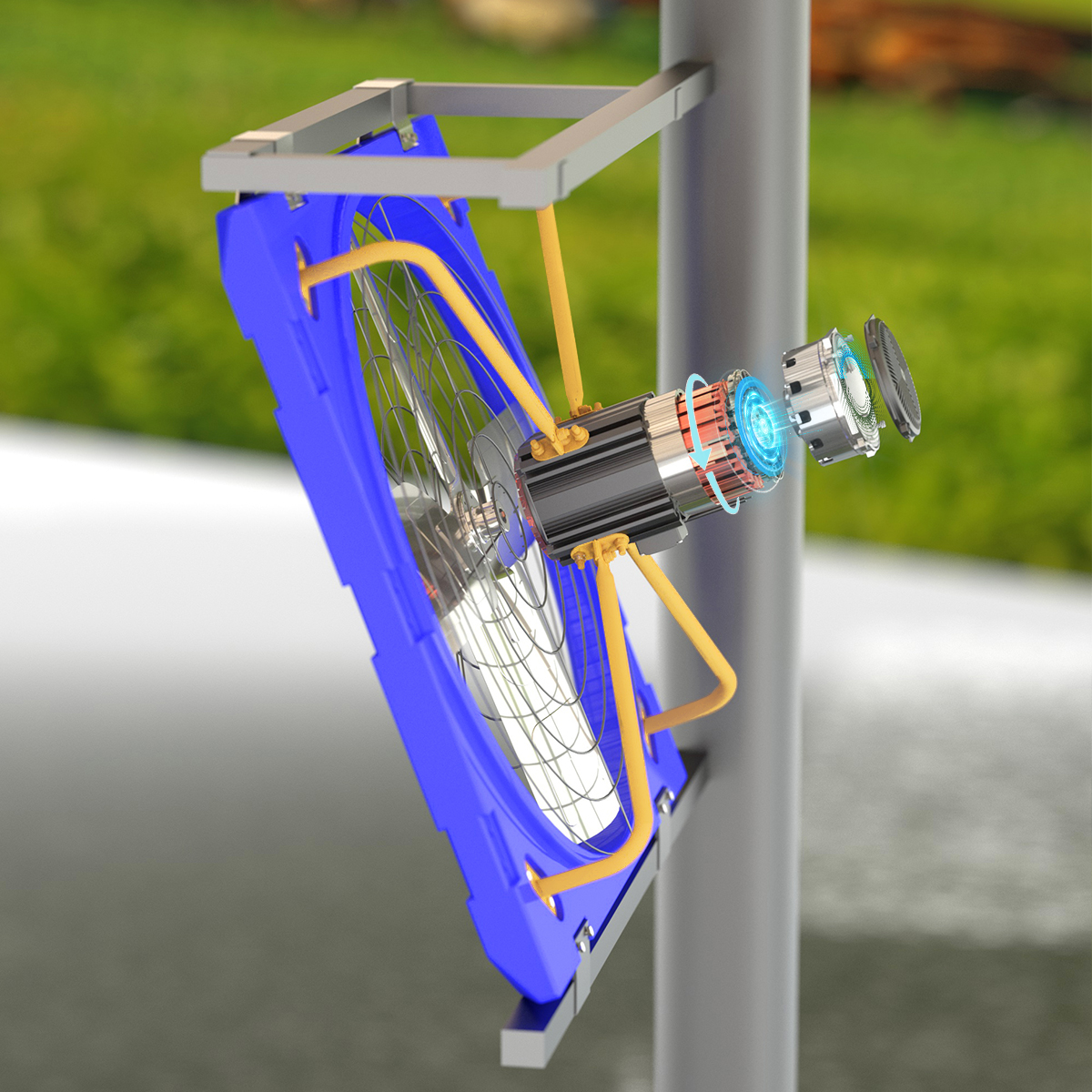

Sensorless FOC drive for smooth, reliable operation

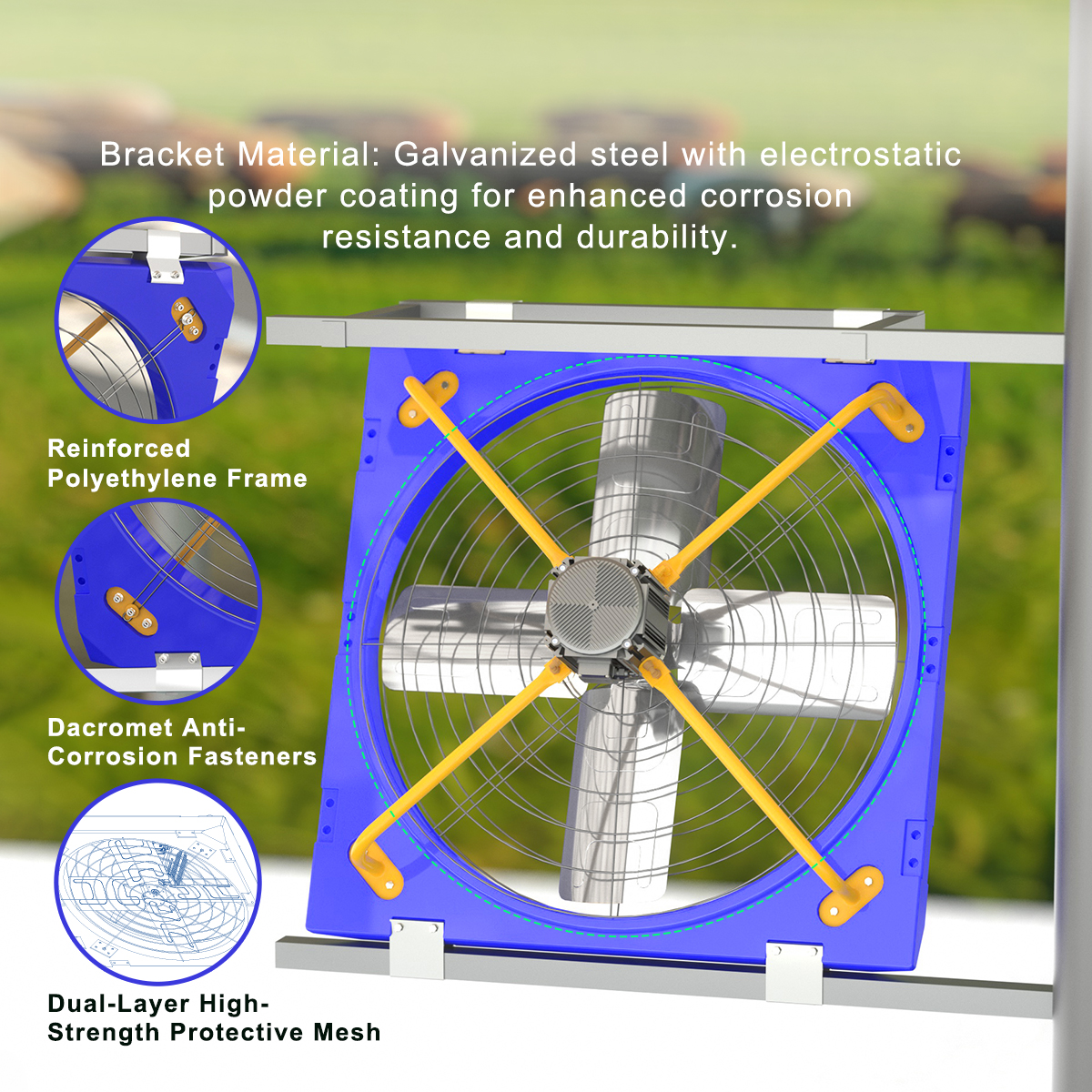

IP66-rated protection for harsh industrial and agricultural environments
Designed for continuous-duty ventilation applications

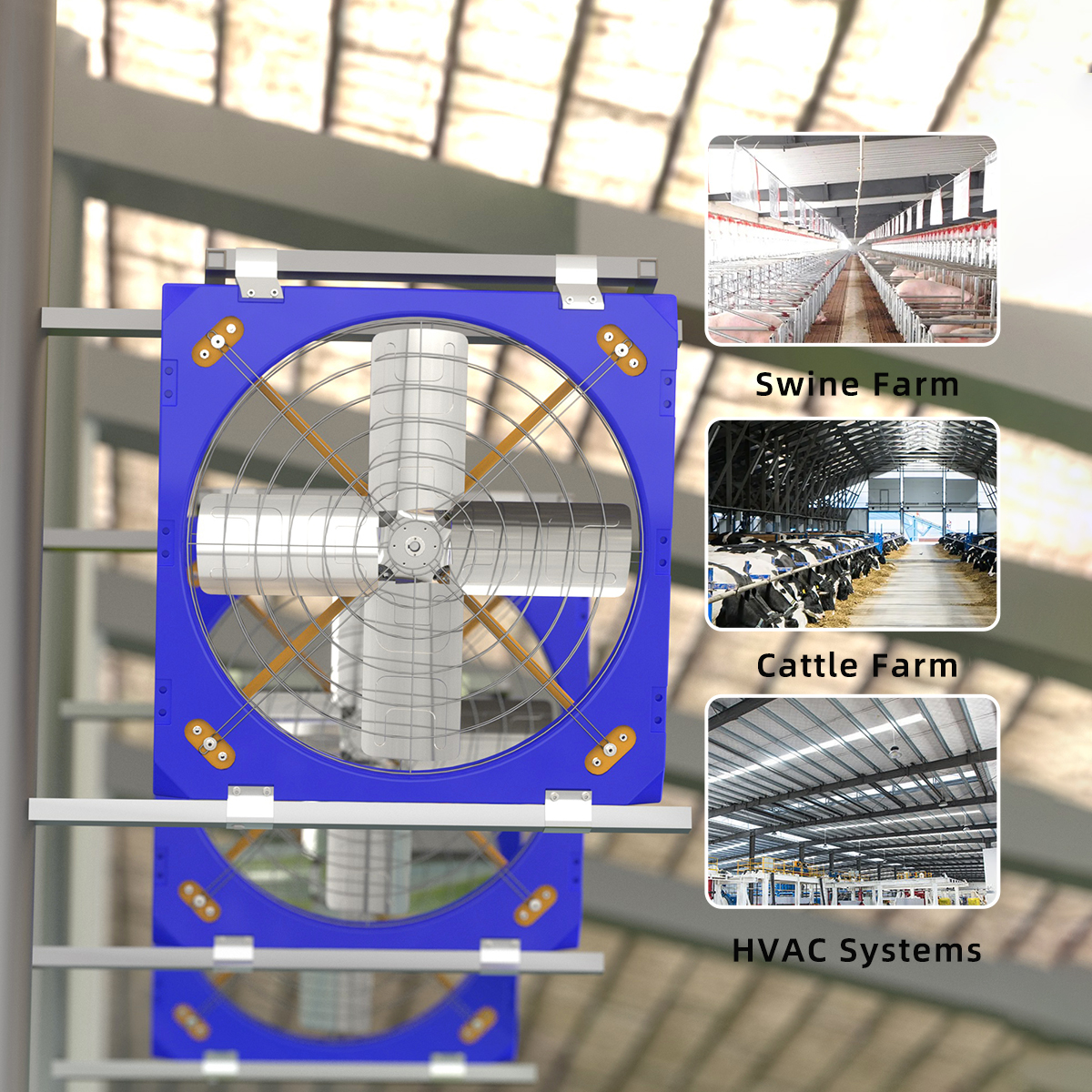

Where This EC Fan System Is Used

Smart agricultural ventilation and exhaust systems
Industrial air circulation and exhaust applications
Greenhouse and livestock facility ventilation
Medium-to-large facility airflow management
Harsh-environment ventilation and cooling modules

Contact us for pricing, full technical details, and available customization options.

Description
Tech Spec

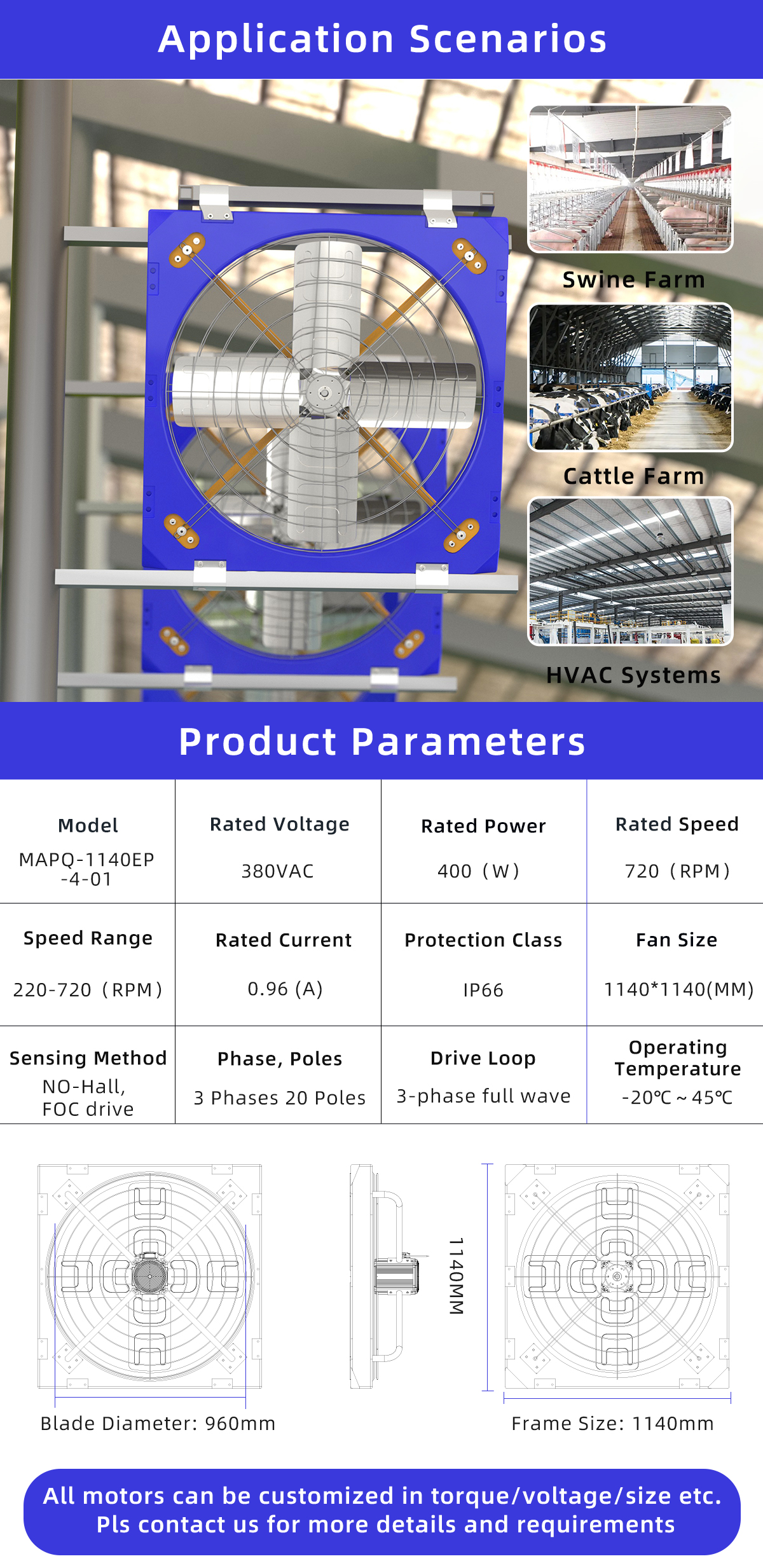

EC Fan System MAPQ-1140EP-4-01

EC Fan System MAPQ-1140EP-4-01 is engineered for applications requiring efficient airflow delivery, precise speed control, and long-term operational reliability. Powered at 380 VAC, it operates at a rated speed of 720 RPM with an adjustable speed range from 220 to 720 RPM, delivering 400 W rated power while maintaining stable and energy-efficient airflow.

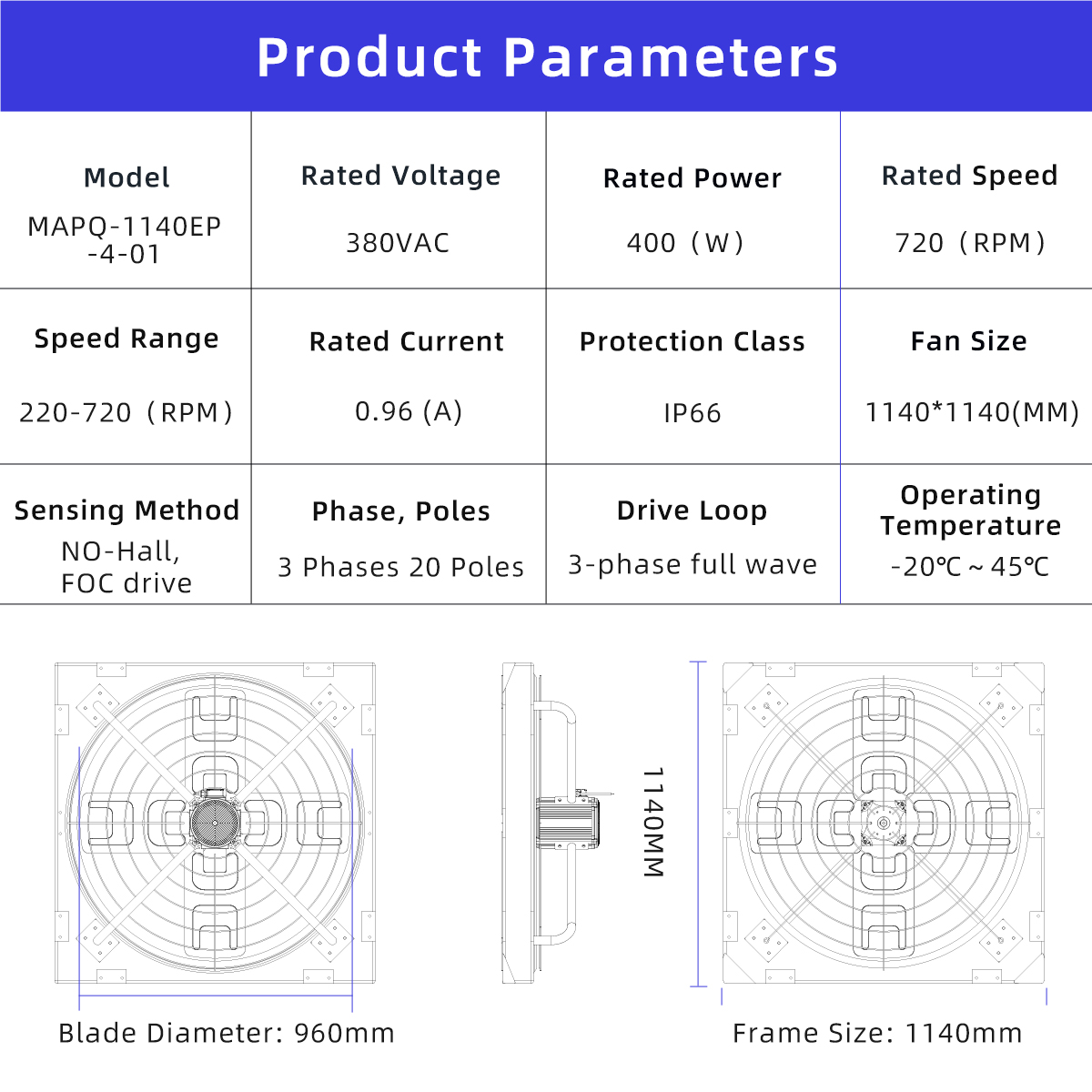

The fan system incorporates advanced electrical and control features:

Rated Voltage: 380 VAC
Rated Power: 400 W

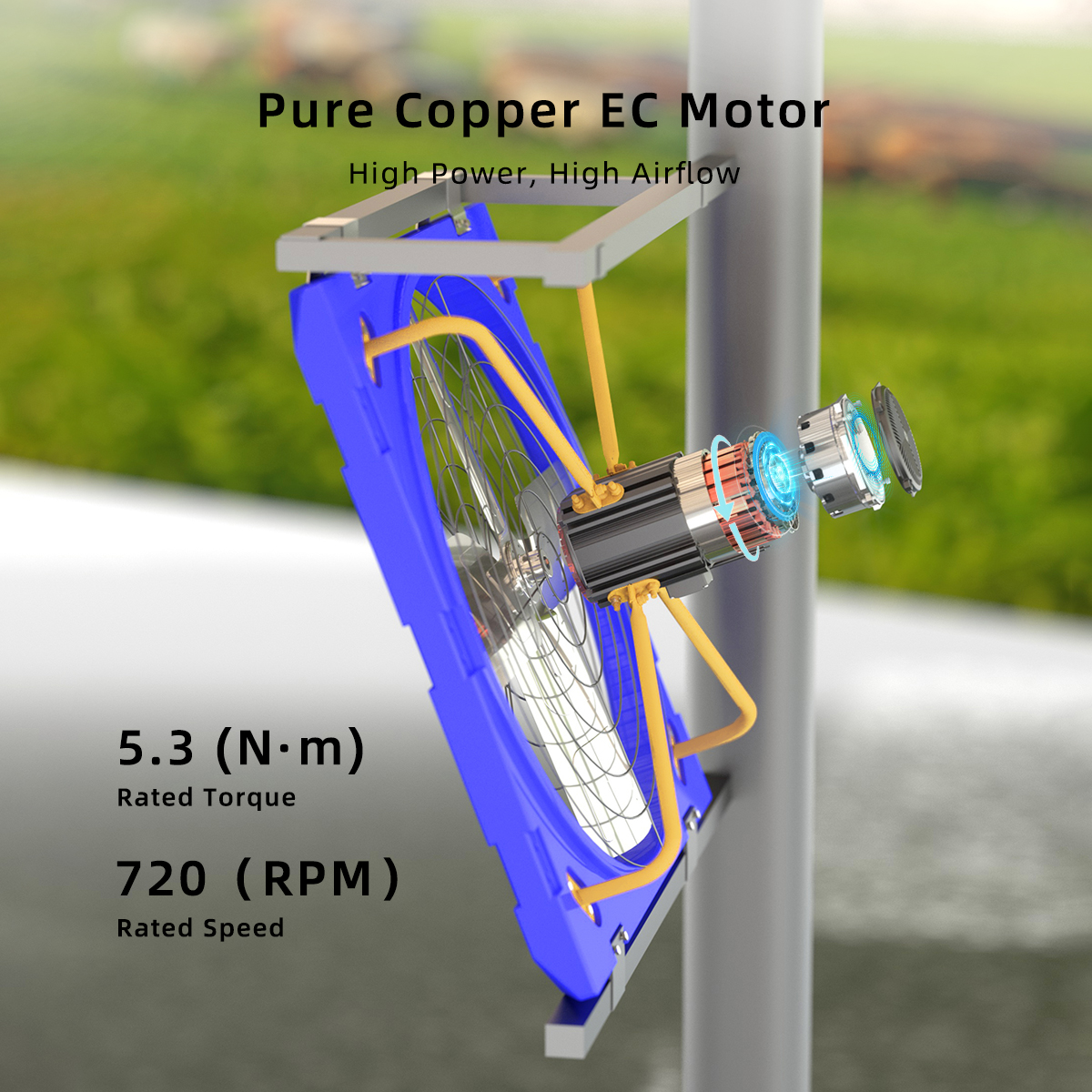

Rated Speed: 720 RPM
Speed Range: 220–720 RPM
Rated Current: 0.96 A
Sensing Method: No-Hall, FOC drive
Phase / Poles: 3 phases, 20 poles
Drive Loop: 3-phase full wave
Protection Rating: IP66
Operating Temperature: −20 °C to +45 °C

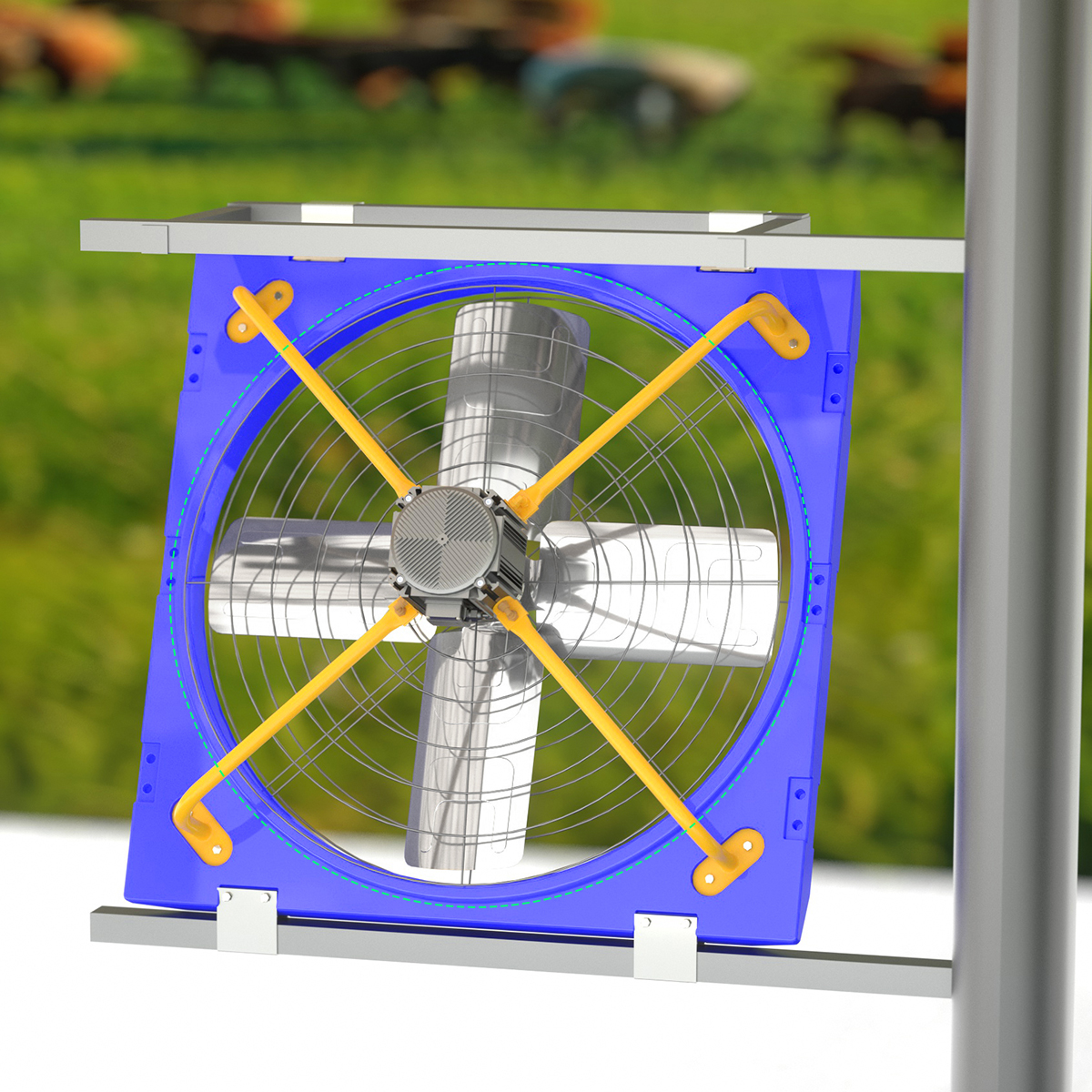

With its 1140 × 1140 mm fan size, the MAPQ-1140EP-4-01 is ideal for integrated exhaust systems, airflow management modules, and ventilation solutions used in industrial facilities and smart agricultural environments.
