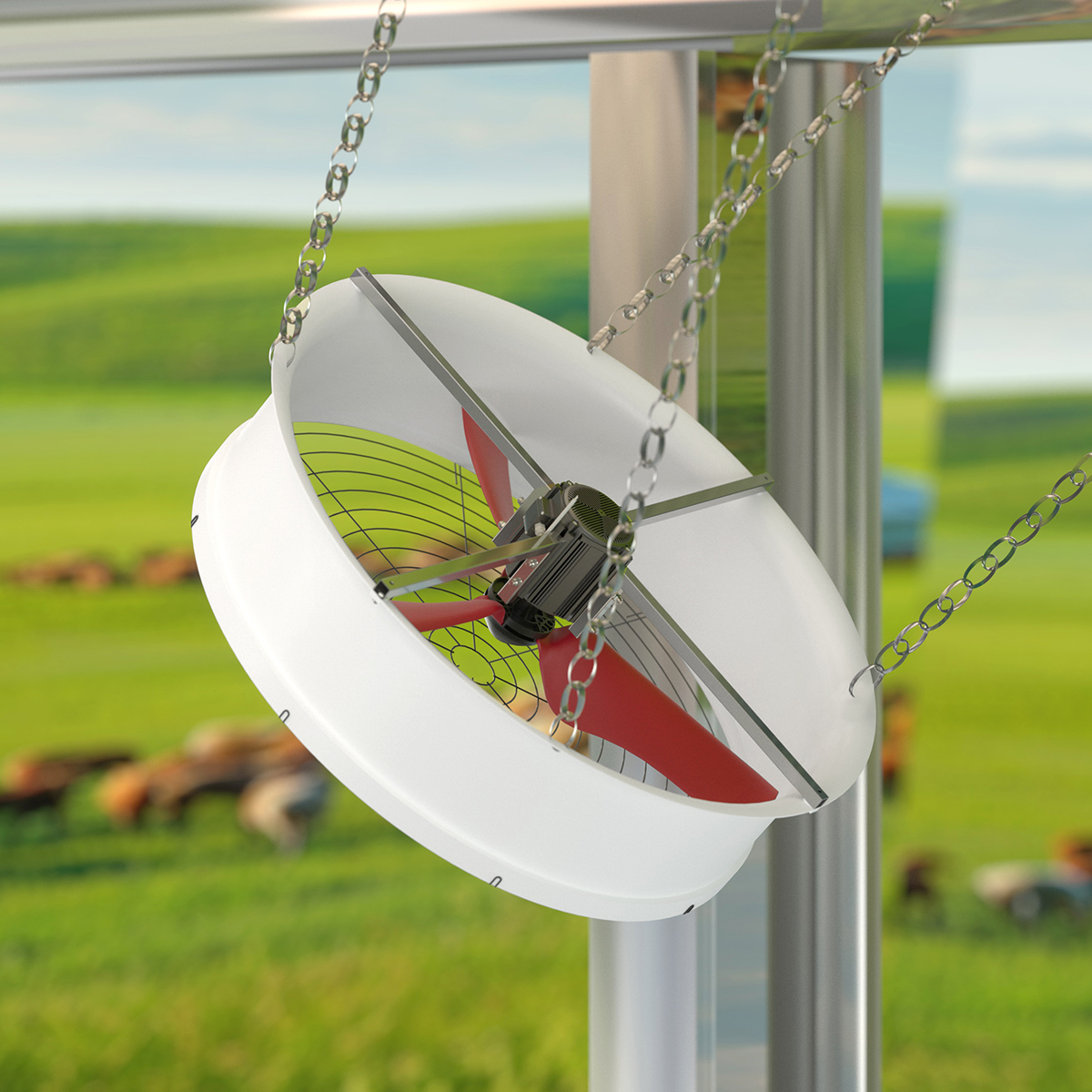

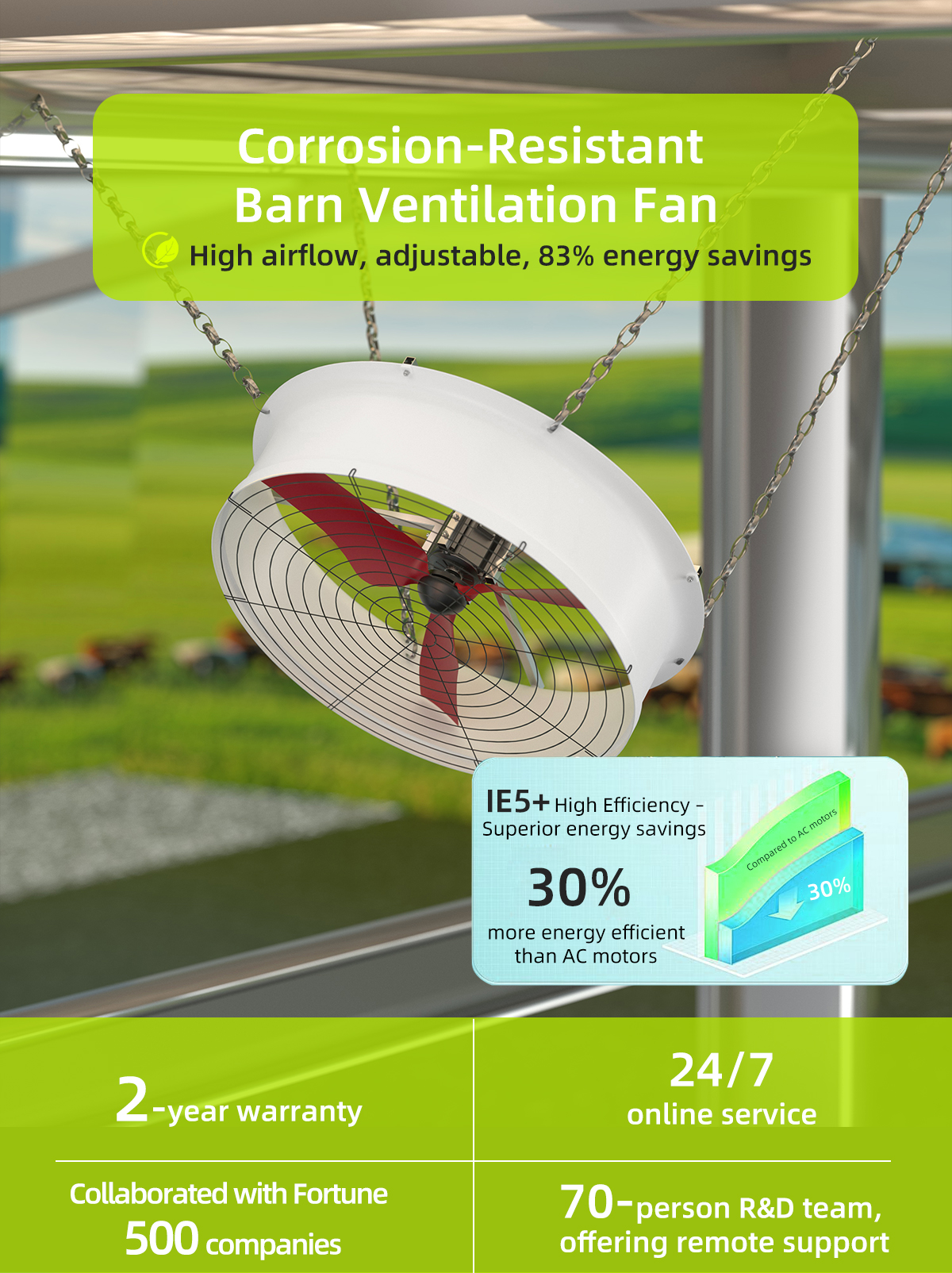

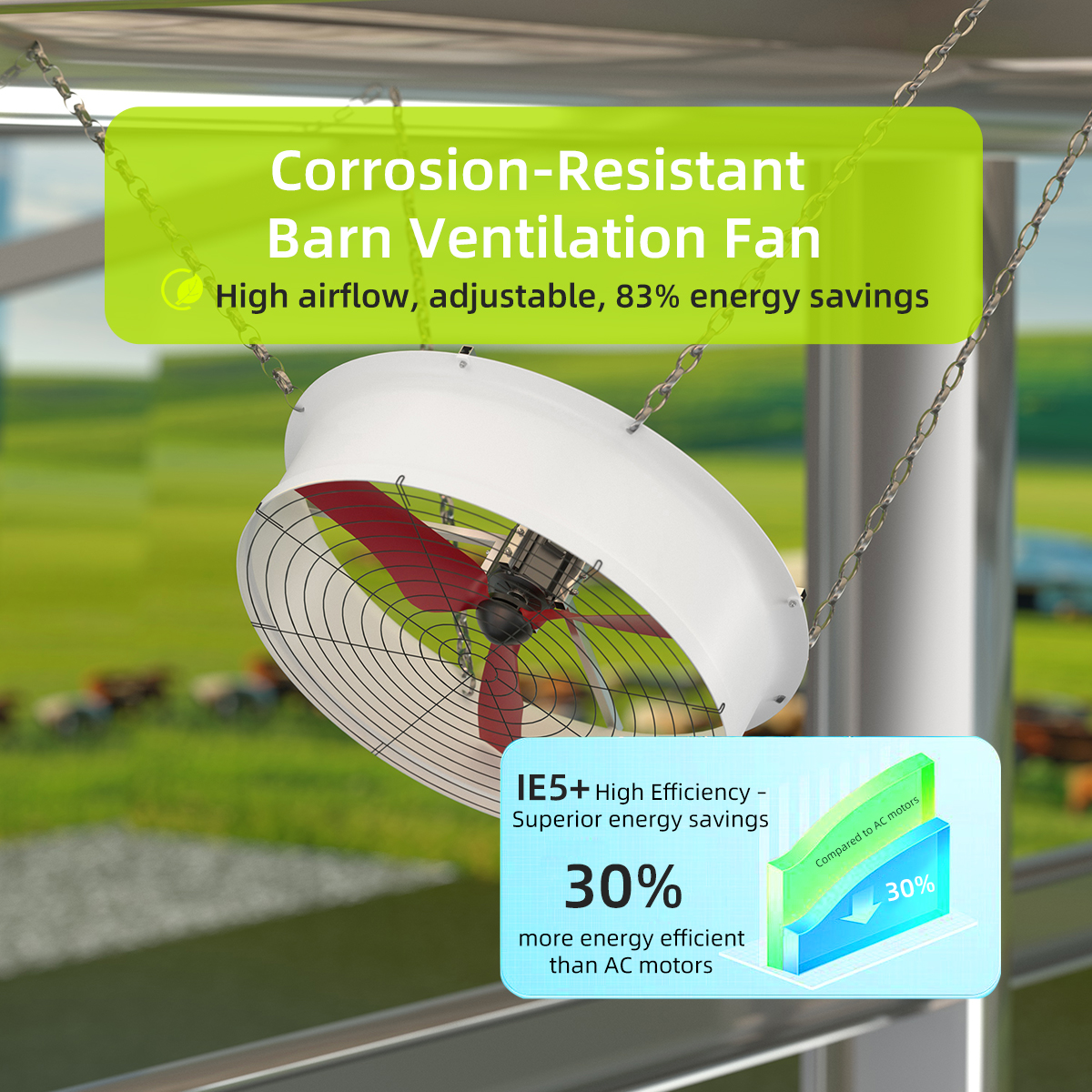

EC Fan MAPQ-51EP-4-01

The MAPQ-51EP-4-01 is an EC fan system delivering adjustable airflow from 220 to 720 RPM with 1.5 kW rated power, operating at 380 VAC, designed for industrial and agricultural ventilation applications requiring efficient, stable, and continuous operation.

Why Choose This EC Fan System

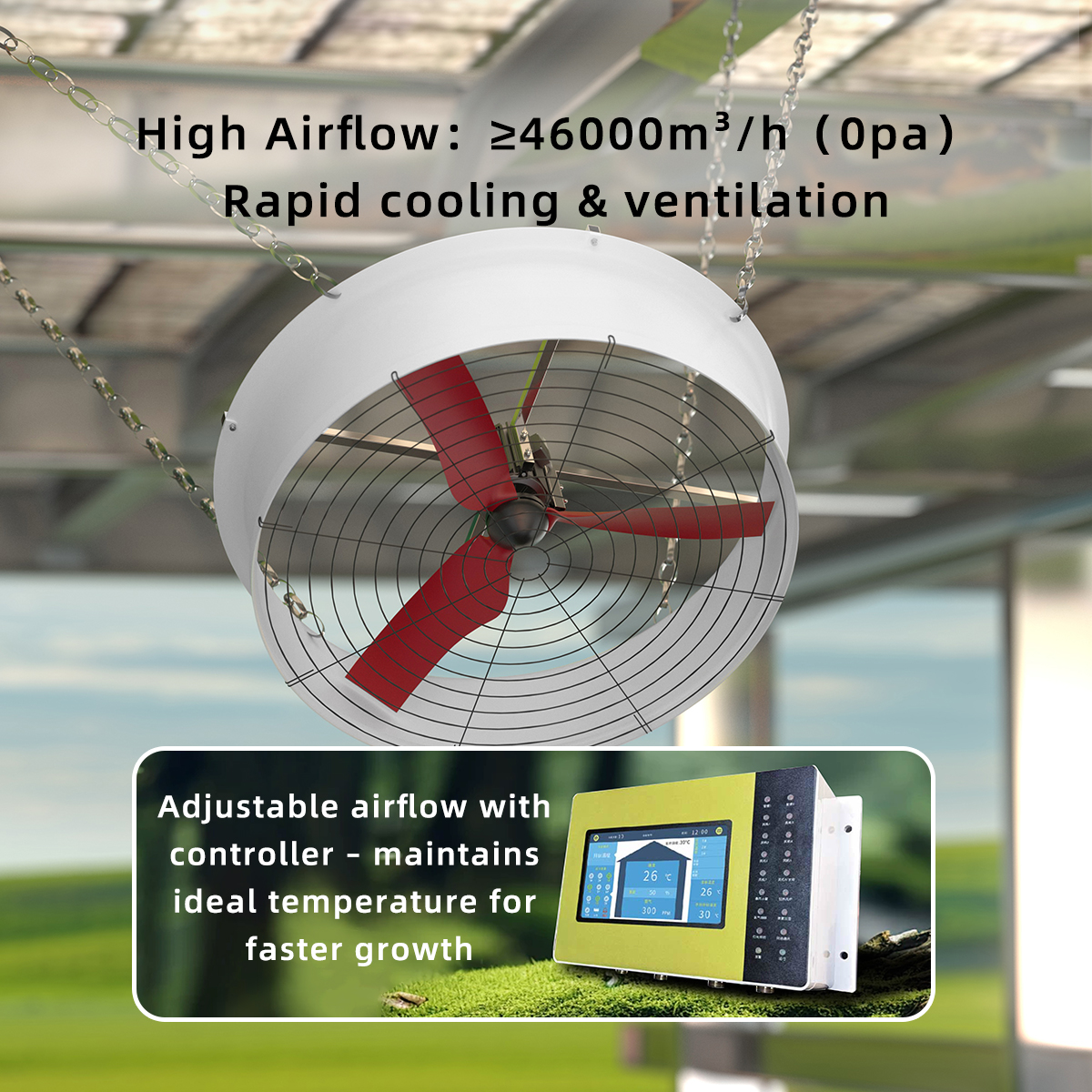

Efficient airflow delivery with wide speed adjustability
Sensorless FOC control for smooth and low-maintenance operation
Optimized power rating for energy-efficient ventilation
IP66-rated protection for harsh and humid environments
Designed for continuous industrial and agricultural duty

Where This EC Fan System Is Used

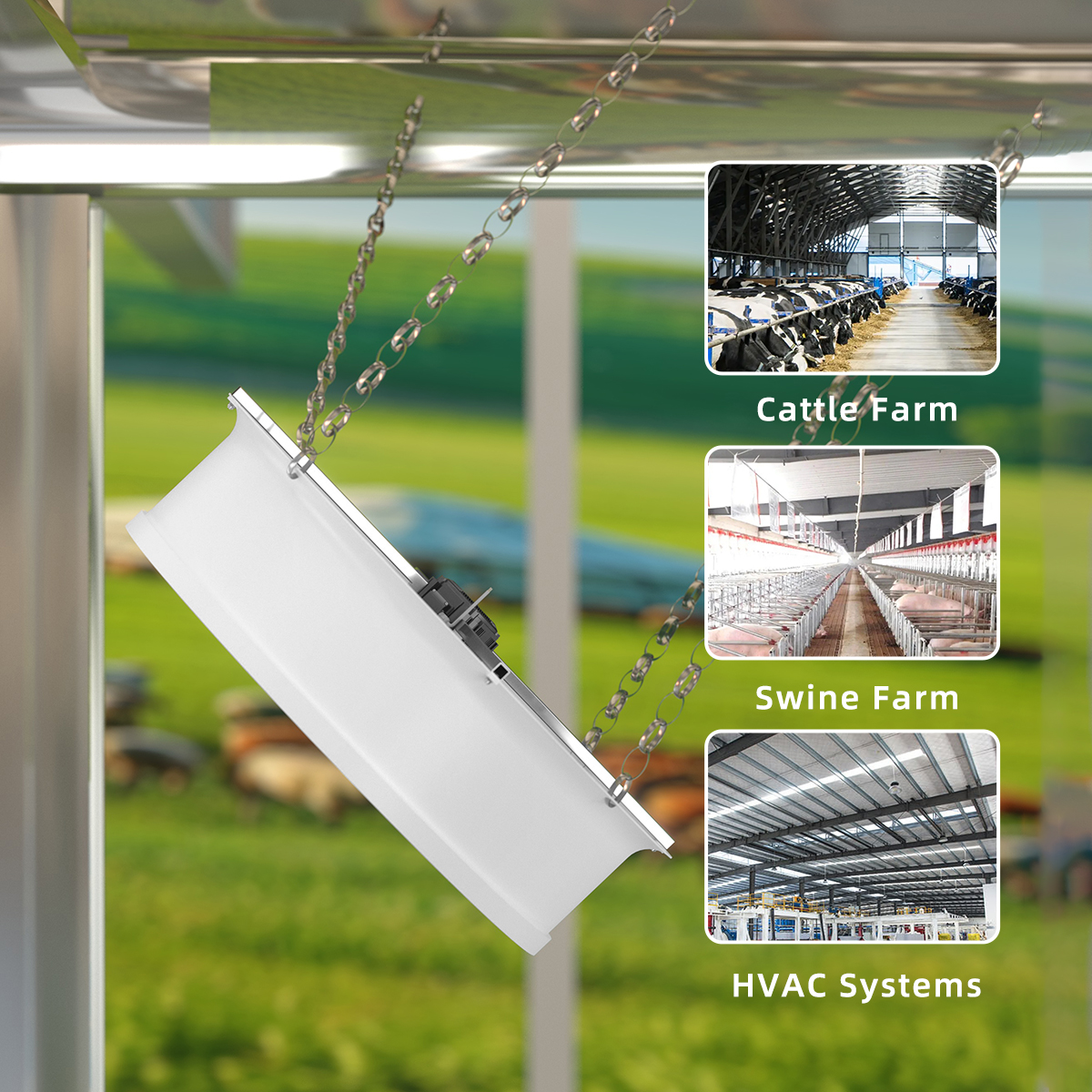

Smart agricultural ventilation and exhaust systems
Industrial air circulation and exhaust applications
Livestock housing and greenhouse ventilation
Medium-to-large facility airflow management
Harsh-environment ventilation and cooling modules

Contact us for pricing, full technical details, and available customization options.

Description
Tech Spec

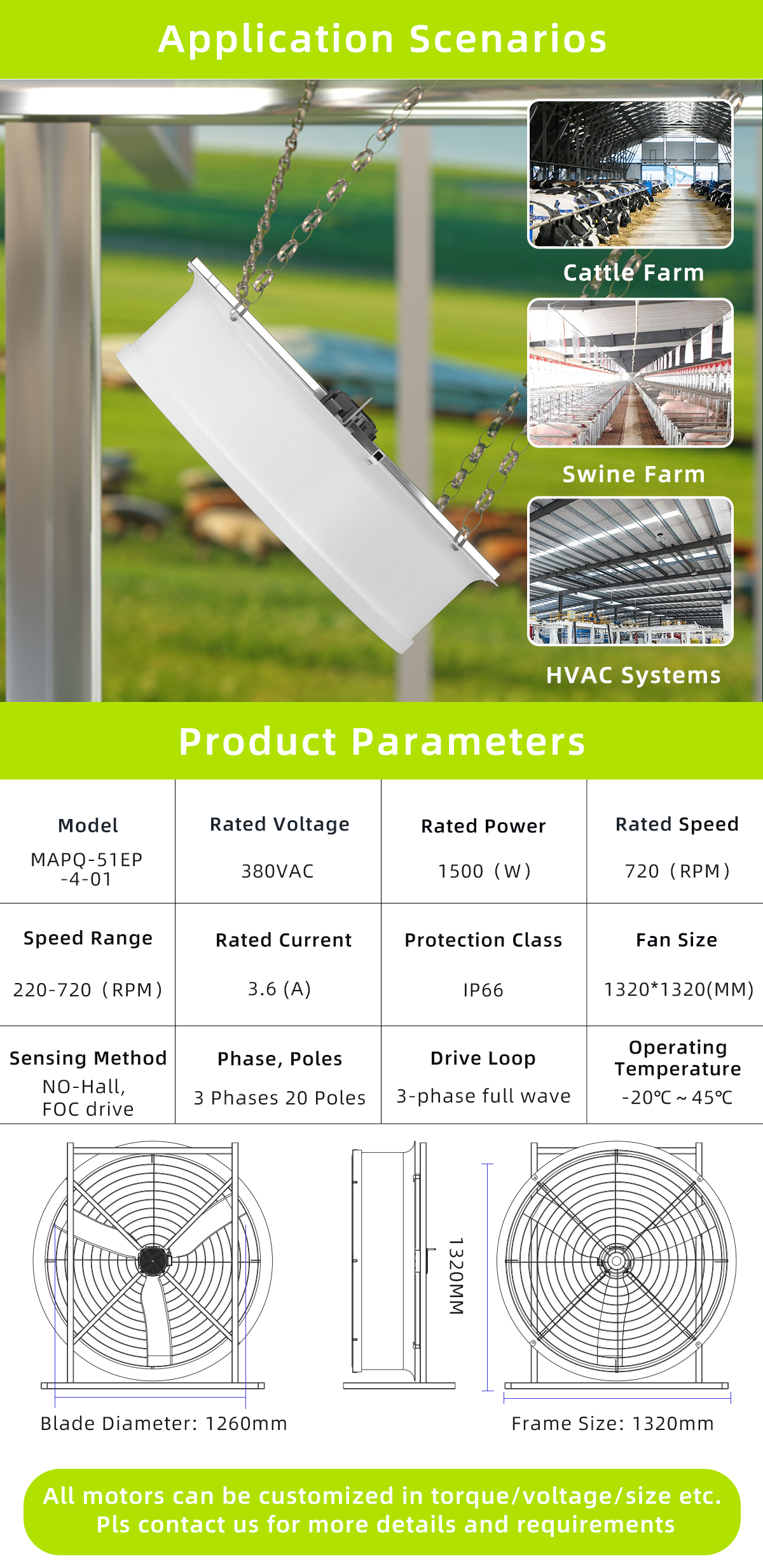

EC Fan System MAPQ-51EP-4-01

EC Fan System MAPQ-51EP-4-01 is engineered for applications requiring efficient airflow delivery, precise speed control, and long-term operational reliability. Powered at 380 VAC, it operates at a rated speed of 720 RPM with an adjustable speed range from 220 to 720 RPM, delivering 1.5 kW rated power while maintaining stable and energy-efficient airflow.

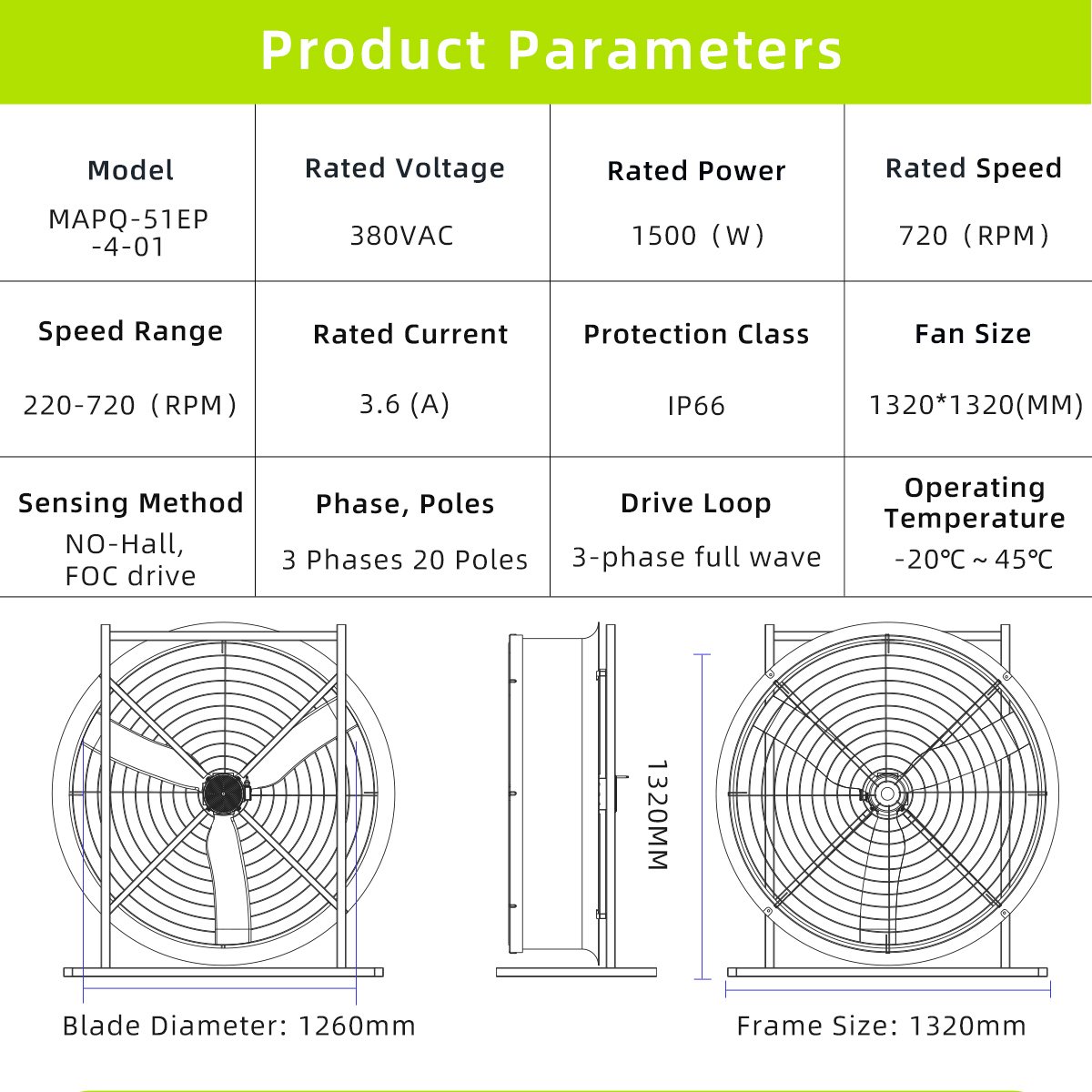

The fan system incorporates advanced electrical and control features:

Rated Voltage: 380 VAC
Rated Power: 1.5 kW
Rated Speed: 720 RPM
Speed Range: 220–720 RPM
Rated Current: 3.6 A

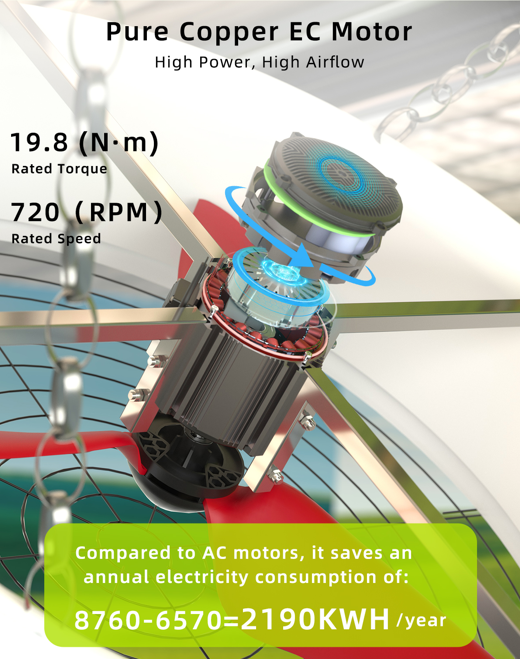

Sensing Method: No-Hall, FOC drive
Phase / Poles: 3 phases, 20 poles
Drive Loop: 3-phase full wave
Protection Rating: IP66
Operating Temperature: −20 °C to +45 °C

With a 1320 × 1320 mm fan size, the MAPQ-51EP-4-01 is ideal for integrated exhaust systems, airflow management modules, and ventilation solutions used in industrial facilities and smart agricultural environments.
