EC Fan MAPQ-54EP-4CC-01

The MAPQ-54EP-4CC-01 is a high-power EC fan system delivering adjustable airflow from 220 to 720 RPM with 2.2 kW rated power, operating at 380 VAC, designed for industrial and agricultural ventilation applications requiring reliable, large-area airflow and continuous operation.

Why Choose This EC Fan System

High airflow output for large-area ventilation
Wide speed range for flexible airflow control
Sensorless FOC drive for smooth and efficient operation
IP66-rated protection for harsh and dusty environments
Designed for continuous industrial and agricultural duty

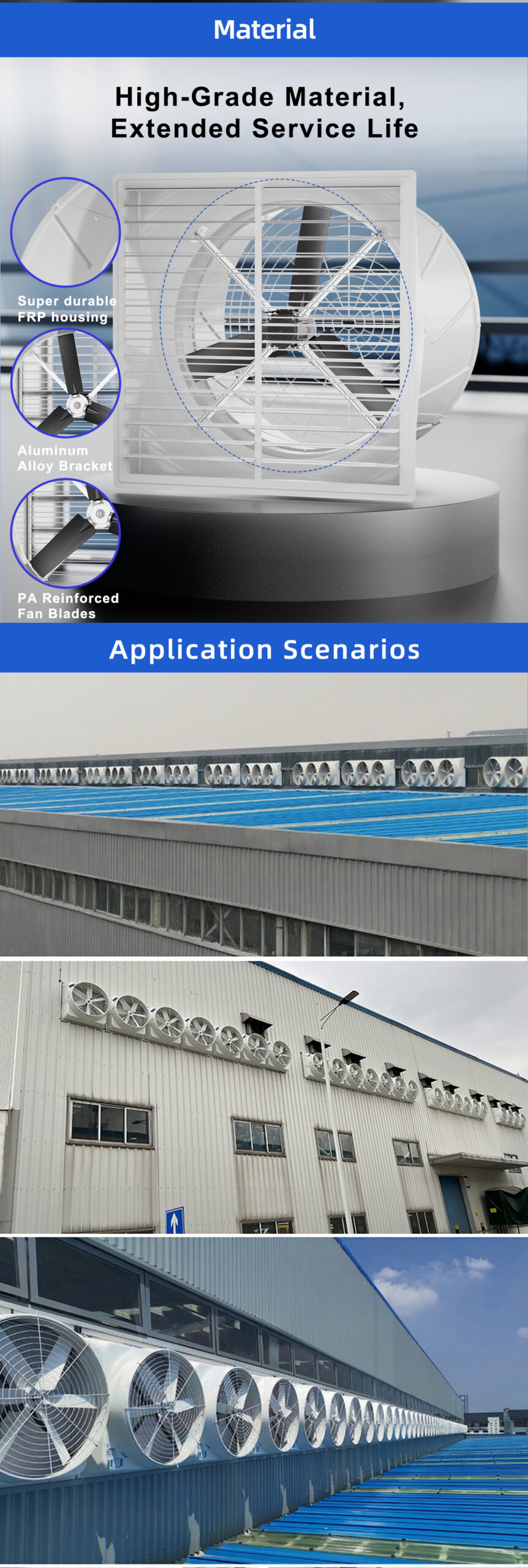

Where This EC Fan System Is Used

Smart agricultural ventilation and exhaust systems
Industrial air circulation and exhaust facilities
Livestock housing and large greenhouse ventilation
Large-scale facility airflow management
Harsh-environment ventilation and cooling modules

Contact us for pricing, full technical details, and available customization options.

Description
Tech Spec

EC Fan System MAPQ-54EP-4CC-01

EC Fan System MAPQ-54EP-4CC-01 is designed for applications requiring high airflow capacity, precise speed control, and long-term operational reliability. Powered at 380 VAC, it operates at a rated speed of 720 RPM with an adjustable speed range from 220 to 720 RPM, delivering 2.2 kW rated power while maintaining efficient and stable airflow.

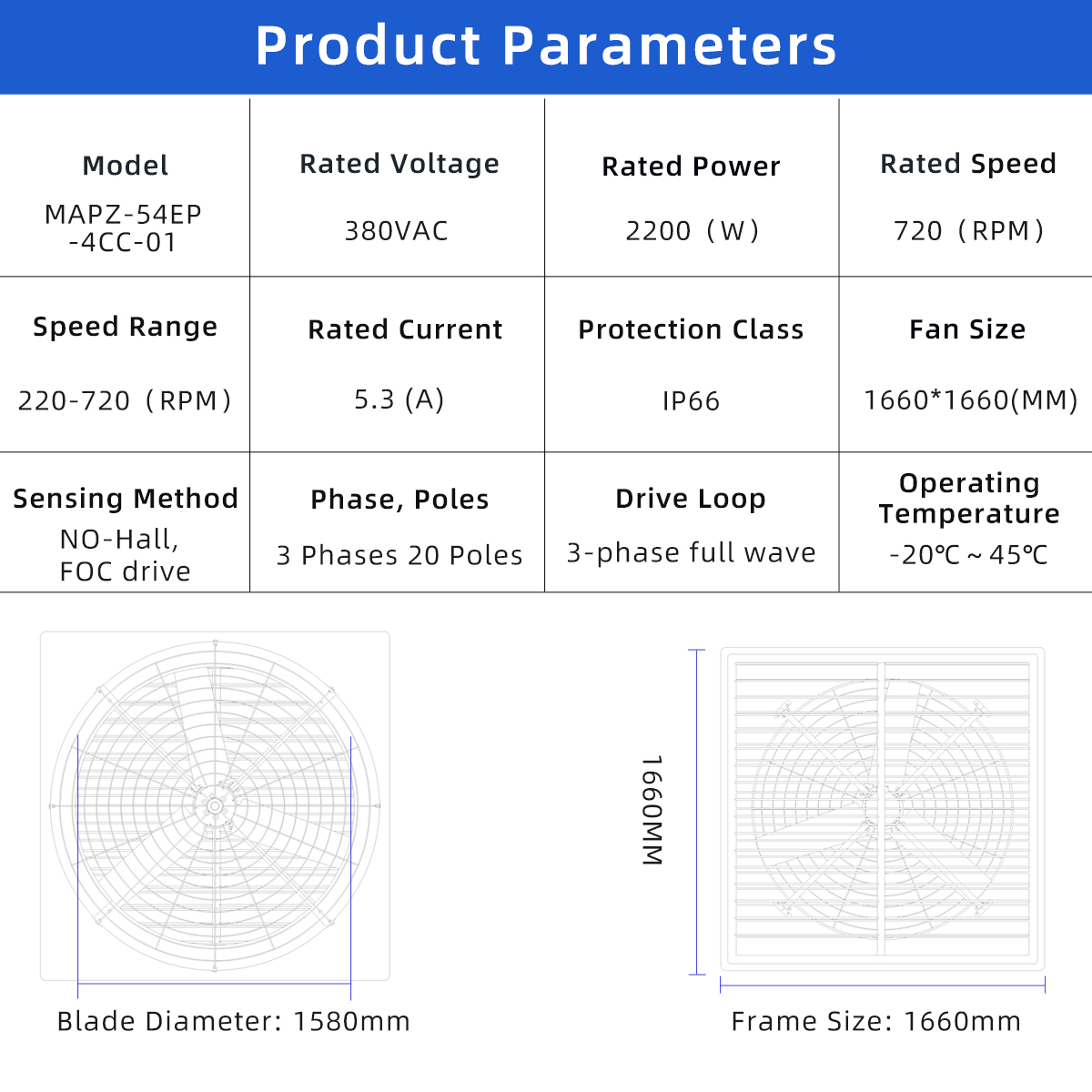

The fan system incorporates advanced electrical and control features:

Rated Voltage: 380 VAC
Rated Power: 2.2 kW
Rated Speed: 720 RPM
Speed Range: 220–720 RPM
Rated Current: 5.3 A
Sensing Method: No-Hall, FOC drive
Phase / Poles: 3 phases, 20 poles
Drive Loop: 3-phase full wave
Protection Rating: IP66
Operating Temperature: −20 °C to +45 °C

With a 1660 × 1660 mm fan size, the MAPQ-54EP-4CC-01 is ideal for integrated exhaust systems, large-area airflow management, and ventilation modules used in industrial facilities and smart agricultural environments.
