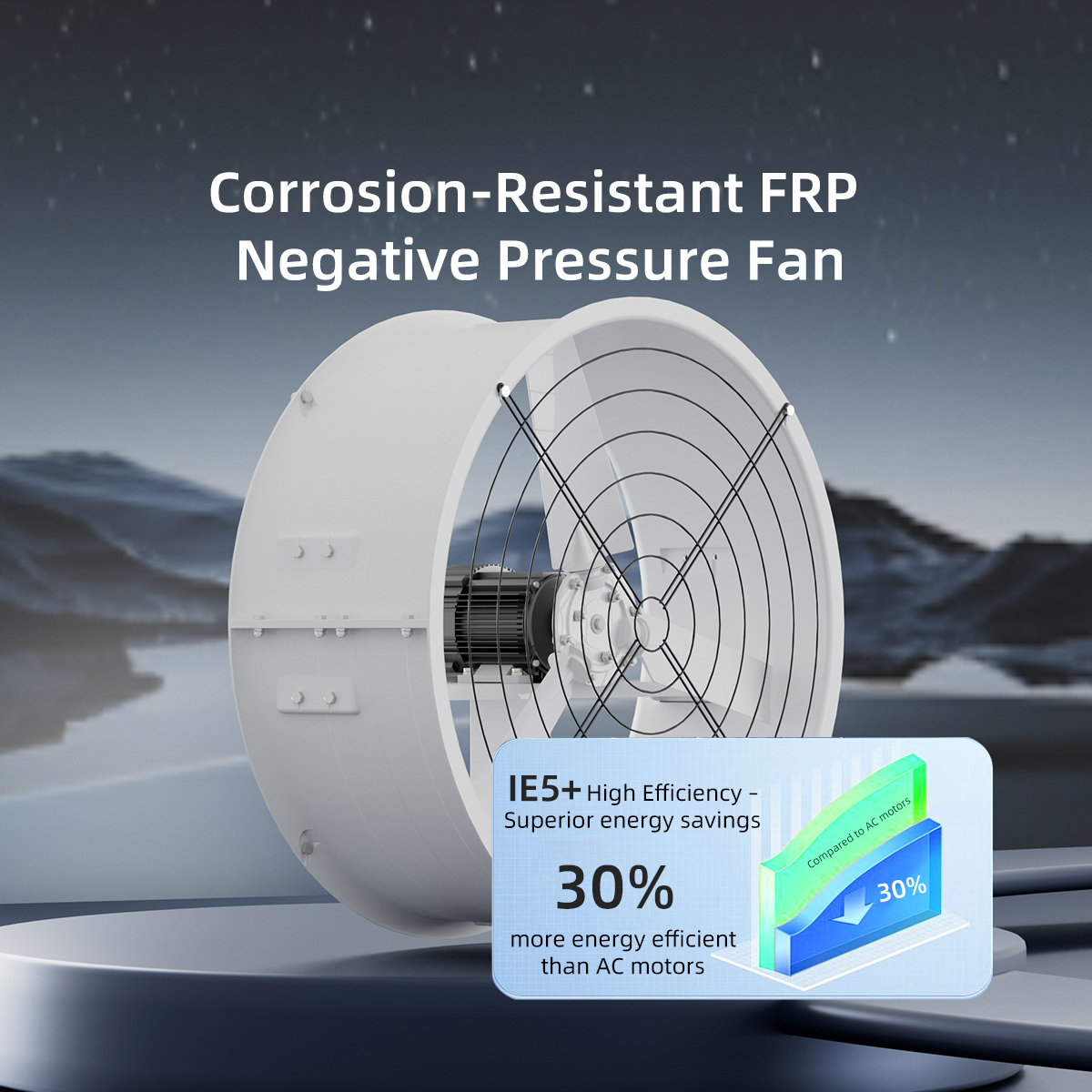

EC Fan MAPQ-550EE-2Q-01

The MAPQ-550EE-2Q-01 is a compact EC fan system delivering adjustable airflow from 220 to 1450 RPM with 370 W rated power, operating at 220 VAC, designed for industrial and agricultural ventilation applications requiring high-speed performance with increased airflow coverage.

Why Choose This EC Fan System

High-speed airflow with wide speed adjustability
Compact design with increased airflow coverage
Sensorless FOC drive for smooth, efficient operation
IP66-rated protection for harsh and humid environments
Designed for continuous industrial and agricultural ventilation duty

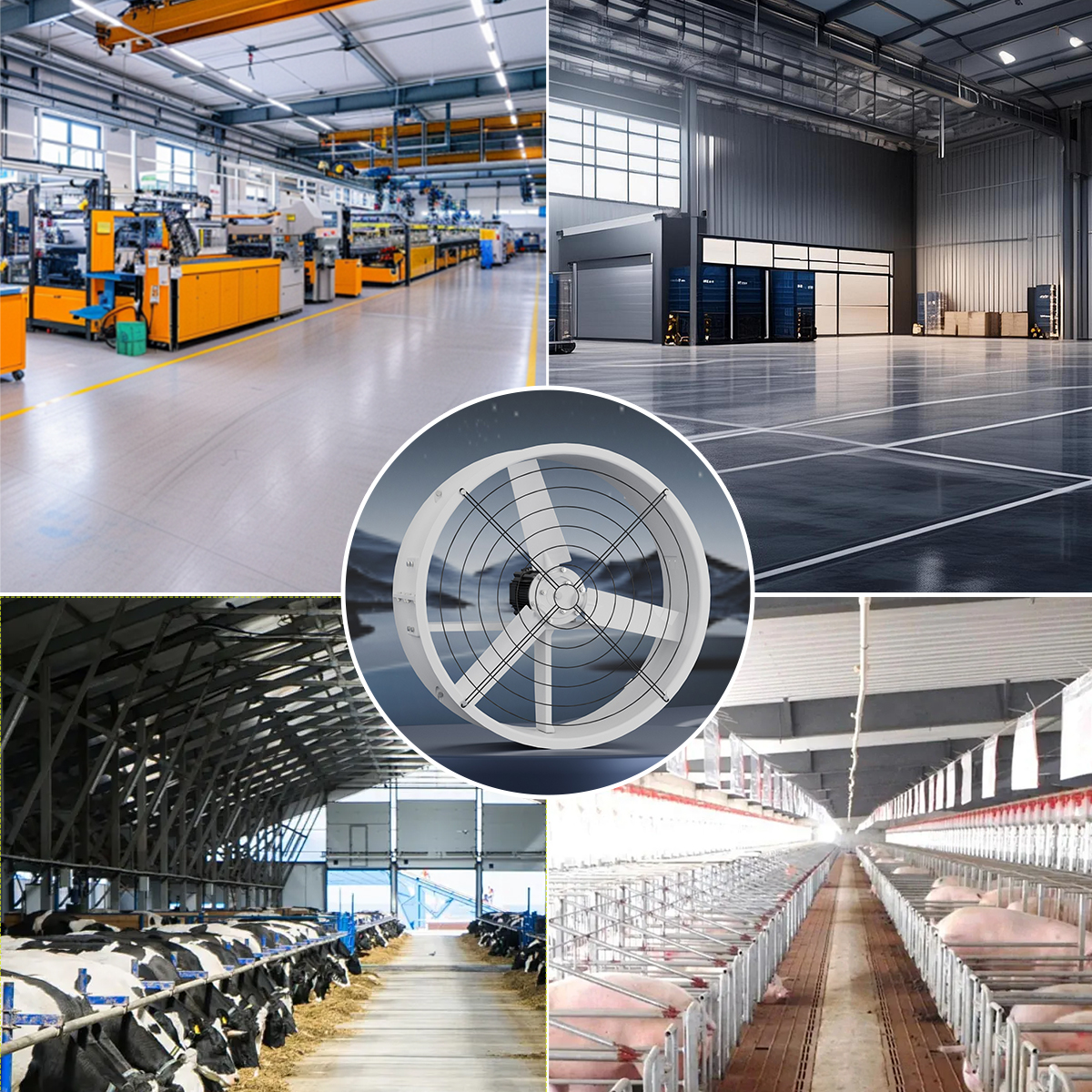

Where This EC Fan System Is Used

Industrial exhaust and ventilation systems
Smart agricultural airflow and cooling applications
Equipment enclosures and machinery ventilation
Compact greenhouse and livestock facility ventilation
Harsh-environment cooling and airflow modules

Contact us for pricing, full technical details, and available customization options.

Description
Tech Spec

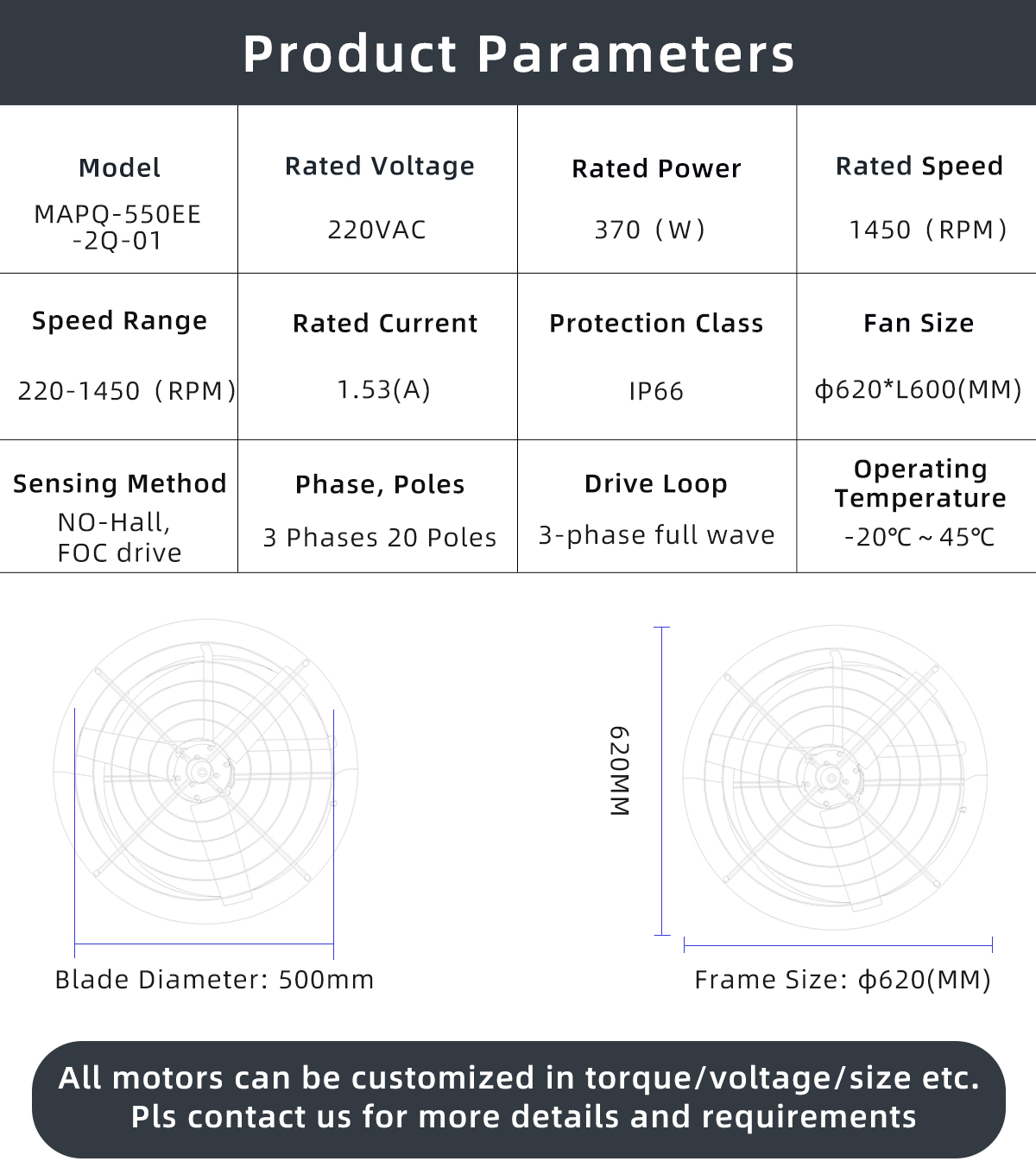

EC Fan System MAPQ-550EE-2Q-01

EC Fan System MAPQ-550EE-2Q-01 is designed for applications requiring high-speed airflow, precise speed control, and reliable long-term operation in a compact format. Powered at 220 VAC, it operates at a rated speed of 1450 RPM with an adjustable speed range from 220 to 1450 RPM, delivering 370 W rated power while maintaining stable and energy-efficient airflow.

The fan system incorporates advanced electrical and control features:

Rated Voltage: 220 VAC
Rated Power: 370 W
Rated Speed: 1450 RPM
Speed Range: 220–1450 RPM
Rated Current: 1.53 A
Sensing Method: No-Hall, FOC drive
Phase / Poles: 3 phases, 20 poles
Drive Loop: 3-phase full wave
Protection Rating: IP66
Operating Temperature: −20 °C to +45 °C

With its 620 × 600 mm fan size, the MAPQ-550EE-2Q-01 is ideal for ventilation modules, exhaust systems, and airflow management solutions used in industrial facilities and smart agricultural environments.
