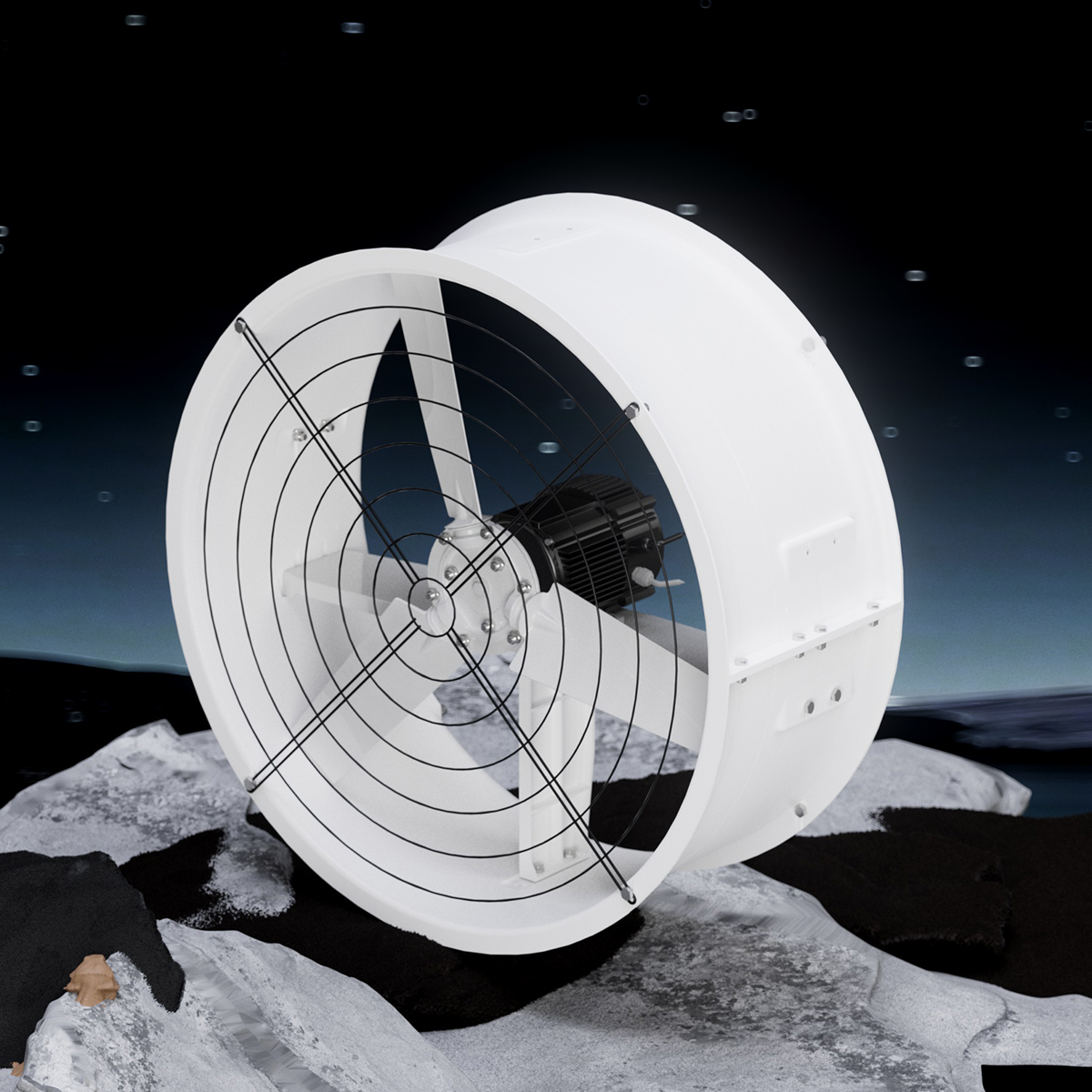

EC Fan MAPQ-710EE-4Q-01

The MAPQ-710EE-4Q-01 is a compact, high-speed EC fan system delivering adjustable airflow from 220 to 1450 RPM with 1.1 kW rated power, operating at 380 VAC, designed for industrial and agricultural ventilation applications requiring efficient, high-performance airflow in a space-efficient format.

Why Choose This EC Fan System

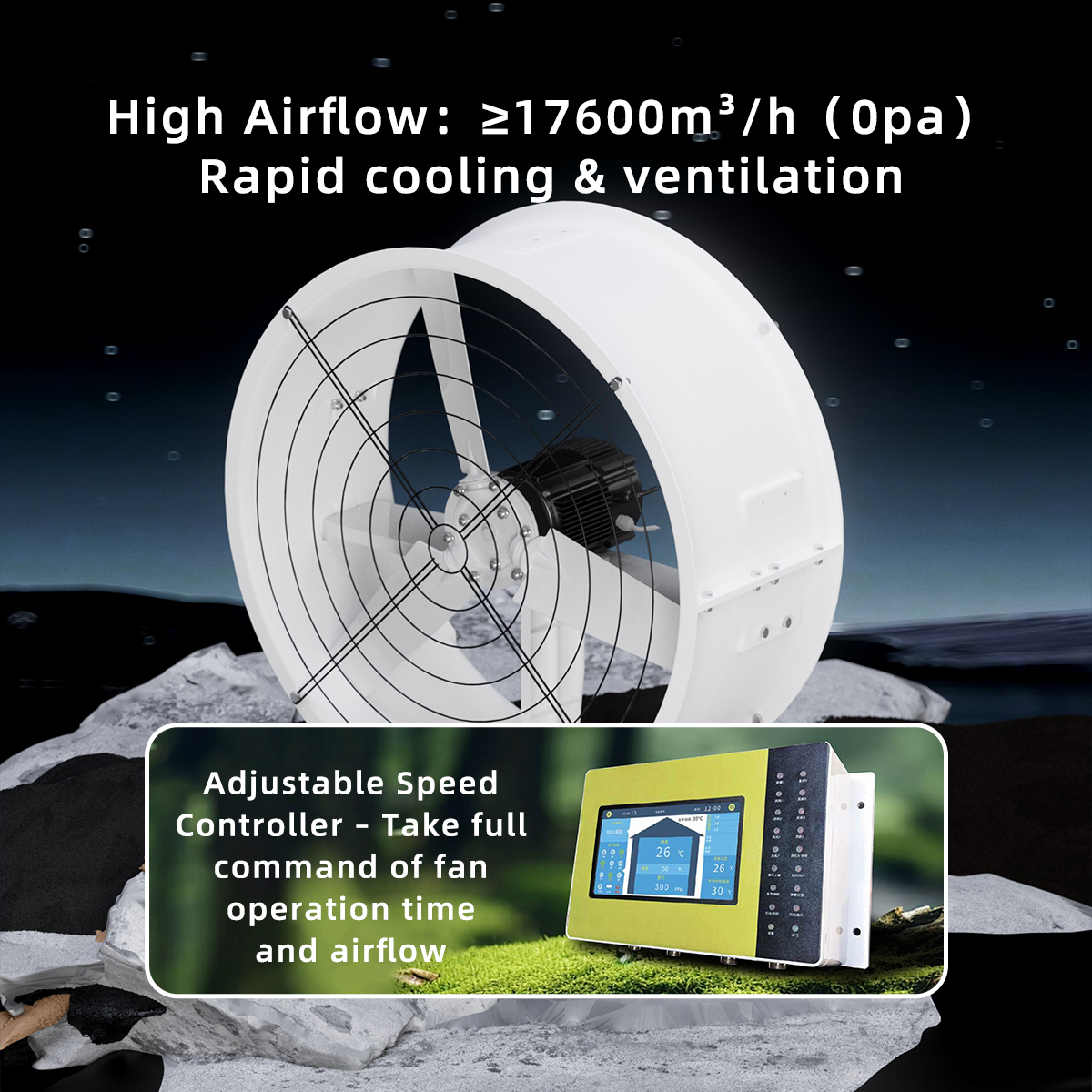

High-speed airflow with wide speed adjustability
Compact design with increased airflow coverage

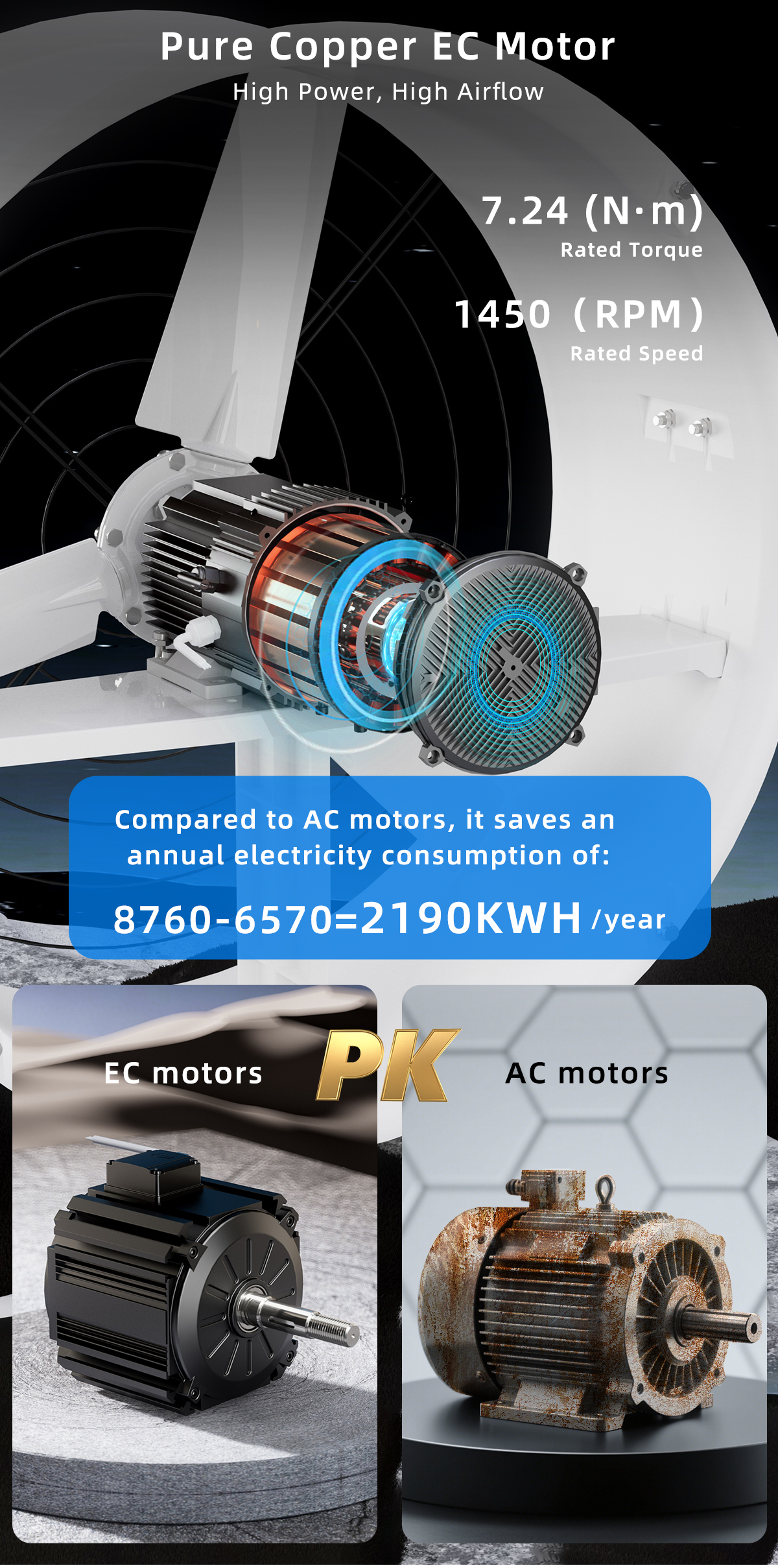

Sensorless FOC drive for smooth, efficient operation

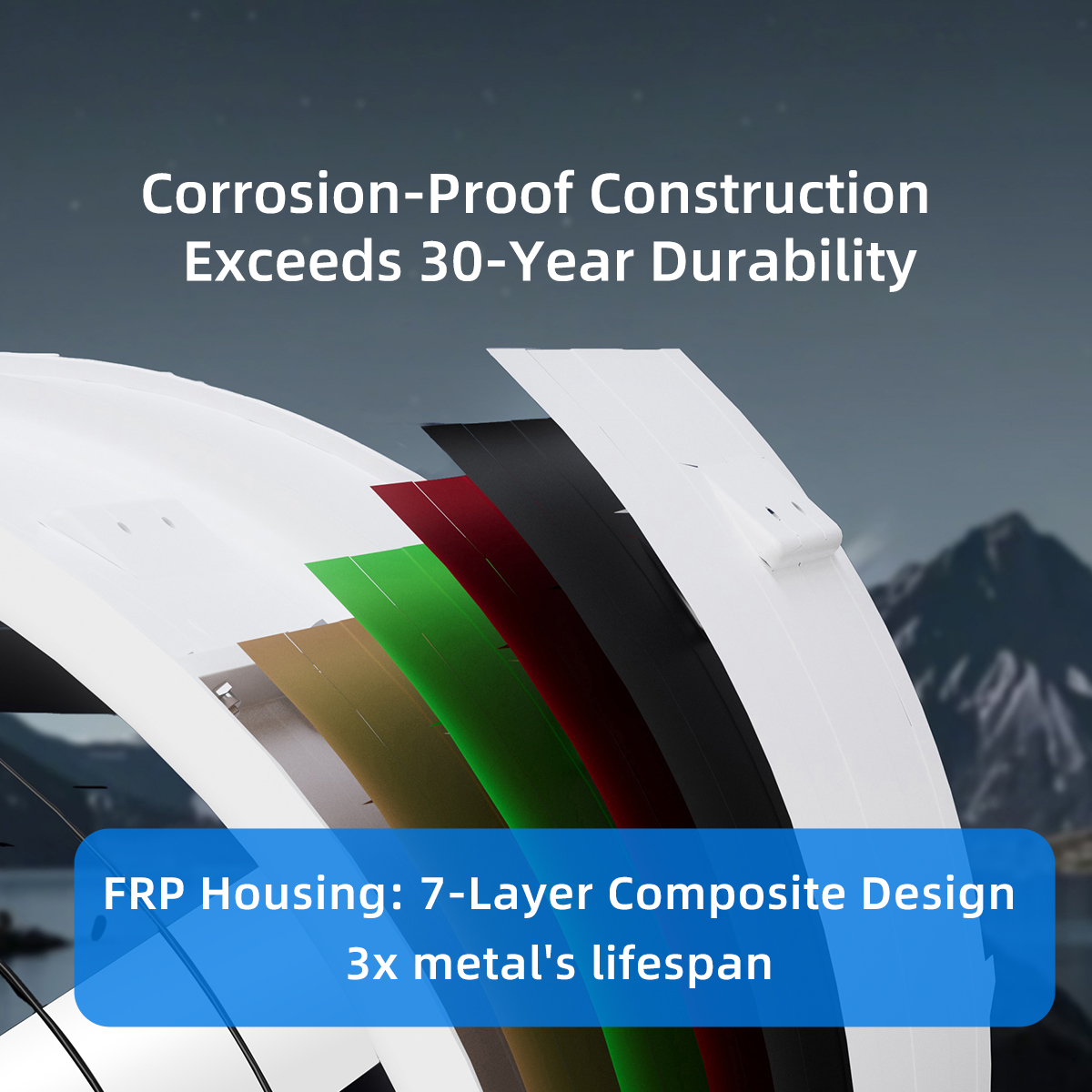

IP66-rated protection for harsh and humid environments
Designed for continuous industrial and agricultural ventilation duty

Where This EC Fan System Is Used

Industrial exhaust and ventilation systems
Smart agricultural airflow and cooling applications
Equipment enclosures and machinery ventilation
Compact greenhouse and livestock facility ventilation
Harsh-environment cooling and airflow modules

Contact us for pricing, full technical details, and available customization options.

Description
Tech Spec

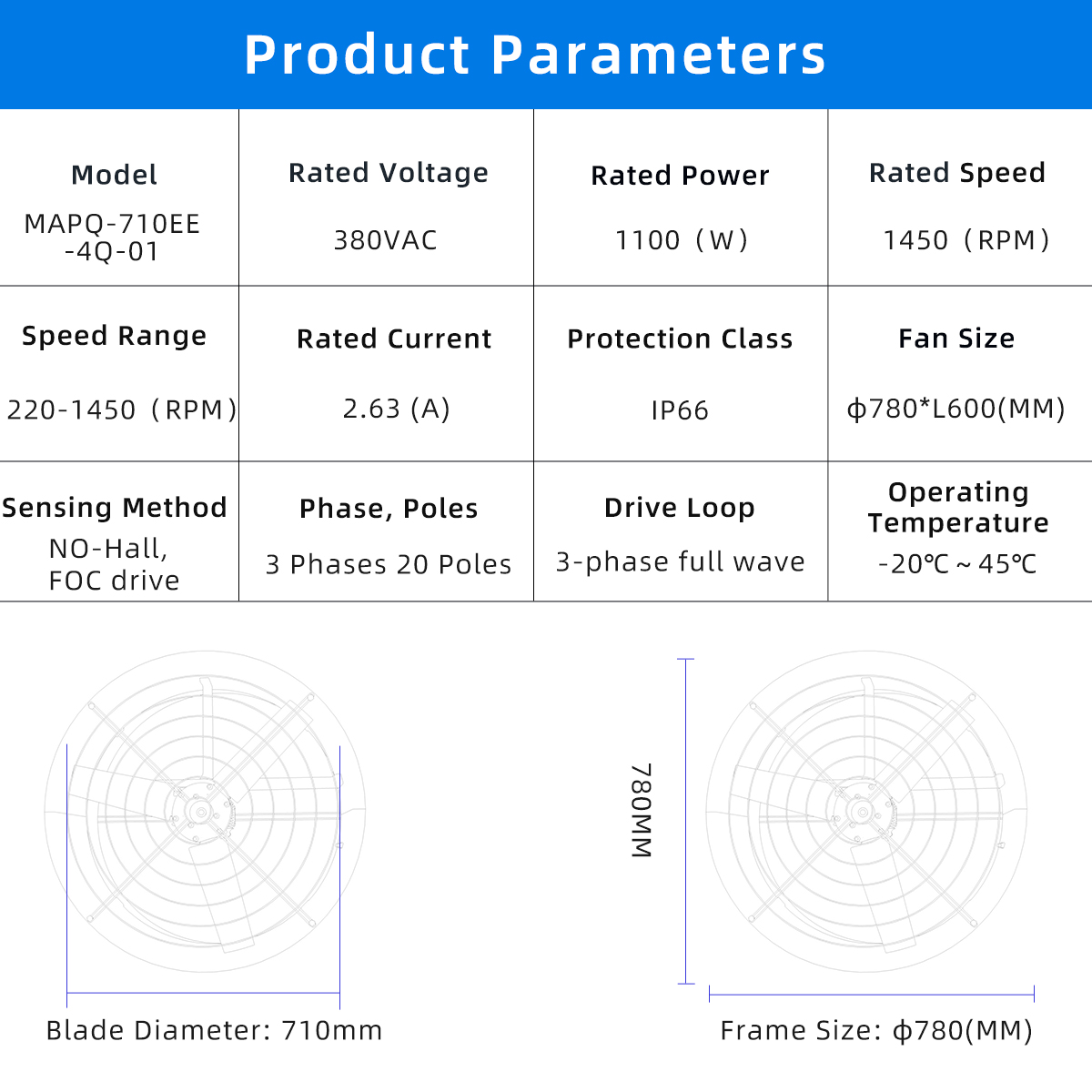

EC Fan System MAPQ-710EE-4Q-01

EC Fan System MAPQ-710EE-4Q-01 is designed for applications requiring high-speed airflow, precise speed control, and reliable long-term operation in a compact form factor. Powered at 380 VAC, it operates at a rated speed of 1450 RPM with an adjustable speed range from 220 to 1450 RPM, delivering 1.1 kW rated power while maintaining efficient and stable airflow.

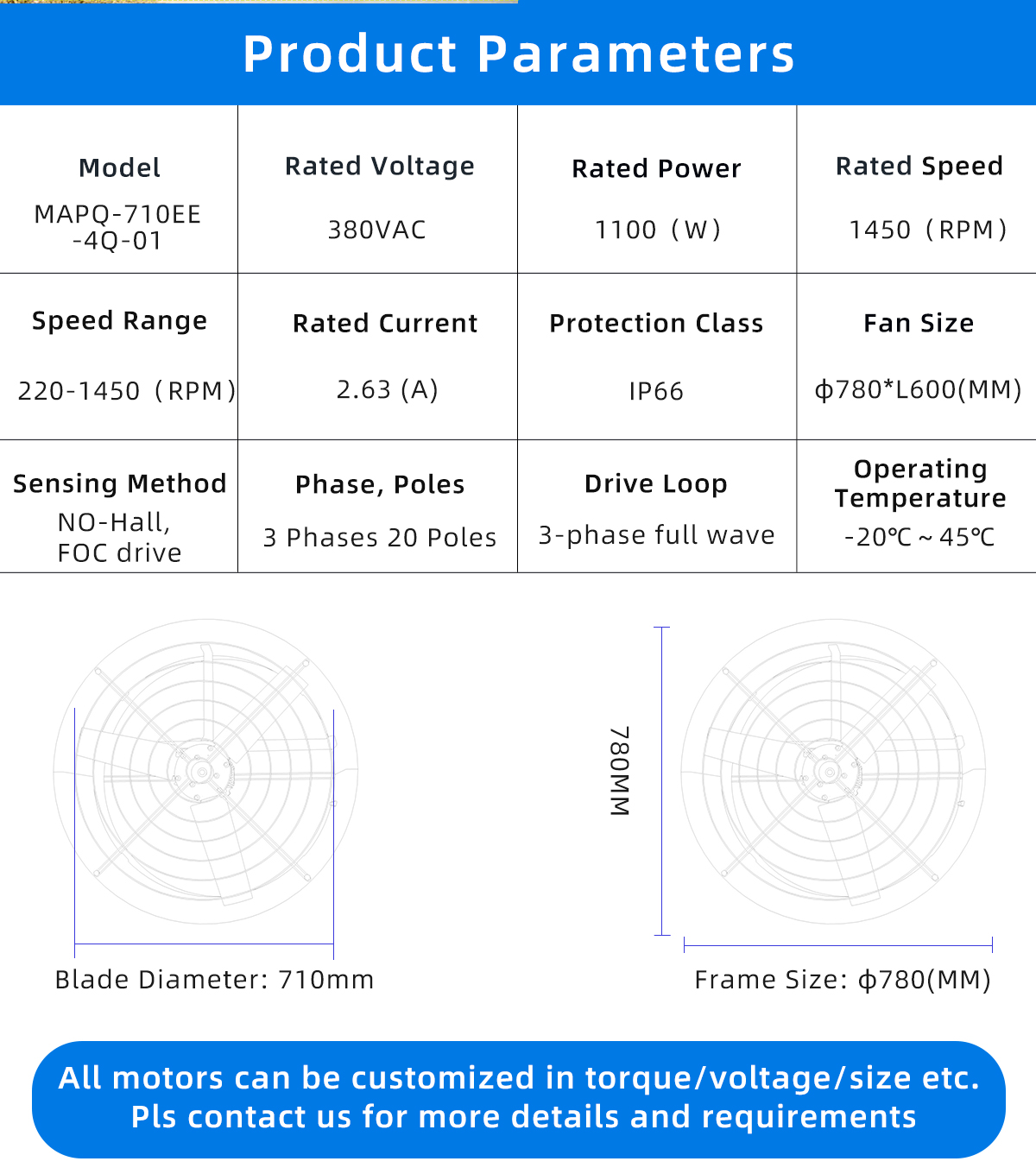

The fan system incorporates advanced electrical and control features:

Rated Voltage: 380 VAC
Rated Power: 1.1 kW

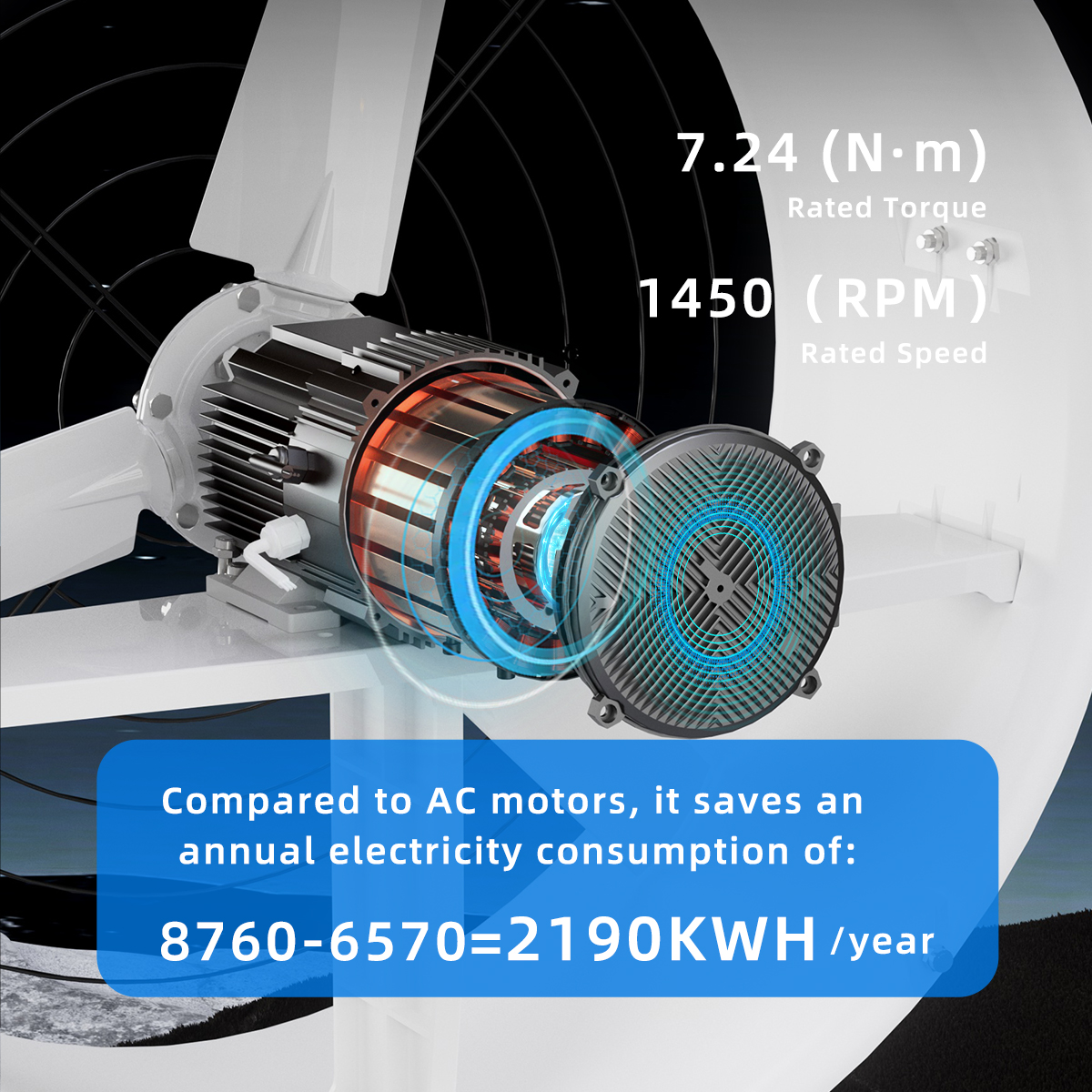

Rated Speed: 1450 RPM
Speed Range: 220–1450 RPM
Rated Current: 2.63 A
Sensing Method: No-Hall, FOC drive
Phase / Poles: 3 phases, 20 poles
Drive Loop: 3-phase full wave
Protection Rating: IP66
Operating Temperature: −20 °C to +45 °C

With its 780 × 600 mm fan size, the MAPQ-710EE-4Q-01 is ideal for integrated ventilation modules, exhaust systems, and airflow management solutions used in industrial facilities and smart agricultural environments.
