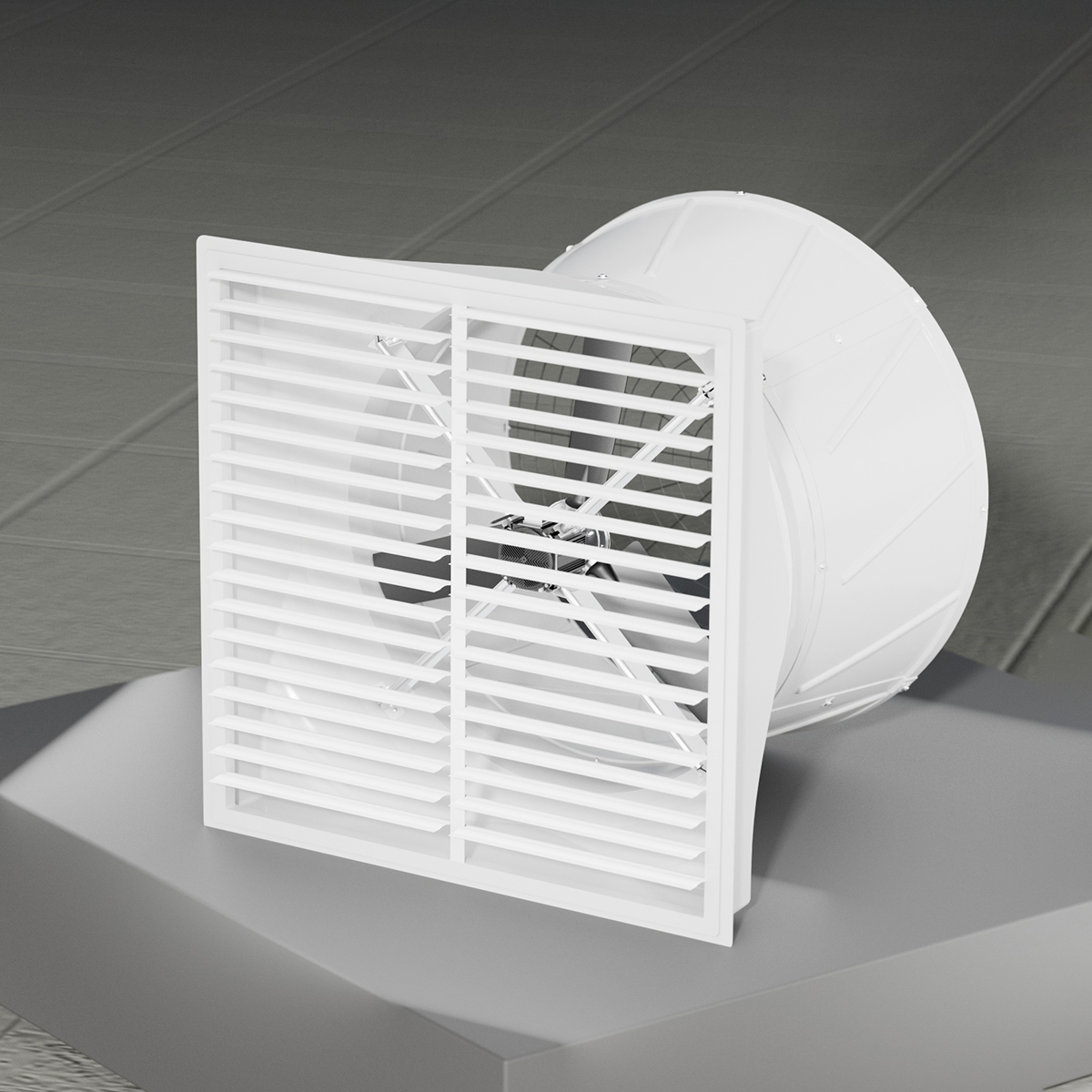

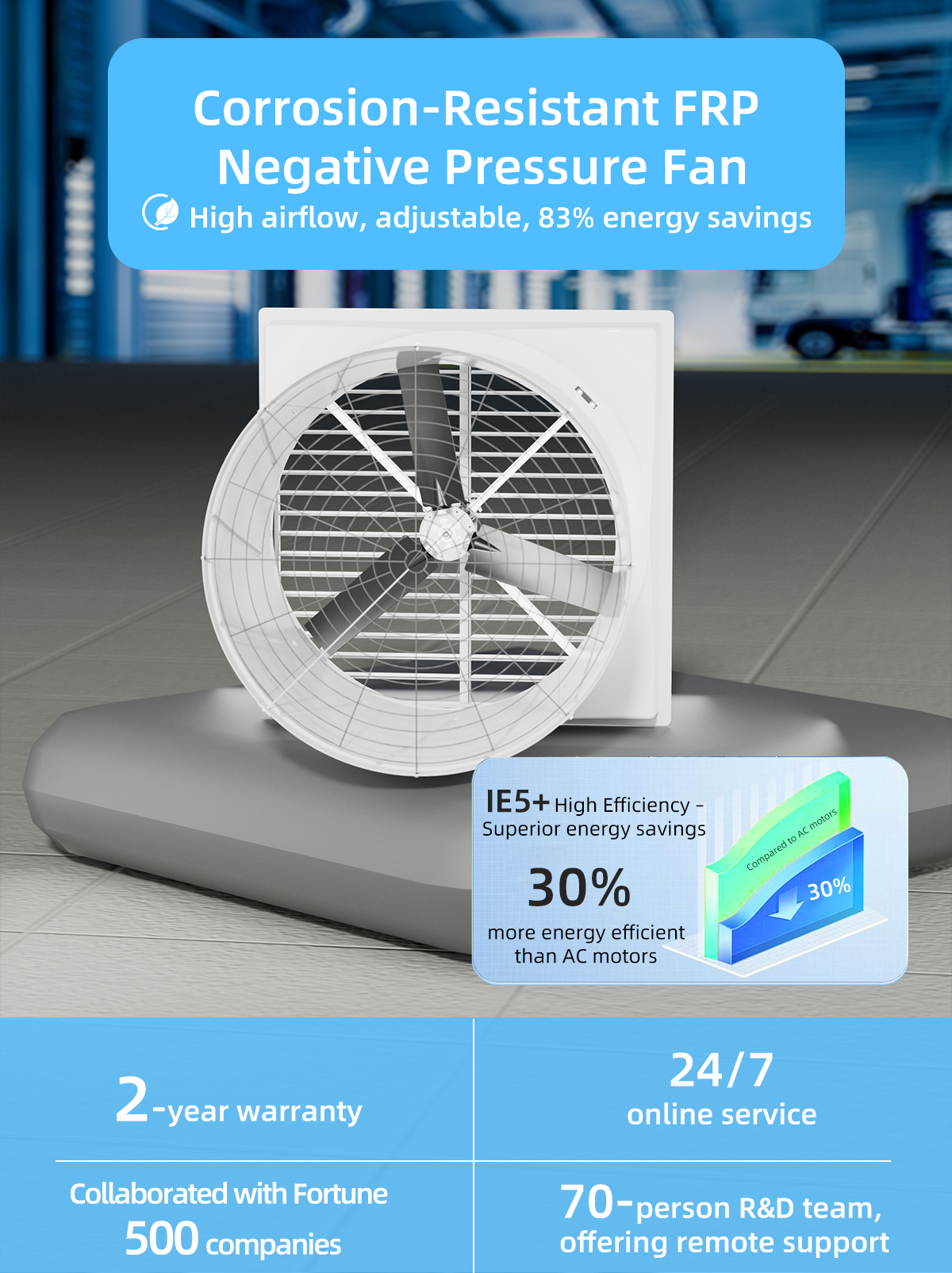

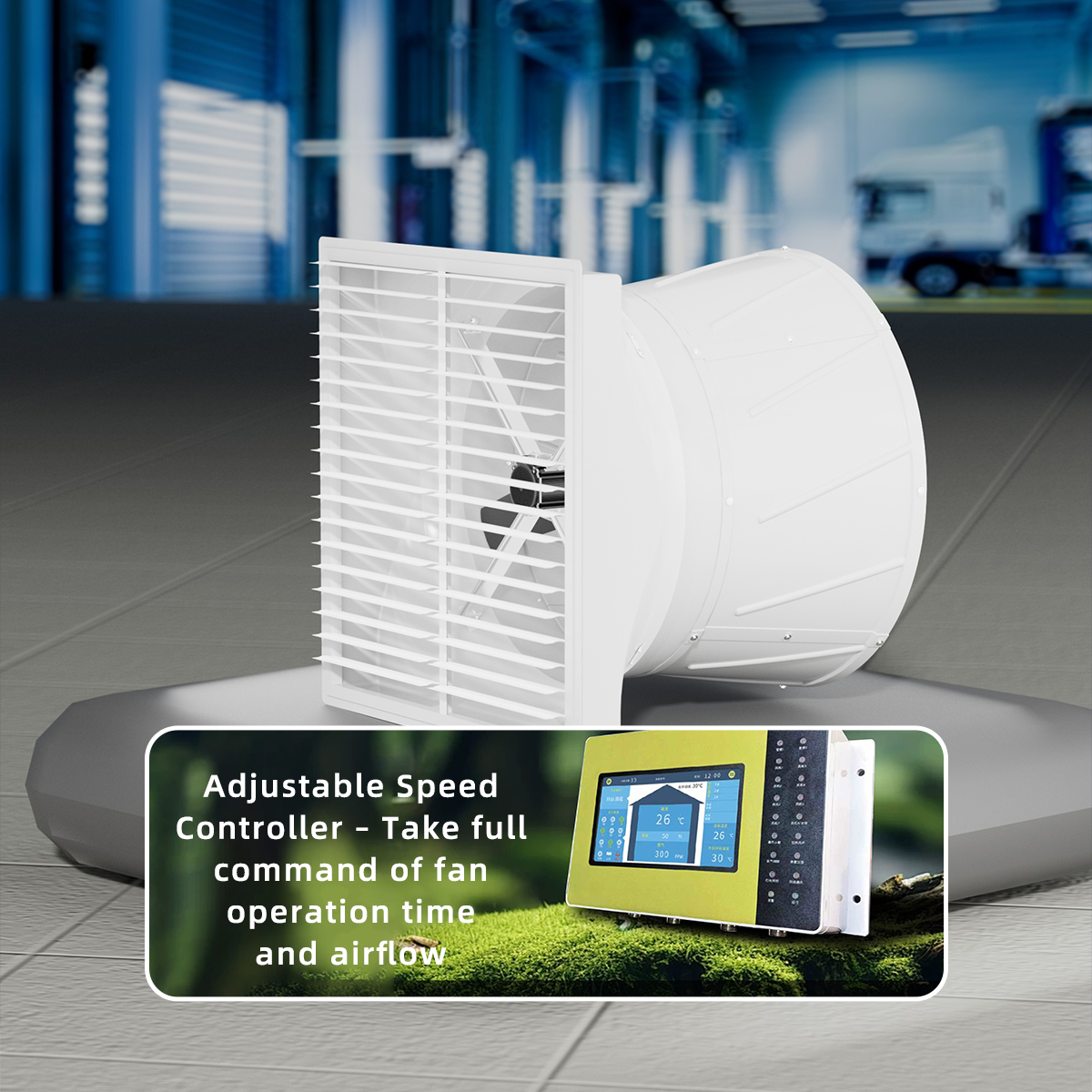

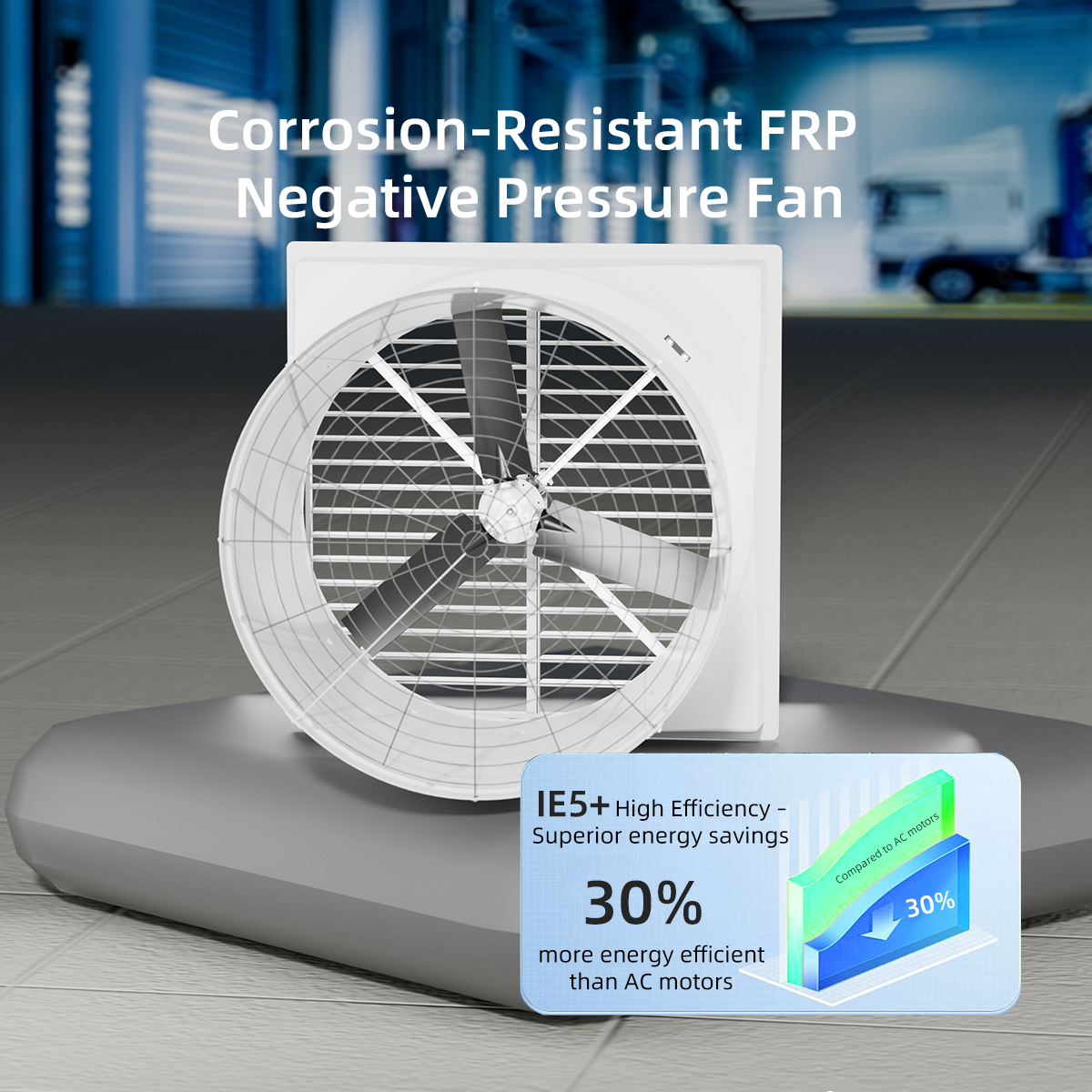

EC Fan MAPZ-36EU-4CC-01

The MAPZ-36EU-4CC-01 is a high-power EC fan system delivering adjustable airflow from 220 to 1000 RPM with 2.2 kW rated power, operating at 380 VAC, designed for industrial and agricultural ventilation applications requiring strong airflow performance and robust environmental resistance.

Why Choose This EC Fan System

High airflow output with wide speed adjustability
Sensorless FOC drive for smooth, efficient operation
Robust construction for harsh industrial environments
IP66-rated protection for dust- and moisture-resistant performance
Designed for continuous industrial and agricultural ventilation duty

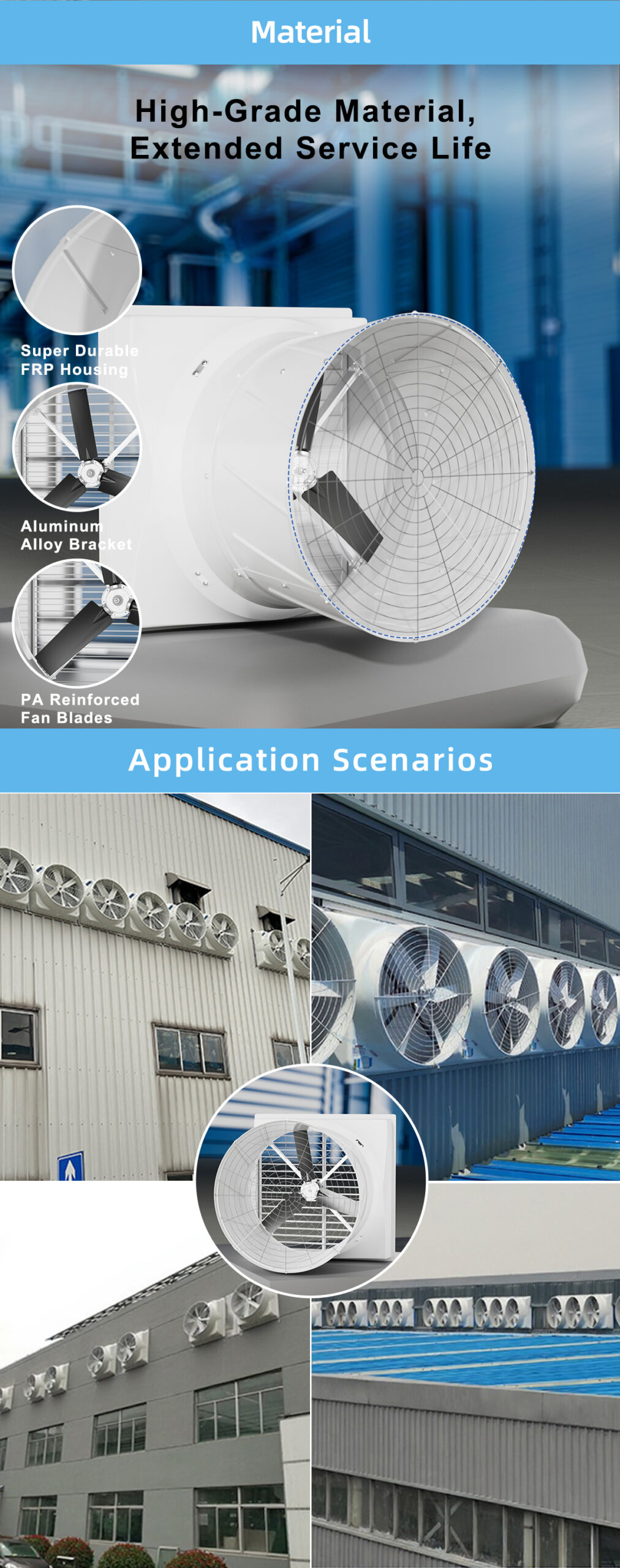

Where This EC Fan System Is Used

Industrial exhaust and ventilation systems
Smart agricultural airflow and cooling applications
Livestock housing and greenhouse ventilation
Medium-to-large facility airflow management
Harsh-environment ventilation and cooling modules

Contact us for pricing, full technical details, and available customization options.

Description

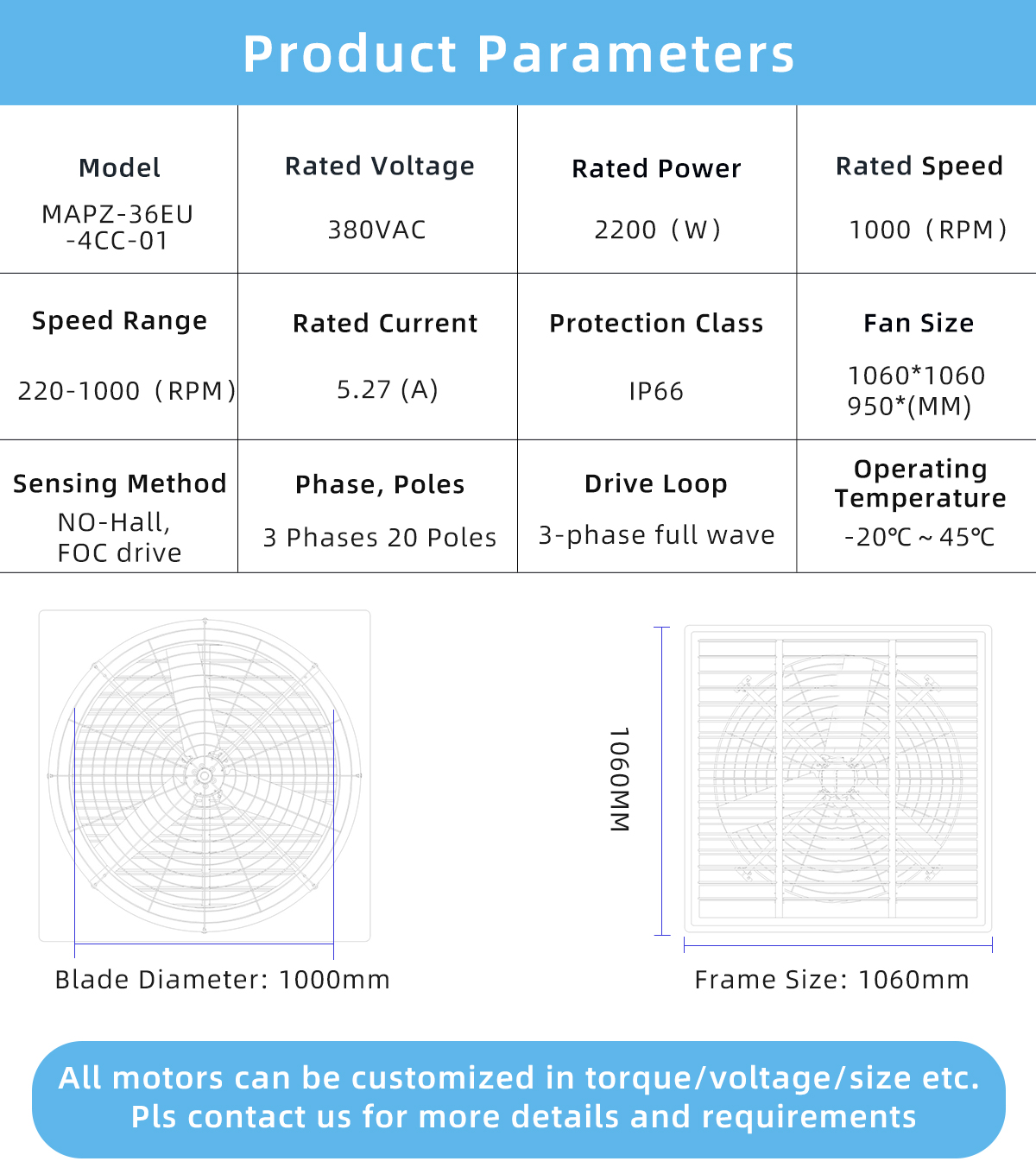

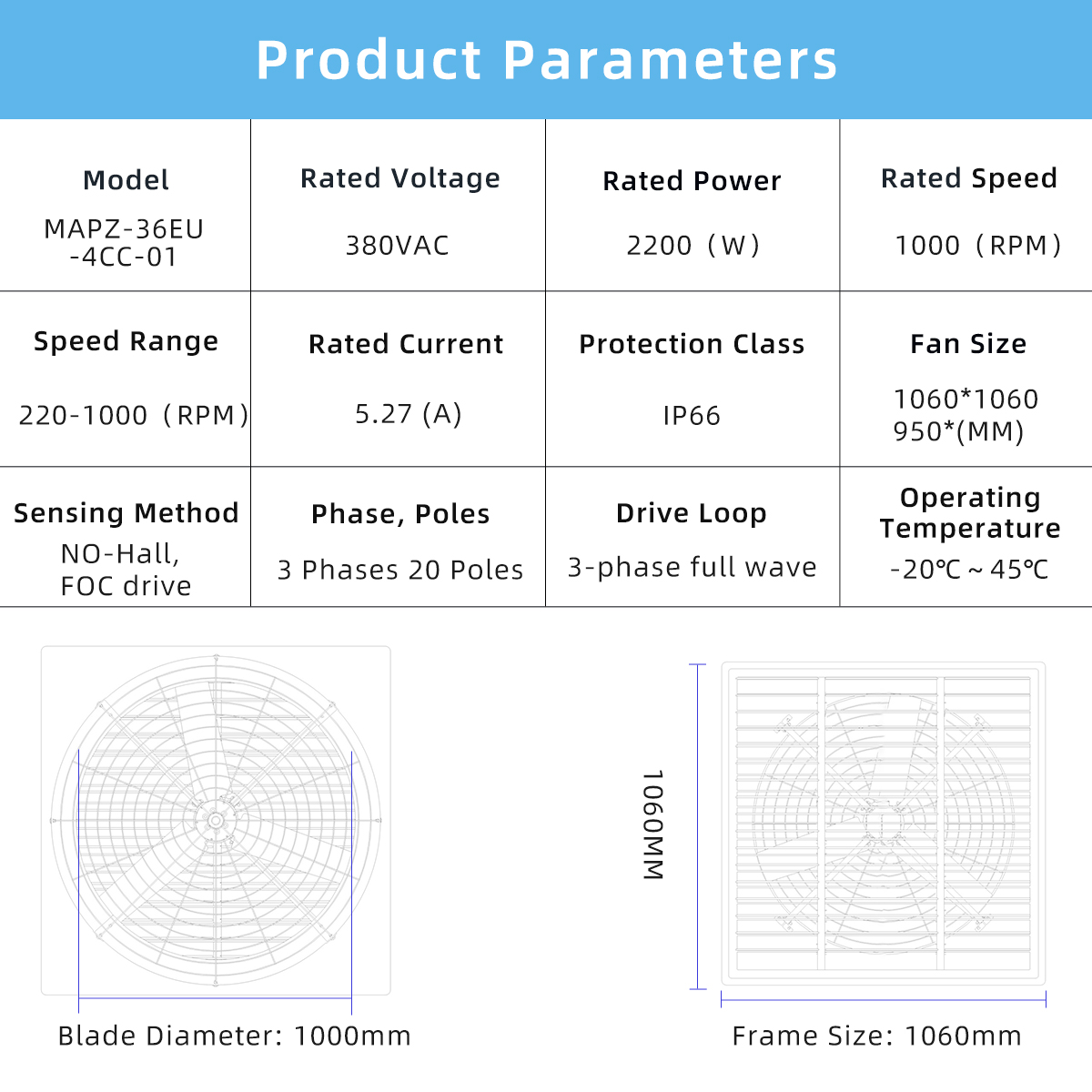

Tech Spec

EC Fan System MAPZ-36EU-4CC-01

EC Fan System MAPZ-36EU-4CC-01 is designed for applications requiring high airflow output, precise speed control, and long-term operational reliability. Powered at 380 VAC, it operates at a rated speed of 1000 RPM with an adjustable speed range from 220 to 1000 RPM, delivering 2.2 kW rated power while maintaining efficient and stable airflow.

The fan system incorporates advanced electrical and control features:

Rated Voltage: 380 VAC
Rated Power: 2.2 kW
Rated Speed: 1000 RPM
Speed Range: 220–1000 RPM
Rated Current: 5.27 A
Sensing Method: No-Hall, FOC drive
Phase / Poles: 3 phases, 20 poles
Drive Loop: 3-phase full wave
Protection Rating: IP66
Operating Temperature: −20 °C to +45 °C

With its large-format 1060 × 1060 × 950 mm design, the MAPZ-36EU-4CC-01 is ideal for integrated exhaust systems, high-capacity airflow management, and ventilation modules used in industrial facilities and smart agricultural environments.
