EC Fan MAPZ-50EE-4CC-01

EC Fan MAPZ-50EE-4CC-01

The MAPZ-50EE-4CC-01 is an EC fan system delivering efficient, speed-controllable airflow from 220 to 720 RPM with 1.1 kW rated power, operating at 380 VAC, designed for industrial and agricultural ventilation applications requiring precise airflow control and high reliability.

Why Choose This EC Fan System

Wide speed range for precise airflow control
Sensorless FOC drive for smooth operation and reduced maintenance
High efficiency with low current consumption
IP66 protection for dust- and moisture-resistant performance
Designed for continuous industrial and agricultural ventilation duty

Where This EC Fan System Is Used

Smart agricultural ventilation and exhaust systems
Industrial air circulation and airflow control
Livestock housing and greenhouse ventilation
Large-area facility exhaust and cooling systems
Harsh-environment ventilation modules

Contact us for pricing, full technical details, and available customization options.

Description
Tech Spec

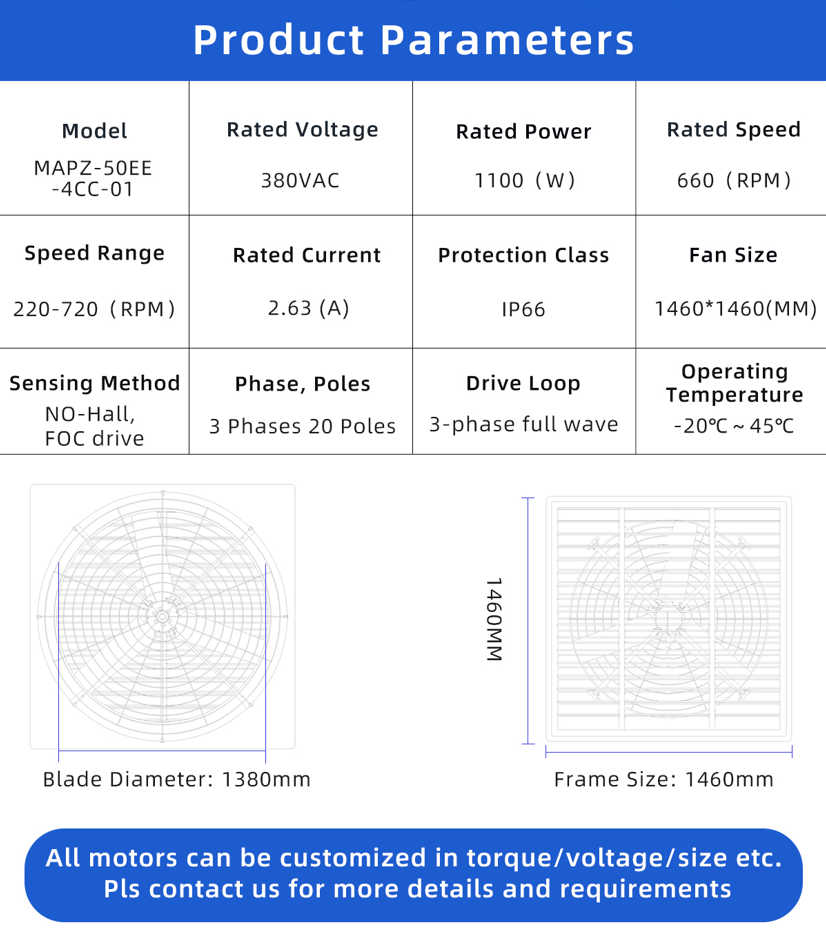

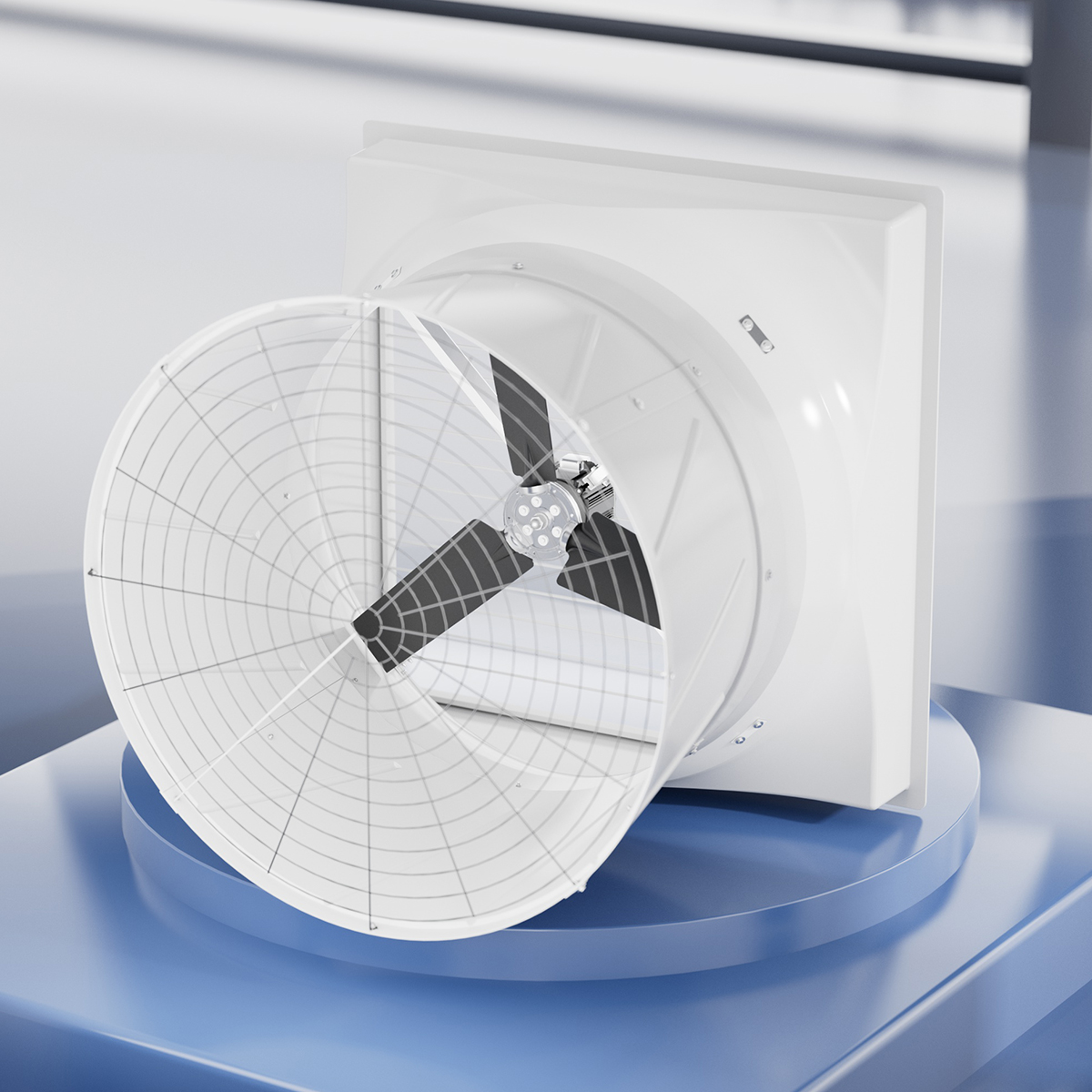

EC Fan System MAPZ-50EE-4CC-01

EC Fan System MAPZ-50EE-4CC-01 is engineered for applications requiring precise airflow control, high durability, and efficient continuous operation. Powered at 380 VAC, it operates at a rated speed of 660 RPM with an adjustable speed range from 220 to 720 RPM, delivering 1.1 kW rated power while maintaining smooth and stable airflow.

The fan system incorporates advanced electrical and control features:

Rated Voltage: 380 VAC
Rated Power: 1.1 kW
Rated Speed: 660 RPM
Speed Range: 220–720 RPM
Rated Current: 2.63 A
Sensing Method: No-Hall, FOC drive
Phase / Poles: 3 phases, 20 poles
Drive Loop: 3-phase full wave
Protection Rating: IP66
Operating Temperature: −20 °C to +45 °C

With a 1460 × 1460 mm fan size, the MAPZ-50EE-4CC-01 is ideal for integrated ventilation modules, exhaust systems, and airflow management solutions used in industrial facilities and smart agricultural environments.
