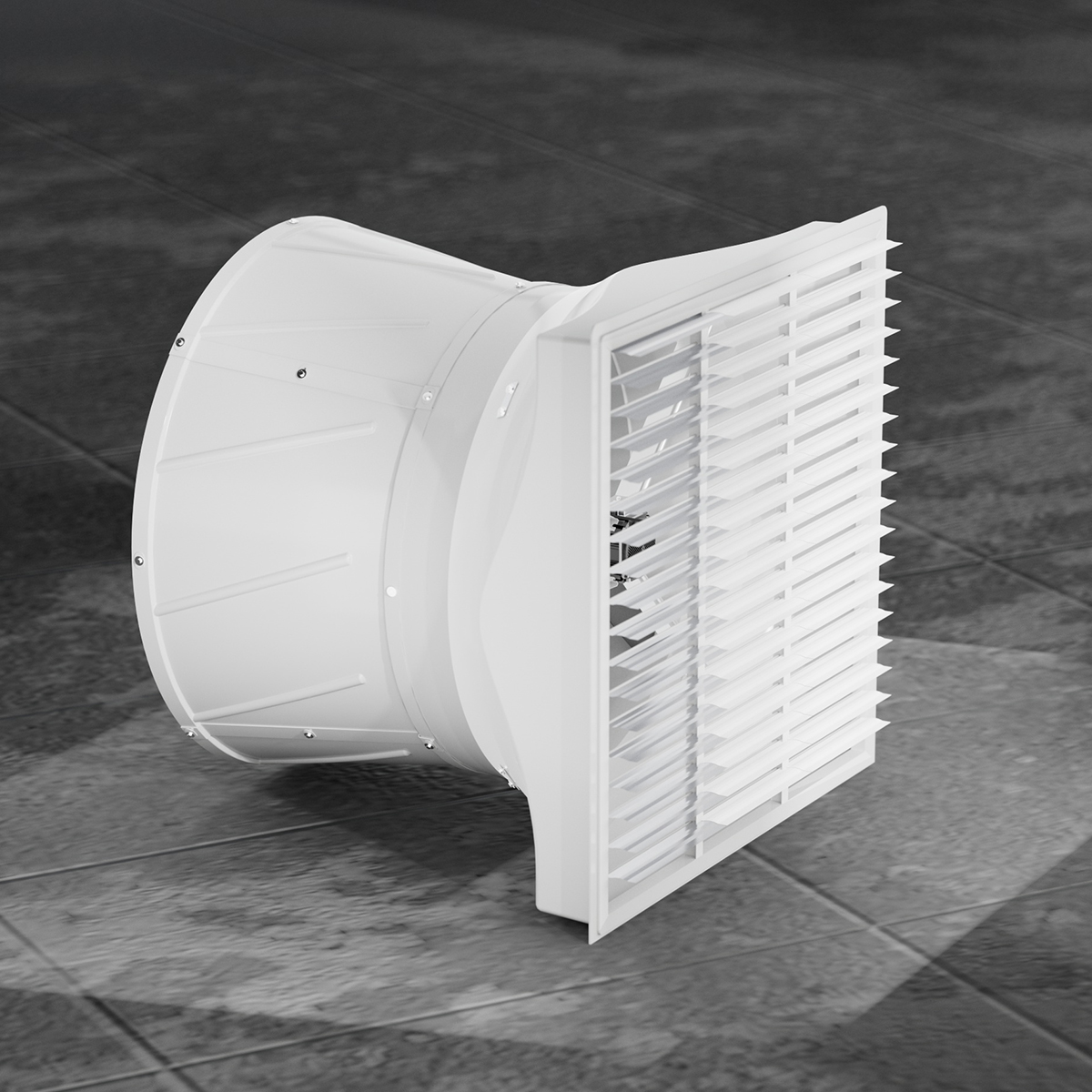

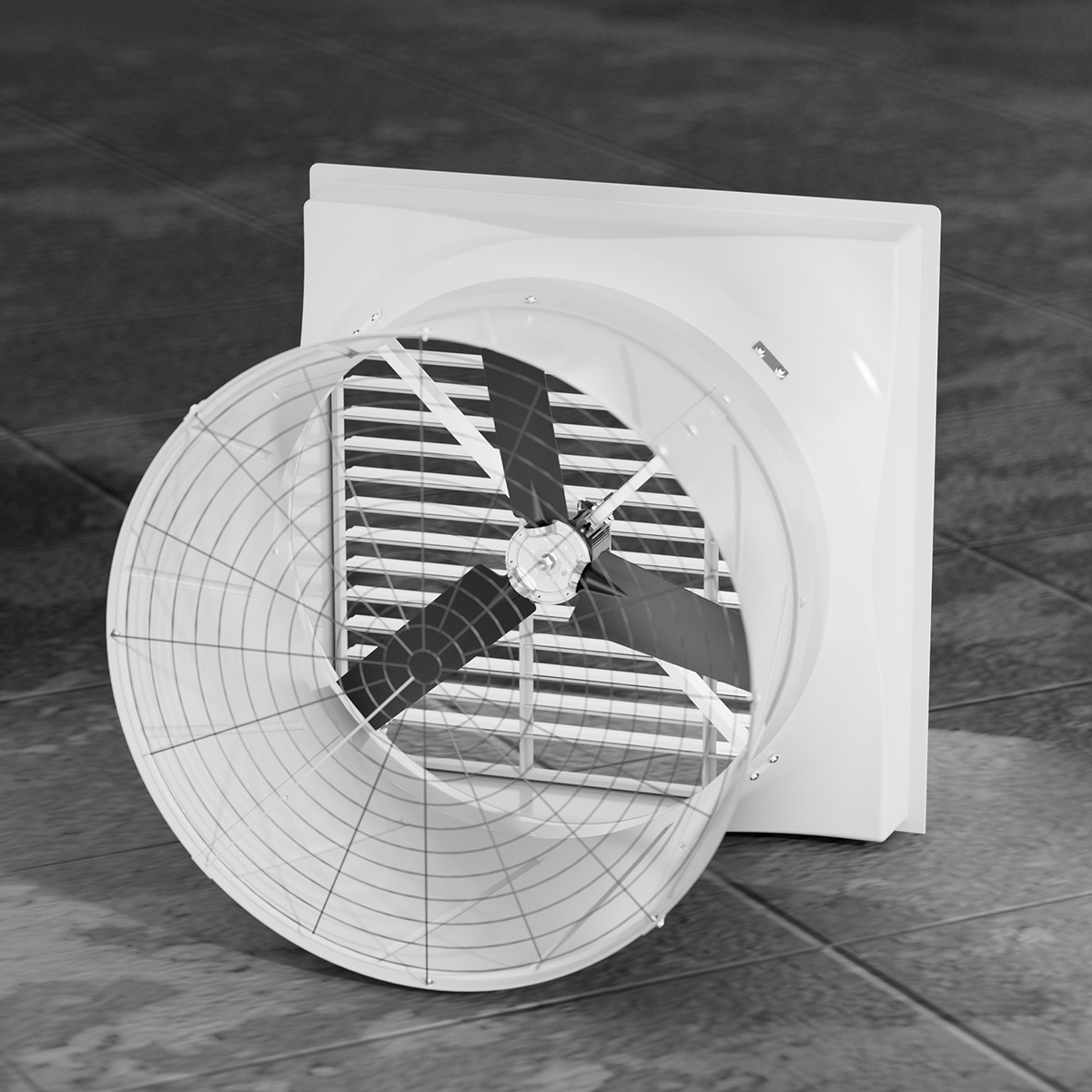

EC Fan MAPZ-50EP-4CC-01

The MAPZ-50EP-4CC-01 is a high-power EC fan system delivering adjustable airflow from 220 to 850 RPM with 2.2 kW rated power, operating at 380 VAC, designed for industrial and agricultural ventilation applications requiring high airflow capacity and reliable continuous operation.

Why Choose This EC Fan System

High airflow output with wide speed adjustability
Sensorless FOC control for smooth, efficient operation
High-power performance for demanding ventilation systems

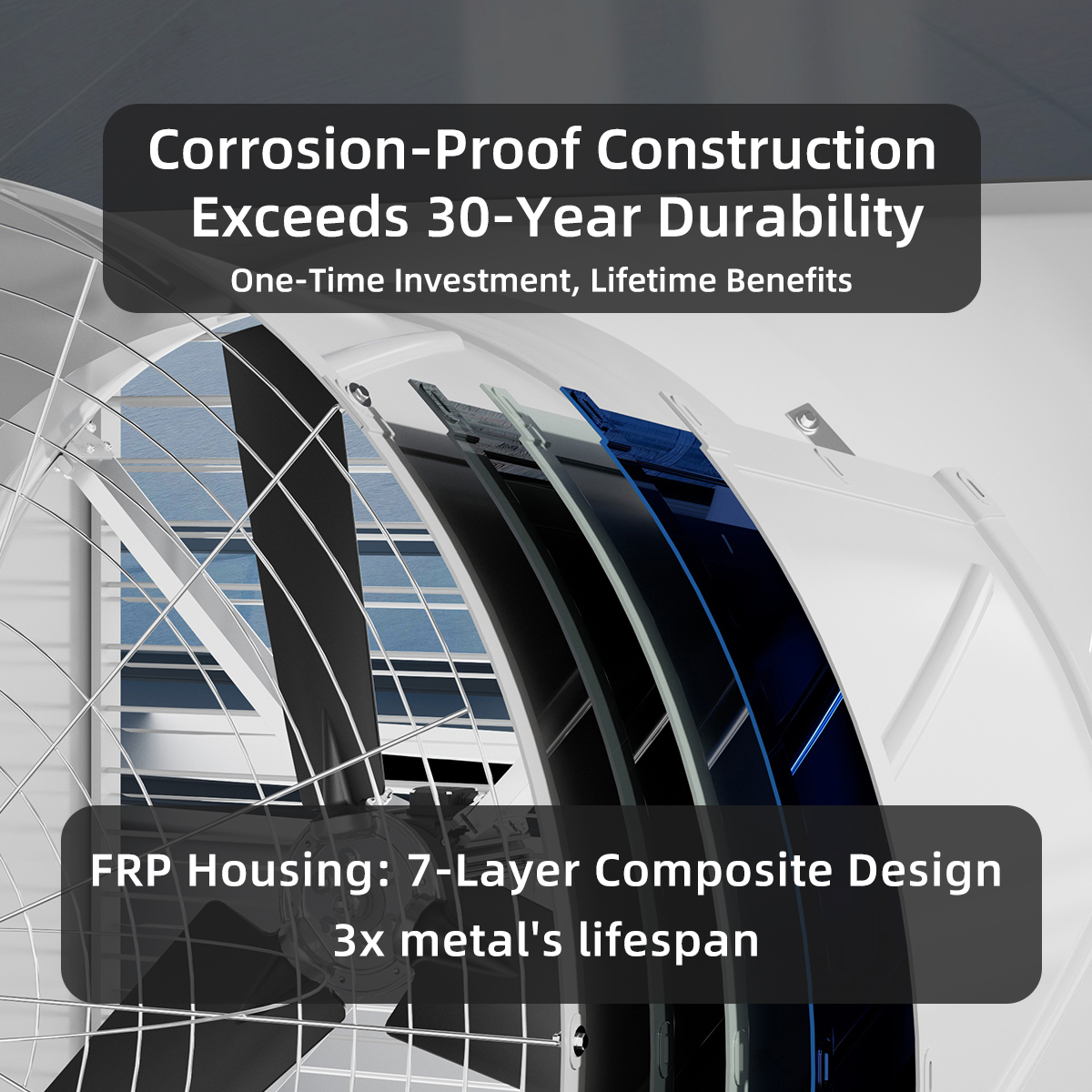

IP66-rated protection for harsh and humid environments
Designed for continuous industrial and agricultural duty

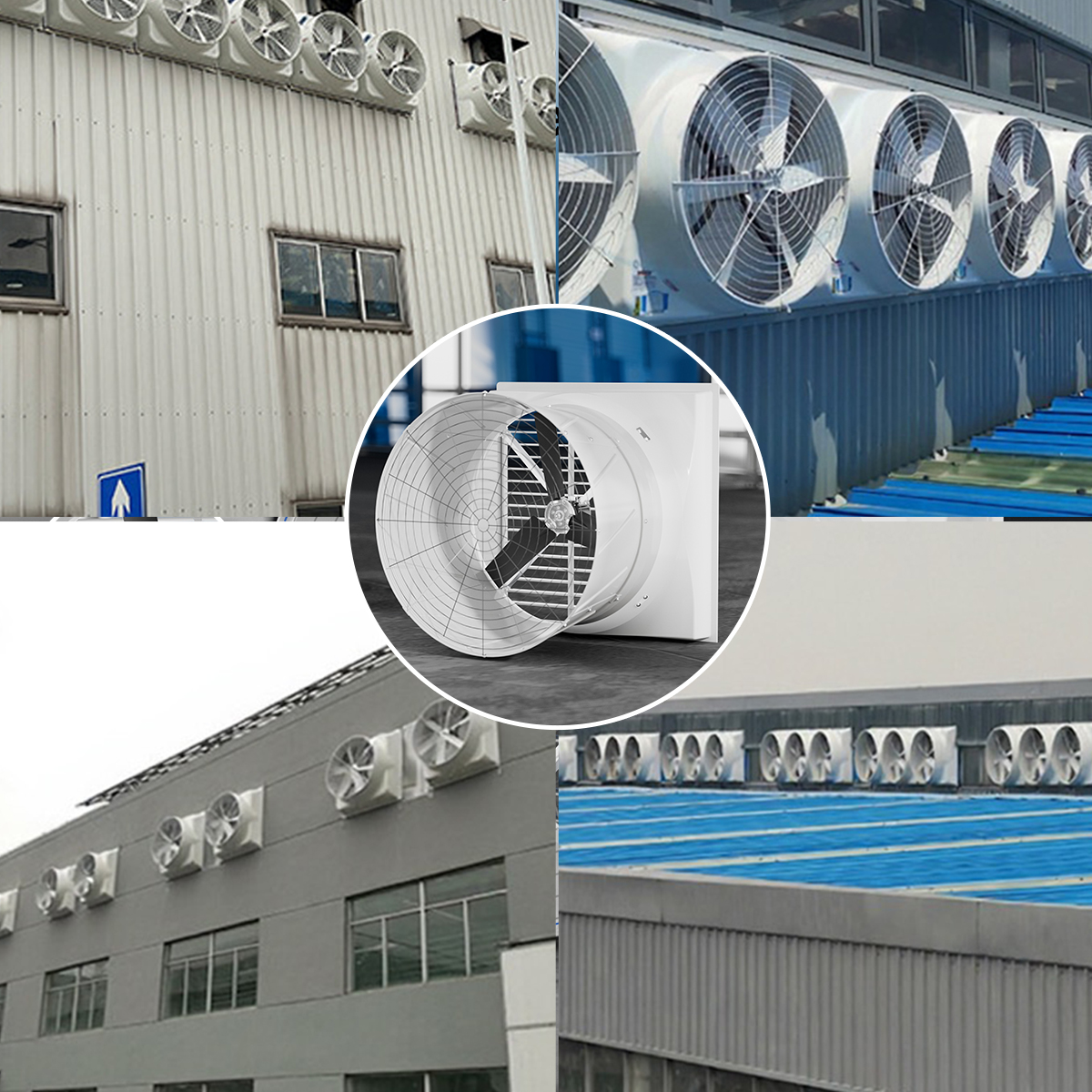

Where This EC Fan System Is Used

Smart agricultural ventilation and exhaust systems
Industrial air circulation and high-capacity exhaust
Livestock housing and greenhouse ventilation
Large-area facility airflow and cooling systems
Harsh-environment ventilation modules

Contact us for pricing, full technical details, and available customization options.

Description
Tech Spec

EC Fan System MAPZ-50EP-4CC-01

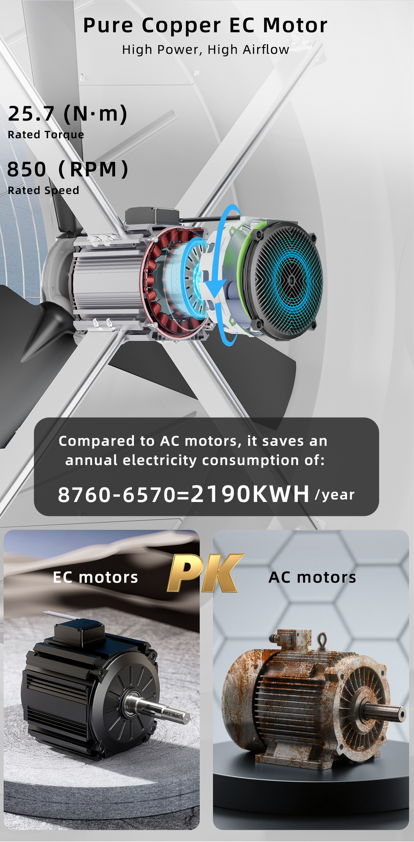

EC Fan System MAPZ-50EP-4CC-01 is designed for applications requiring high airflow capacity, precise speed control, and long-term operational reliability. Powered at 380 VAC, it operates at a rated speed of 850 RPM with an adjustable speed range from 220 to 850 RPM, delivering 2.2 kW rated power while maintaining efficient and stable airflow.

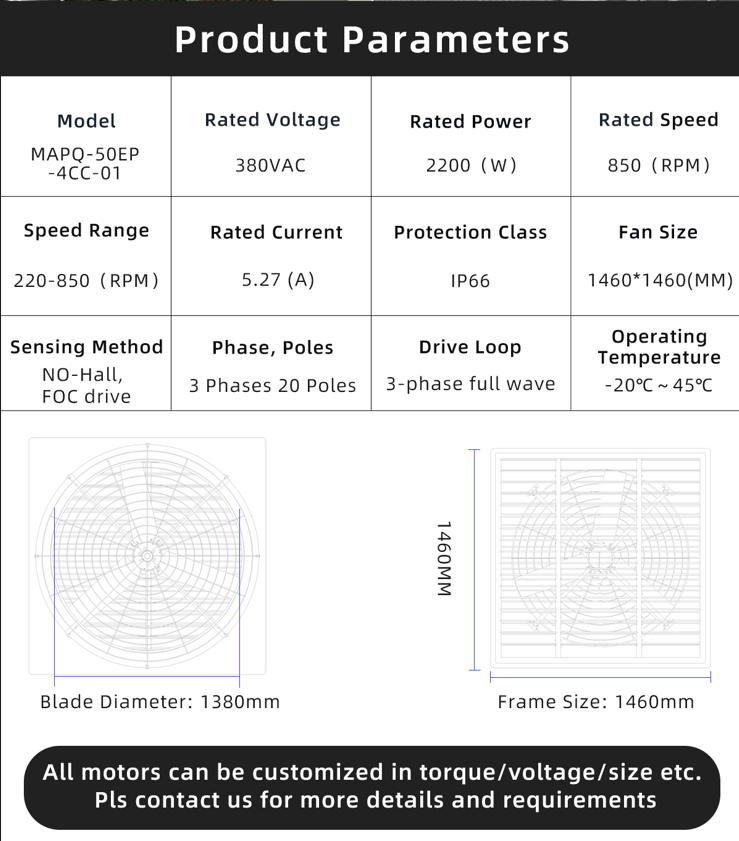

The fan system incorporates advanced electrical and control features:

Rated Voltage: 380 VAC
Rated Power: 2.2 kW

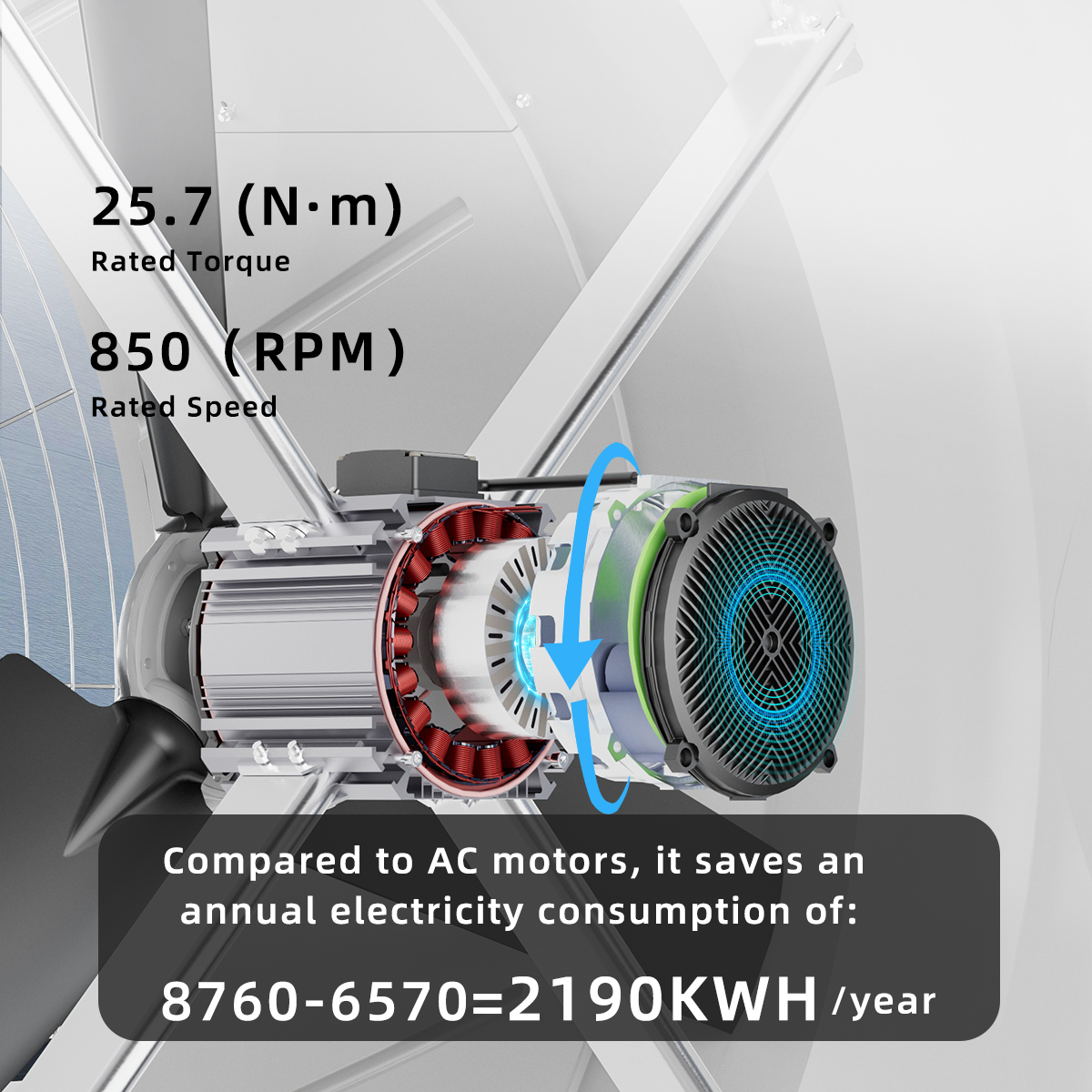

Rated Speed: 850 RPM
Speed Range: 220–850 RPM
Rated Current: 5.27 A
Sensing Method: No-Hall, FOC drive
Phase / Poles: 3 phases, 20 poles
Drive Loop: 3-phase full wave
Protection Rating: IP66
Operating Temperature: −20 °C to +45 °C

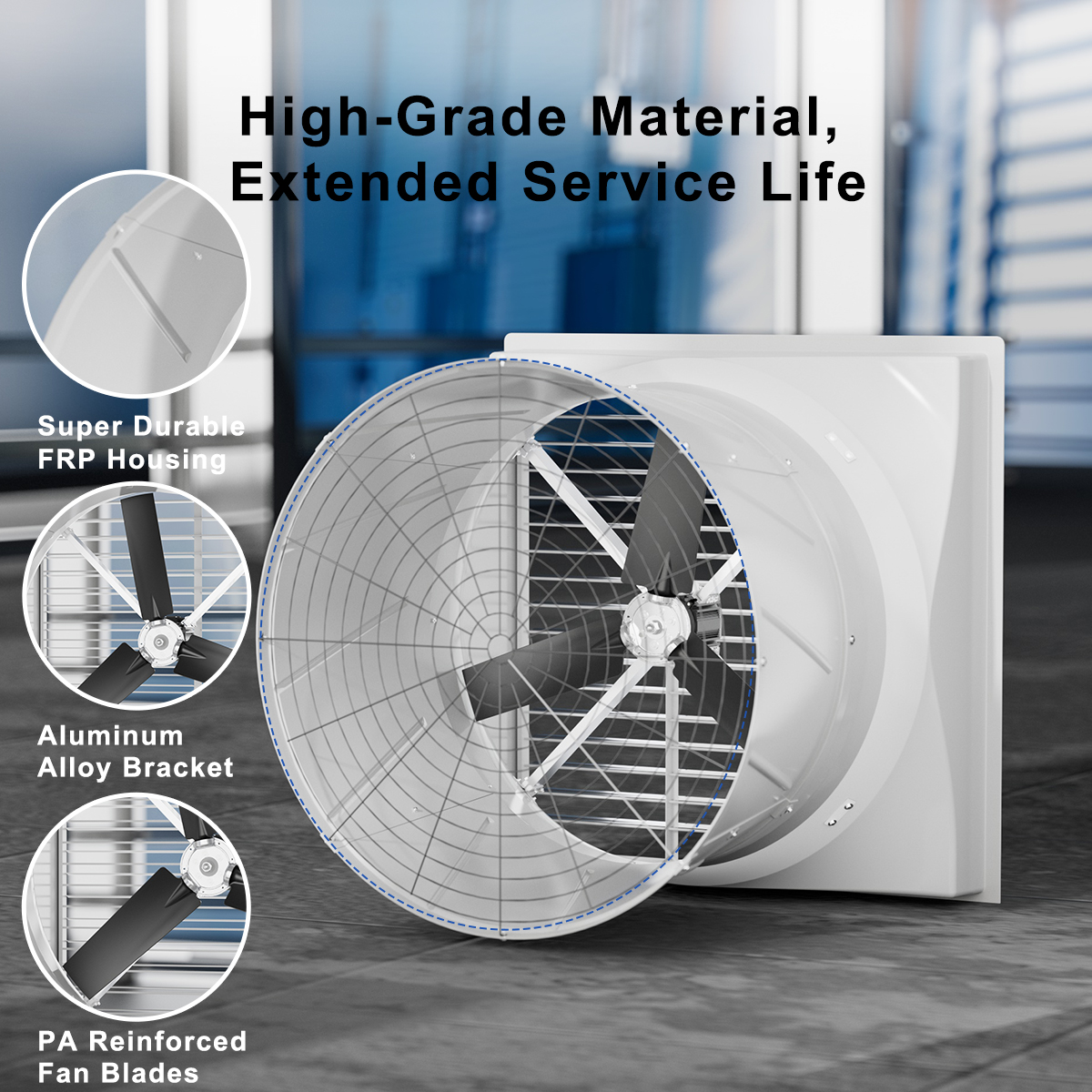

With a 1460 × 1460 mm fan size, the MAPZ-50EP-4CC-01 is ideal for integrated exhaust systems, large-area airflow management, and ventilation modules used in industrial facilities and smart agricultural environments.
