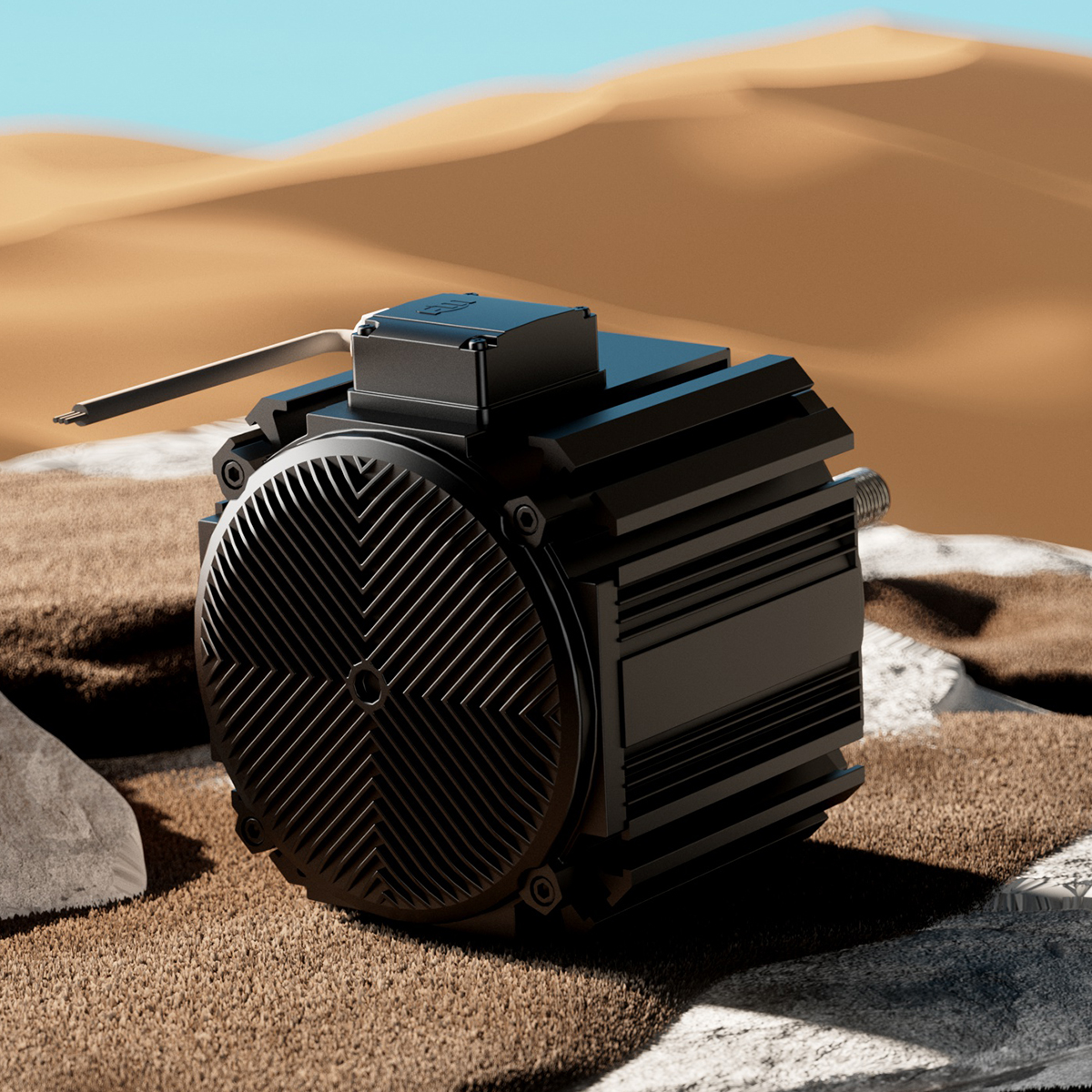

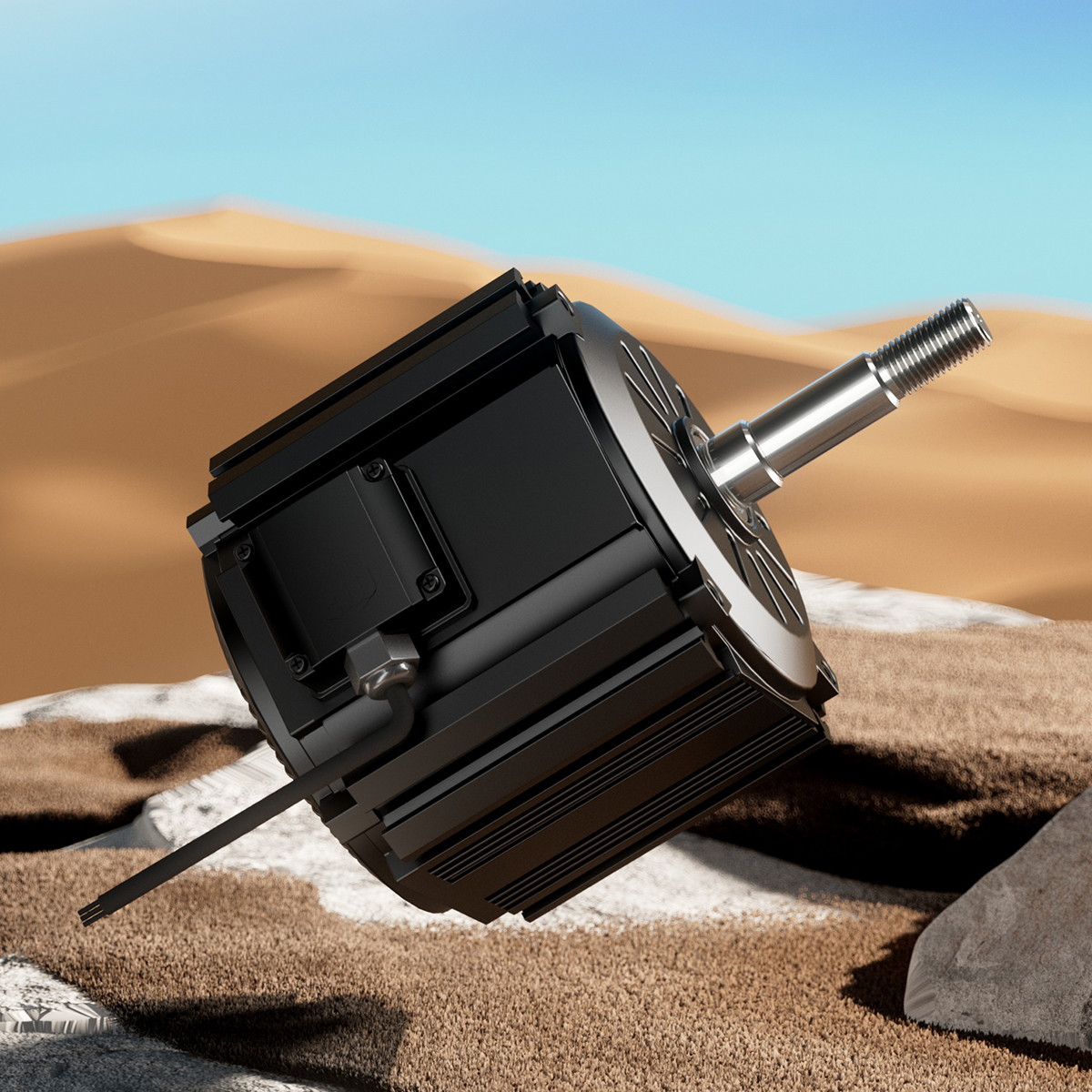

EC Motor BL17528MB-01

The BL17528MB-01 is an EC motor delivering adjustable speed from 300 to 1400 RPM with 900 W rated power, operating at 220 VAC, designed for industrial and agricultural exhaust and ventilation systems requiring efficient speed control and reliable continuous operation.

Why Choose This EC Motor

Wide speed range for flexible airflow and load control

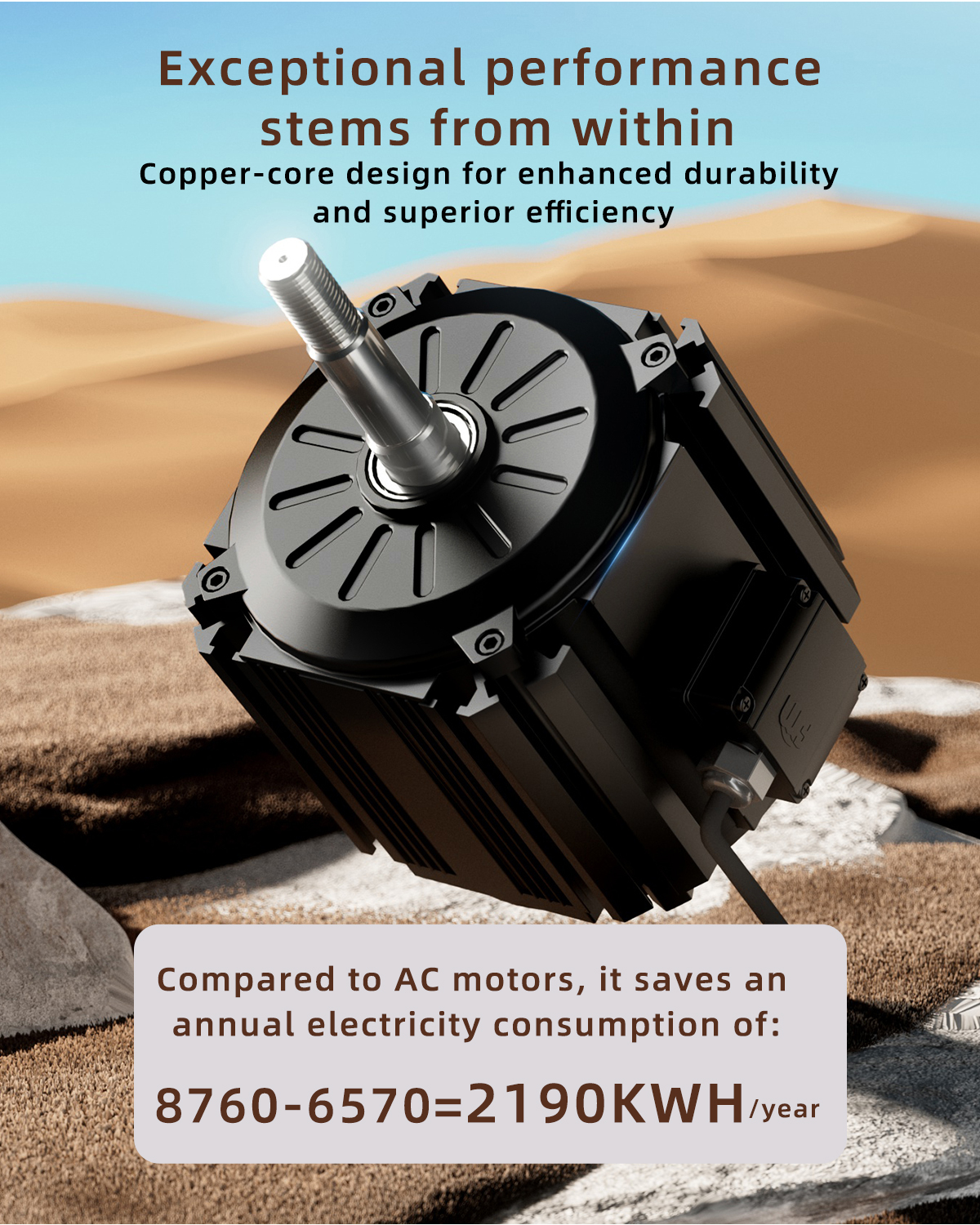

High-efficiency EC motor design with reduced energy consumption
3-phase sine-wave control for smooth, low-noise operation
Sensorless FOC drive for low maintenance and high reliability
IP66-rated protection for harsh industrial and agricultural environments

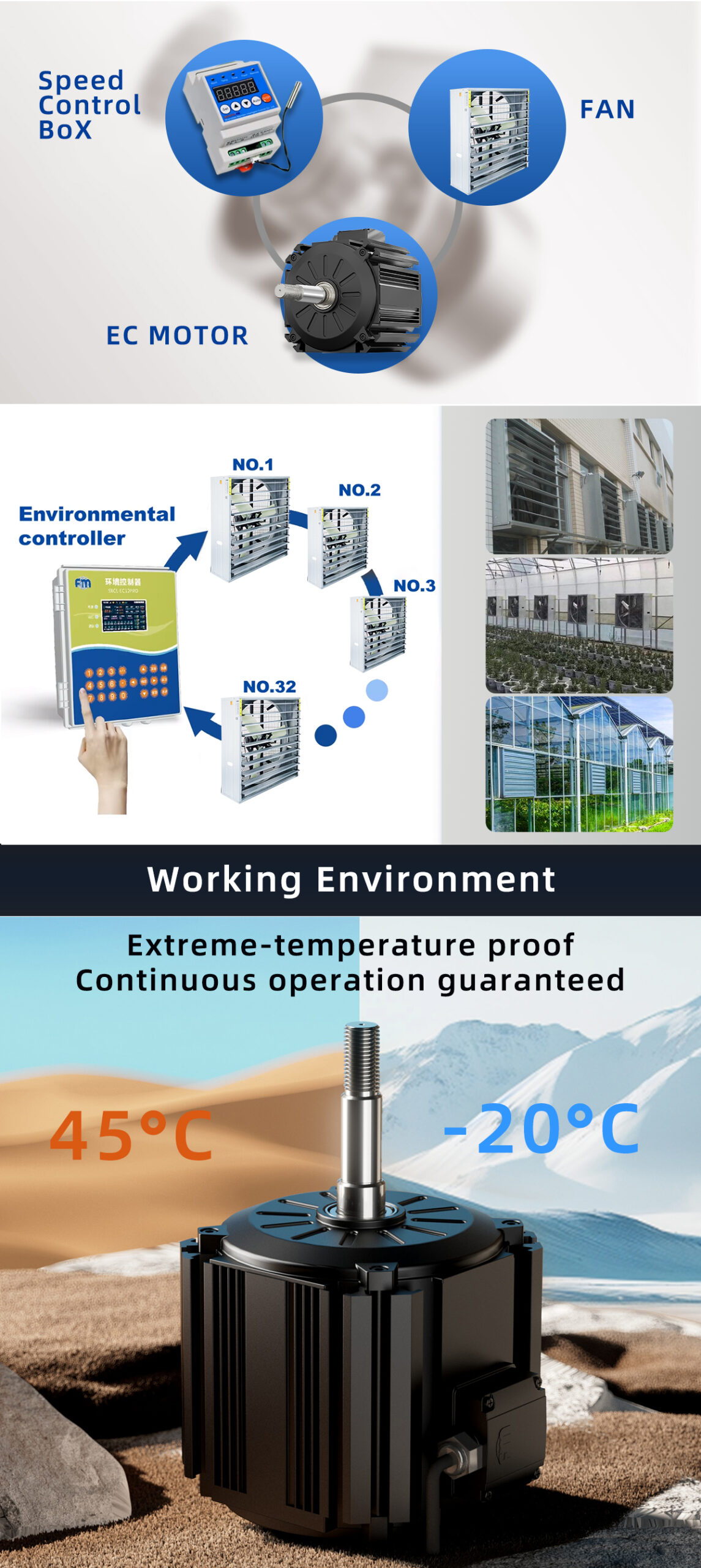

Where This EC Motor Is Used

Industrial exhaust and ventilation systems
Agricultural ventilation and cooling equipment
EC fan and blower drive systems
Air handling and circulation equipment
Harsh-environment motor-driven applications

Contact us for pricing, full technical details, and available customization options.

Description
Tech Spec

EC Motor BL17528MB-01

EC Motor BL17528MB-01 is engineered for applications requiring precise speed regulation, high efficiency, and long-term operational reliability. Powered at 220 VAC, it operates at a rated speed of 1400 RPM with an adjustable speed range from 300 to 1400 RPM, delivering 900 W rated power while maintaining stable and efficient motor performance.

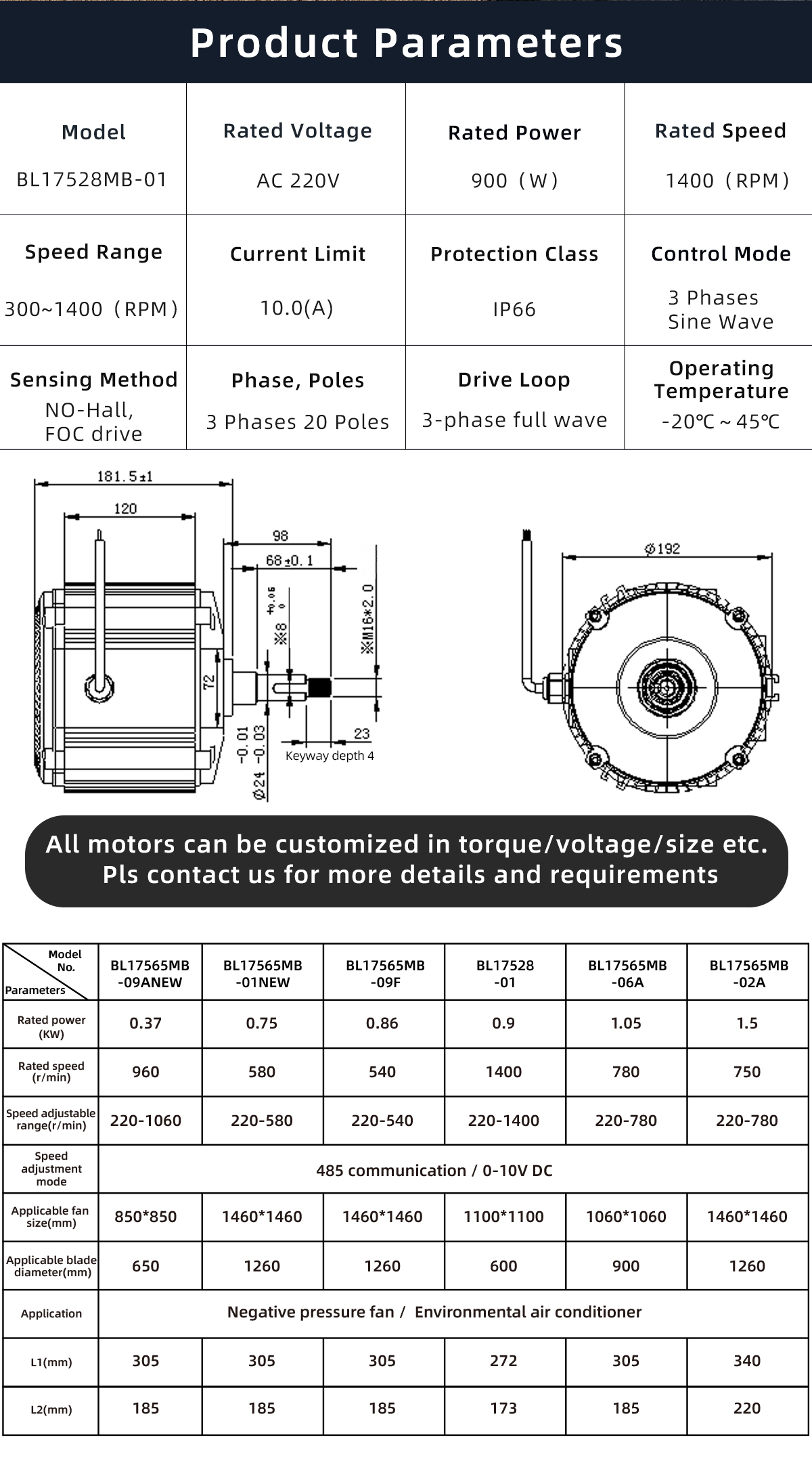

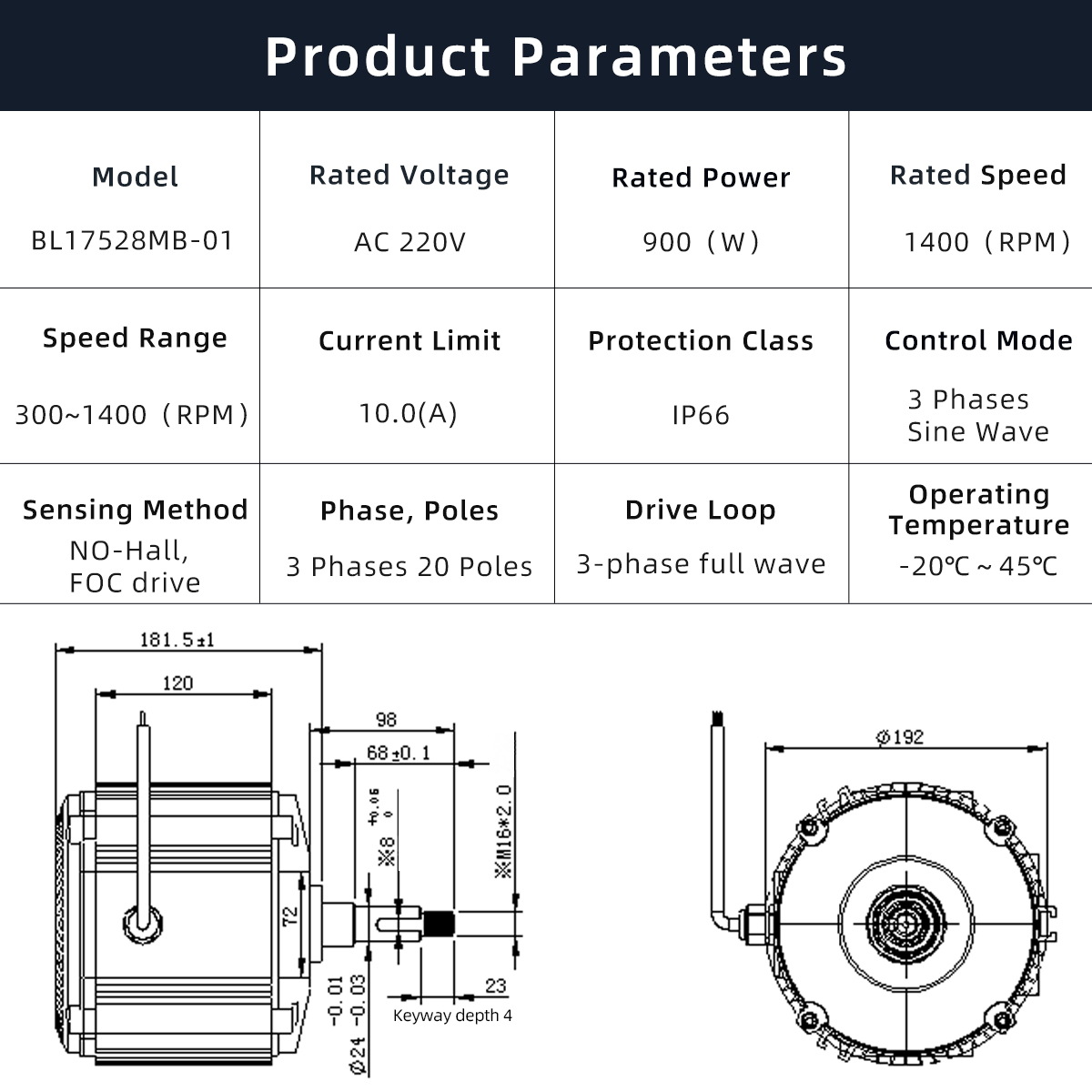

The motor incorporates advanced electrical and control features:

Rated Voltage: 220 VAC
Rated Power: 900 W
Rated Speed: 1400 RPM
Speed Range: 300–1400 RPM
Rated Current: 10.0 A
Control Mode: 3-phase sine wave
Sensing Method: No-Hall, FOC drive
Phase / Poles: 3 phases, 20 poles
Drive Loop: 3-phase full wave
Protection Rating: IP66

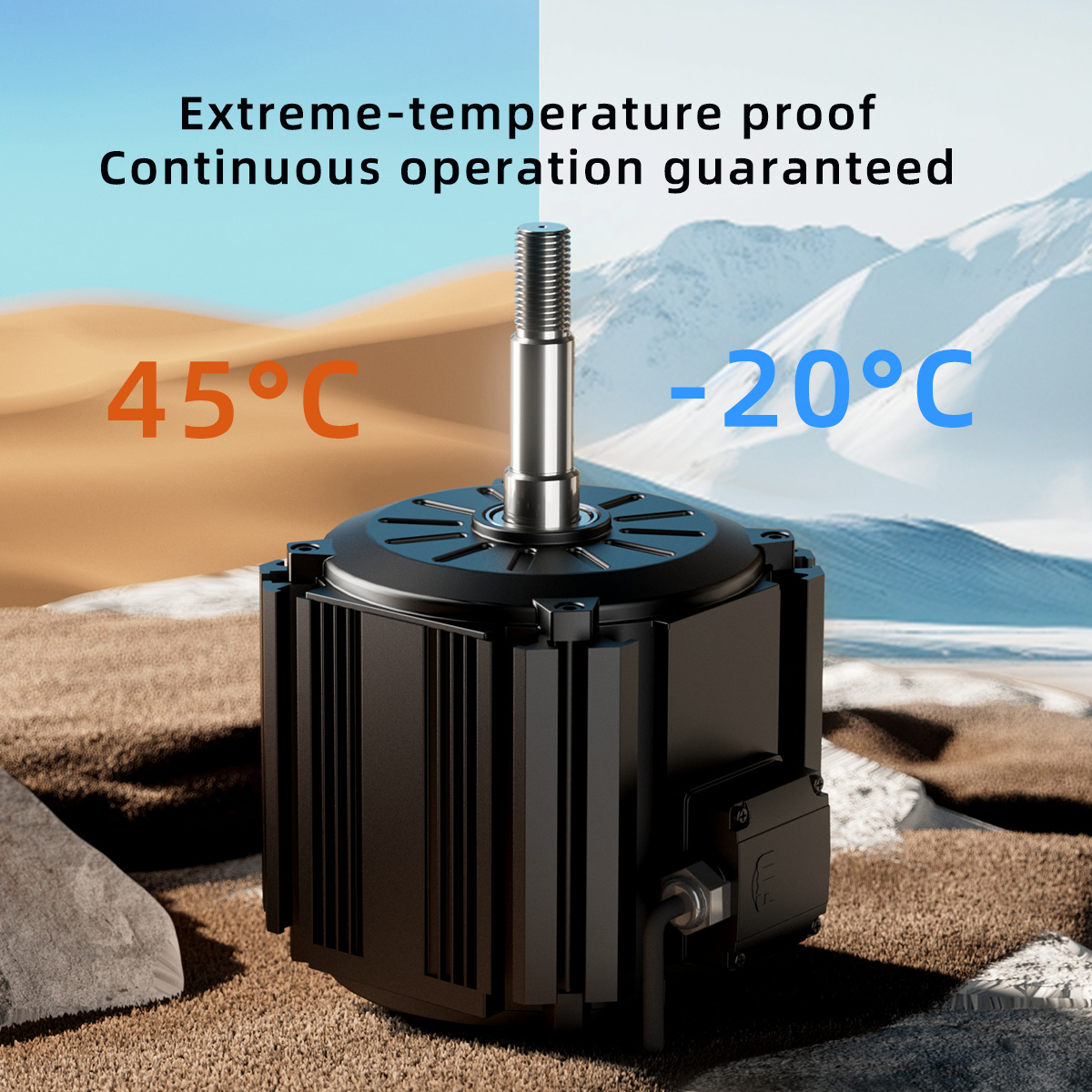

Operating Temperature: −20 °C to +45 °C

The BL17528MB-01 is ideal for integration into exhaust fans, ventilation equipment, and other industrial or agricultural systems requiring precise speed control and durable motor performance.
