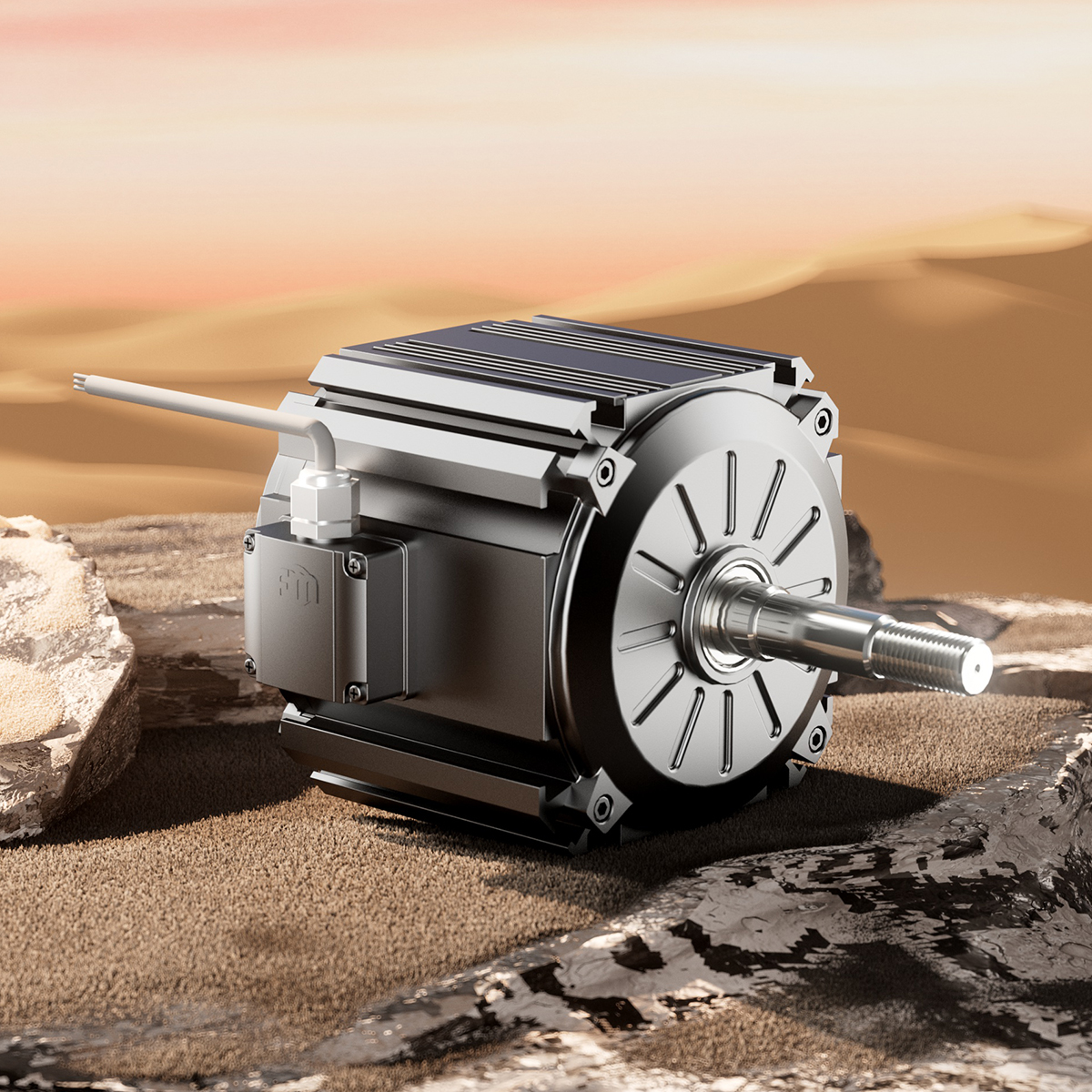

EC Motor BL17565MB-01 (NEW)

The BL17565MB-01 (NEW) is a high-torque EC motor delivering adjustable speed from 220 to 630 RPM with 750 W rated power and 9.7 N·m torque, operating at 220 VAC, designed for industrial and agricultural exhaust applications requiring strong low-speed performance and stable operation.

Why Choose This EC Motor

High torque output for low-speed, heavy-load operation
Wide speed range for flexible airflow and load control
3-phase sine-wave control for smooth, low-noise performance
Sensorless FOC drive for high efficiency and low maintenance
IP66-rated protection for harsh industrial and agricultural environments

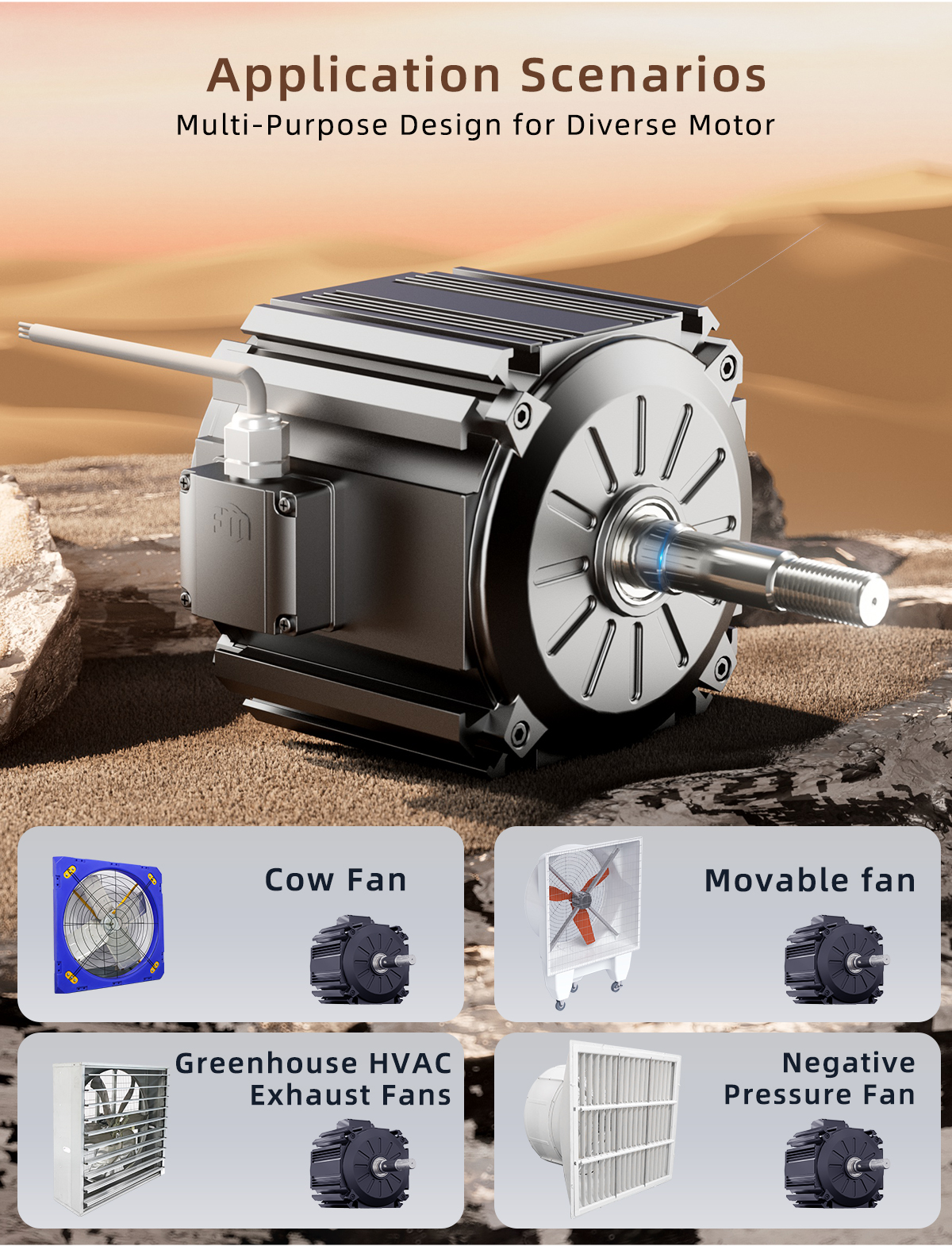

Where This EC Motor Is Used

Industrial exhaust and ventilation systems
Agricultural ventilation and cooling equipment
High-torque EC fan and blower drive systems
Air handling units and circulation equipment
Harsh-environment motor-driven applications

Contact us for pricing, full technical details, and available customization options.

Description
Tech Spec

EC Motor BL17565MB-01 (NEW)

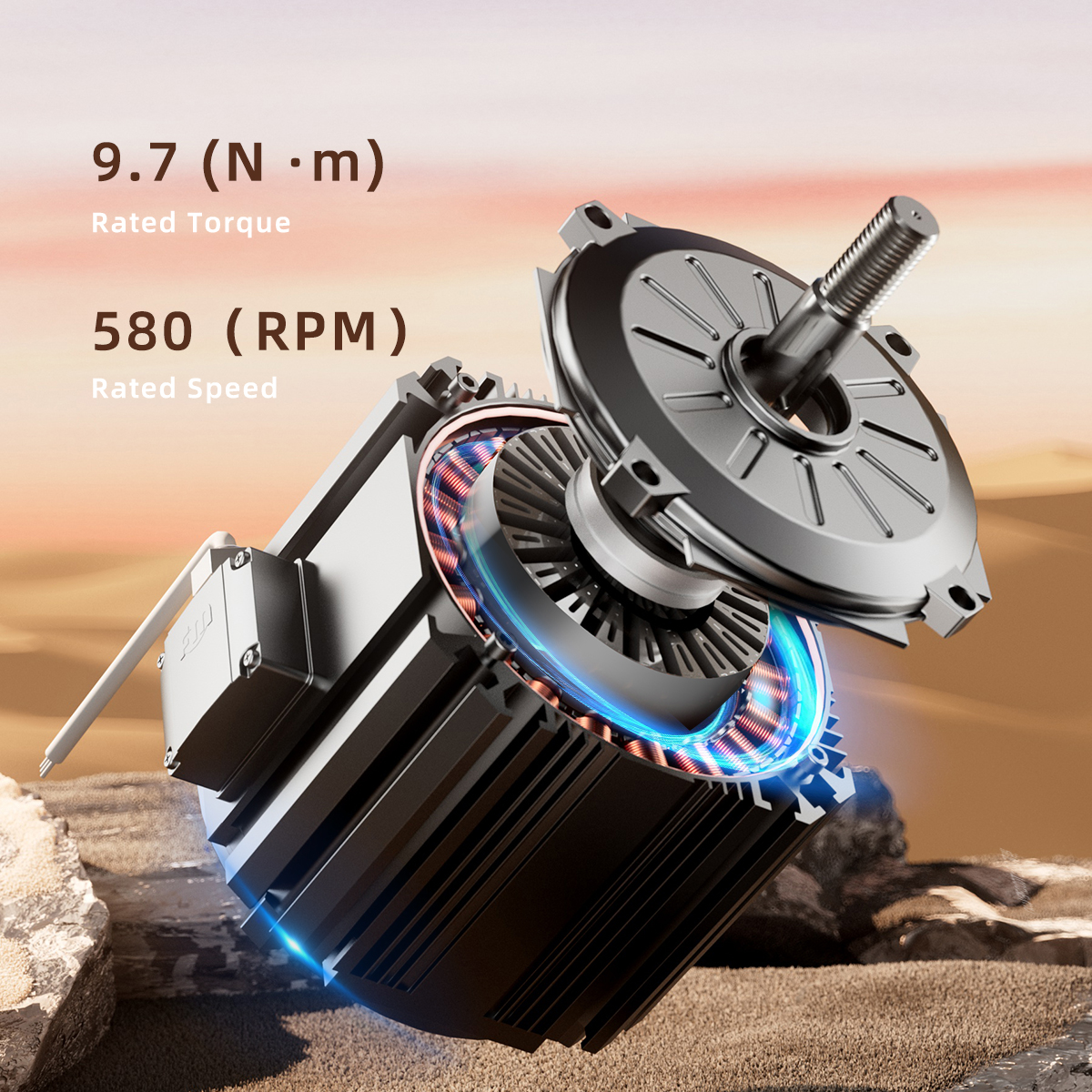

EC Motor BL17565MB-01 (NEW) is engineered for applications requiring high torque at low operating speeds, precise speed regulation, and long-term operational reliability. Powered at 220 VAC, it operates at a rated speed of 580 RPM with an adjustable speed range from 220 to 630 RPM, delivering 750 W rated power while maintaining 9.7 N·m output torque.

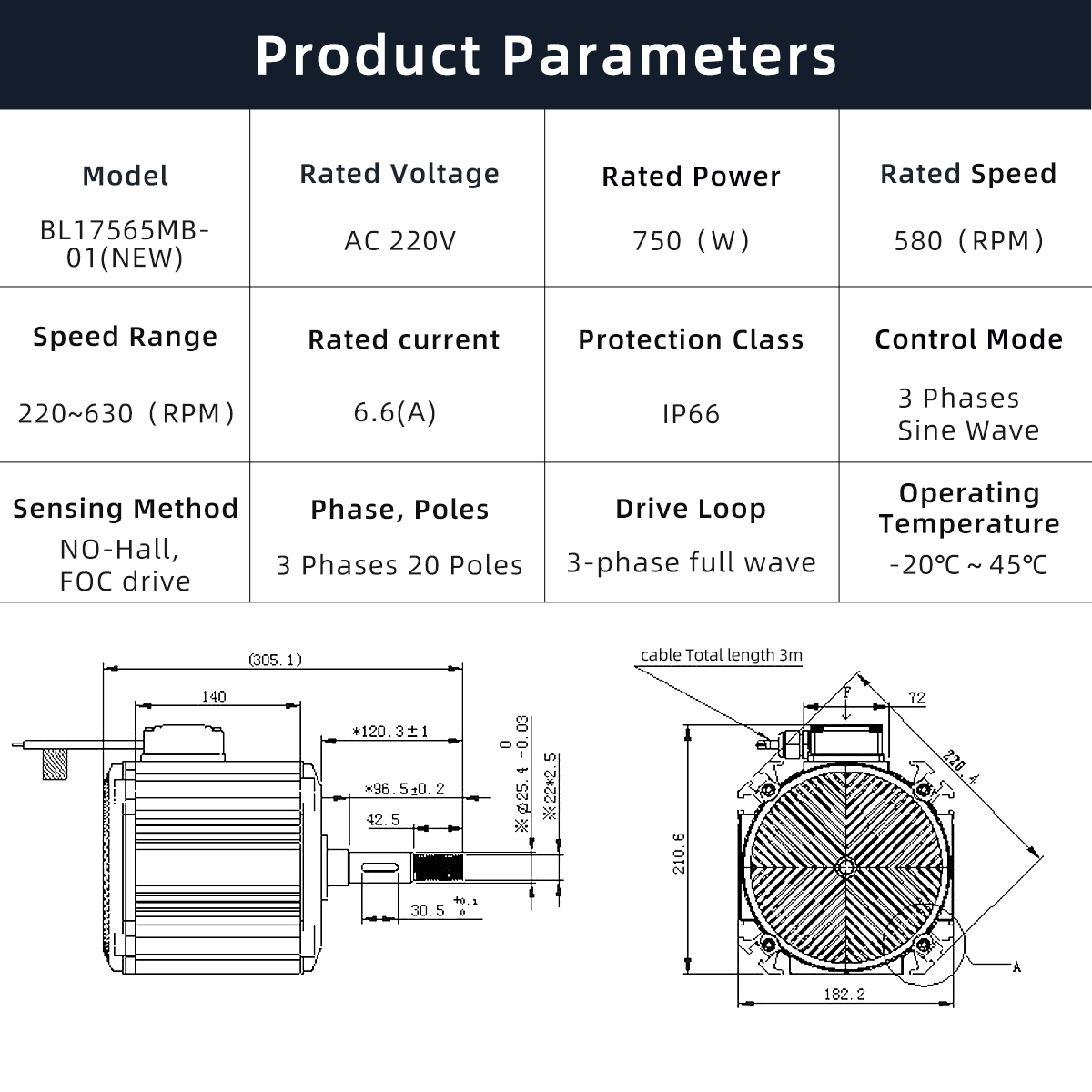

The motor incorporates advanced electrical and control features:

Rated Voltage: 220 VAC
Rated Power: 750 W
Rated Speed: 580 RPM
Speed Range: 220–630 RPM
Rated Current: 6.6 A
Rated Torque: 9.7 N·m
Control Mode: 3-phase sine wave
Sensing Method: No-Hall, FOC drive
Phase / Poles: 3 phases, 20 poles
Drive Loop: 3-phase full wave
Protection Rating: IP66

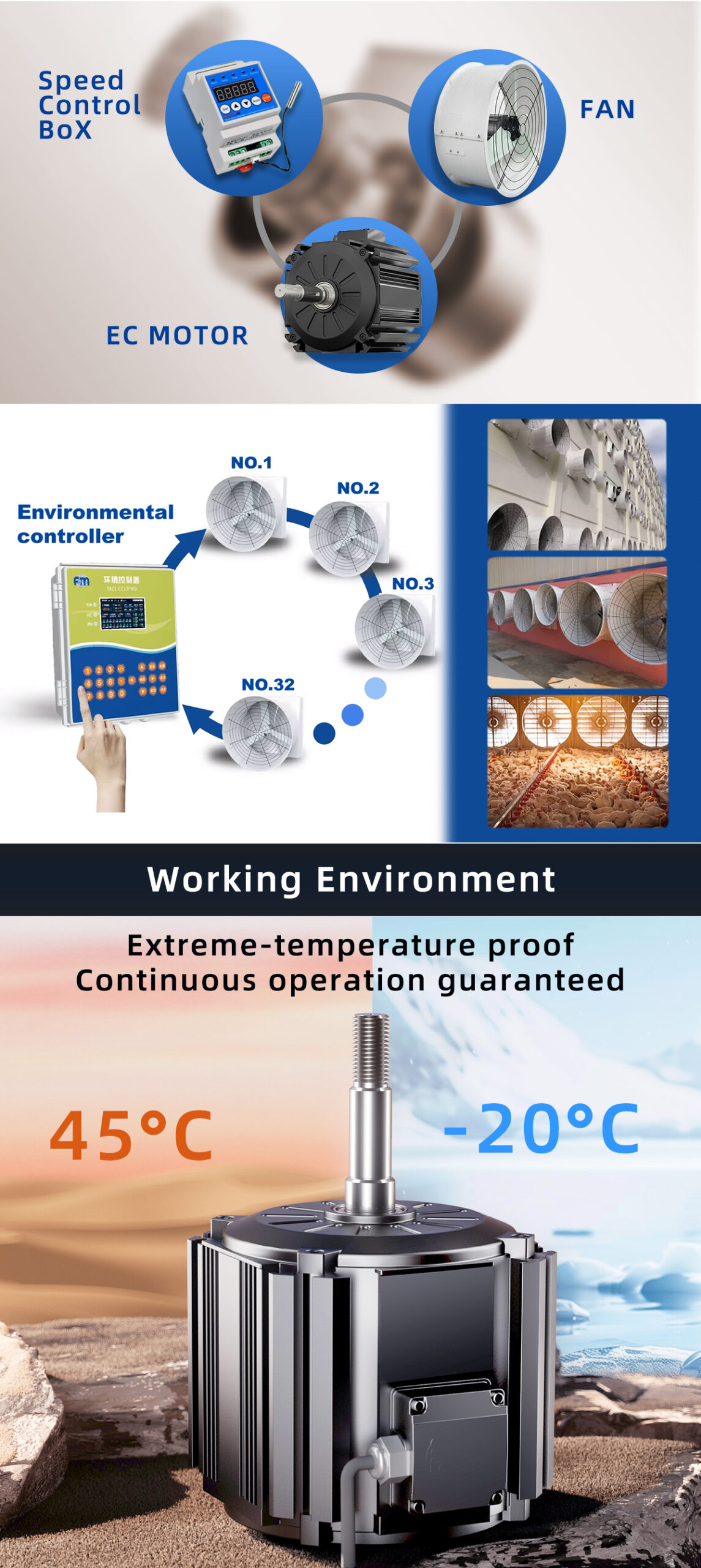

Operating Temperature: −20 °C to +45 °C

The BL17565MB-01 (NEW) is ideal for direct-drive exhaust fans, ventilation equipment, and other industrial or agricultural systems that demand strong torque, smooth operation, and environmental durability.
