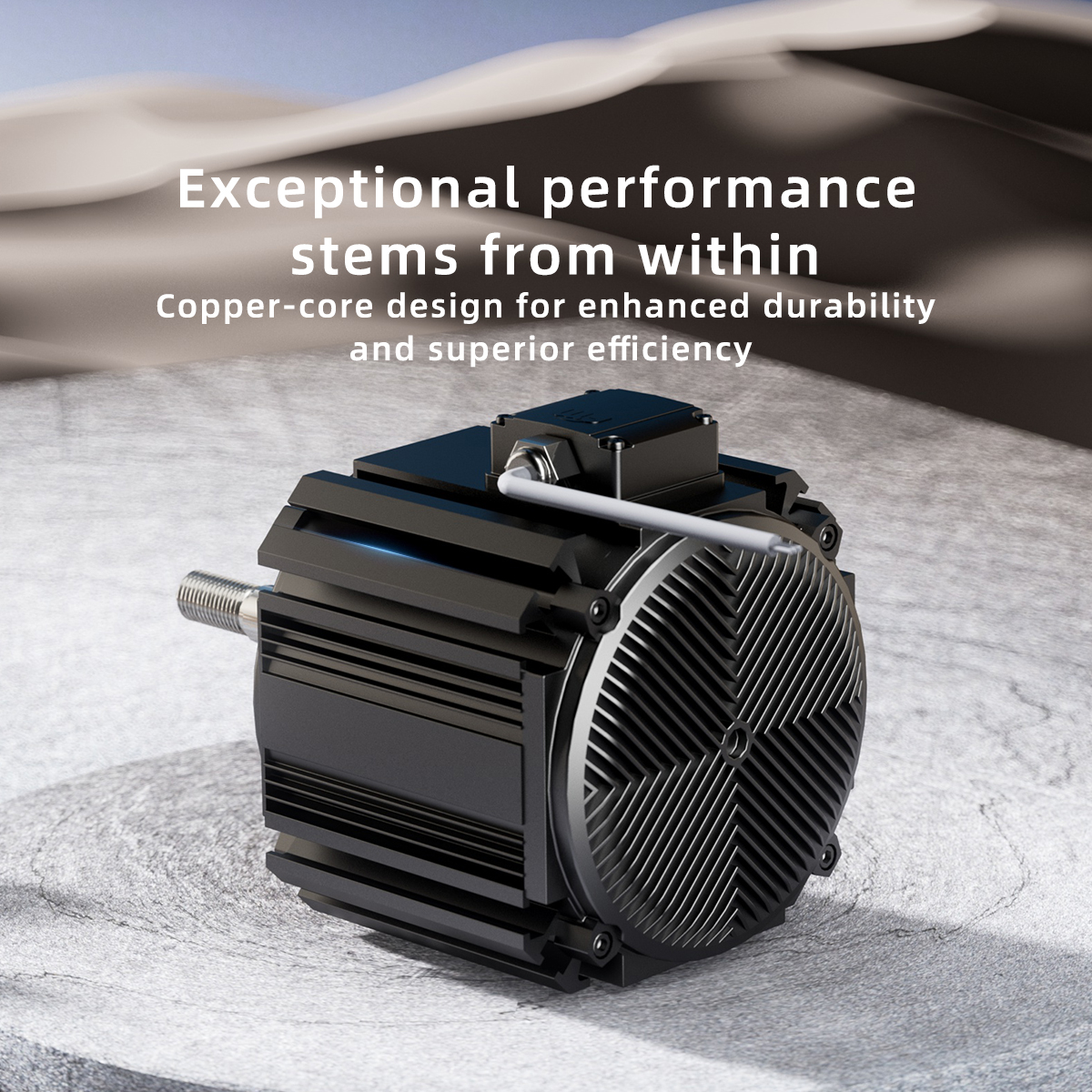

EC Motor BL17565MB-02A

The BL17565MB-02A is a high-power, high-torque EC motor delivering adjustable speed from 220 to 850 RPM with 1500 W rated power and 15.84 N·m torque, operating at 220 VAC, designed for industrial and agricultural exhaust applications requiring strong load capability and stable low-speed performance.

Why Choose This EC Motor

High torque output for stable low-speed operation
Wide speed range for flexible airflow and system control
3-phase sine-wave control for smooth and low-noise performance
Sensorless FOC drive for high efficiency and reduced maintenance
IP66-rated protection for harsh industrial and agricultural environments

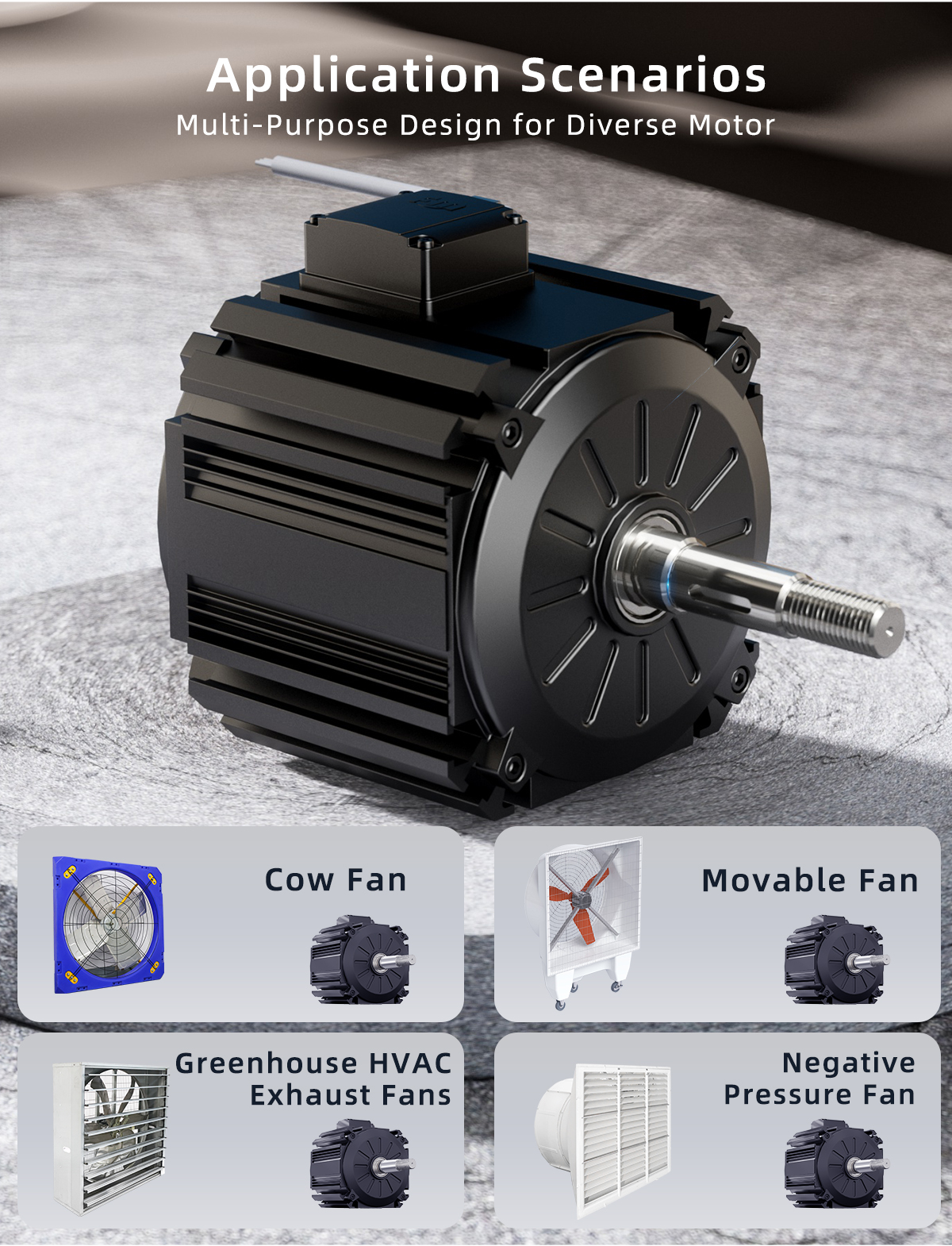

Where This EC Motor Is Used

Industrial exhaust and ventilation systems
Agricultural ventilation and cooling equipment
EC fan and blower drive systems
Air handling and circulation equipment
Harsh-environment motor-driven applications

Contact us for pricing, full technical details, and available customization options.

Description
Tech Spec

EC Motor BL17565MB-02A

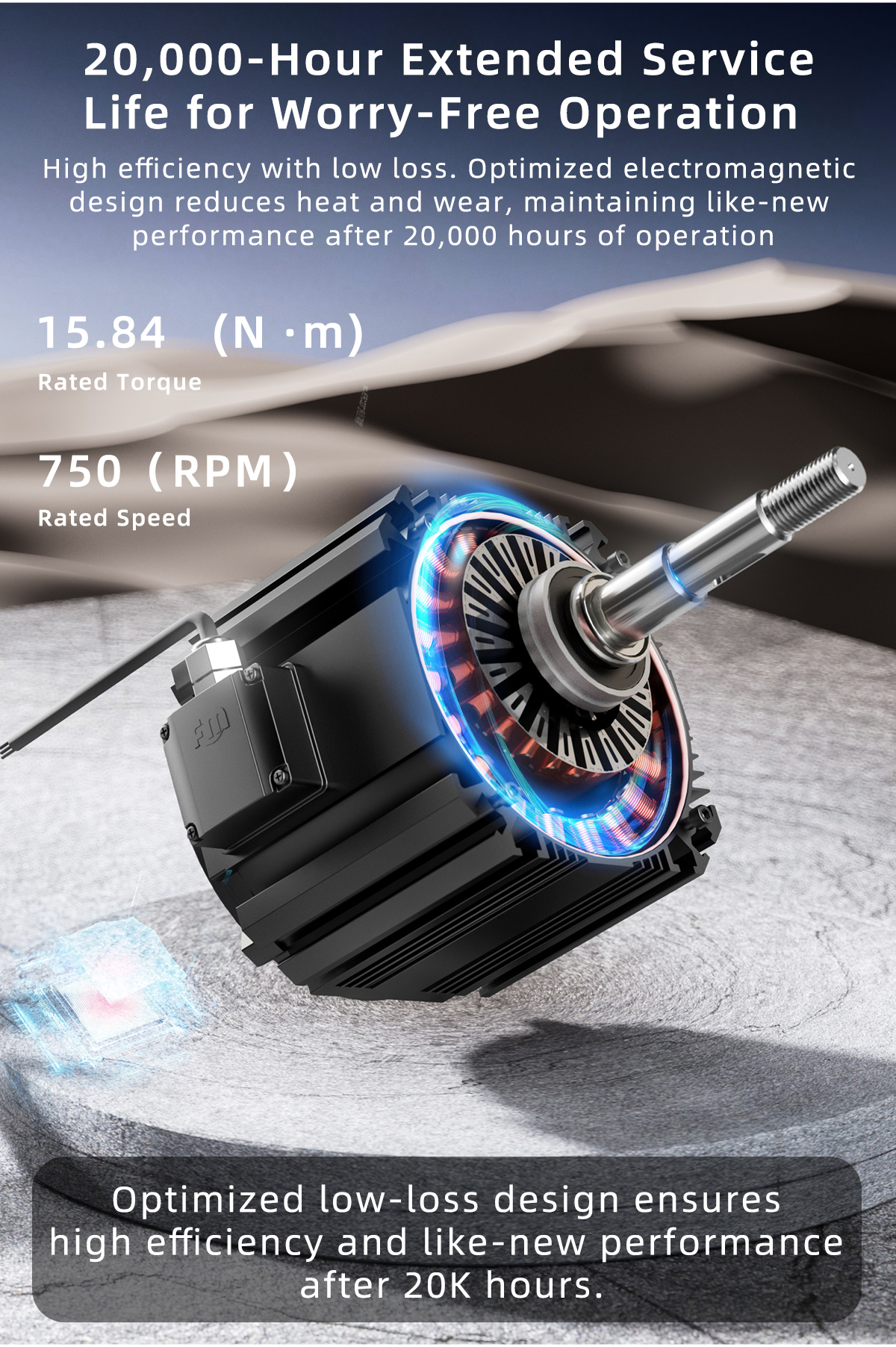

EC Motor BL17565MB-02A is engineered for applications requiring high torque at low-to-medium operating speeds, precise speed regulation, and long-term operational reliability. Powered at 220 VAC, it operates at a rated speed of 750 RPM with an adjustable speed range from 220 to 850 RPM, delivering 1500 W rated power while providing 15.84 N·m output torque.

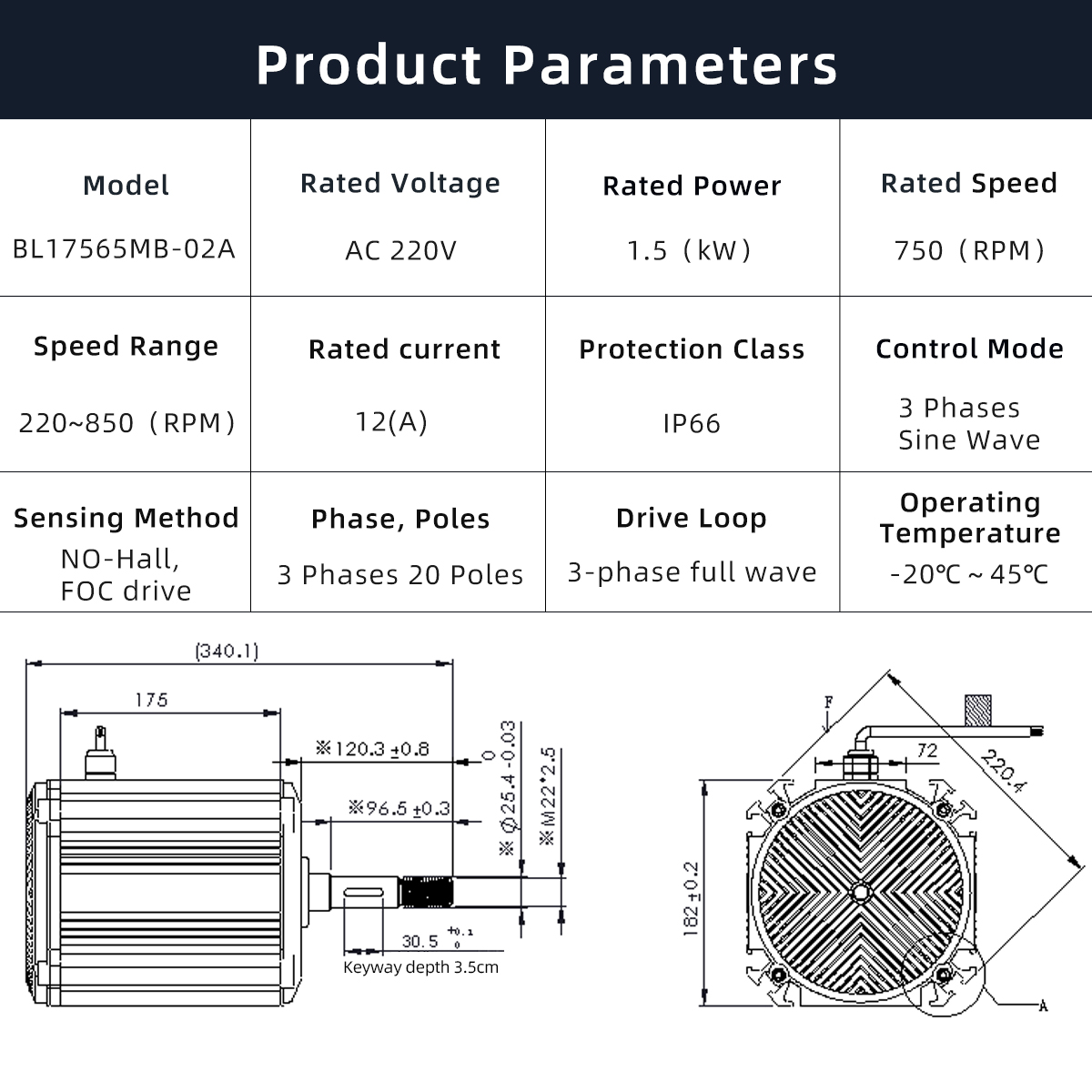

The motor incorporates advanced electrical and control features:

Rated Voltage: 220 VAC
Rated Power: 1500 W
Rated Speed: 750 RPM
Speed Range: 220–850 RPM
Rated Torque: 15.84 N·m
Control Mode: 3-phase sine wave
Sensing Method: No-Hall, FOC drive
Phase / Poles: 3 phases, 20 poles
Drive Loop: 3-phase full wave
Protection Rating: IP66

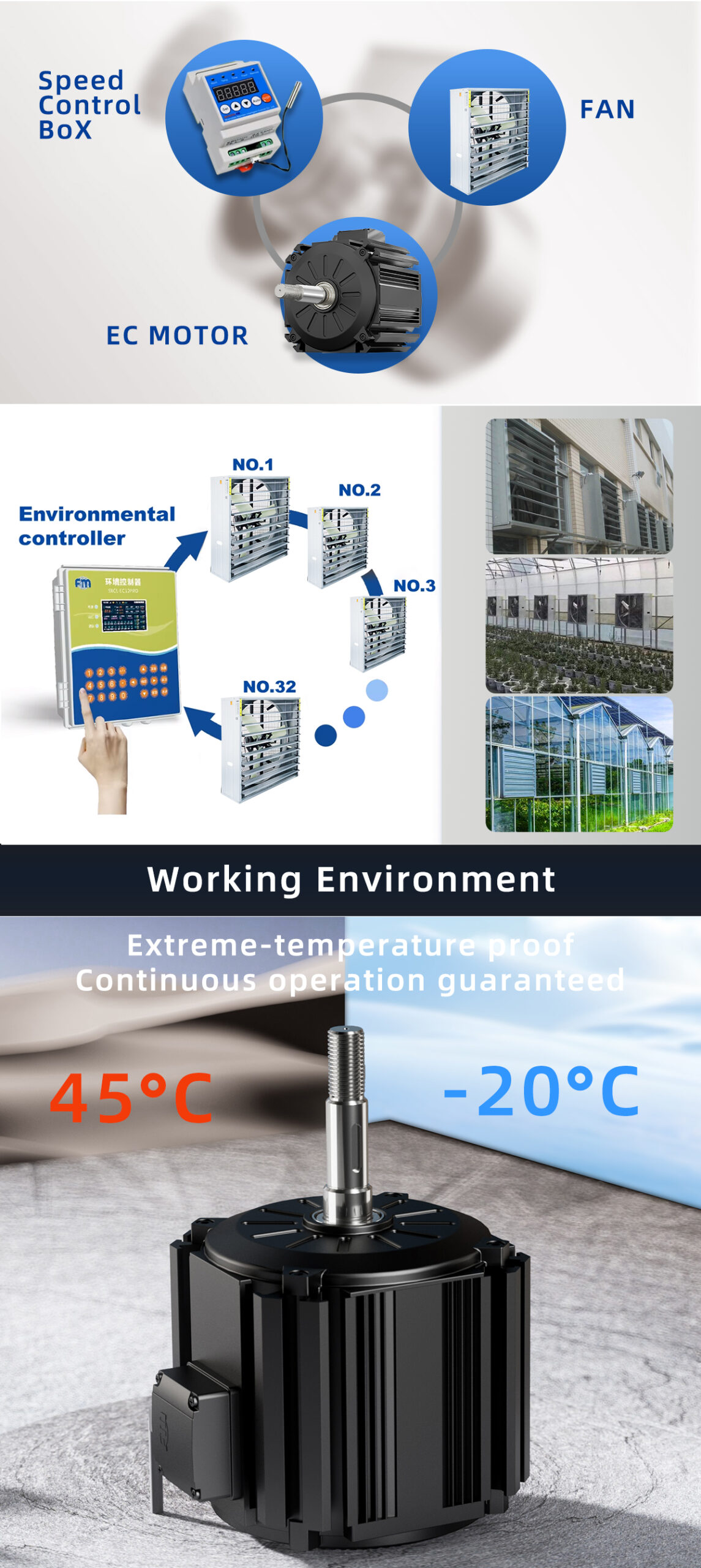

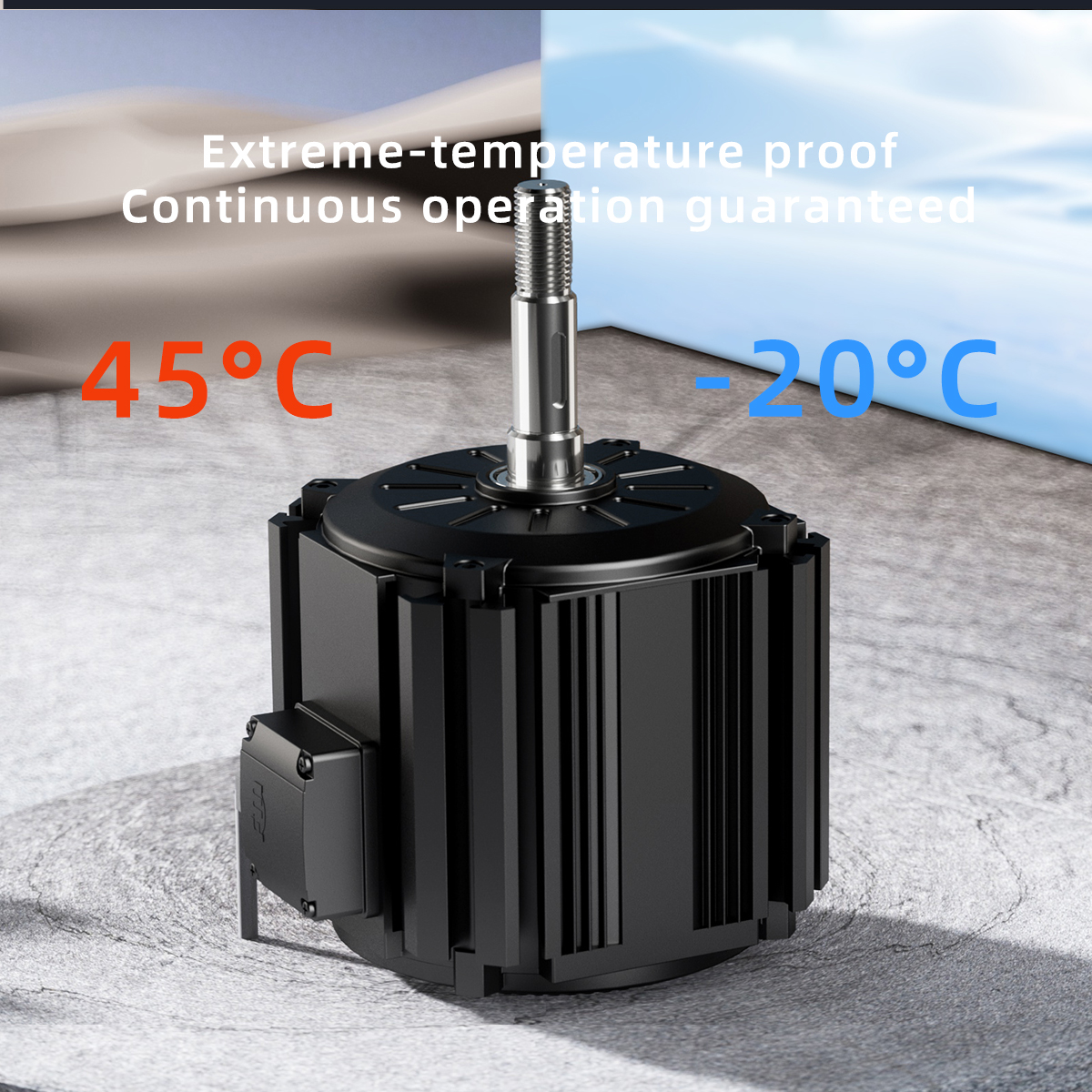

Operating Temperature: −20 °C to +45 °C

The BL17565MB-02A is ideal for high-torque EC fan drives, exhaust systems, and other industrial or agricultural equipment requiring strong load handling, smooth operation, and environmental durability.
