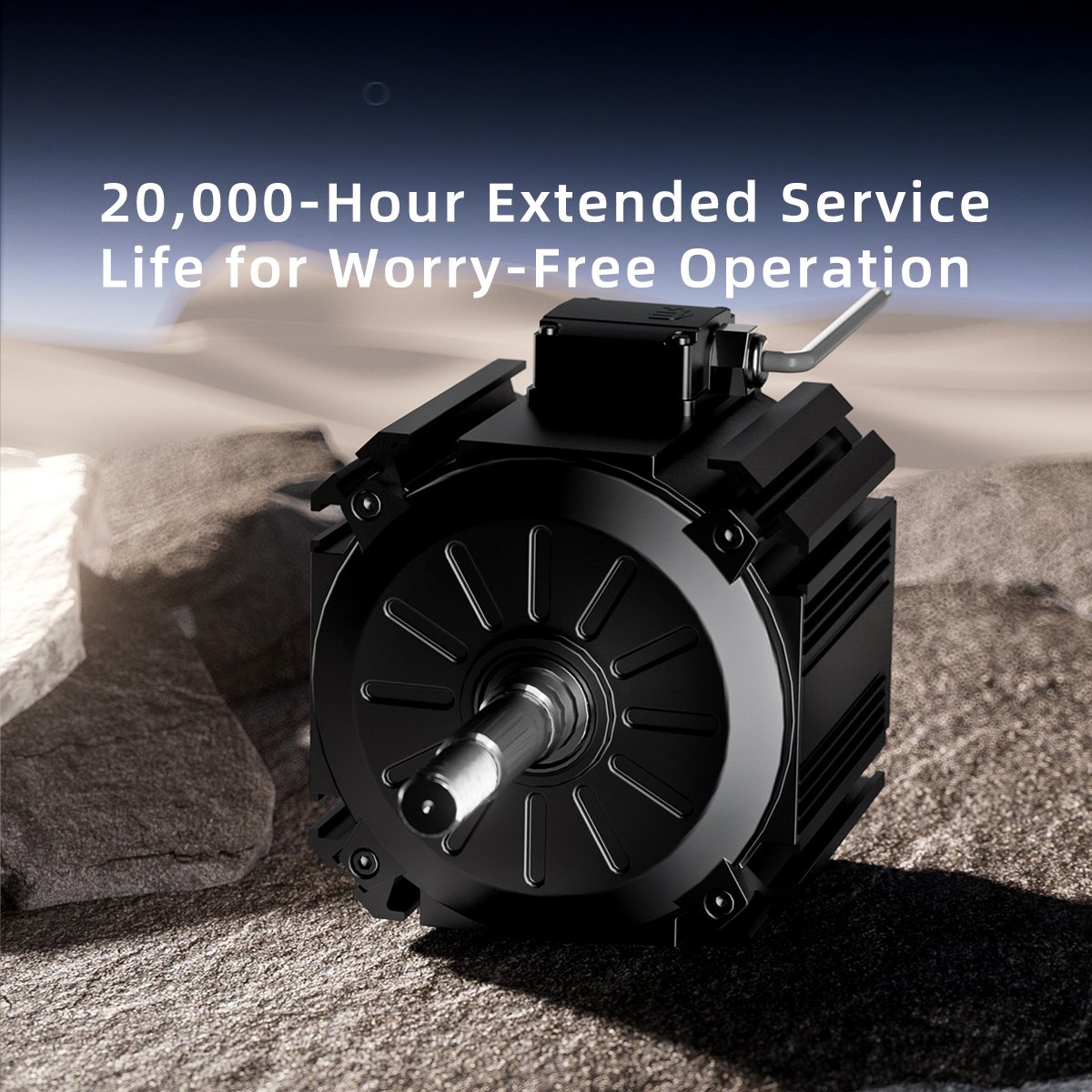

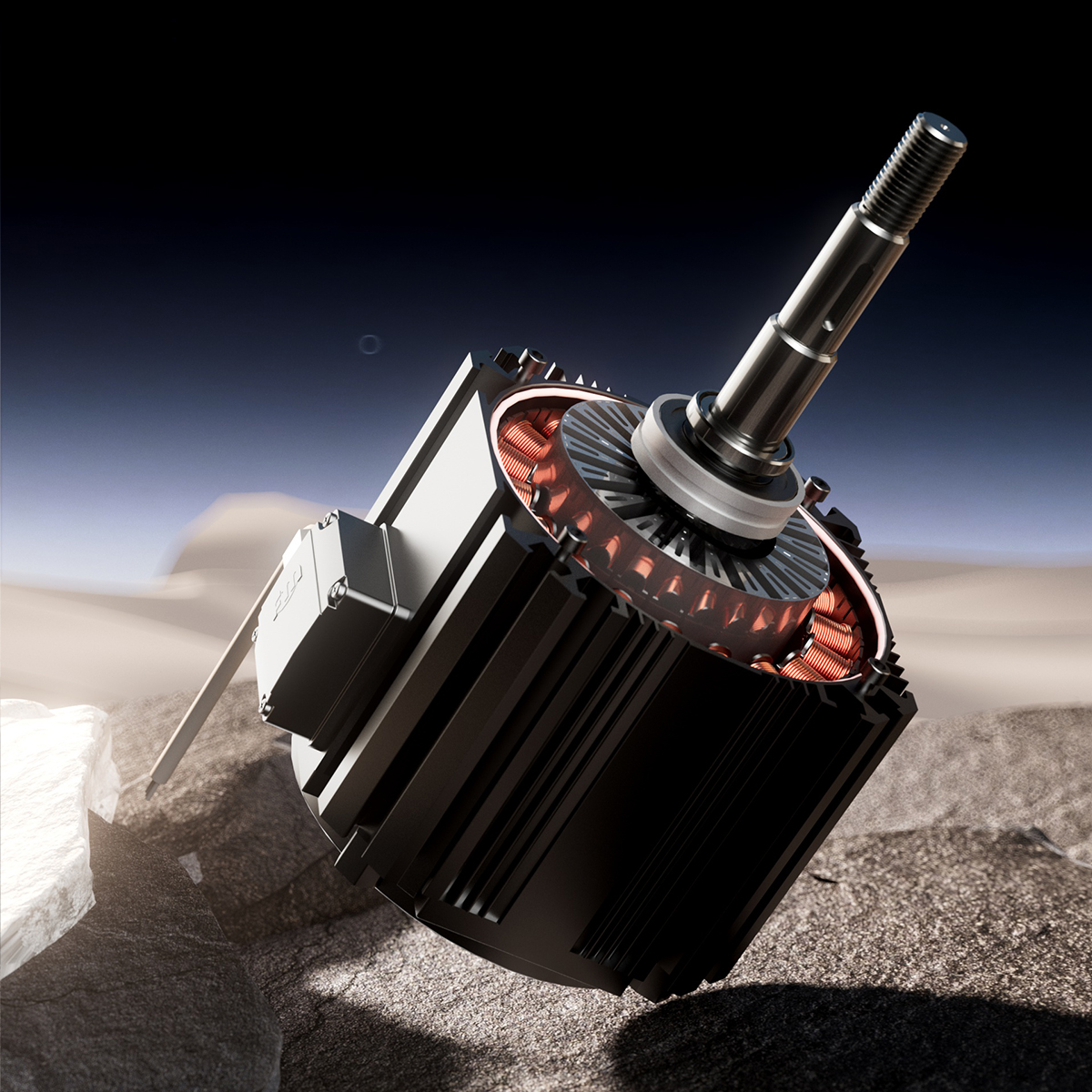

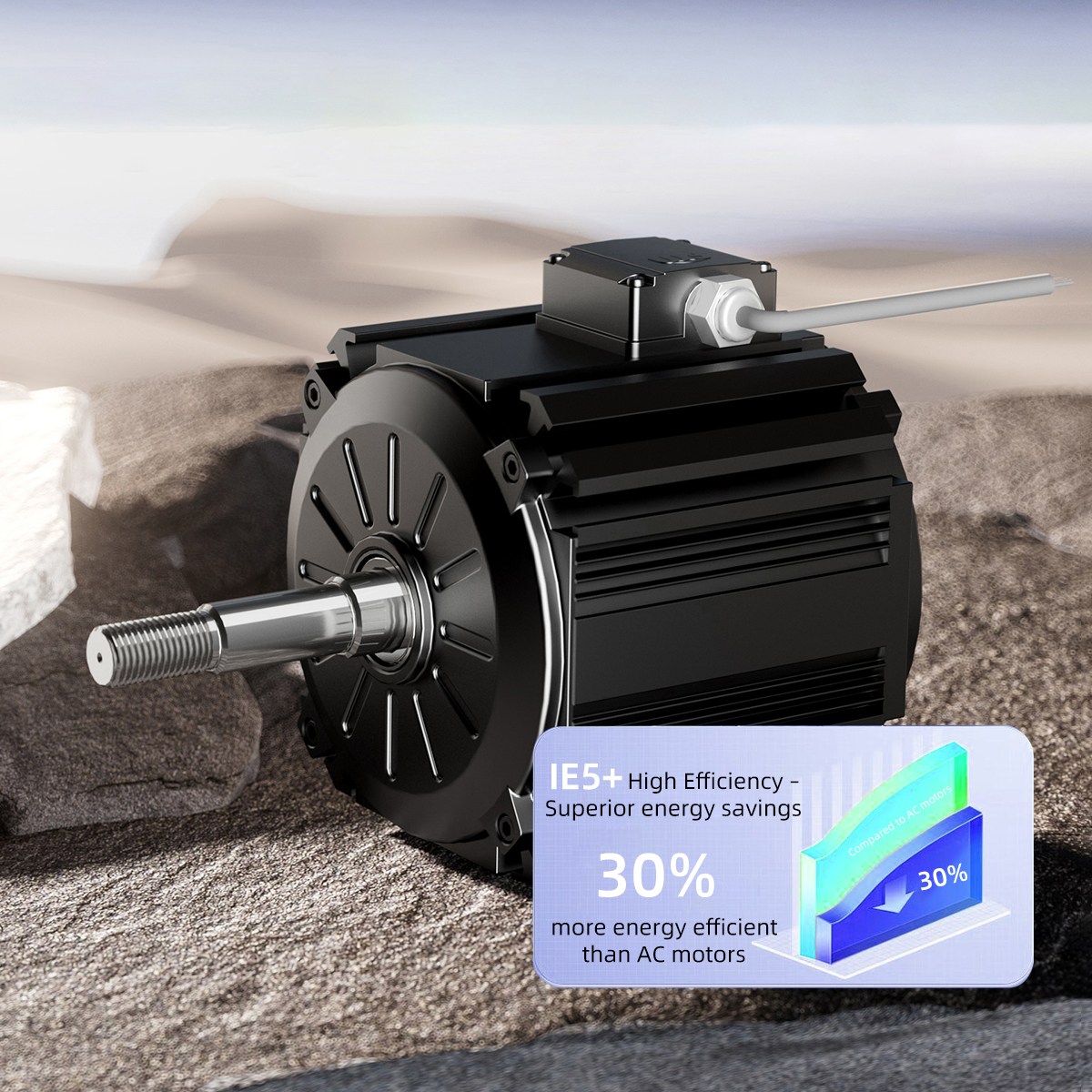

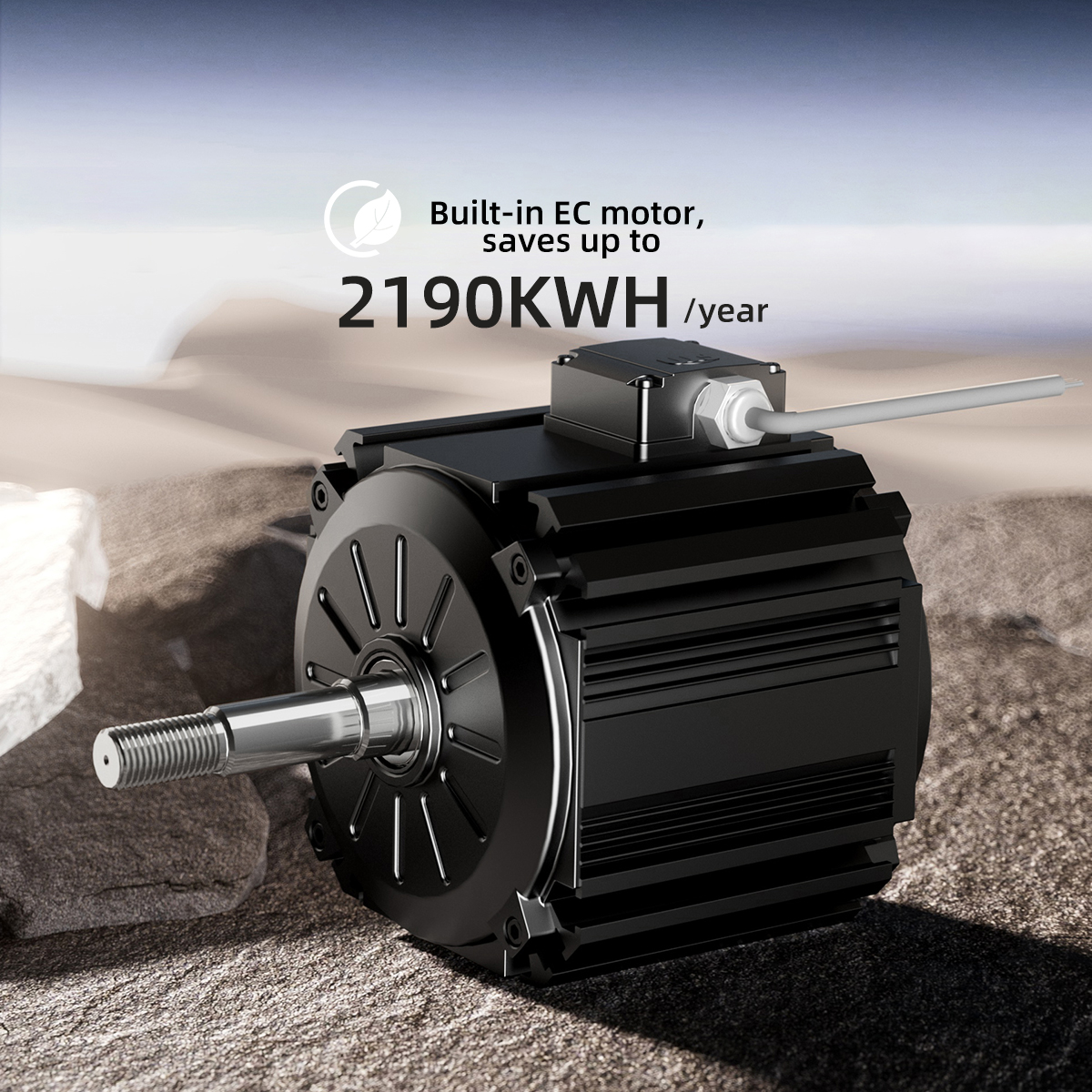

EC Motor BL17565MB-06A

The BL17565MB-06A is a high-torque EC motor delivering adjustable speed from 220 to 780 RPM with 1050 W rated power and 9.7 N·m torque, operating at 220 VAC, designed for industrial and agricultural exhaust applications requiring stable low-speed performance and reliable continuous operation.

Why Choose This EC Motor

High torque output for stable low-speed operation
Wide speed range for flexible airflow and system control
3-phase sine-wave control for smooth and low-noise performance
Sensorless FOC drive for high efficiency and reduced maintenance
IP66-rated protection for harsh industrial and agricultural environments

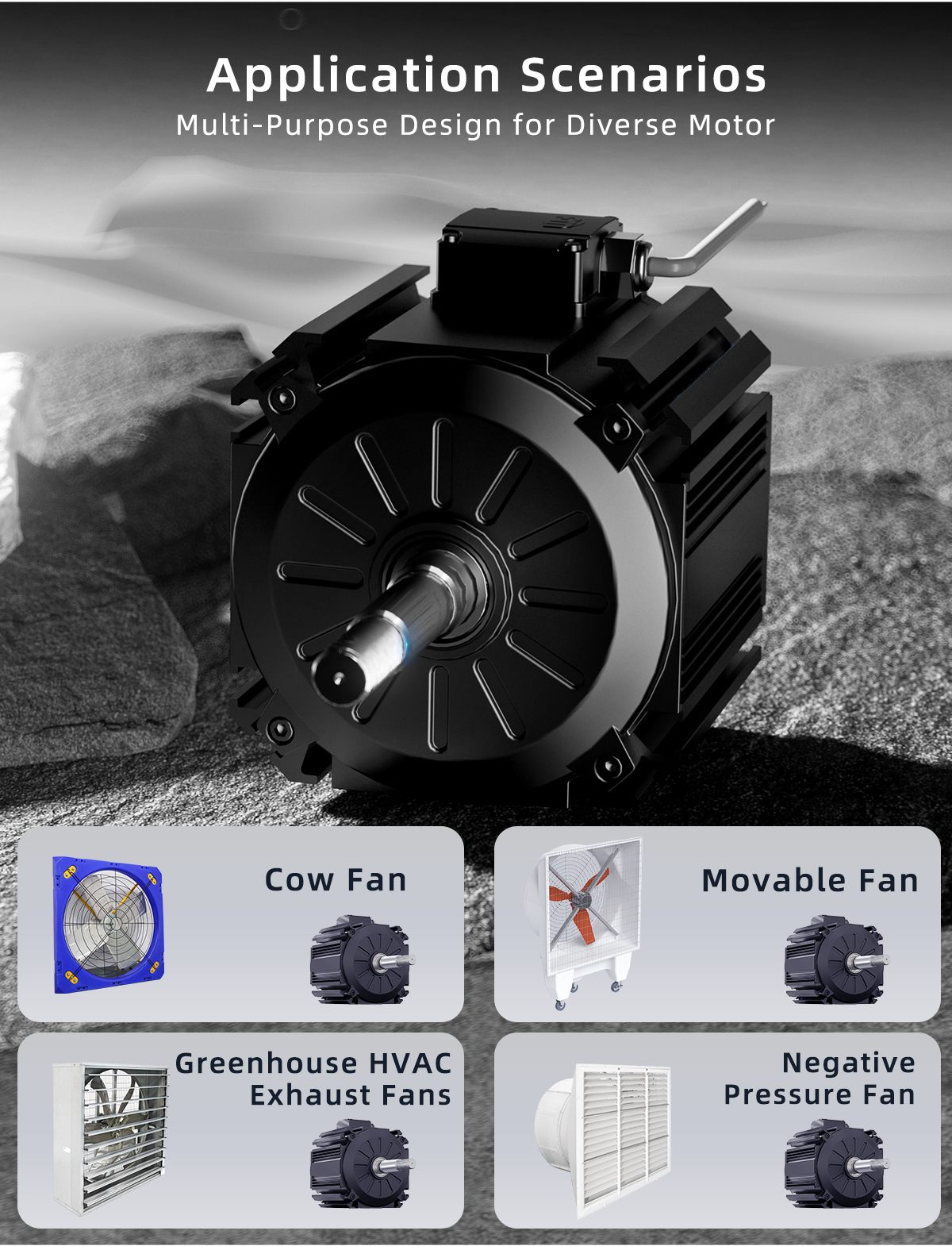

Where This EC Motor Is Used

Industrial exhaust and ventilation systems
Agricultural ventilation and cooling equipment
EC fan and blower drive systems
Air handling and circulation equipment
Harsh-environment motor-driven applications

Contact us for pricing, full technical details, and available customization options.

Description
Tech Spec

EC Motor BL17565MB-06A

EC Motor BL17565MB-06A is engineered for applications requiring reliable torque at low-to-medium operating speeds, accurate speed regulation, and long-term operational stability. Powered at 220 VAC, it operates at a rated speed of 780 RPM with an adjustable speed range from 220 to 780 RPM, delivering 1050 W rated power while maintaining 9.7 N·m output torque.

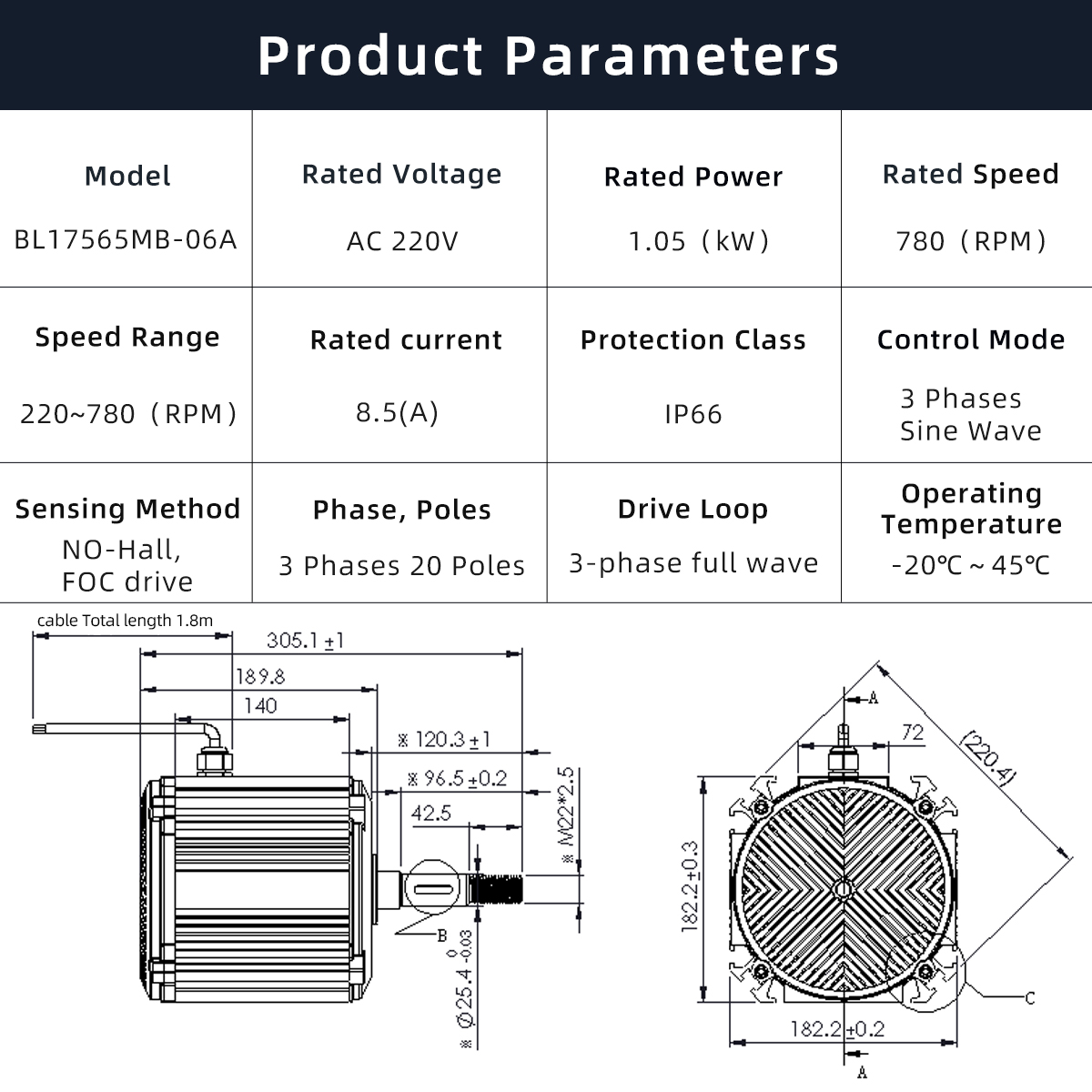

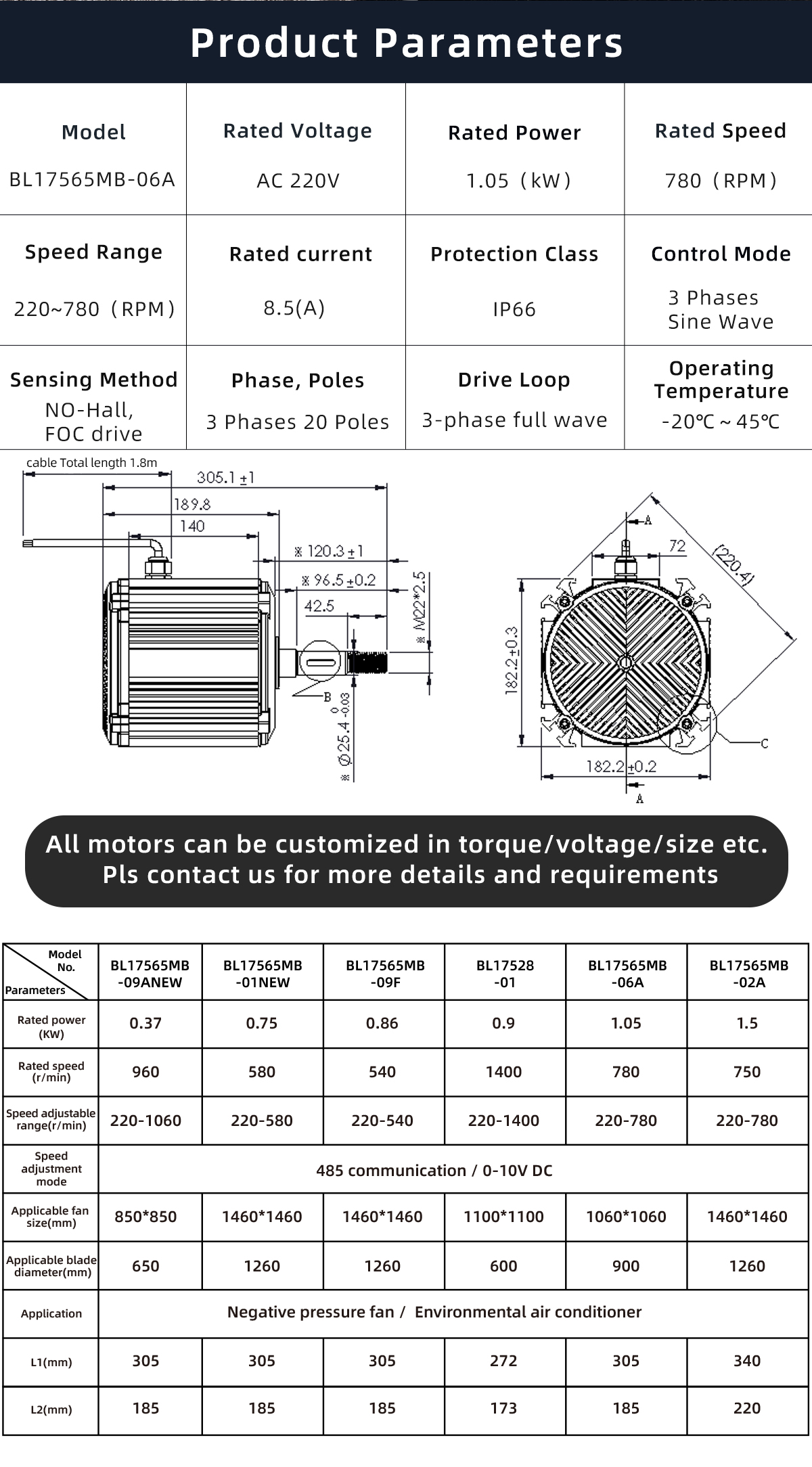

The motor incorporates advanced electrical and control features:

Rated Voltage: 220 VAC
Rated Power: 1050 W
Rated Speed: 780 RPM
Speed Range: 220–780 RPM
Rated Current: 8.5 A
Rated Torque: 9.7 N·m
Control Mode: 3-phase sine wave
Sensing Method: No-Hall, FOC drive
Phase / Poles: 3 phases, 20 poles
Drive Loop: 3-phase full wave
Protection Rating: IP66
Operating Temperature: −20 °C to +45 °C

The BL17565MB-06A is ideal for EC fan drives, exhaust systems, and other industrial or agricultural equipment requiring smooth operation, stable torque output, and environmental durability.
