EC Motor BL190190-01

The BL190190-01 is a compact, high-speed EC motor delivering adjustable speed from 220 to 1060 RPM with 370 W rated power and 2.7 N·m torque, operating at 380 VAC, designed for industrial and agricultural exhaust applications requiring efficient airflow and precise speed control.

Why Choose This EC Motor

High-speed operation for efficient airflow generation
Wide speed range for flexible system control
3-phase sine-wave control for smooth and low-noise performance
Sensorless FOC drive for high efficiency and low maintenance
IP66-rated protection for harsh industrial and agricultural environments

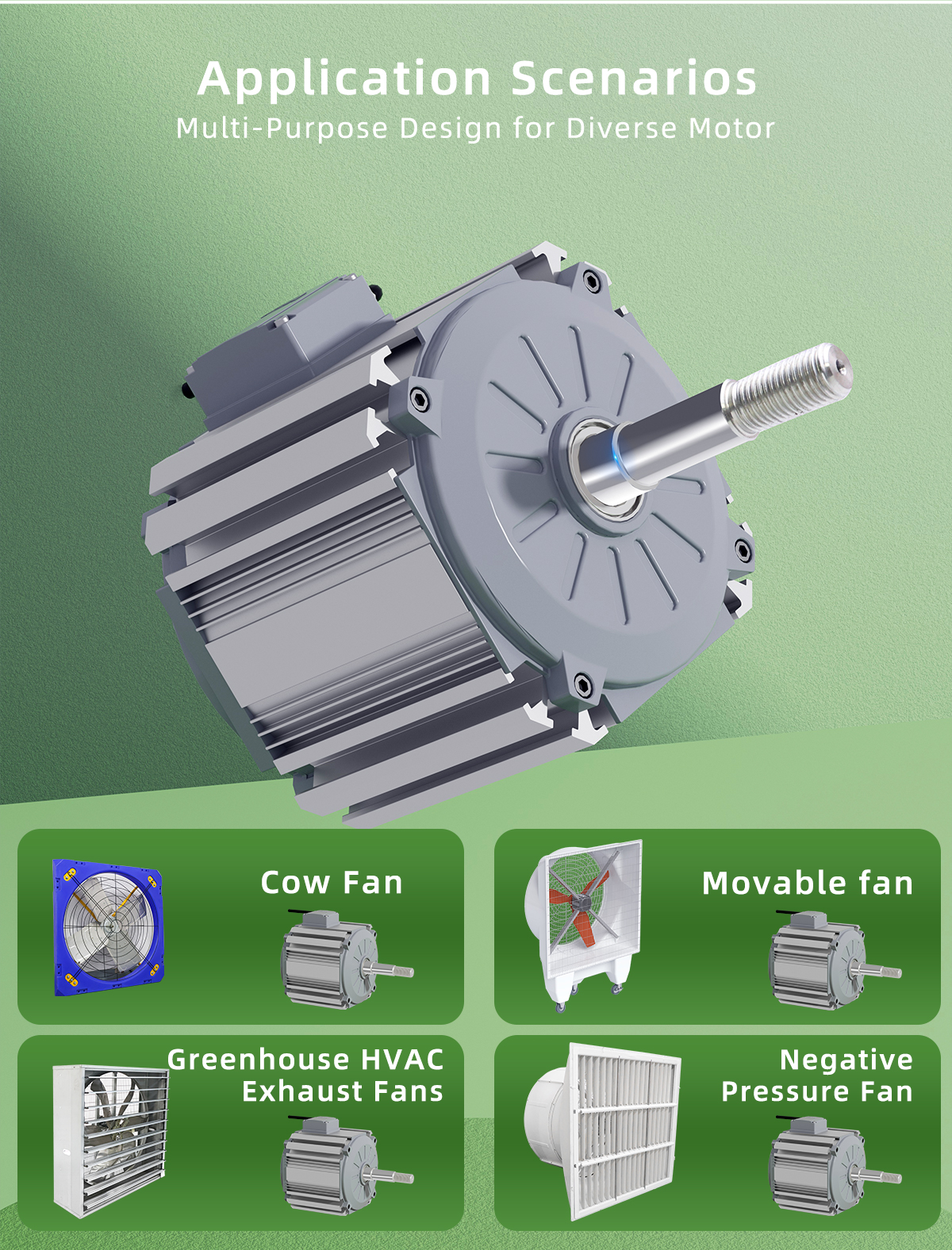

Where This EC Motor Is Used

Industrial exhaust and ventilation systems
Agricultural airflow and cooling equipment
High-speed EC fan and blower drive systems
Air handling and circulation equipment
Harsh-environment motor-driven applications

Contact us for pricing, full technical details, and available customization options.

Description
Tech Spec

EC Motor BL190190-01

EC Motor BL190190-01 is engineered for applications requiring efficient high-speed operation, precise speed regulation, and long-term operational reliability. Powered at 380 VAC, it operates at a rated speed of 960 RPM with an adjustable speed range from 220 to 1060 RPM, delivering 370 W rated power while maintaining 2.7 N·m output torque.

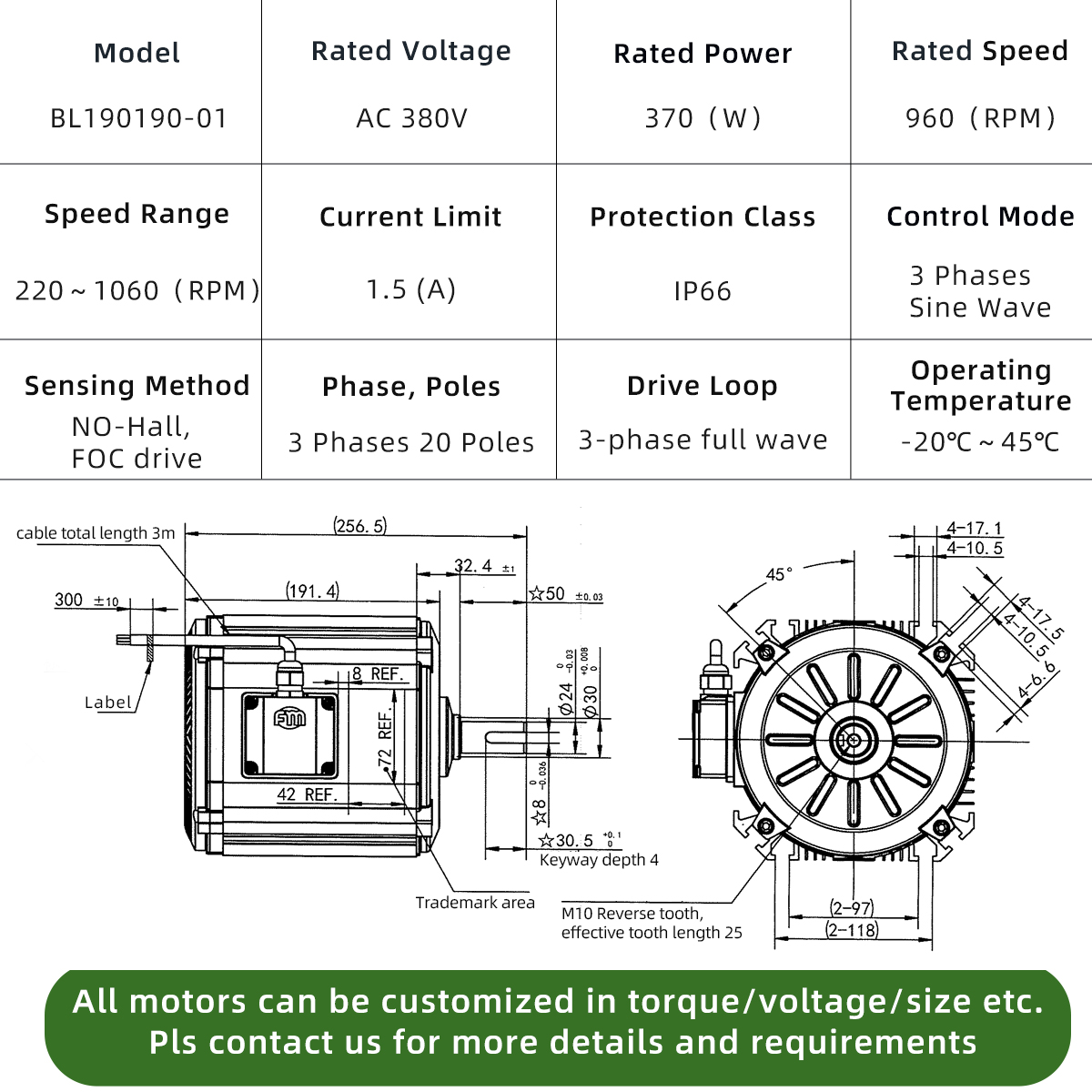

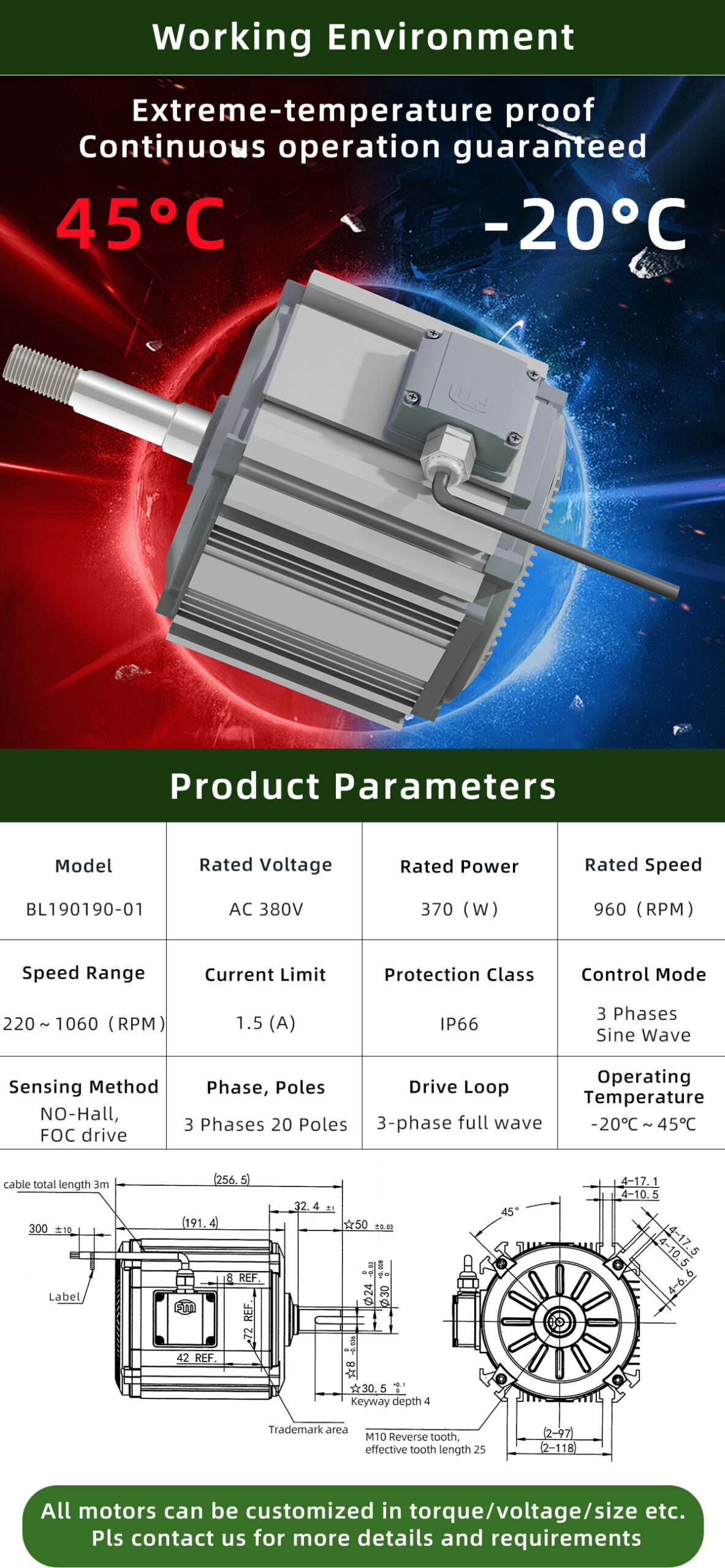

The motor incorporates advanced electrical and control features:

Rated Voltage: 380 VAC
Rated Power: 370 W
Rated Speed: 960 RPM
Speed Range: 220–1060 RPM
Rated Current: 1.5 A

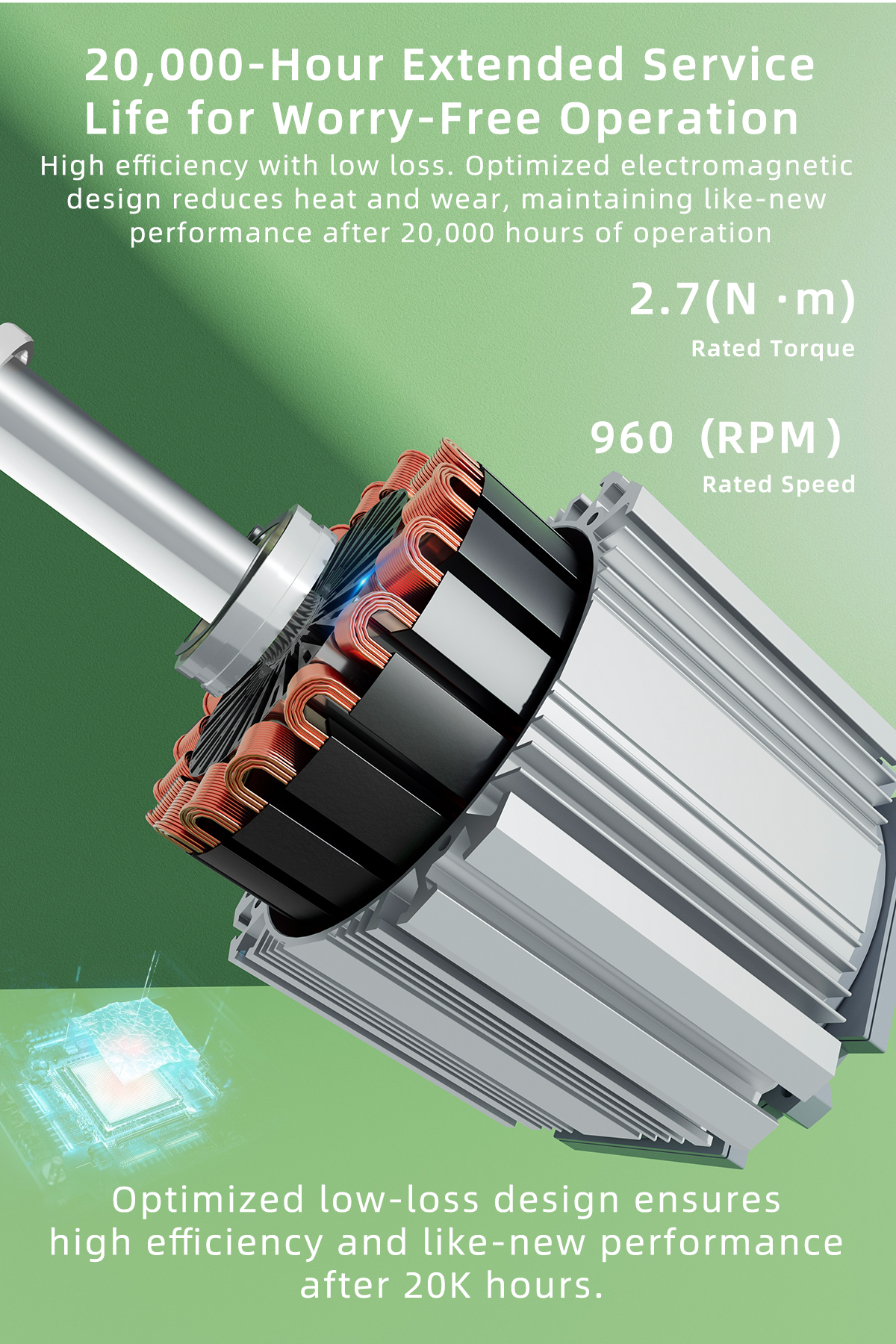

Rated Torque: 2.7 N·m
Control Mode: 3-phase sine wave
Sensing Method: No-Hall, FOC drive
Phase / Poles: 3 phases, 20 poles
Drive Loop: 3-phase full wave
Protection Rating: IP66

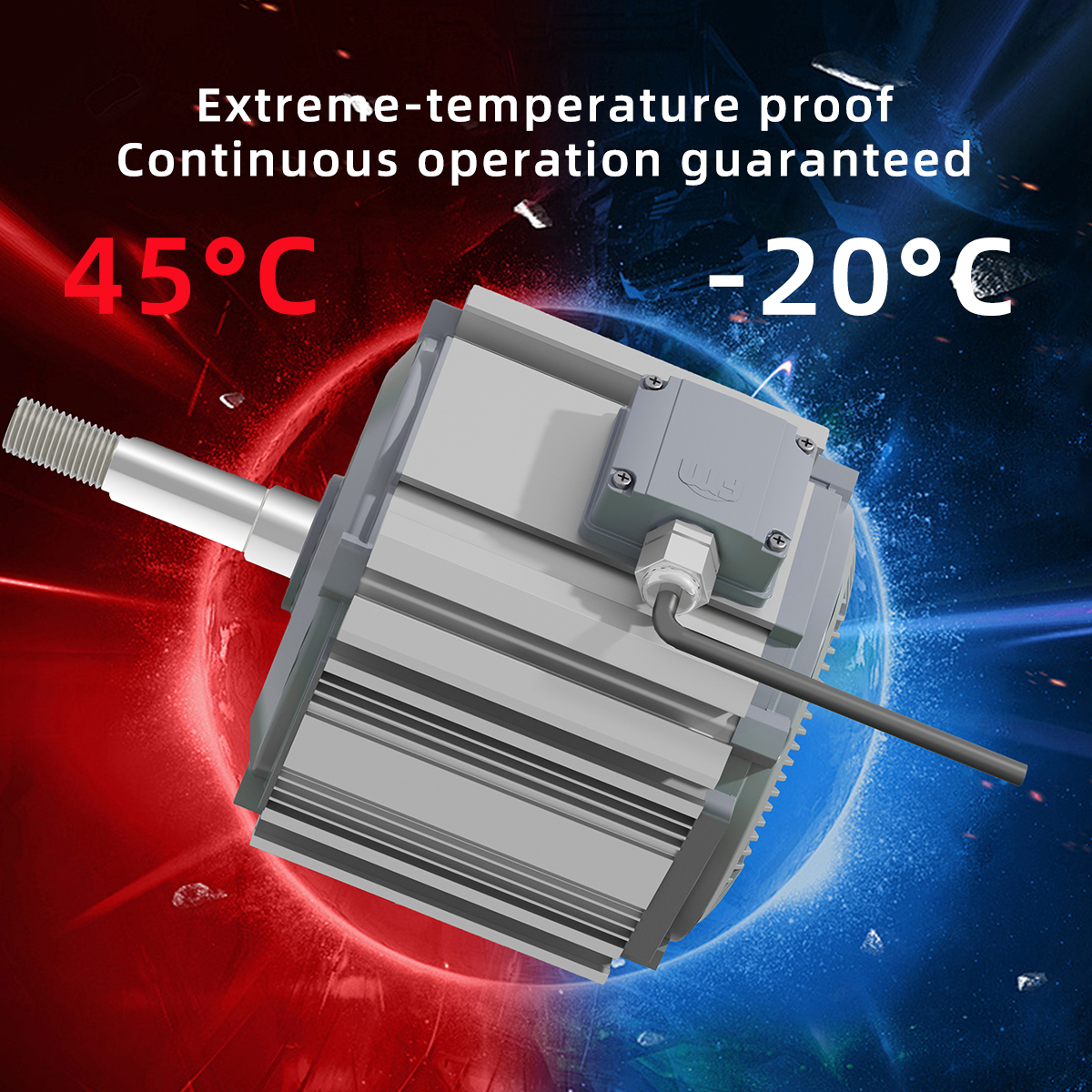

Operating Temperature: −20 °C to +45 °C

The BL190190-01 is ideal for EC fan drives, exhaust systems, and other industrial or agricultural equipment that require efficient airflow generation, smooth speed control, and durable motor performance.
