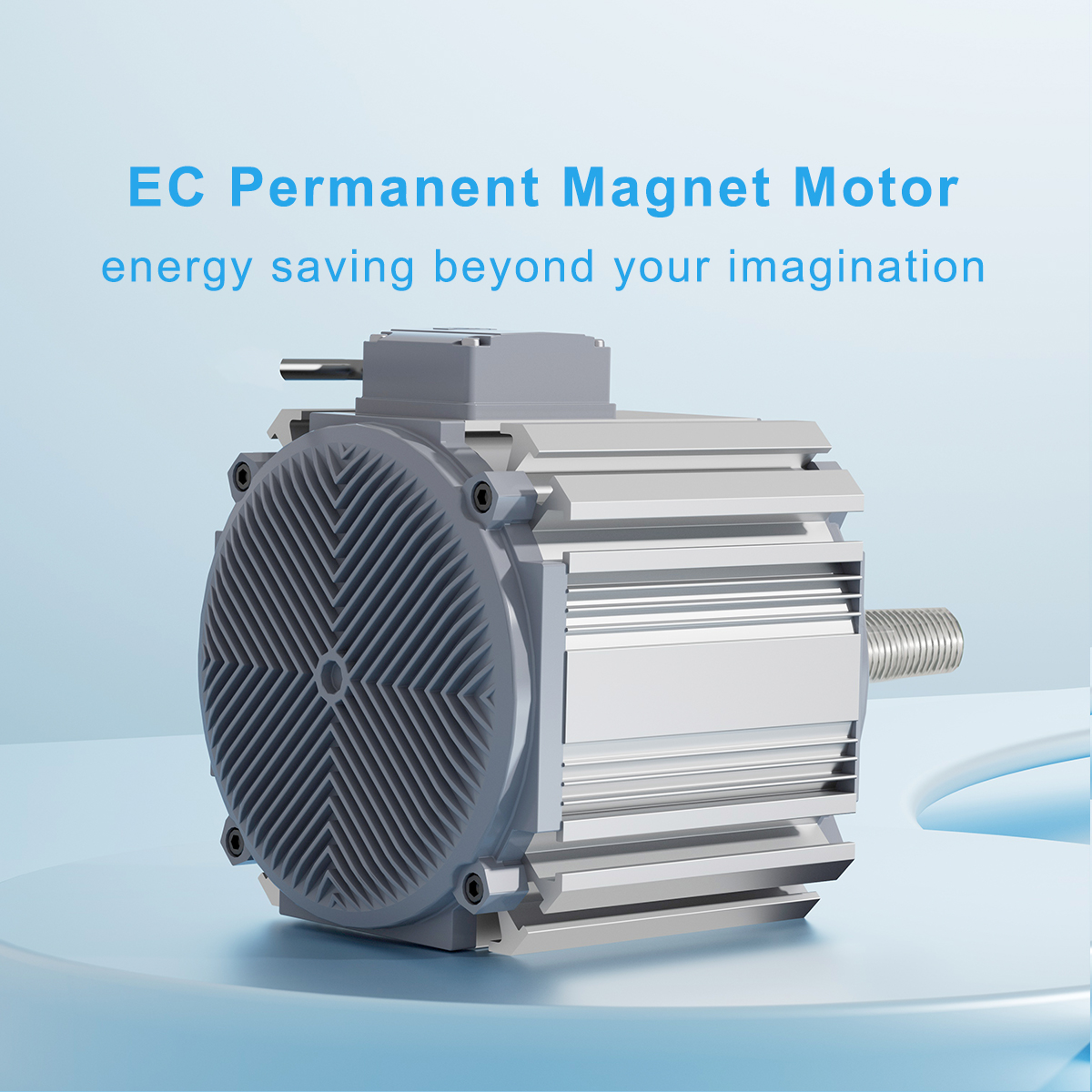

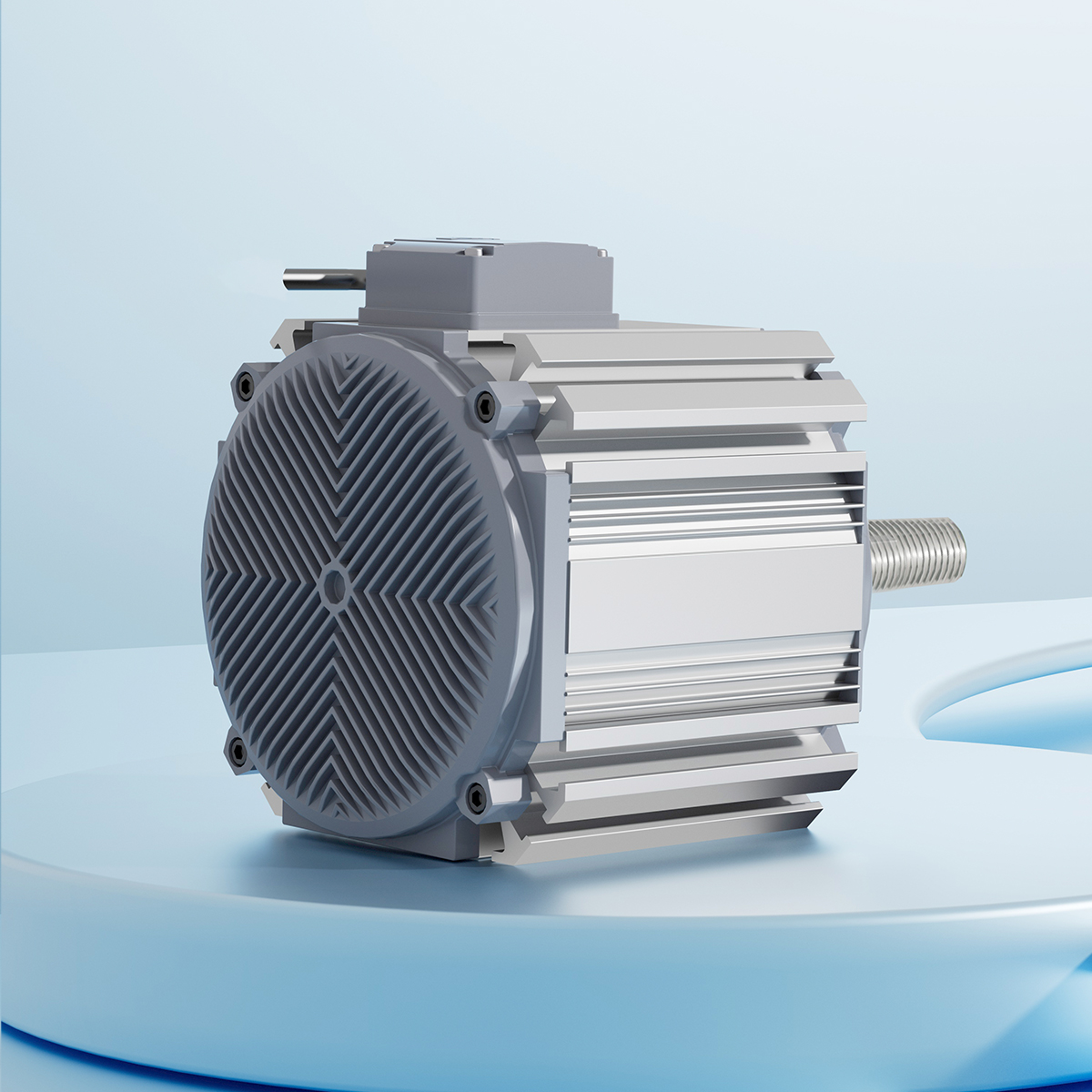

EC Motor BL190200-01

The BL190200-01 is a high-speed EC motor delivering adjustable speed from 220 to 1450 RPM with 1050 W rated power and 9 N·m torque, operating at 380 VAC, designed for industrial and agricultural exhaust applications requiring strong airflow performance and reliable continuous operation.

Why Choose This EC Motor

High-speed operation for strong airflow performance
Wide speed range for flexible system control
3-phase sine-wave control for smooth and low-noise operation
Sensorless FOC drive for high efficiency and reduced maintenance
IP66-rated protection for harsh industrial and agricultural environments

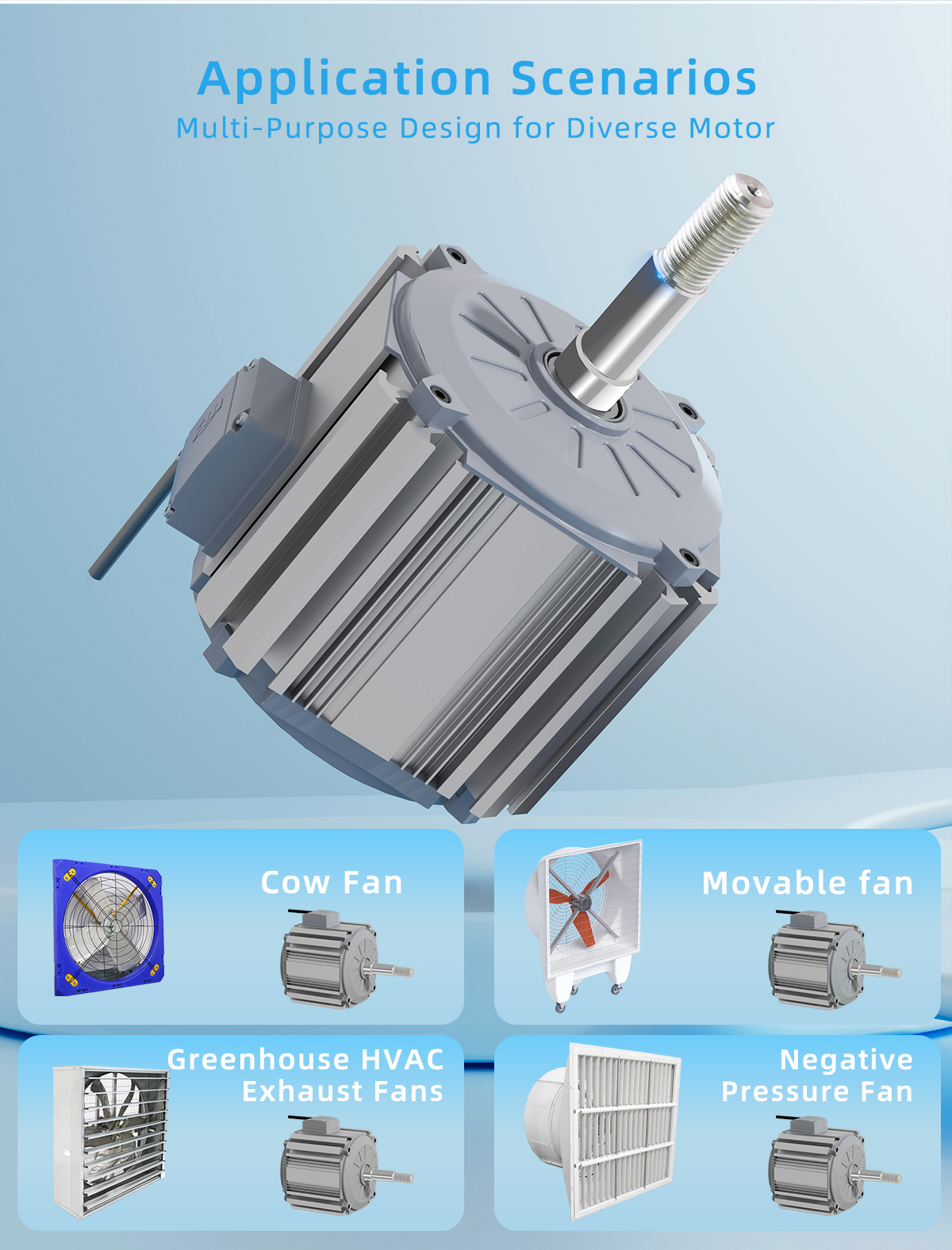

Where This EC Motor Is Used

Industrial exhaust and ventilation systems
Agricultural ventilation and cooling equipment
High-speed EC fan and blower drive systems
Air handling units and circulation equipment
Harsh-environment motor-driven applications

Contact us for pricing, full technical details, and available customization options.

Description
Tech Spec

EC Motor BL190200-01

EC Motor BL190200-01 is engineered for applications requiring high-speed operation, precise speed regulation, and long-term operational reliability. Powered at 380 VAC, it operates at a rated speed of 1450 RPM with an adjustable speed range from 220 to 1450 RPM, delivering 1050 W rated power while maintaining 9 N·m output torque.

The motor incorporates advanced electrical and control features:

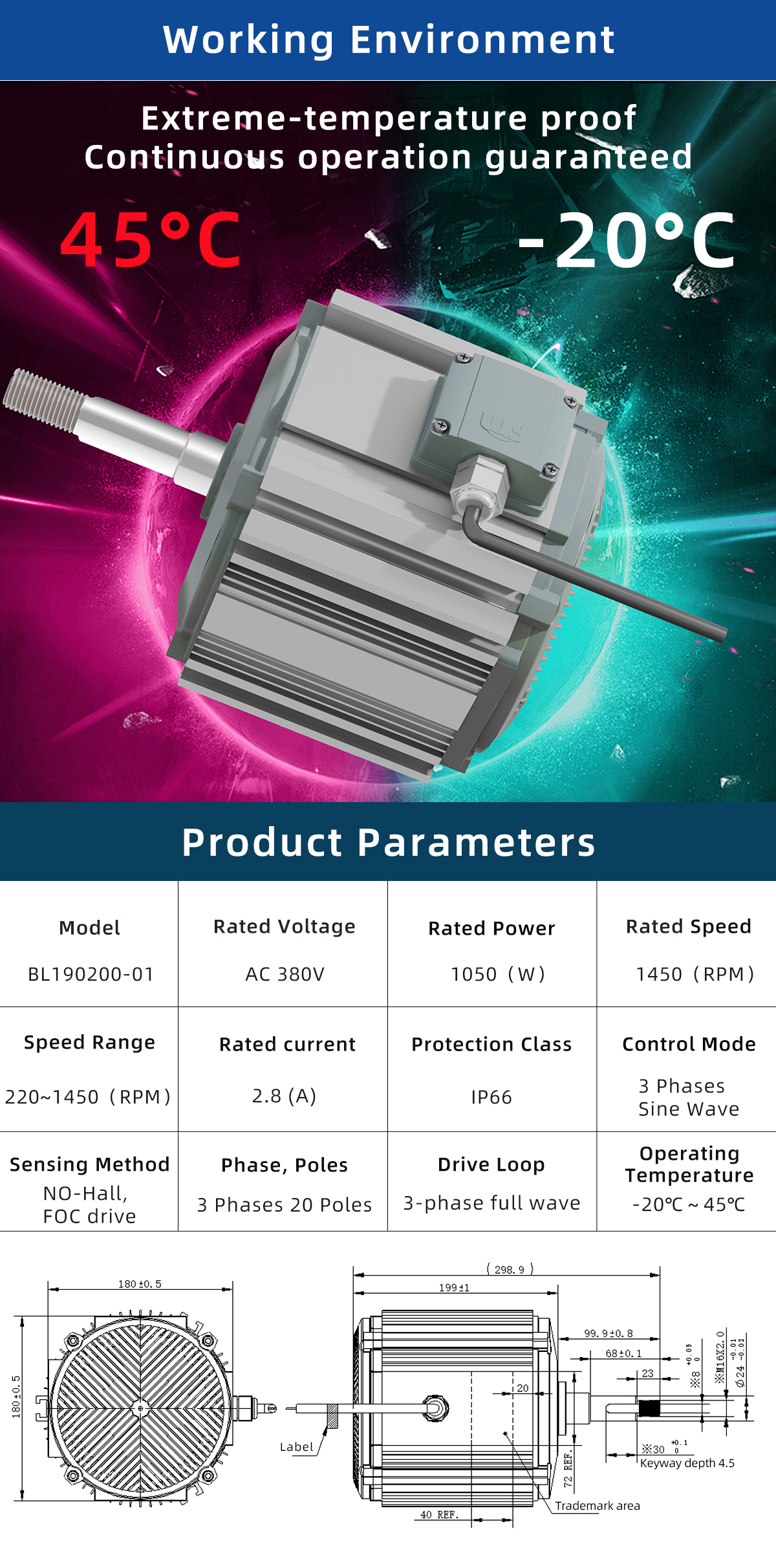

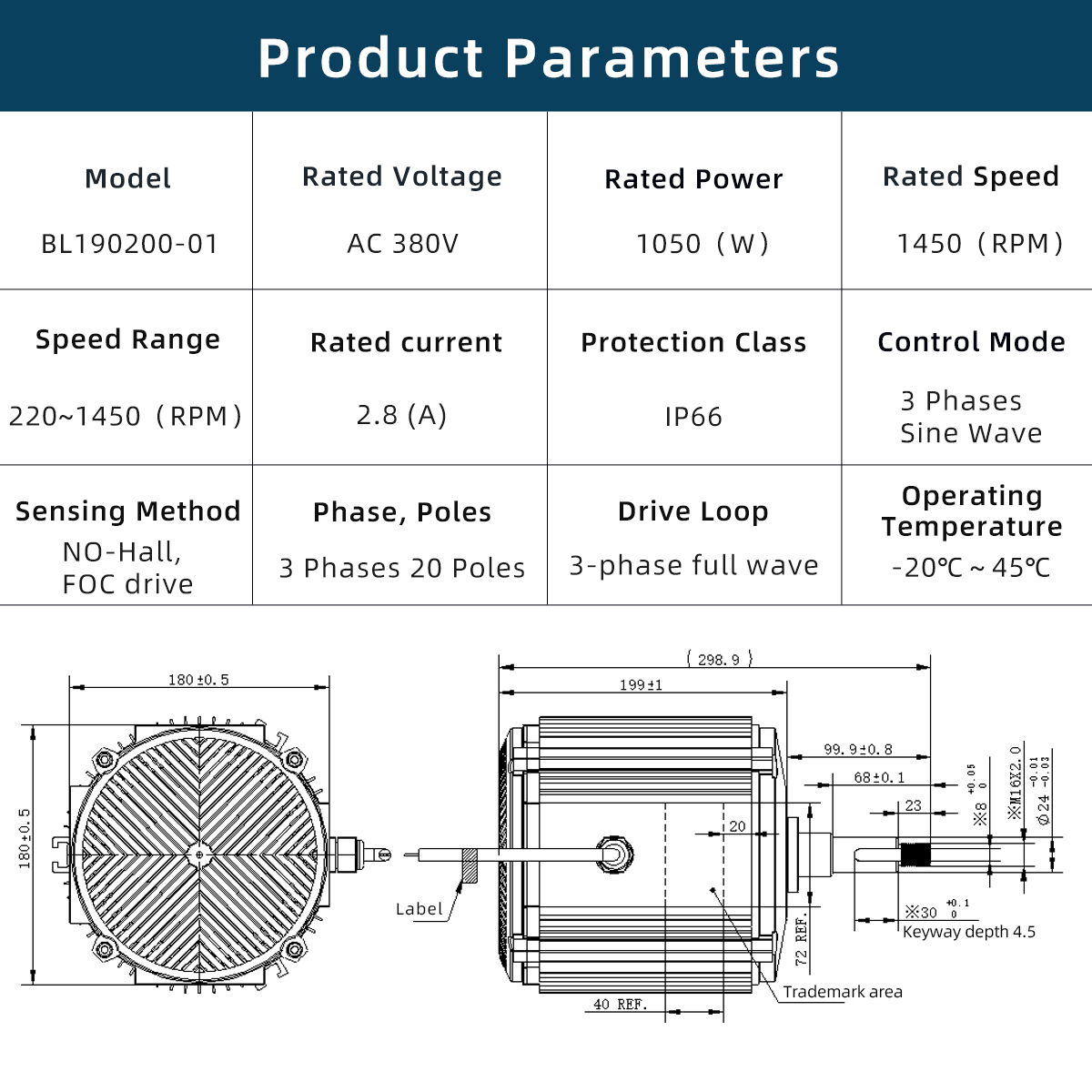

Rated Voltage: 380 VAC
Rated Power: 1050 W
Rated Speed: 1450 RPM
Speed Range: 220–1450 RPM
Rated Current: 2.8 A
Rated Torque: 9 N·m
Control Mode: 3-phase sine wave
Sensing Method: No-Hall, FOC drive
Phase / Poles: 3 phases, 20 poles
Drive Loop: 3-phase full wave
Protection Rating: IP66
Operating Temperature: −20 °C to +45 °C

The BL190200-01 is ideal for EC fan drives, high-capacity exhaust systems, and other industrial or agricultural equipment that require efficient airflow generation, smooth speed control, and durable motor performance.
