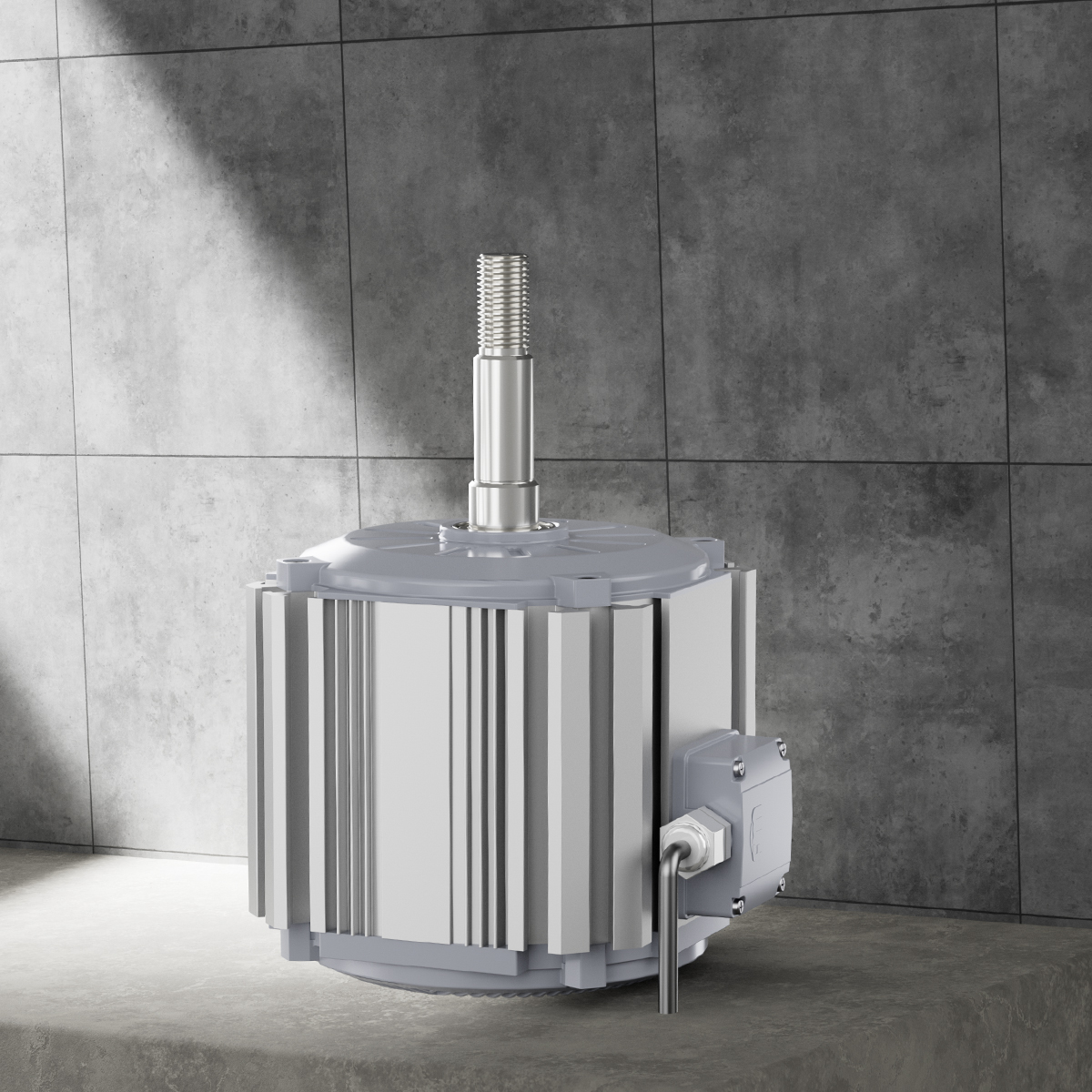

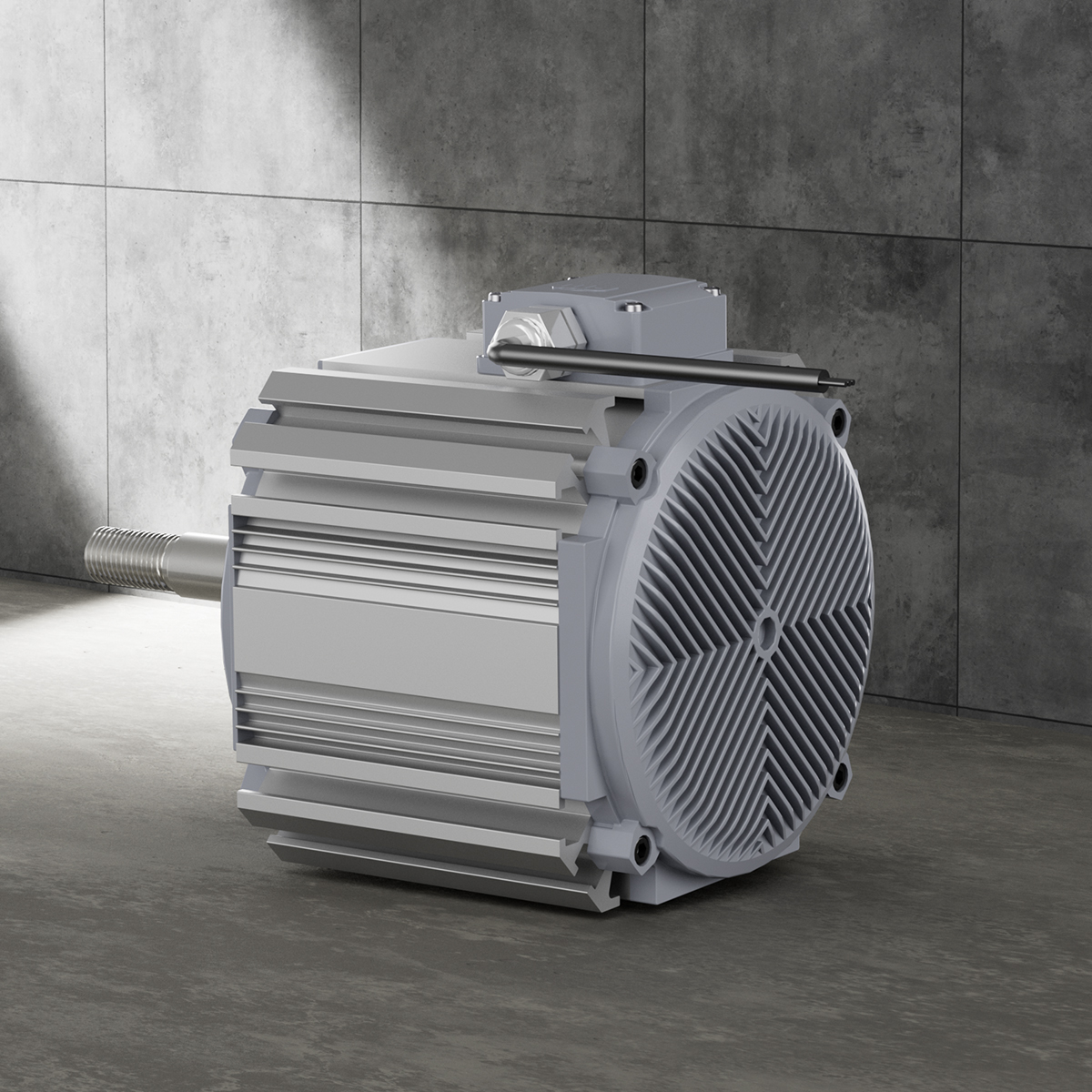

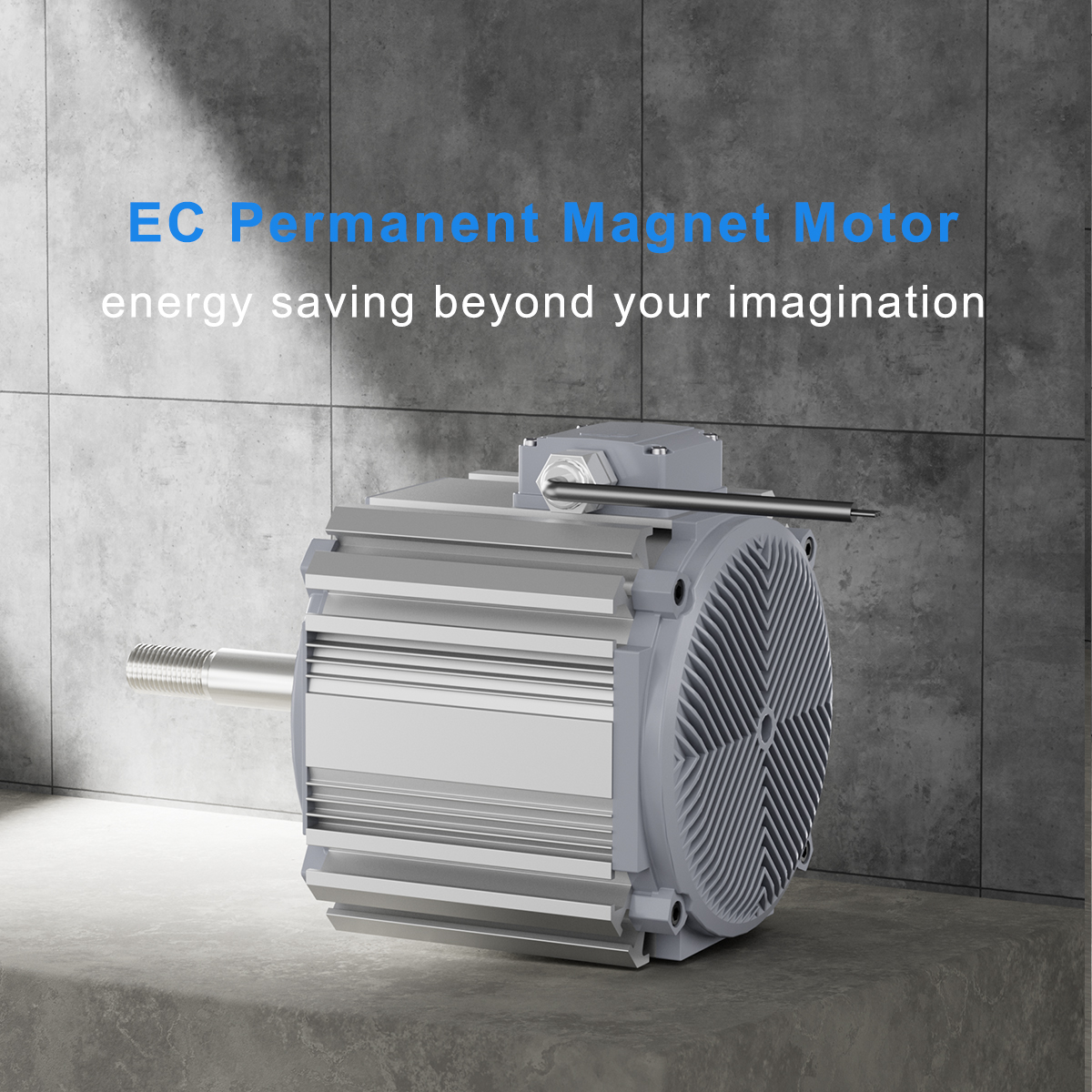

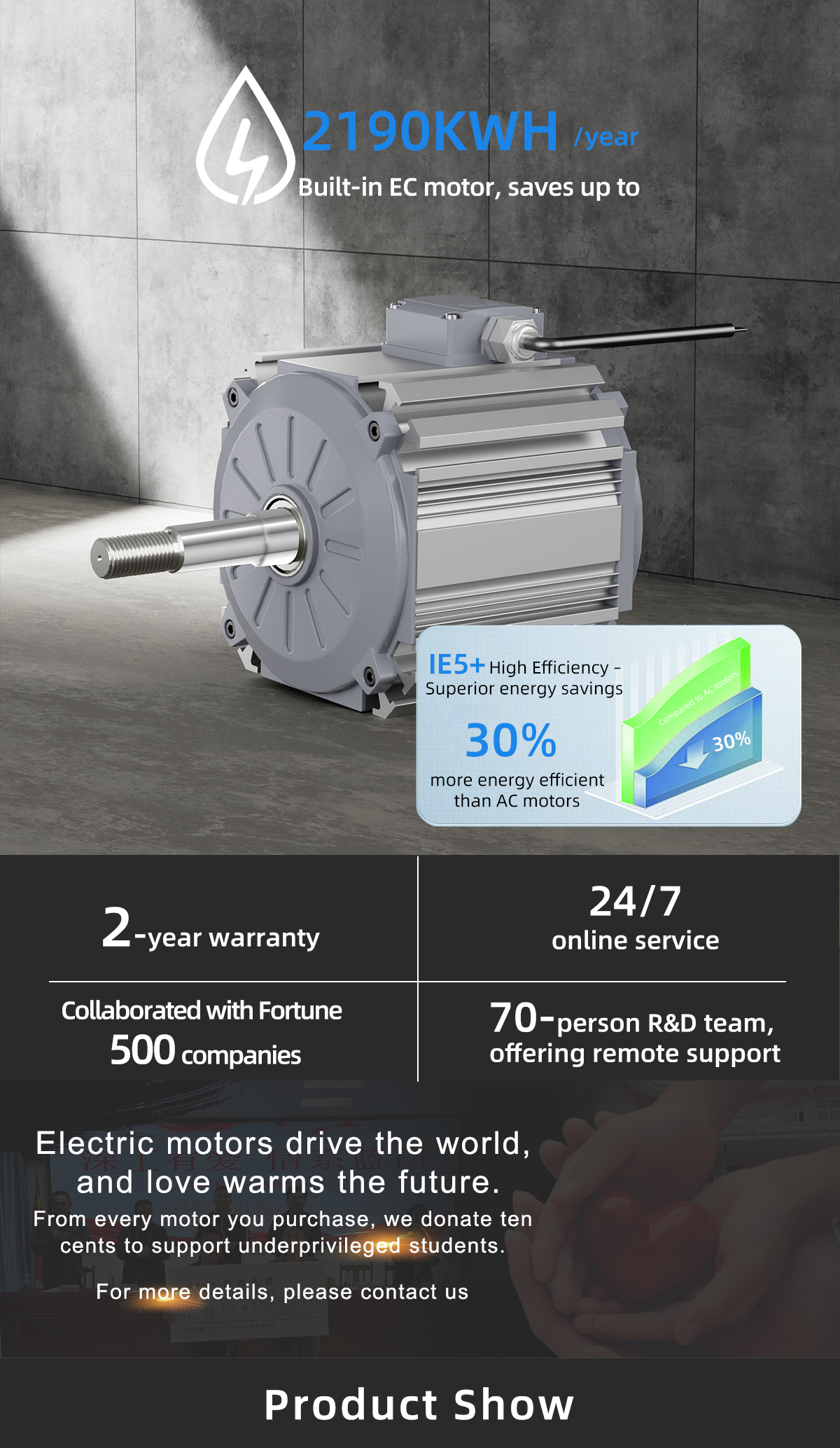

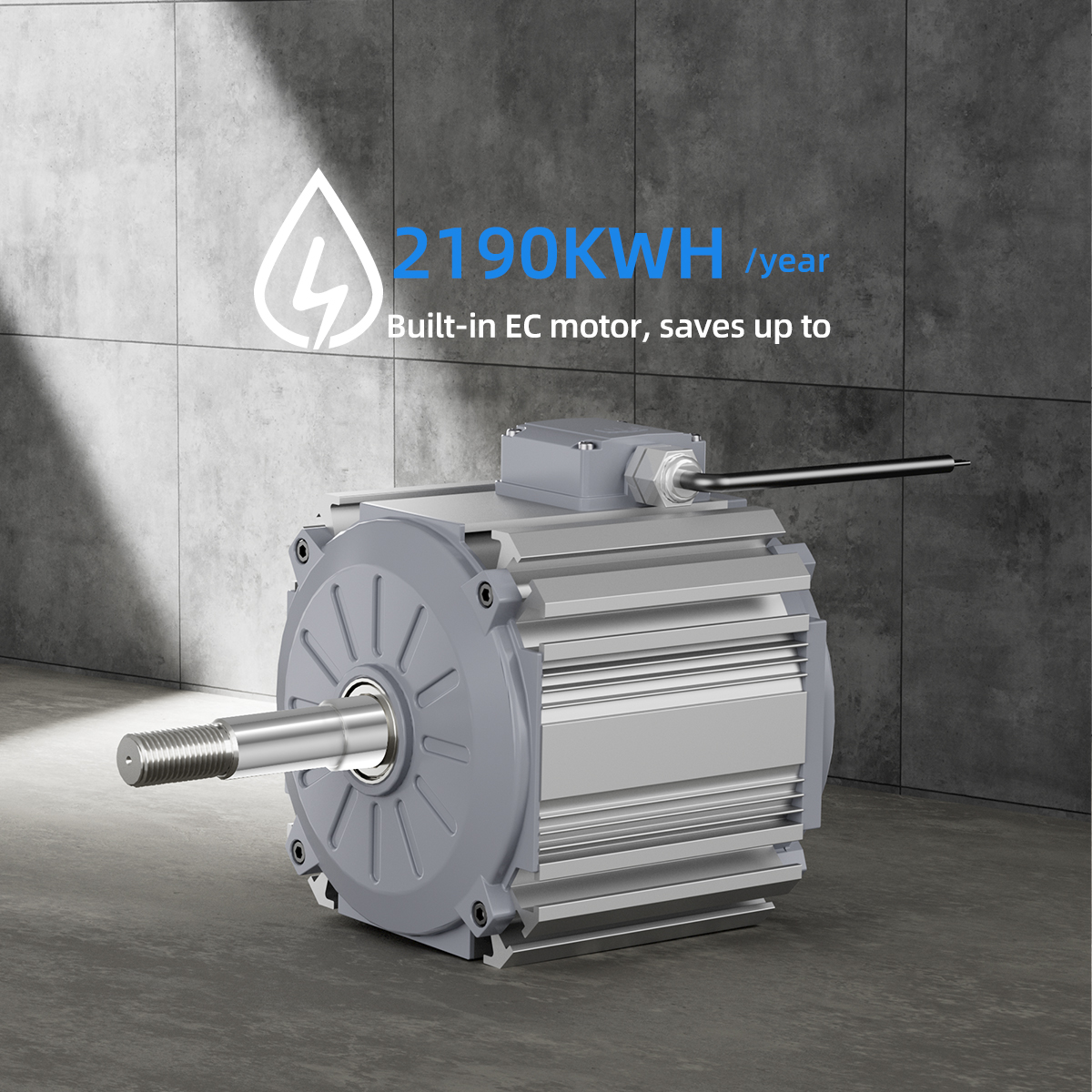

EC Motor BL190230-01

The BL190230-01 is a high-power, high-torque EC motor delivering adjustable speed from 220 to 720 RPM with 1500 W rated power and 15.84 N·m torque, operating at 380 VAC, designed for industrial and agricultural exhaust applications requiring strong load capacity and stable low-speed operation.

Why Choose This EC Motor

High torque output for heavy-load, low-speed operation
Wide speed range for flexible airflow and system control
3-phase sine-wave control for smooth and low-noise performance
Sensorless FOC drive for high efficiency and low maintenance
IP66-rated protection for harsh industrial and agricultural environments

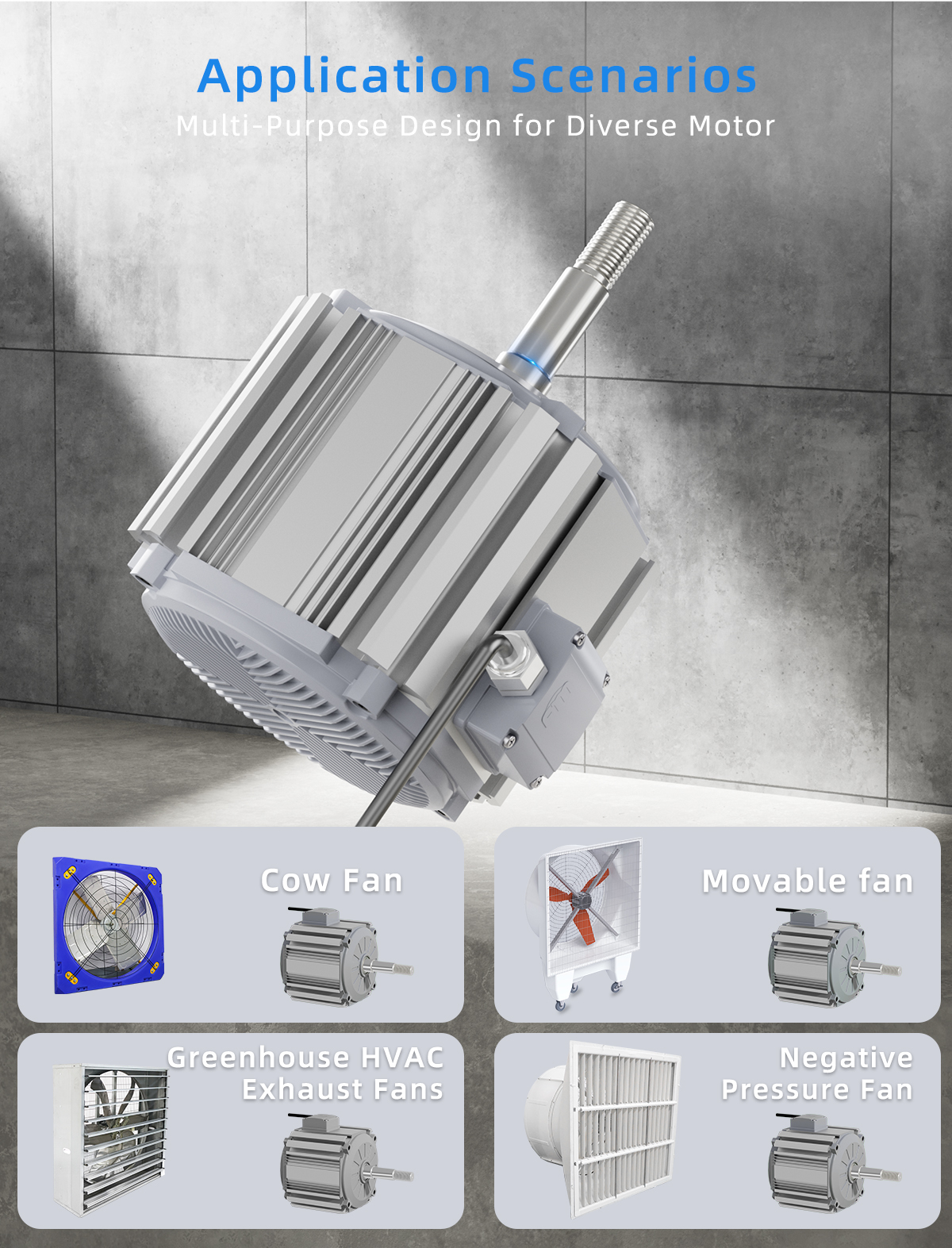

Where This EC Motor Is Used

Industrial exhaust and ventilation systems
Agricultural ventilation and cooling equipment

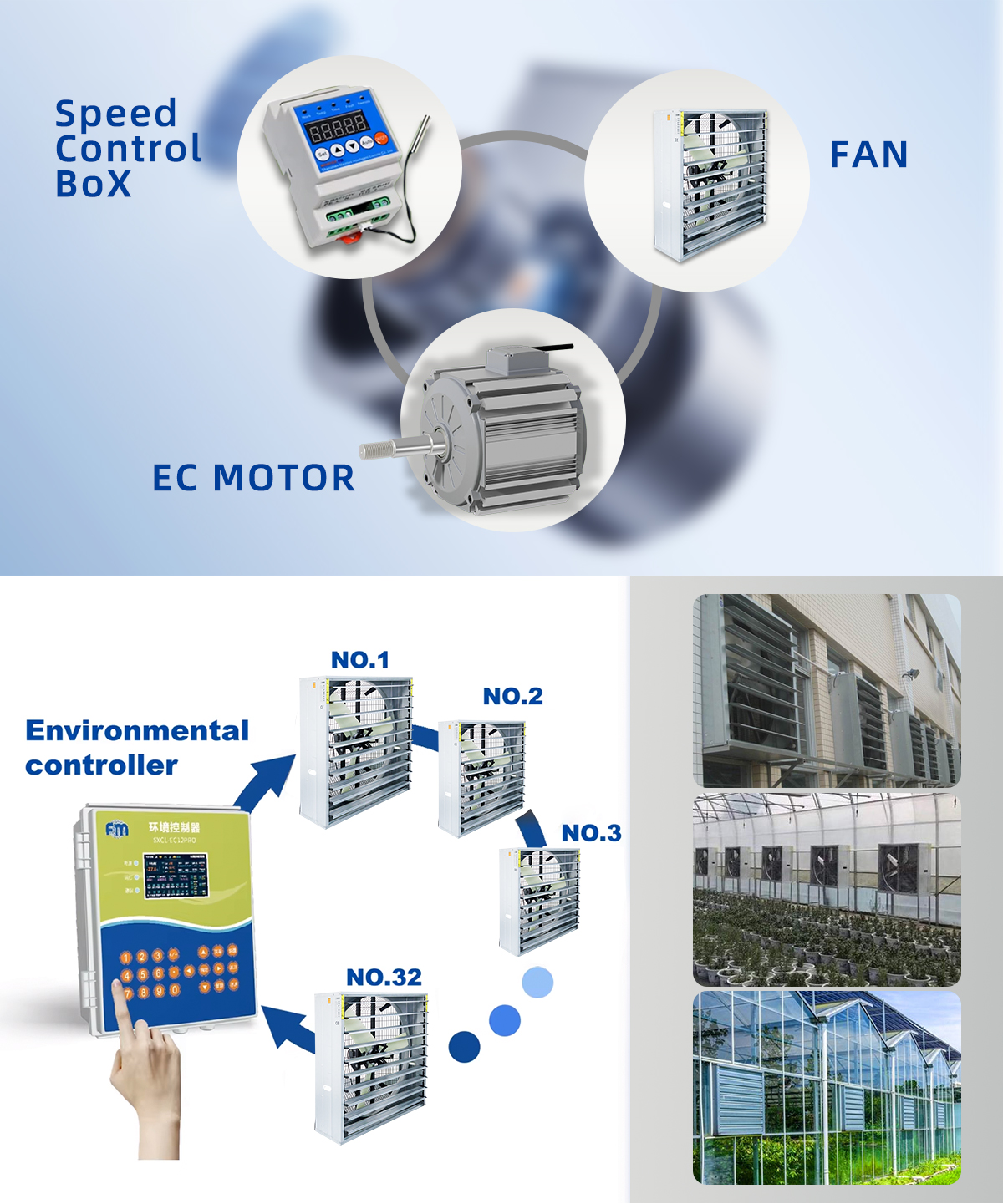

High-torque EC fan and blower drive systems
Air handling units and circulation equipment
Harsh-environment motor-driven applications

Contact us for pricing, full technical details, and available customization options.

Description
Tech Spec

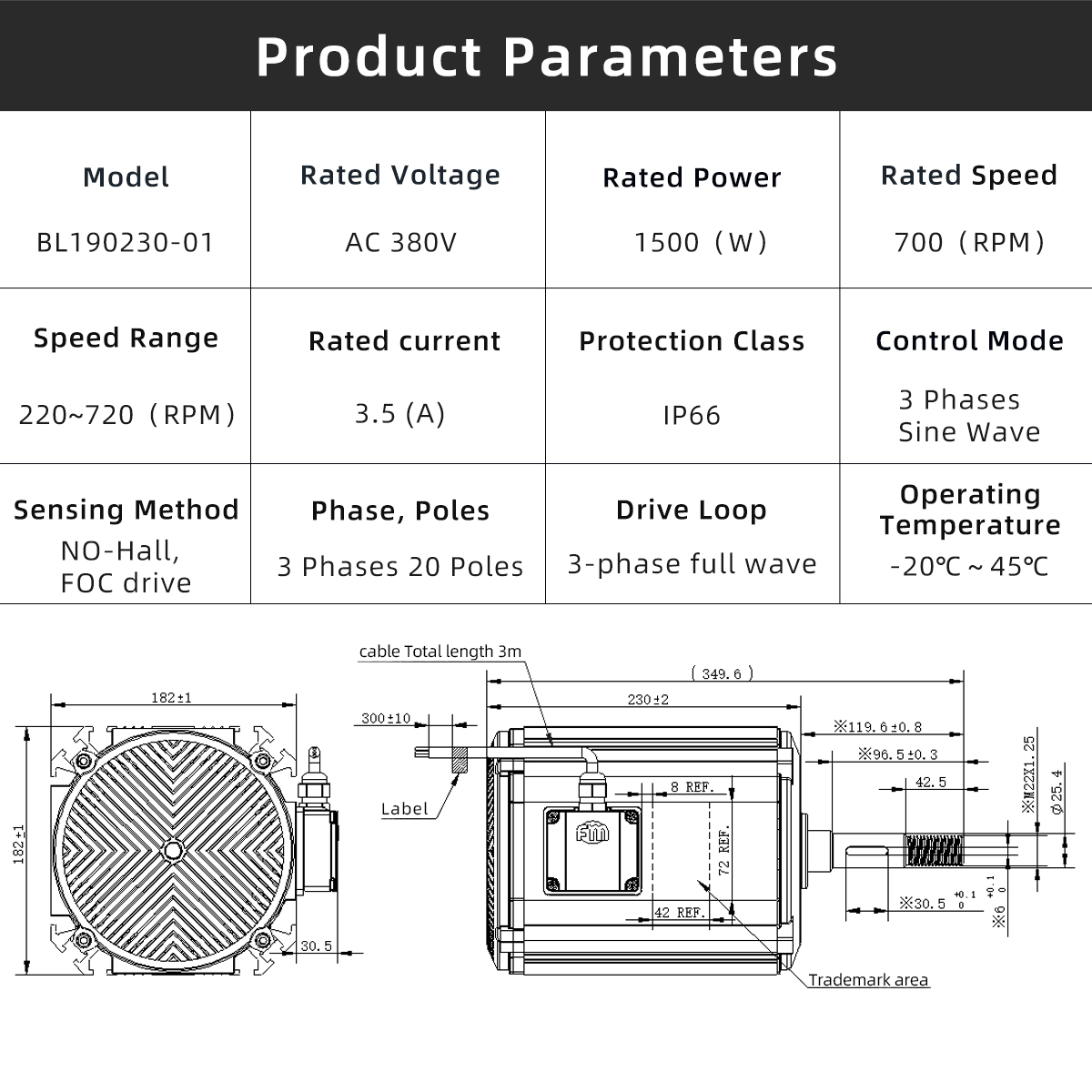

EC Motor BL190230-01

EC Motor BL190230-01 is engineered for applications requiring high torque at low-to-medium operating speeds, precise speed regulation, and long-term operational reliability. Powered at 380 VAC, it operates at a rated speed of 700 RPM with an adjustable speed range from 220 to 720 RPM, delivering 1500 W rated power while maintaining 15.84 N·m output torque.

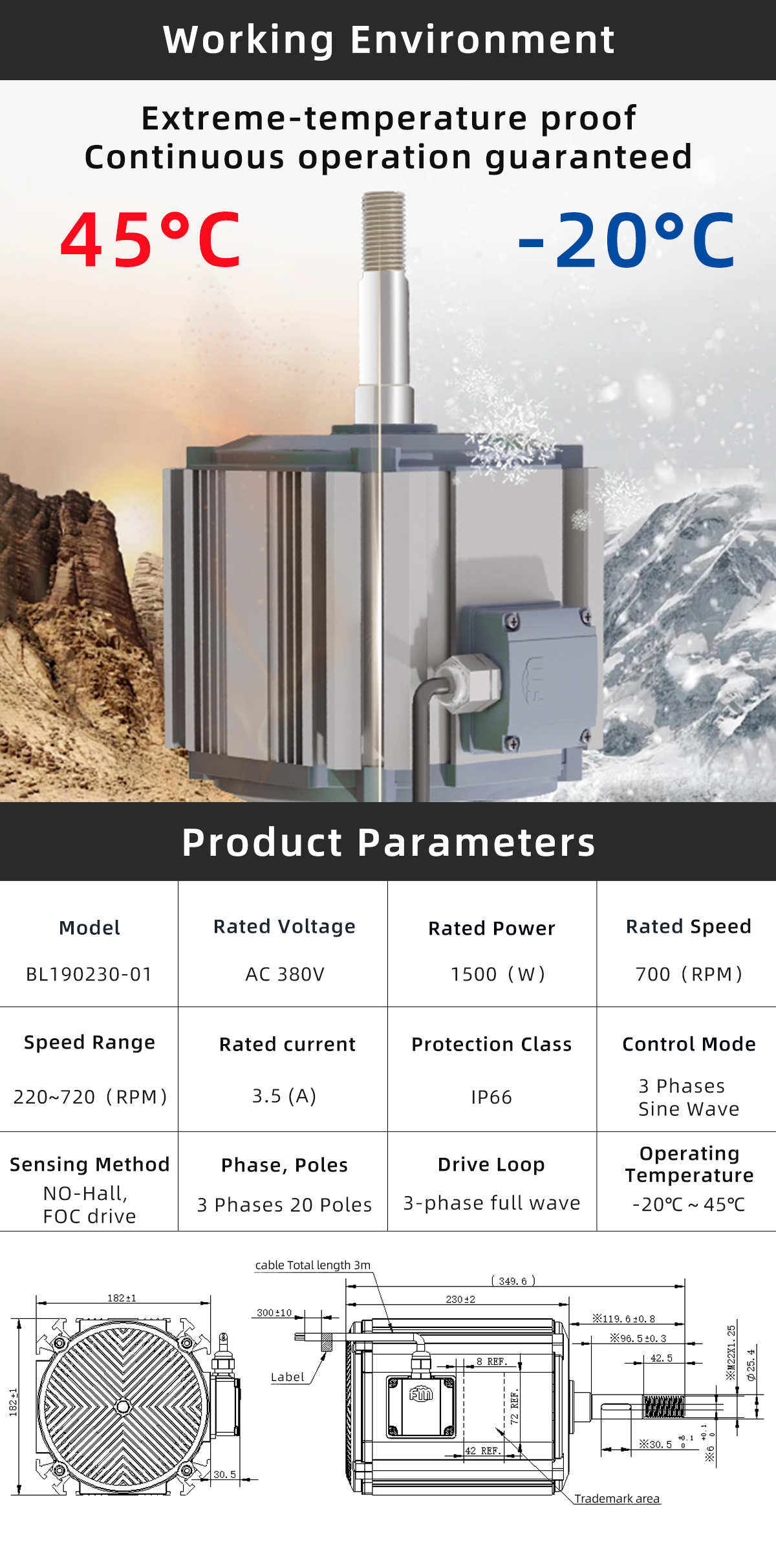

The motor incorporates advanced electrical and control features:

Rated Voltage: 380 VAC
Rated Power: 1500 W
Rated Speed: 700 RPM
Speed Range: 220–720 RPM
Rated Current: 3.5 A

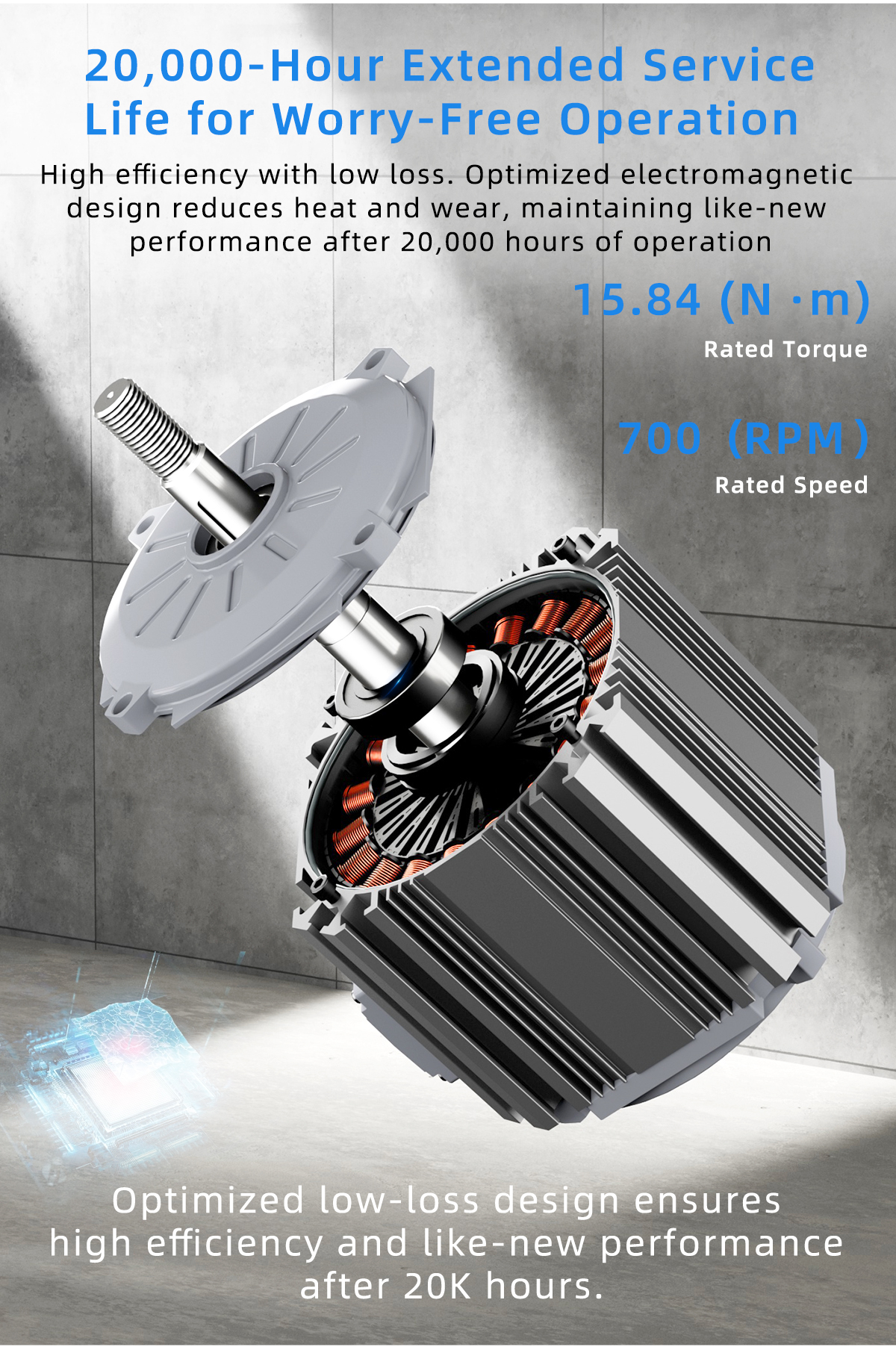

Rated Torque: 15.84 N·m
Control Mode: 3-phase sine wave
Sensing Method: No-Hall, FOC drive
Phase / Poles: 3 phases, 20 poles
Drive Loop: 3-phase full wave
Protection Rating: IP66

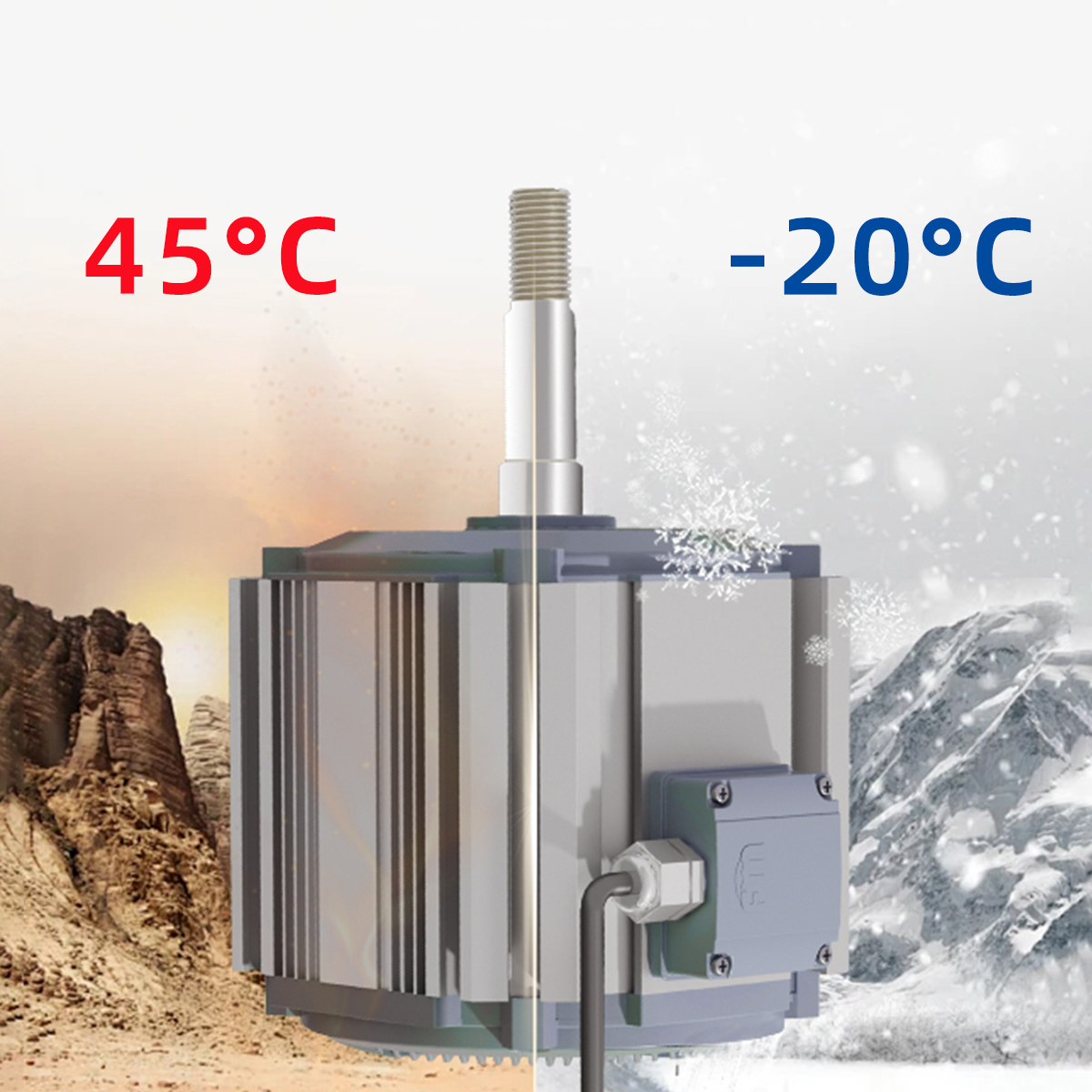

Operating Temperature: −20 °C to +45 °C

The BL190230-01 is ideal for EC fan drives, heavy-duty exhaust systems, and other industrial or agricultural equipment that require strong torque output, smooth speed control, and environmental durability.
