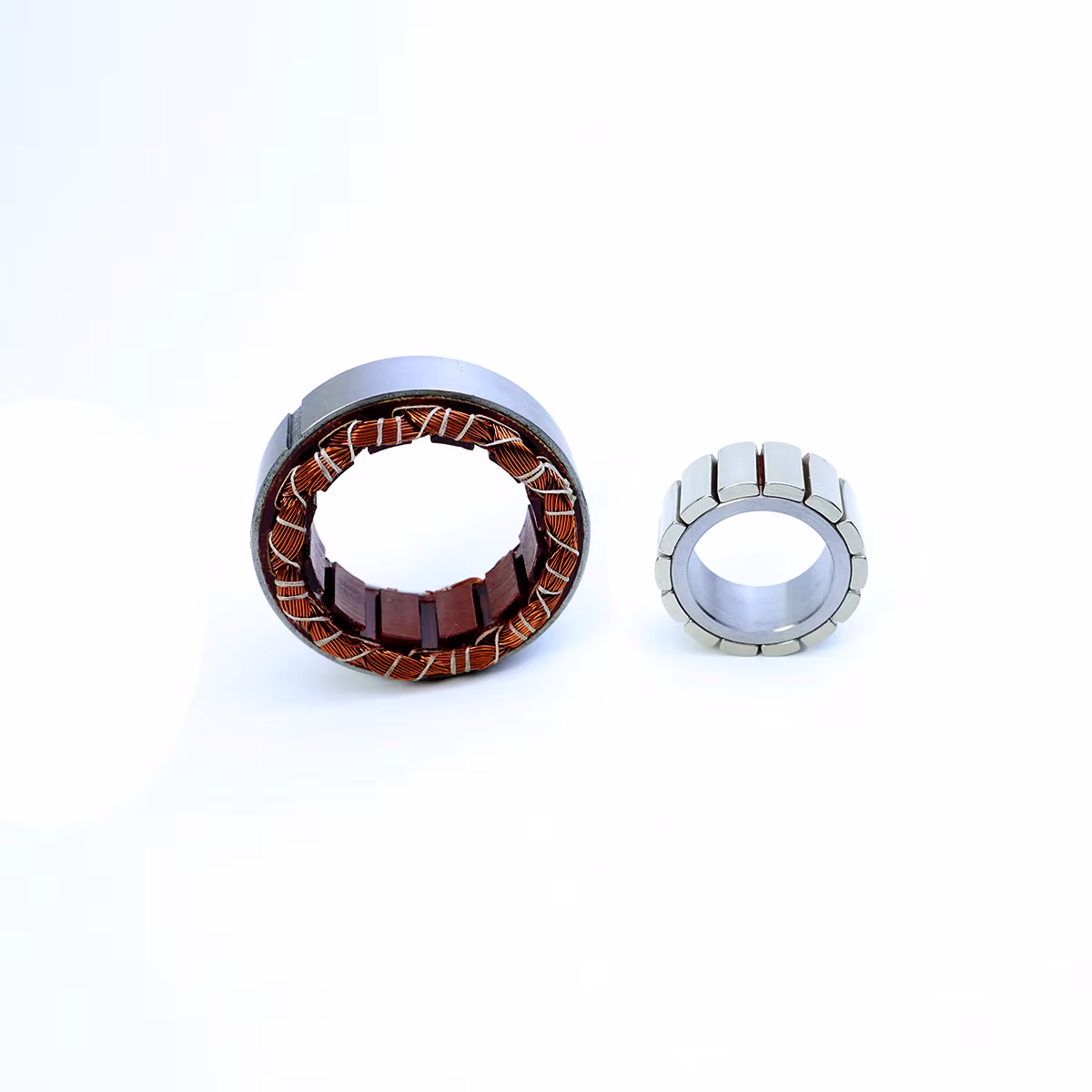

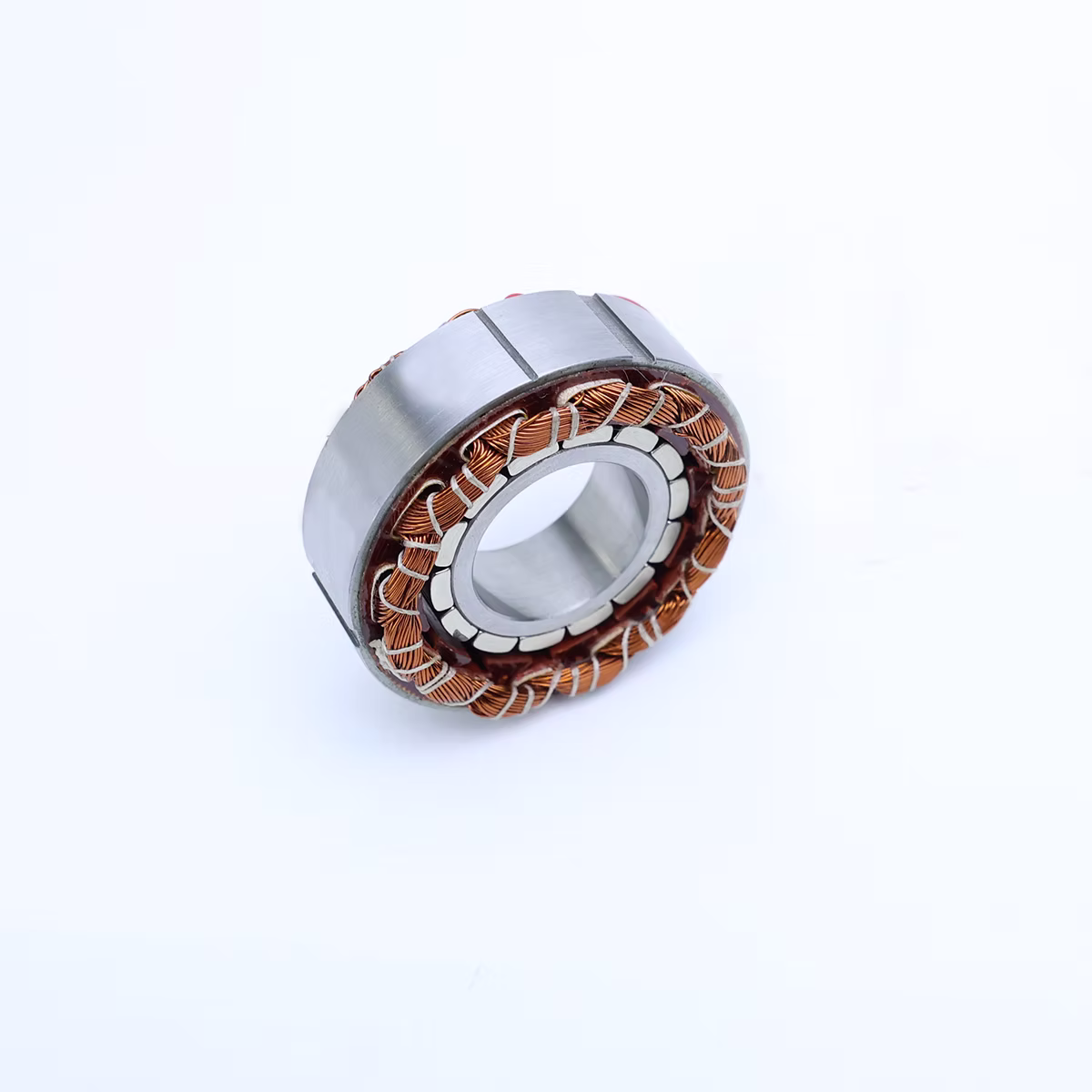

Frameless Torque Motor 60LW01B

Frameless Torque Motor 60LW01B is engineered for compact, high-speed direct-drive applications where responsiveness, smooth motion, and easy integration are essential. Powered at 48 VDC, it reaches 4000 RPM while maintaining 0.27 N·m rated torque and 1.37 N·m peak torque, enabling accurate and dynamic motion control.

The motor features a 10 pole-pair configuration with balanced electrical characteristics:

• Rated Current: 2.7 A

• Peak Current: 13 A

• Resistance: 0.75 Ω

• Inductance: 0.39 mH

• Back-EMF Constant: 7.2 Vrms/krpm

With an outer diameter of 60 mm, height of 22.6 mm, and 211 g weight, the 60LW01B is ideal for compact robotic actuators, high-speed automation equipment, and integrated direct-drive motion systems.

This specification table presents the fundamental electrical and mechanical characteristics required for proper application and system integration. Rated values indicate continuous operating conditions, while additional parameters highlight peak capabilities, performance limits, and control requirements. These specifications serve as essential design references for engineers evaluating compatibility, load conditions, and performance expectations.

The outline drawing provides the complete mechanical dimensions and installation interfaces for this product. It includes key measurements such as outer diameter, mounting points, shaft or bore sizes, tolerances, and required clearances to ensure correct fitment. These dimensions support accurate system design, housing layout, and seamless integration into a wide range of mechanical assemblies.
