Frameless Torque Motor 60LW08

Frameless Torque Motor 60LW08 is engineered for direct-drive systems where high rotational speed, compact form factor, and stable electrical performance are essential. Powered at 60 VDC, it reaches 6820 RPM while maintaining 0.62 N·m rated torque and 1.9 N·m peak torque, supporting fast and precise motion control.

The motor features a 7 pole-pair configuration with optimized electrical characteristics:

• Rated Current: 8 A

• Peak Current: 25 A

• Resistance: 0.12 Ω

• Inductance: 0.096 mH

• Back-EMF Constant: 5.01 Vrms/krpm

With an outer diameter of 60 mm, height of 39.9 mm, and 401.9 g weight, the 60LW08 is well suited for compact robotic actuators, high-speed automation equipment, and integrated direct-drive motion systems requiring low inertia and high responsiveness.

This specification table presents the fundamental electrical and mechanical characteristics required for proper application and system integration. Rated values indicate continuous operating conditions, while additional parameters highlight peak capabilities, performance limits, and control requirements. These specifications serve as essential design references for engineers evaluating compatibility, load conditions, and performance expectations.

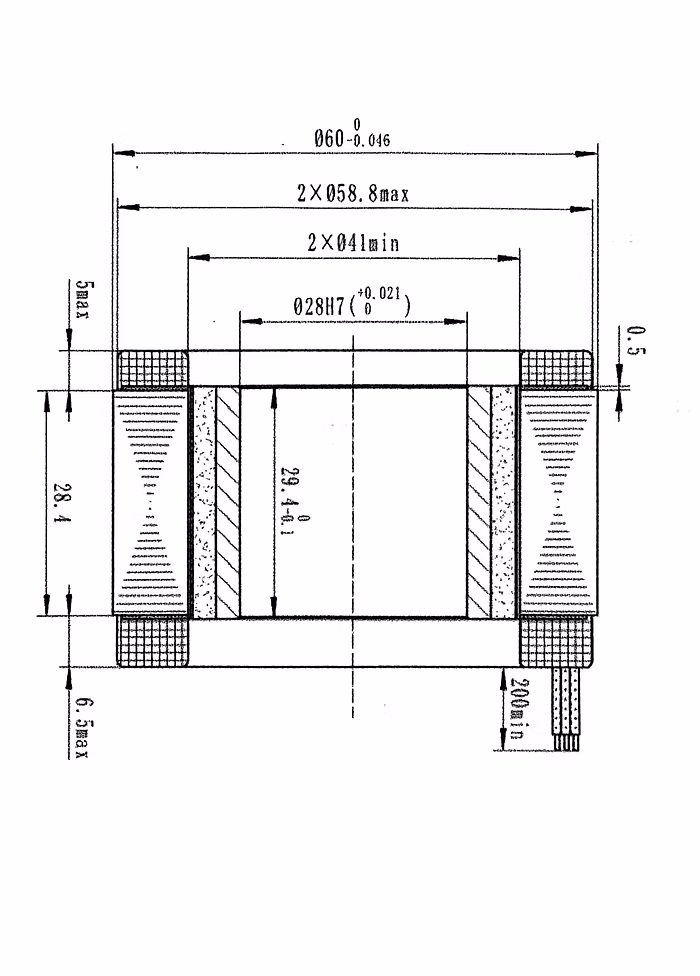

The outline drawing provides the complete mechanical dimensions and installation interfaces for this product. It includes key measurements such as outer diameter, mounting points, shaft or bore sizes, tolerances, and required clearances to ensure correct fitment. These dimensions support accurate system design, housing layout, and seamless integration into a wide range of mechanical assemblies.
